3-70 — BRAKE PIPING; AIR,AIR MASTER (#15838) — 133 parça

14 154 170 34 14 154 176 171 184 186 185 1 6 155 3 2 7 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=350	1-09363-558-0	01	1	9706-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9706-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9706-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	9706-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9706-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-922-0	01	1	9706-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	9706-
34	PIPE; AIR AIR DRYER<PS7>	1-49118-293-0	01	1	9706-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49118-296-0	01	1	9706-9910
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-147-0	01	1	9911-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9706-9910
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49118-403-0	01	1	9706-9803
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49119-460-0	01	1	9804-9910
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	9911-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1106 SERVICED BY L=1200	1-47426-352-0	01	1	9706-9803
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1112 SERVICED BY L=1200	1-47426-352-0	01	1	9804-9910
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=1137	1-49122-151-0	01	1	9911-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-972-0	01	1	9706-
184	HOSE; FLEX,AIR GOV L=350	1-09363-651-0	01	1	9706-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9706-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9706-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2 MAL	0-91510-512-0	01	1	0604-

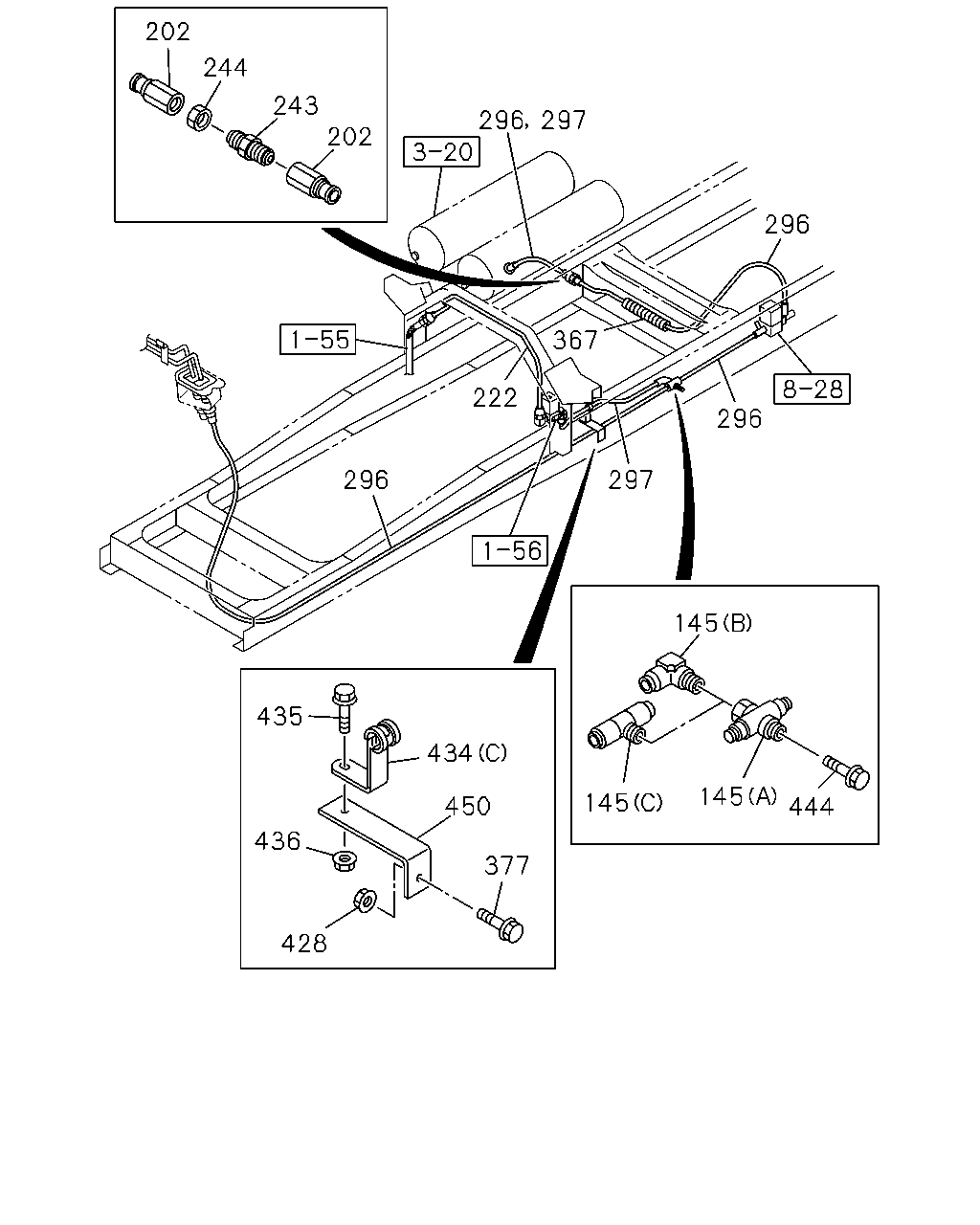

202 244 243 202 296 297 296 367 222 296 297 296 145 435 434 145 145 450 444 436 377 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
145	UNION; NYLON TUBE (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9706-
145	UNION; NYLON TUBE PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9706-9804
145	UNION; NYLON TUBE EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	9706-9804
145	UNION; NYLON TUBE (B) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	9805-
202	ADAPTER DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	9706-9802
202	ADAPTER DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	9706-9802
202	ADAPTER PTO CONTROL<SV6> DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	9706-9802
202	ADAPTER DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	9803-
202	ADAPTER DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	9803-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9706-
243	UNION; AIR PIPE M12 L=66.5	9-09223-306-1	01	1	9706-0607
243	UNION; AIR PIPE M12 L=66.5	0-92113-306-0	01	1	0608-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9706-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9706-9708
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0212
296	TUBE; NYLON EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9706-9708
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9706-9708
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9706-9708
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9709-9804
367	TUBE; CORRUGATE EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9805-
377	BOLT; BRKT FIX M8X25 FLANGE MAL	0-28680-825-0	01	1	9709-0512
377	BOLT; BRKT FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9709-0602
428	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
434	CLIP (A) ID=17	1-09987-105-1	01	1	9706-
434	CLIP (B)	8-94297-486-0	02	1	9706-
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9709-
435	BOLT; CLIP M8X20 FLANGE MAL	0-28680-820-0	01	1	9709-0512
435	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	01	1	0601-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9709-0602
436	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	01	1	0603-
444	BOLT; UNION M8X25 FLANGE MAL	0-28680-825-0	01	1	9706-0001
444	BOLT; UNION M8X20 FLANGE MAL	0-28080-820-0	01	1	0002-0512
444	BOLT; UNION M8X20 FLANGE MAL	0-28050-820-0	01	1	0601-
450	BRACKET; CLIP	1-47475-172-0	01	1	9709-9712
450	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	9801-

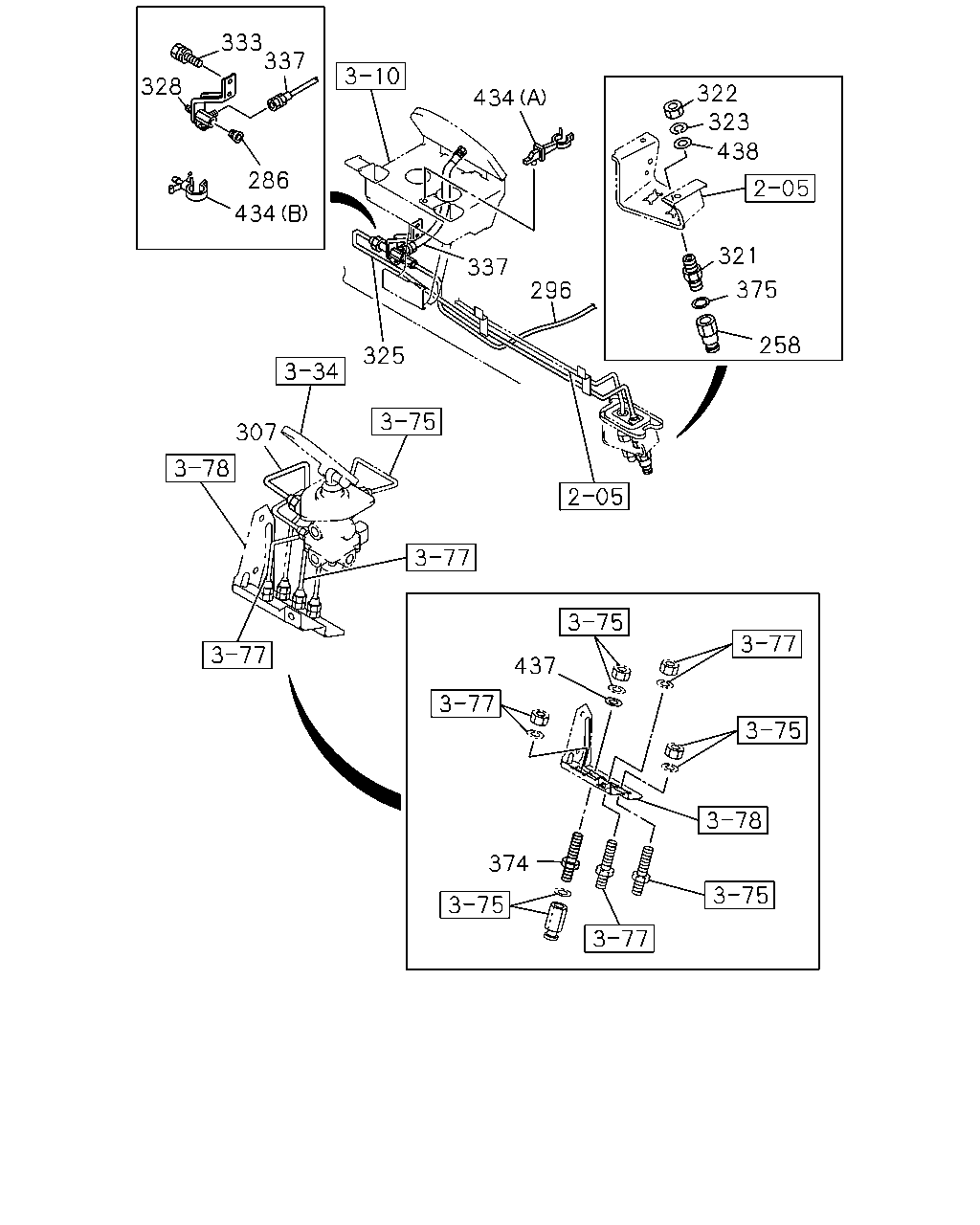

333 337 328 322 323 434 438 286 434 321 337 375 296 258 325 307 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	CONNECTOR; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9706-9811
258	CONNECTOR; NYLON TUBE DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
286	PLUG; AIR PIPE	9-09204-510-0	01	1	9706-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9706-9708
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9706-9801
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9802-9802
296	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9803
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9804
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9805-0212
296	TUBE; NYLON EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-47492-448-5	01	1	9706-9902
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	9903-
321	JOINT; FLEX HOSE	1-09654-362-1	01	1	9706-9811
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	9812-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	9706-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	9706-0603
323	WASHER; LK,JOINT ID=10.2 MAL	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	9706-
328	UNION; AIR PIPE	1-47470-362-2	01	1	9706-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	9706-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	9706-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-57210-810-0	01	1	0606-
374	CONNECTOR	1-09654-324-0	01	1	9706-9712
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	9801-
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9706-9811
434	CLIP (A) ID=17	1-09987-105-1	01	1	9706-
434	CLIP (B)	8-94297-486-0	02	1	9706-
434	CLIP (C) D=9 T=45	5-09700-021-0	01	1	9709-
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9706-0605
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9706-
