Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#1583) — 290 parça

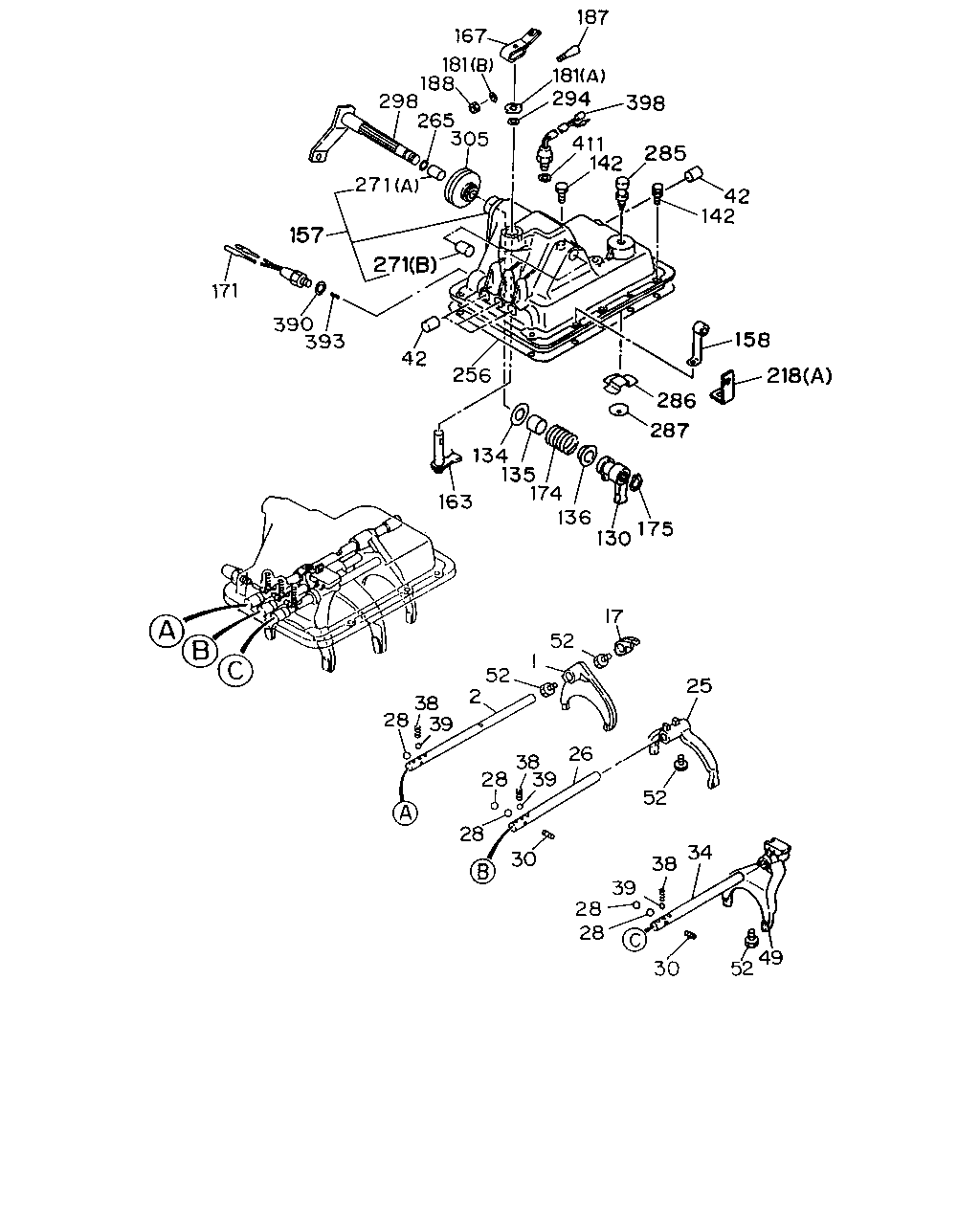

187 167 181 188 298 265 305 271 157 171 390 393 42 256 134 163 174 135 136 130 175 287 286 158 218 142 42 285 398 181 294 411 142 17 52 1 52 2 39 38 28 28 38 39 26 28 30 25 52 34 38 39 28 28 271 49 52 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9207-	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9207-	●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9207-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9207-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-245-0	01	1	9207-	●
28	BALL; INTER LK	9-00097-010-0	05	1	9207-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9207-		●
30	PIN; INTER LK	1-33534-002-0	02	1	9207-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9207-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-218-0	01	1	9207-	●
38	SPRING; DETENT	1-09580-374-0	03	1	9207-	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9207-9207		●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9207-9207		●
38	SPRING; DETENT	1-09580-419-0	04	1	9208-		●
39	BALL; DETENT	9-00097-013-0	03	1	9207-	●
39	BALL; DETENT	1-09843-012-0	04	1	9207-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9207-	●
42	CAP; QUAD BOX OD=24	9-33545-011-1	01	1	9207-	●
42	CAP; QUAD BOX OD=24	9-33545-011-1	06	1	9207-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9207-	●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9207-	●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9207-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9208-		●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9207-	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9207-	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9207-	●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	14	1	9207-	●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X32 FLANGE	0-28181-032-0	04	1	9207-	●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X34	1-09040-091-0	02	1	9207-	●
142	BOLT; QUAD BOX EXC. TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	09	1	9207-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9207-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9207-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9207-		●
142	BOLT; QUAD BOX M10X20&M10X60	1-09049-020-0	02	1	9207-		●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9207-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9207-9601		●
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9207-9207		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9207-9207		●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9208-		●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9207-	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9207-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9207-		●
167	LEVER; SELECT,EXTERNAL	1-33521-102-1	01	1	9207-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9207-		●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9207-	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9207-		●
174	SPRING; REV	1-09580-443-0	01	1	9207-	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9207-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9207-	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9207-9304	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9207-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9207-9207		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9208-	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9207-	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9207-	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9207-	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9207-	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9207-9207		●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9207-9207		●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9207-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9207-		●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9207-	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9207-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9207-	●
298	SHAFT; SHIFT LEVER	1-33522-107-0	01	1	9207-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9208-		●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9207-	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	9-09920-393-0	01	1	9207-9208	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-94462-114-0	01	1	9209-	●
393	PIN; SW	1-33534-003-0	01	1	9207-	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9207-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	9-09920-393-0	01	1	9207-9208	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	8-94462-114-0	01	1	9209-	●

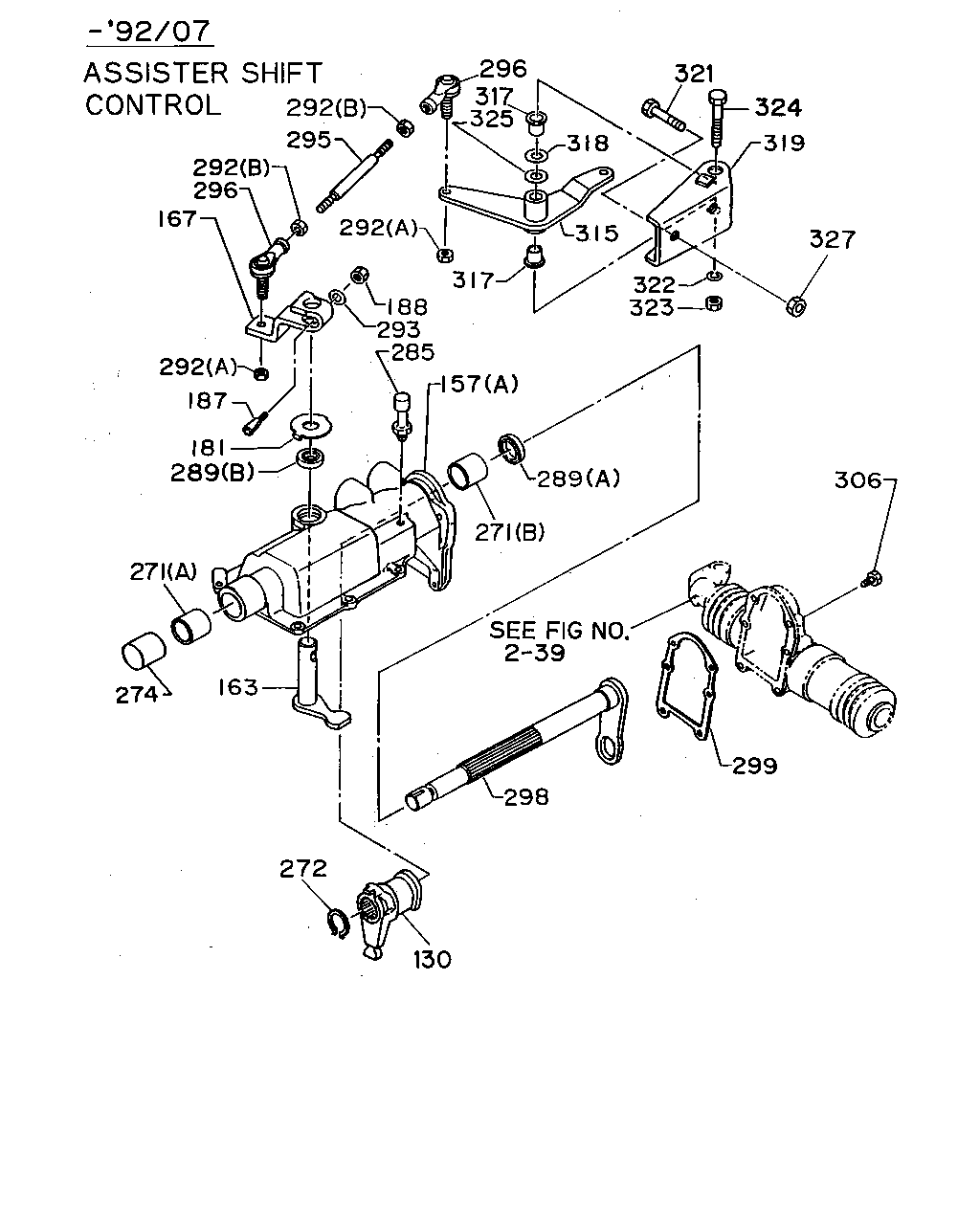

296 317 325 318 321 324 319 327 323 322 315 292 295 292 296 167 292 187 292 317 188 293 285 157 181 289 271 274 163 271 289 306 299 298 272 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9207-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9208-		●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9207-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9207-9601		●
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9207-9207		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9207-9207		●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9208-		●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9207-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9207-		●
167	LEVER; SELECT,EXTERNAL	1-33521-102-1	01	1	9207-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9207-		●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9207-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9207-	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9207-9304	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-		●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9207-	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9207-	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9207-9207		●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9207-9207		●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9207-9207		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9207-		●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9207-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9207-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9207-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9207-		●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9207-9301		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9207-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9207-		●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9207-9402		●
295	ROD; LINK,RELAY LEVER	1-09765-262-0	01	1	9403-		●
296	ROD END L=48	1-09760-038-1	02	1	9207-		●
298	SHAFT; SHIFT LEVER	1-33522-107-0	01	1	9207-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9208-		●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9207-9207		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9207-9207		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	02	1	9207-9207		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X72	1-09040-095-1	02	1	9207-9207		●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9207-9207		●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9207-9207		●
315	LEVER; SELECT	1-33651-496-0	01	1	9208-		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9207-		●
318	WASHER; WAVE ASSISTER SHIFT CONTROL<WX8>	9-09855-315-0	01	1	9207-9207		●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9207-9207		●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9207-9207		●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9208-		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9207-9207		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9207-9207		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9208-		●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9207-		●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9207-		●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9207-9207		●
325	SHIM; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33659-096-0	01	1	9207-9207		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9207-9207		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9208-		●

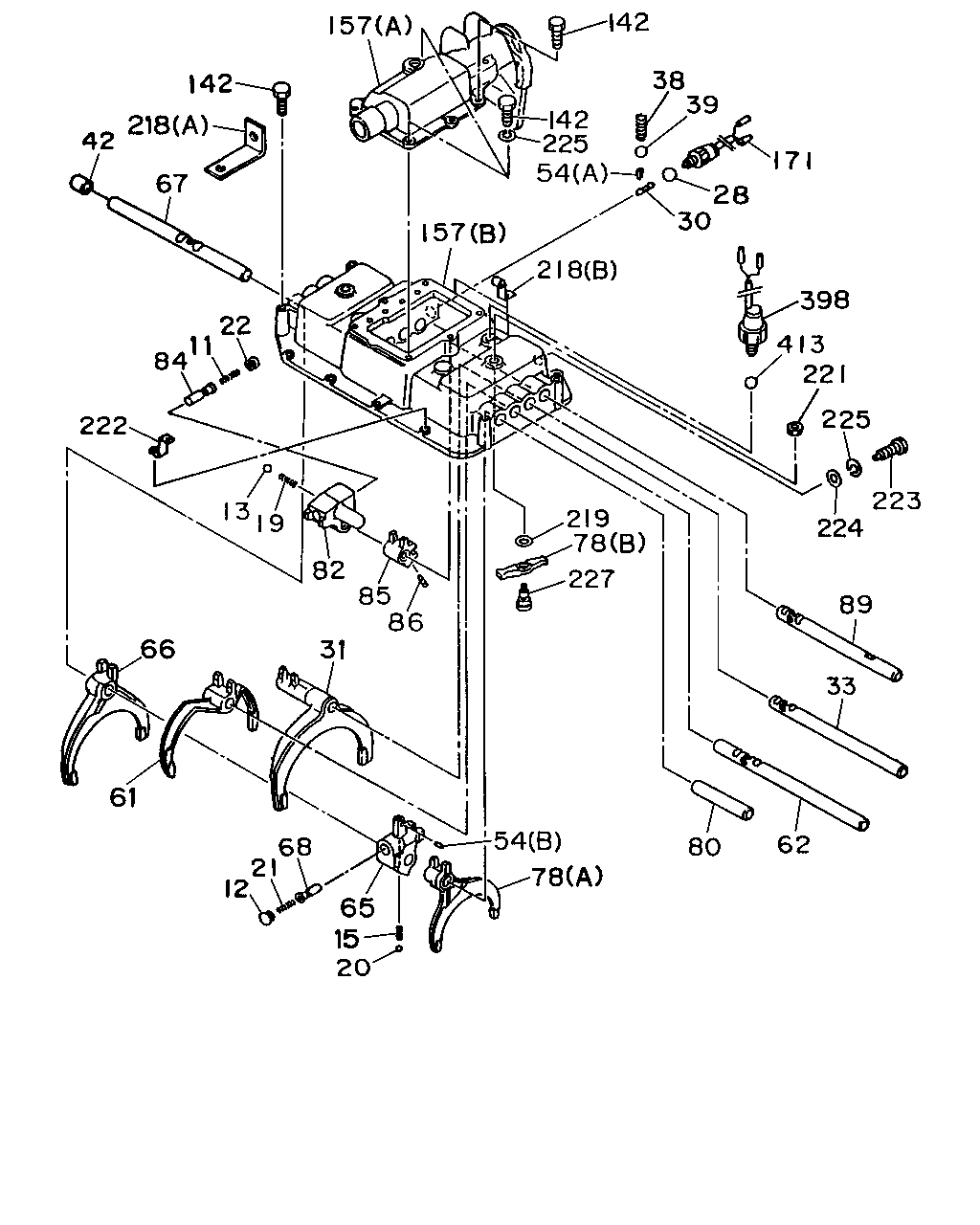

157 142 218 42 67 157 54 225 142 142 38 39 171 28 30 218 398 413 221 225 223 224 89 33 62 80 54 78 65 15 68 21 12 61 66 31 86 85 82 19 13 222 84 11 22 219 78 227 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9207-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9207-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9207-		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9207-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9207-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9207-		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9207-		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9207-		●
28	BALL; INTER LK	9-00097-010-0	05	1	9207-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9207-		●
30	PIN; INTER LK	1-33534-002-0	02	1	9207-	●
30	PIN; INTER LK	9-33534-003-0	03	1	9207-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9207-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9207-		●
38	SPRING; DETENT	1-09580-374-0	03	1	9207-	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9207-9207		●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9207-9207		●
38	SPRING; DETENT	1-09580-419-0	04	1	9208-		●
39	BALL; DETENT	9-00097-013-0	03	1	9207-	●
39	BALL; DETENT	1-09843-012-0	04	1	9207-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9207-	●
42	CAP; QUAD BOX OD=24	9-33545-011-1	01	1	9207-	●
42	CAP; QUAD BOX OD=24	9-33545-011-1	06	1	9207-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9207-		●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9207-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9207-9412		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9207-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9207-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9207-9412		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-		●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9207-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9207-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9207-		●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9207-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9207-		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9207-		●
84	SLEEVE; REV	1-33516-025-0	01	1	9207-		●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9207-		●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9207-9412		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-9512		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	9601-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9207-		●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	14	1	9207-	●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X32 FLANGE	0-28181-032-0	04	1	9207-	●
142	BOLT; QUAD BOX TRANSMISSION FRONT PTO<RC2> M10X34	1-09040-091-0	02	1	9207-	●
142	BOLT; QUAD BOX EXC. TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	09	1	9207-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9207-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9207-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9207-		●
142	BOLT; QUAD BOX M10X20&M10X60	1-09049-020-0	02	1	9207-		●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9207-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9207-9601		●
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9207-9207		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9207-9207		●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9208-		●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9207-	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9207-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9207-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9207-9207		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9208-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9207-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9207-		●
222	BRACKET; CLIP	1-47475-868-0	02	1	9207-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9207-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9207-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9207-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9207-		●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9207-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9207-		●

321 317 320 315 317 319 298 322 323 327 293 292 188 296 292 295 292 296 167 292 243 181 187 289 247 433 273 250 270 274 157 163 285 270 289 71 74 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9207-9207		●
71	NUT; SHIFT LEVER M10 FLANGE	0-91150-210-0	01	1	9208-		●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9207-9207		●
74	PIN; WIRE,SHIFT LEVER	1-33659-115-0	01	1	9208-		●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9207-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9207-9207		●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9208-		●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9207-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9207-9601		●
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	9602-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9207-9207		●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9207-9207		●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9208-		●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9207-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9207-		●
167	LEVER; SELECT,EXTERNAL	1-33521-102-1	01	1	9207-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9207-		●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9207-	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9207-		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9207-	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9207-9304	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9207-9207		●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9208-		●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9207-9207		●
247	BUSHING ASM; DETENT	1-33529-019-0	01	1	9208-		●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9207-9207		●
250	SCREW; BUSHING	9-06130-618-0	01	1	9208-		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-006-0	01	1	9207-9207		●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-006-0	01	1	9208-		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NSK	1-09811-057-0	01	1	9207-9207		●
270	BEARING; NEEDLE,QUAD BOX (B) NSK	1-09811-057-0	01	1	9208-		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-260-0	01	1	9207-9207		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-260-0	01	1	9208-		●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9207-9207		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9208-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9207-		●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9207-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9207-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9207-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9207-		●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9207-9301		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-		●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9207-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9207-		●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9207-9402		●
295	ROD; LINK,RELAY LEVER	1-09765-262-0	01	1	9403-		●
296	ROD END L=48	1-09760-038-1	02	1	9207-		●
298	SHAFT; SHIFT LEVER	1-33522-107-0	01	1	9207-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9207-9207		●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9208-		●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9207-9207		●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9207-9207		●
315	LEVER; SELECT	1-33651-496-0	01	1	9208-		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9207-		●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9207-9207		●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9207-9207		●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9208-		●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9207-9207		●
320	SHAFT; LEVER	1-33657-241-0	01	1	9208-		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9207-9207		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9207-9207		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9208-		●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9207-		●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9207-		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9207-9207		●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9208-		●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9207-9207		●
433	GASKET; BUSHING	1-09623-130-0	01	1	9208-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
