Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#15829) — 44 parça
◀

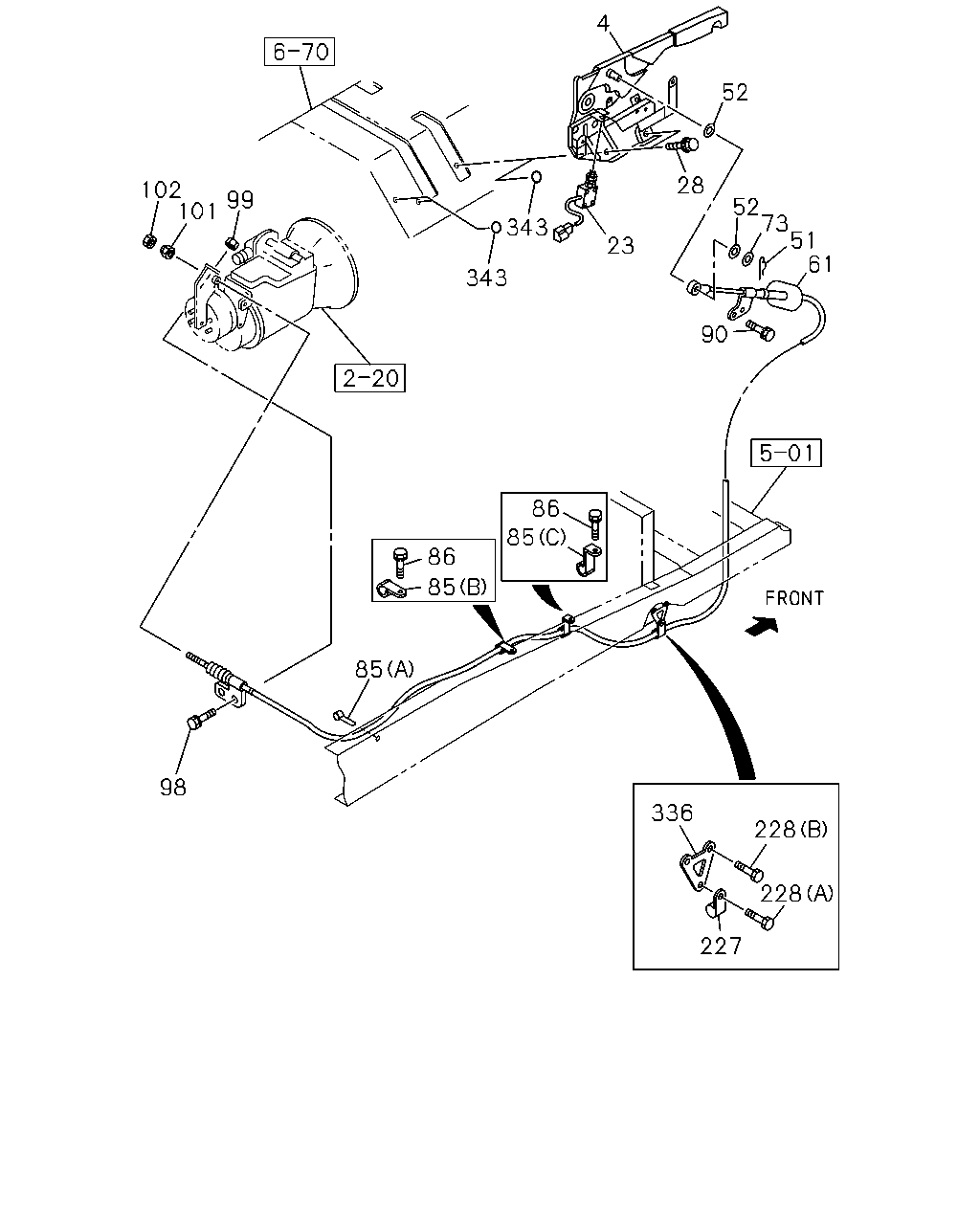

[311A] STEM AND CABLE (36 parça)
[311A] BRACKET;FIXING CABLE (8 parça)
▶
4
52
28
102
101
99
52
73
51
61
343
23
343
90
86
85
86
85
85
98
336
228
228
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79998-864-1
01
1
9706-9809
4
STEM; PARKING BRK
1-79996-419-0
01
1
9810-9908
4
STEM; PARKING BRK
1-79996-481-0
01
1
9909-9911
4
STEM; PARKING BRK
1-79996-503-0
01
1
9912-0010
4
STEM; PARKING BRK
1-79996-548-0
01
1
0011-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
9706-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER MAL
8-94279-208-0
03
1
9706-0904
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER MAL
8-98059-720-0
03
1
0905-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
9706-
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
9706-
61
CABLE; PARKING BRK
L=4244
1-79996-231-1
01
1
9706-9909
61
CABLE; PARKING BRK
L=4244
1-79996-473-3
01
1
9910-
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
9706-0605
73
WASHER; PL,CABLE
ID=17 OD=30
0-91610-516-0
01
1
0606-
85
CLIP; BRKT
(A) ID=15 L=65
1-09700-466-0
01
1
9706-
85
CLIP; BRKT
(C) ID=16 H=30 L=30
1-09701-080-0
01
1
9706-
85
CLIP; BRKT
(B) ID=24 L=40
1-09701-139-0
01
1
9706-1101
85
CLIP; BRKT
(B) ID=14.5 L=40
1-09701-014-0
01
1
1102-
86
BOLT
M8X25 FLANGE MAL
0-28680-825-0
02
1
9706-0512
86
BOLT
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER MAL
8-94279-208-0
02
1
9706-0904
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER MAL
8-98059-720-0
02
1
0905-
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
9706-0512
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
0601-
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
9706-0602
99
NUT; CONT CABLE
M10 FLANGE MAL
0-91180-210-0
02
1
0603-
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
9706-
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
9706-0602
102
NUT; LK,CABLE TO LEVER
M8 FLANGE MAL
0-91180-108-0
01
1
0603-
227
CLIP; RAD
ID=13 L=20
9-09525-235-0
01
1
9706-0606
227
CLIP; RAD
ID=13 L=20
0-95235-235-0
01
1
0607-
228
BOLT; CLIP RAD MTG
(A) M8X16 FLANGE
0-28080-816-0
01
1
9706-0512
228
BOLT; CLIP RAD MTG
(A) M8X16 FLANGE MAL
0-28050-816-0
01
1
0601-
228
BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
9706-
336
BRACKET; RADIATOR
1-36183-162-1
01
1
9706-
343
SEAL
OD=25 BLACK MAL
1-76798-019-0
02
1
9706-
61
324
218
46
45
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
BOLT; CABLE TO FLOOR
M8X24.5 W/LK&PL WASHER MAL
8-94279-208-0
03
1
9706-9812
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER MAL
8-94279-207-0
03
1
9901-
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
9706-0606
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
03
1
0607-
61
CABLE; PARKING BRK
L=4244
1-79996-231-1
01
1
9706-9909
61
CABLE; PARKING BRK
L=4244
1-79996-473-3
01
1
9910-
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE MAL
1-09985-340-0
02
1
9706-
324
BRACKET
1-79998-750-3
01
1
9706-
