2-20 — MANUAL TRANSMISSION ASM AND CASE (#15821) — 61 parça

264 245 429 329 496 332 410 404 404 86 265 270 271 405 270 245 410 175 410 410 179 178 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

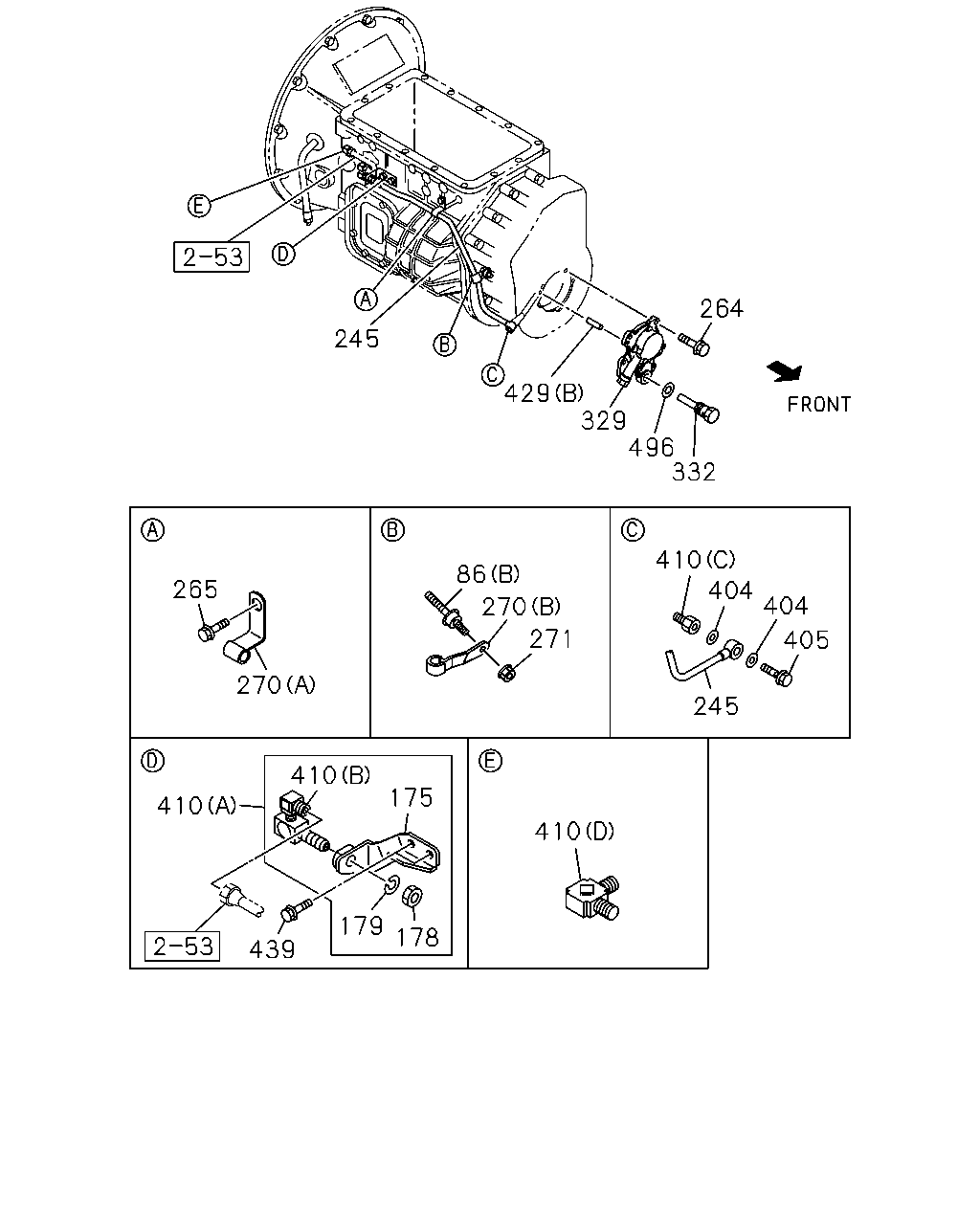

86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	10	1	0907-
86	BOLT; RR COVER (B) M10X16,M12X65 L=92.7	1-09049-017-0	03	1	0907-
175	BRACKET; UNION	1-32579-018-0	01	1	0907-
178	NUT; UNION M16	0-91111-516-0	01	1	0907-
179	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0907-
245	PIPE; OIL	1-49164-606-0	01	1	0907-
264	BOLT; OIL PUMP M10X30 FLANGE	0-28151-030-0	08	1	0907-
265	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0907-
270	CLIP; OIL PIPE (A) ID=11 H=31 L=43	1-09701-095-0	01	1	0907-
270	CLIP; OIL PIPE (B)	1-09701-283-0	01	1	0907-
271	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	0907-
329	PUMP ASM; OIL	1-34150-113-0	01	1	0907-
332	FILTER; OIL	1-34159-050-1	01	1	0907-
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-1312
404	GASKET; OIL PIPE ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0907-
410	UNION; OIL PIPE (B)	1-09654-355-3	01	1	0907-
410	UNION; OIL PIPE (A)	1-09654-401-1	01	1	0907-
410	UNION; OIL PIPE (C) M14 & PT1/4	1-09660-495-0	01	1	0907-
410	UNION; OIL PIPE (D) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0907-
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0907-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	02	1	0907-
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0907-
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	0907-

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

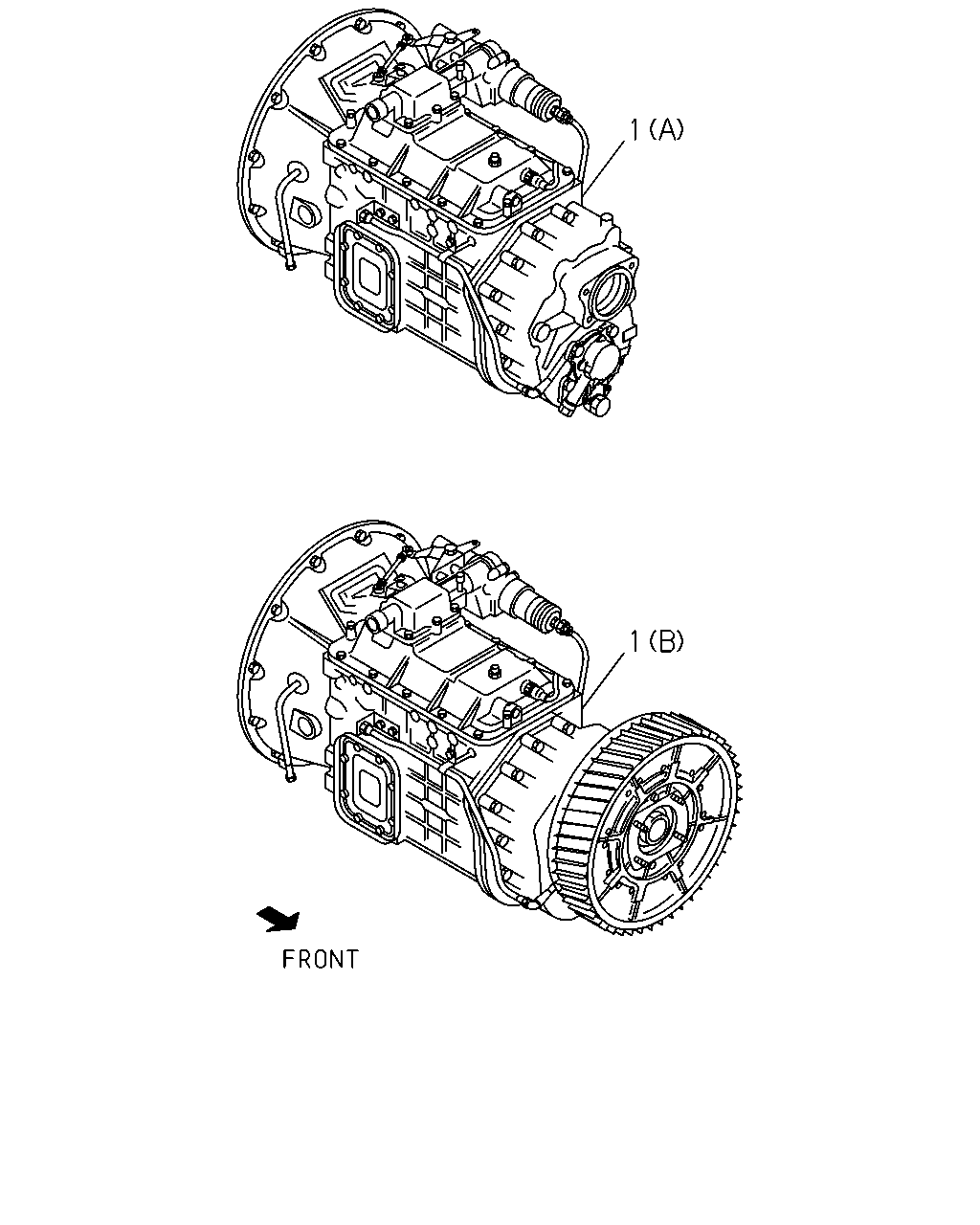

	1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER<RE2> (B)	1-33043-389-0	01	1	0907-
	1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-33043-390-0	01	1	0907-

429 435 417 45 24 27 25 33 28 50 430 32 29 51 36 37 35 73 71 72 37 36 434 251 97 90 38 421 27 86 104 102 233 86 104 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

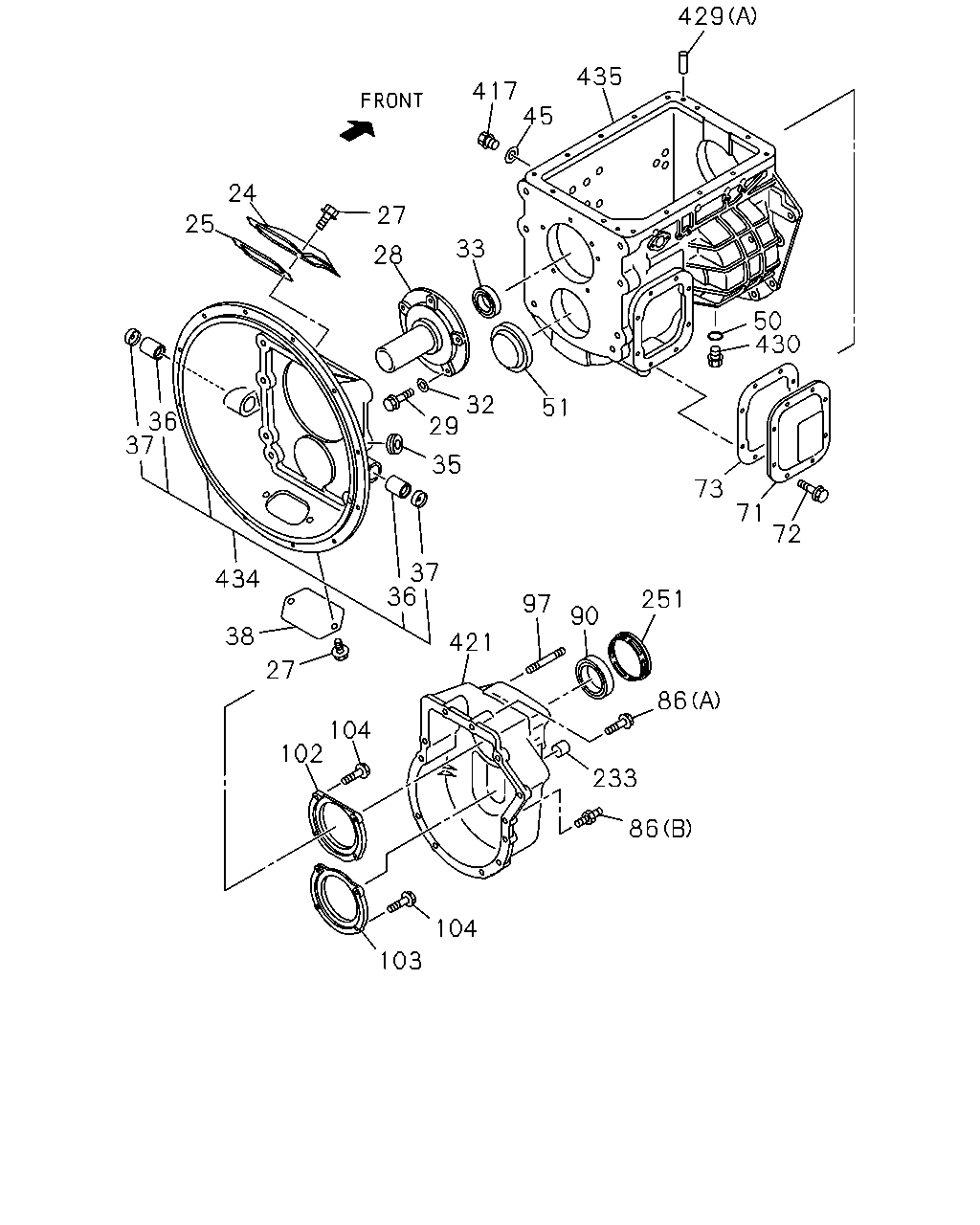

24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0907-
25	GASKET; COVER	1-31139-008-0	01	1	0907-1406
25	GASKET; COVER	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0907-
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0907-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0907-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0907-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0907-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	0907-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0907-
37	SEAL; DUST,CLU HSG	1-09625-003-0	02	1	0907-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0907-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0907-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0907-
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0907-
71	COVER; SIDE,TRANS CASE	1-33141-030-1	01	1	0907-
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0907-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-043-0	01	1	0907-
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	10	1	0907-
86	BOLT; RR COVER (B) M10X16,M12X65 L=92.7	1-09049-017-0	03	1	0907-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0907-
97	STUD; PARKING BRK BRAKE SYSTEM RETARDER<RE2> M16X51 L=72	1-09302-002-0	03	1	0907-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0907-
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0907-
103	RETAINER; BRG	9-33151-014-0	01	1	0907-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0907-
233	COVER; SHIFT ROD,RR COVER OD=24 L=31	9-33545-011-1	01	1	0907-
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0907-1204
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0907-
421	COVER; RR,TRANS	1-33131-233-1	01	1	0907-
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	0907-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	02	1	0907-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0907-
434	HOUSING; CLU	1-31110-179-3	01	1	0907-
435	CASE; TRANS	1-33111-328-0	01	1	0907-
