Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#1582) — 304 parça

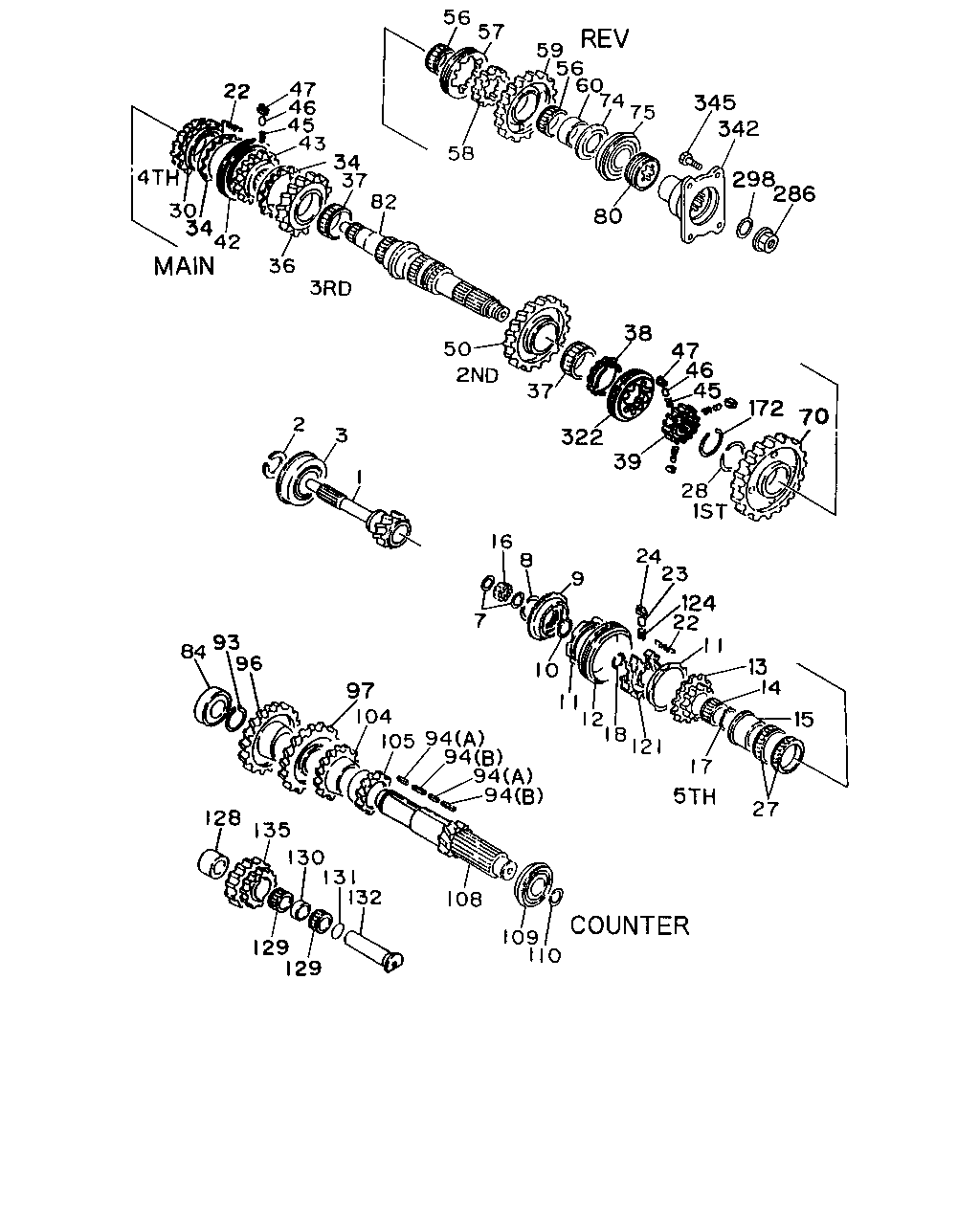

129 129 132 131 130 135 128 84 93 96 97 104 105 94 94 94 94 108 109 110 27 17 121 18 12 11 10 9 8 16 7 1 3 2 50 37 322 39 28 24 23 124 22 11 13 14 15 70 172 45 46 47 38 80 75 345 342 298 286 74 60 56 59 57 56 58 82 36 42 34 30 22 47 46 45 43 34 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK(RA9) Z=19 Z=19	1-33211-733-0	01	1	9207-9309	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK(RA9) Z=19	1-33211-844-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS EXC. FIRE TRUCK(RA9) Z=19	1-33211-723-0	01	1	9207-9309	●
1	SHAFT; TOP GEAR,TRANS EXC. FIRE TRUCK(RA9) Z=19	1-33211-777-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9207-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9207-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9207-9501	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9207-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9207-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9207-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9207-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9207-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9207-	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9207-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9207-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9207-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9207-9308		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9207-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9207-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9207-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9207-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9207-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9207-		●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9207-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9207-		●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9207-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9207-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9207-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9207-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9207-	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9207-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9207-		●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9207-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9207-		●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9207-9309	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9207-9308		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9207-		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9207-9301	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9207-9308		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9309-		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9207-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9207-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9207-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9207-9412		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-		●
42	SLEEVE Z=45	1-33262-140-1	01	1	9207-9209	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9207-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9207-9412		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-		●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9207-9209	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9207-9209		●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9207-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9207-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9207-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9207-		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9207-9301	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9207-9308		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9207-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9207-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9207-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9207-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9207-		●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9207-9309	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9207-9308		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9207-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9207-9309	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9207-9308		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-		●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9207-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9207-		●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9207-	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9207-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9207-		●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9207-		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9207-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9207-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9207-		●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9207-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9207-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9207-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9207-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9207-		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9207-9309	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-164-2	01	1	9207-9308		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9309-		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9207-9308		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9207-9309	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9207-9308		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9207-9309	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9207-		●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9207-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9207-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9207-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9207-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9207-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9207-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9207-		●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9207-		●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9207-	●
128	WASHER; THRUST,REV SHAFT T=42.0	1-33239-079-1	01	1	9207-		●
128	WASHER; THRUST,REV SHAFT T=2.0	1-33363-024-1	01	1	9207-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9207-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9207-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9207-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9207-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9207-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9207-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9207-		●
132	SHAFT; REV	1-33351-013-1	01	1	9207-	●
132	SHAFT; REV	1-33351-017-0	01	1	9207-		●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9207-9309	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9207-9308		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9207-		●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9207-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9207-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9207-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9207-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9207-		●
342	FLANGE; OUTPUT	1-37243-240-1	01	1	9207-	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9207-9510		●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9511-		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9207-9412		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

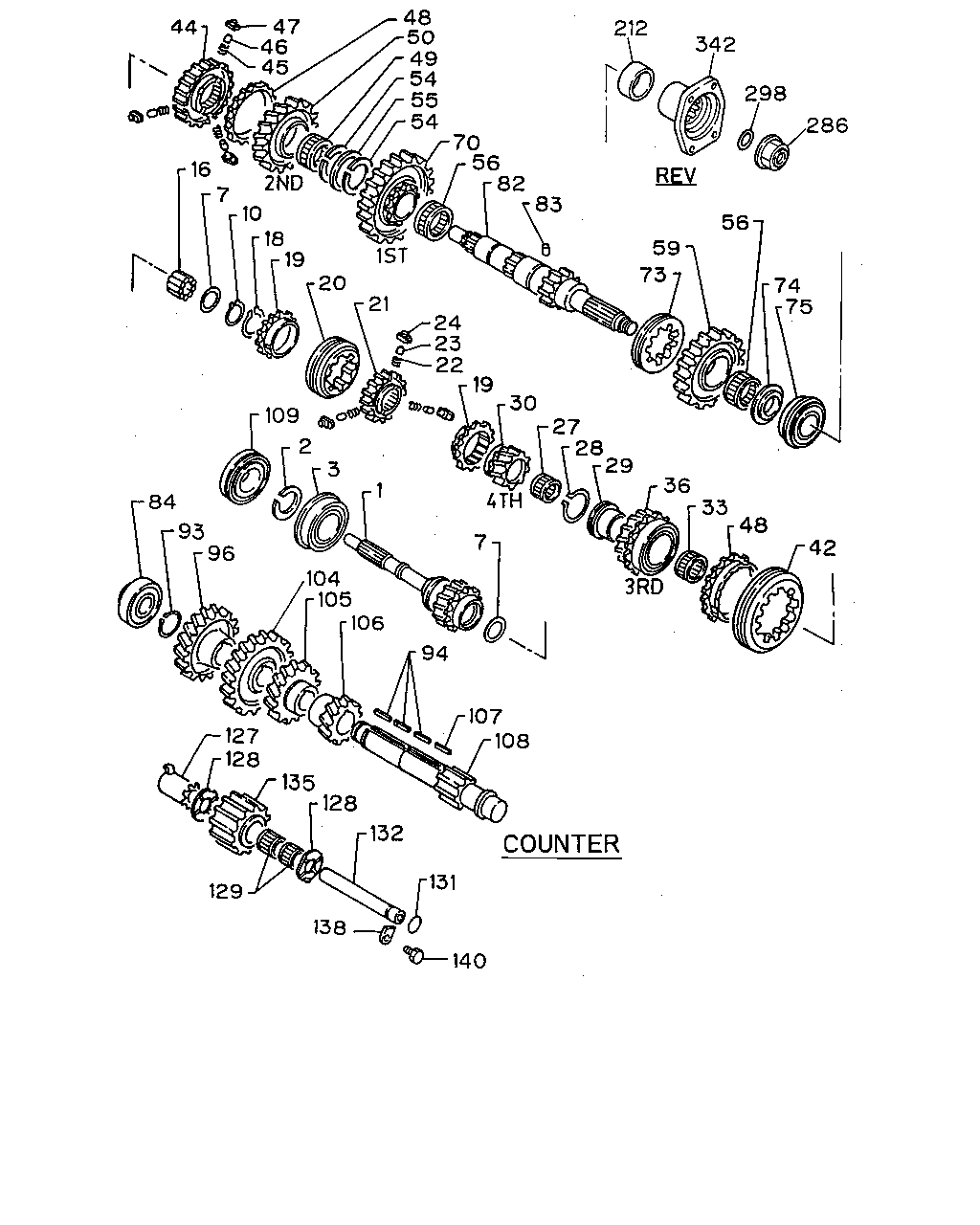

44 47 46 45 16 7 10 18 19 20 21 109 3 2 1 7 94 106 105 104 96 93 84 127 128 135 128 132 131 138 129 140 108 107 42 48 33 36 29 28 27 30 19 22 23 24 48 50 49 54 55 54 70 56 82 83 59 73 56 74 75 286 298 342 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK(RA9) Z=19 Z=19	1-33211-733-0	01	1	9207-9309	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK(RA9) Z=19	1-33211-844-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS EXC. FIRE TRUCK(RA9) Z=19	1-33211-723-0	01	1	9207-9309	●
1	SHAFT; TOP GEAR,TRANS EXC. FIRE TRUCK(RA9) Z=19	1-33211-777-0	01	1	9310-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9207-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9207-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9207-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9207-9501	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9207-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9207-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9207-		●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9207-	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9207-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9207-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9207-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9207-		●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9207-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9207-		●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9207-9212	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-	●
20	SLEEVE	1-33262-094-1	01	1	9207-	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9207-	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9207-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9207-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9207-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9207-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9207-	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9207-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9207-		●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9207-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9207-		●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9207-	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9207-9309	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9207-9308		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9207-	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9207-	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9207-9301	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9207-9308		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9309-		●
42	SLEEVE Z=45	1-33262-140-1	01	1	9207-9209	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9207-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9207-9405	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9207-9209	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9207-9209		●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9207-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9207-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9207-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9207-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9207-9301	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9207-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9207-9301	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9207-9308		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-		●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9207-	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9207-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9207-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9207-	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9207-		●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9207-9309	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9207-9308		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9207-9309	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9207-9308		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-		●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9207-	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9207-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9207-		●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9207-	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9207-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9207-		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9207-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9207-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-		●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9207-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9207-		●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9207-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9207-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9207-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9207-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9207-		●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9207-9309	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-164-2	01	1	9207-9308		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9207-9309	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9207-9308		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9207-9309	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9207-		●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9207-9309	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9207-	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9207-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9207-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9207-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9207-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9207-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9207-	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9207-	●
128	WASHER; THRUST,REV SHAFT T=42.0	1-33239-079-1	01	1	9207-		●
128	WASHER; THRUST,REV SHAFT T=2.0	1-33363-024-1	01	1	9207-		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9207-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9207-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9207-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9207-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9207-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9207-		●
132	SHAFT; REV	1-33351-013-1	01	1	9207-	●
132	SHAFT; REV	1-33351-017-0	01	1	9207-		●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9207-9309	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9207-9308		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9207-	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9207-	●
212	COLLAR; DIST,MAINSHAFT	1-33235-015-0	01	1	9207-	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9207-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9207-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9207-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9207-		●
342	FLANGE; OUTPUT	1-37243-240-1	01	1	9207-	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9207-9510		●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
