2-07 — CLUTCH BOOSTER; MINIPACK (#15818) — 76 parça

1 43 43 42 32 91 31 36 127 34 27 60 25 15 12 40 9 10 22 13 17 17 50 6 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER	1-31829-500-0	01	1	0907-
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0907-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-055-0	01	1	0907-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-056-0	01	1	0907-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0907-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-285-0	01	1	0907-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-428-0	01	1	0907-
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0907-
13	PIN; SPR	1-31829-109-0	01	1	0907-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0907-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0907-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0907-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0907-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0907-
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	0907-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0907-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0907-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0907-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0907-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0907-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0907-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0907-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0907-
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0907-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0907-
127	FILTER; POPPET	1-31829-495-0	01	1	0907-

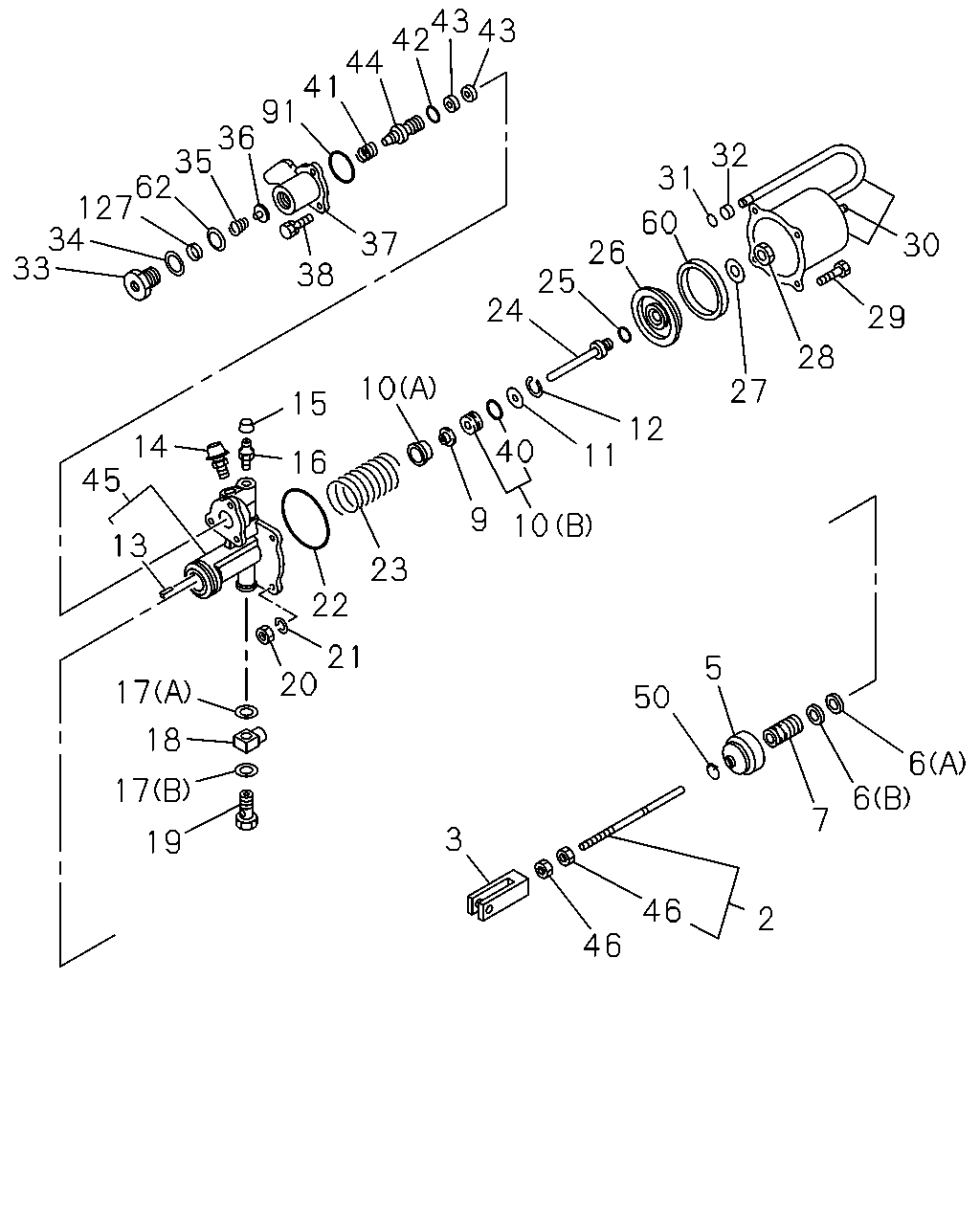

43 43 42 44 41 91 36 35 62 127 34 33 32 31 60 37 30 26 25 24 38 29 28 10 27 15 12 14 40 11 16 45 9 10 13 23 22 21 20 5 17 50 18 6 6 17 7 3 19 46 2 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROD; PUSH,CLU BOOSTER	1-31824-210-0	01	1	0907-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0907-
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0907-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-055-0	01	1	0907-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-056-0	01	1	0907-
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0907-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0907-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-285-0	01	1	0907-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-428-0	01	1	0907-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0907-
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0907-
13	PIN; SPR	1-31829-109-0	01	1	0907-
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0907-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0907-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0907-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0907-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0907-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0907-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0907-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0907-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0907-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0907-
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	0907-
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	0907-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0907-
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	0907-
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	0907-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0907-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0907-
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	0907-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0907-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0907-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0907-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0907-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0907-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0907-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0907-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0907-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0907-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-299-0	01	1	0907-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0907-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0907-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	0907-
45	PLATE; END,CLU BOOSTER	1-31811-067-0	01	1	0907-
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	02	1	0907-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0907-
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0907-
62	RETAINER; POPPET	1-31829-489-0	01	1	0907-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0907-
127	FILTER; POPPET	1-31829-495-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
