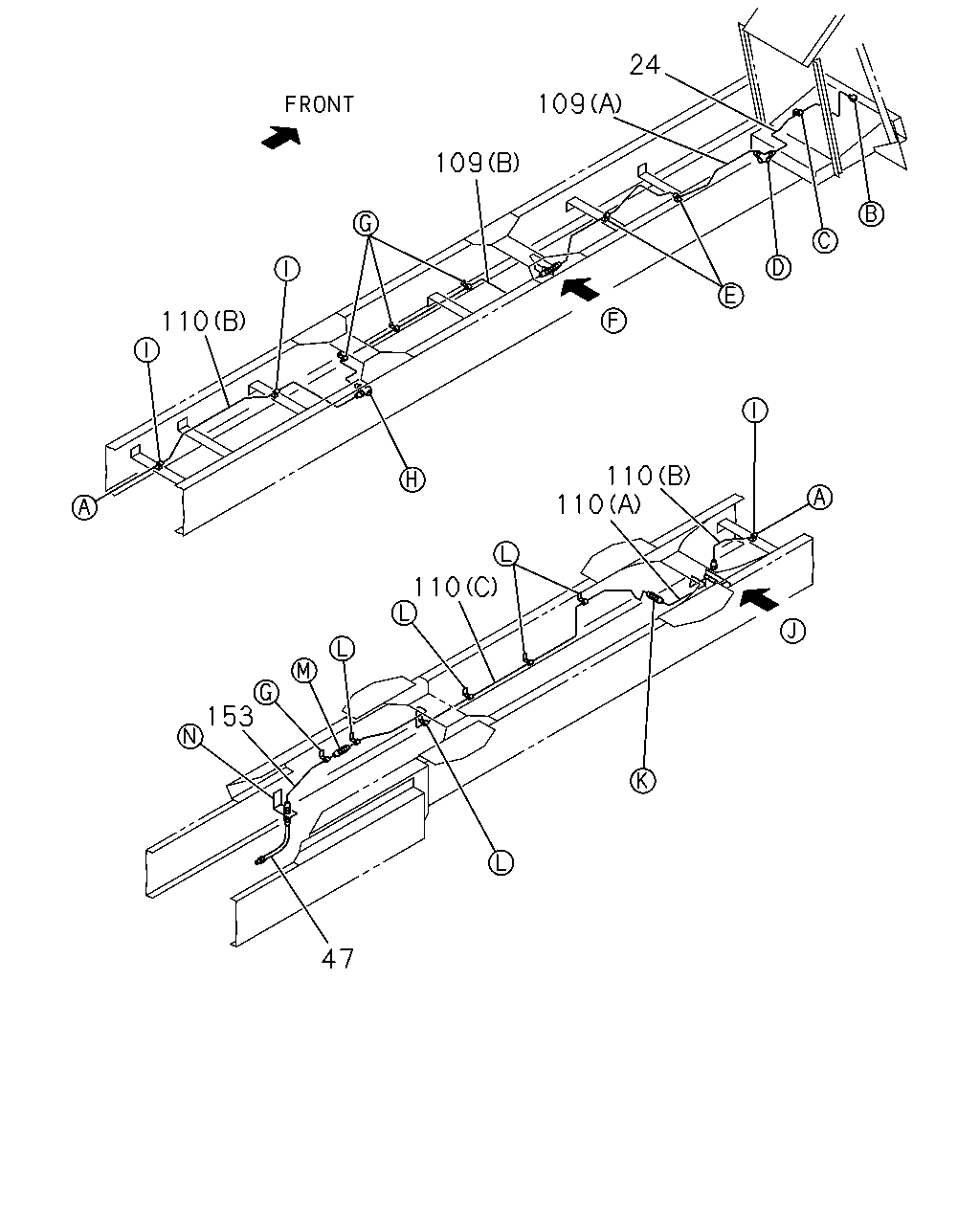

2-05 — CLUTCH PIPING (#15817) — 58 parça

24 109 109 110 110 110 110 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0907-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (A) L=1539 SERVICED BY L=1550	1-47428-766-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0907-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0907-

153 115 38 116 37 36 47 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0907-
36	BRACKET; CLIP	1-47478-929-0	01	1	0907-
37	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0907-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0907-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0907-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0907-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0907-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0907-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0907-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0907-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0907-

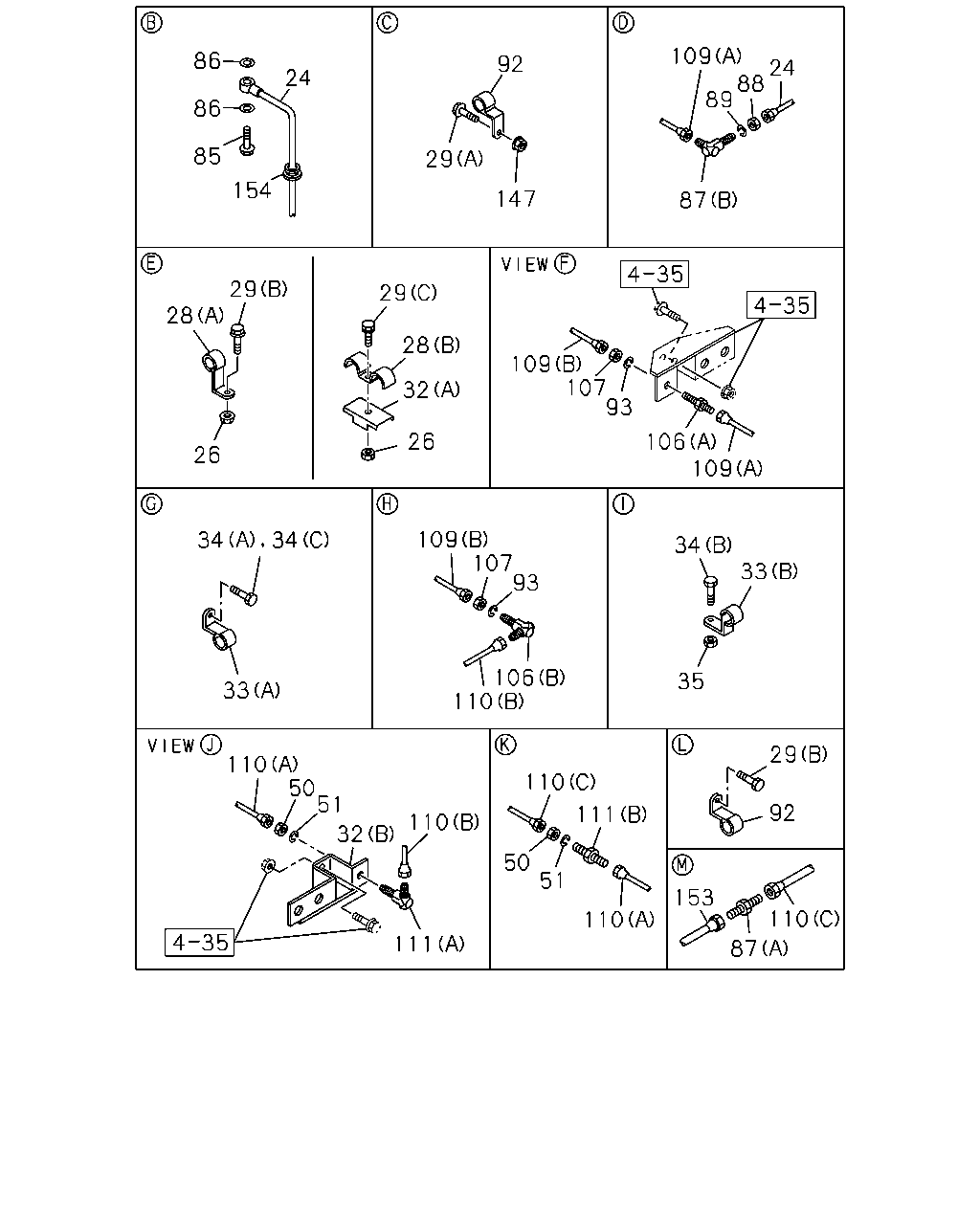

109 24 88 89 86 92 24 86 85 29 154 147 87 29 29 28 28 109 107 93 32 26 106 109 26 109 107 93 34 34 34 33 106 110 35 33 29 110 50 51 110 92 111 110 32 50 51 153 110 110 111 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0907-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0907-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0907-
28	CLIP; OIL PIPE (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE (C) M8X45 FLANGE	0-28050-845-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	05	1	0907-
32	BRACKET; CLIP OIL PIPE (A)	1-47475-427-1	01	1	0907-
32	BRACKET; CLIP OIL PIPE (B)	8-98109-426-0	01	1	0907-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0907-
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	02	1	0907-
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28050-820-0	02	1	0907-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0907-
34	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0907-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0907-
50	NUT; UNION M14	0-91111-514-0	02	1	0907-
51	WASHER; LK ID=14.2	0-91510-814-0	02	1	0907-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0907-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0907-
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0907-
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0907-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0907-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0907-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0907-
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	02	1	0907-
106	UNION; OIL PIPE (A) M14	0-92113-308-0	01	1	0907-
106	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0907-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	02	1	0907-
109	PIPE; AIR,UNION TO UNION (A) L=1539 SERVICED BY L=1550	1-47428-766-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0907-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0907-
111	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	0907-
111	UNION; OIL PIPE (A) M14	0-92125-108-0	01	1	0907-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0907-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0907-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0907-
