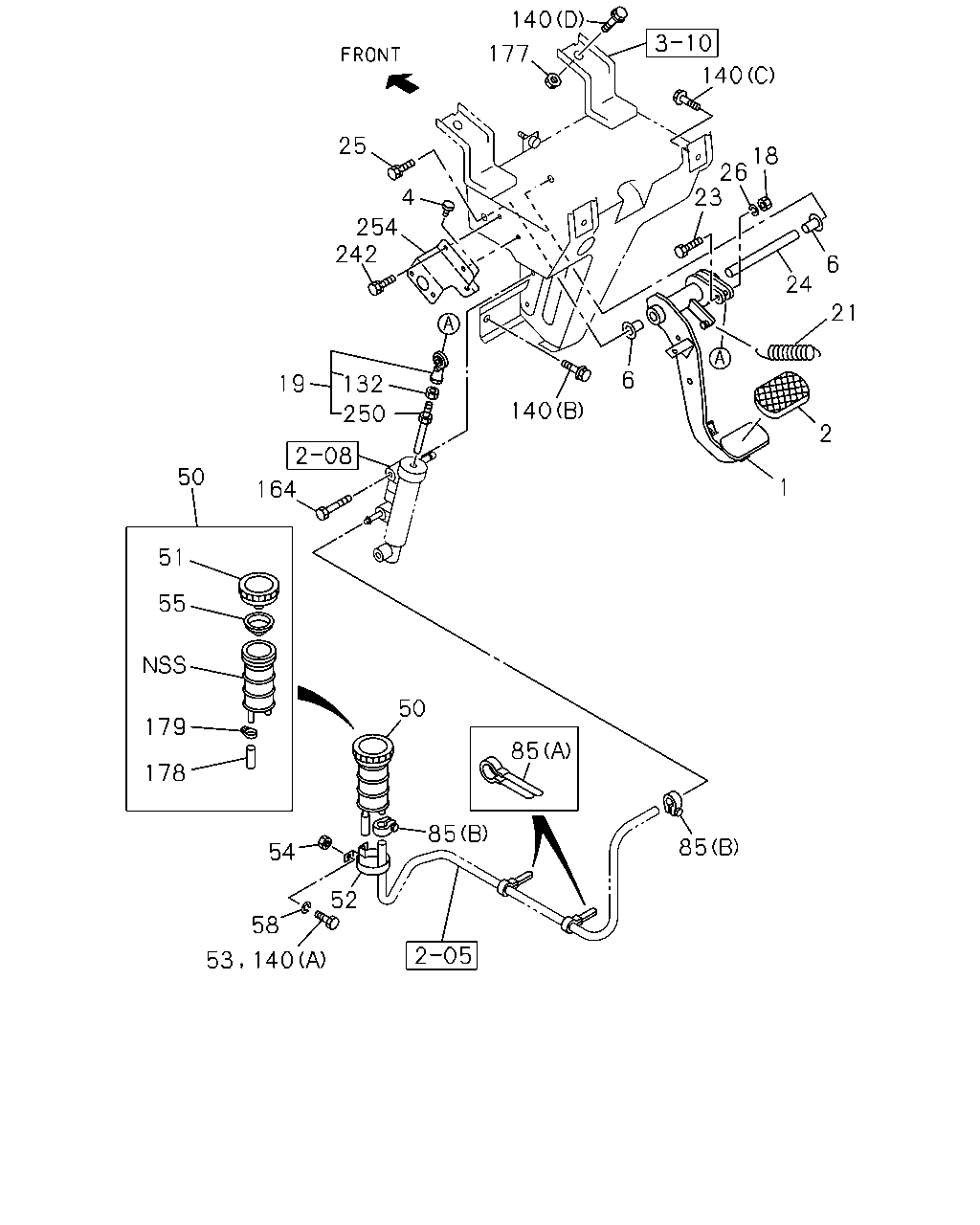

2-03 — CLUTCH PEDAL AND CONTROL
(#15816) — 32 parça
140
177
140
25
18
26
23
4
254
242
6
24
21
6
19
132
140
250
2
50
1
164
51
55
50
179
85
178
85
85
54
52
58
53
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-171-3
01
1
0907-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0907-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
0907-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0907-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
0907-
19
ROD ASM; PUSH,CLU
1-73996-144-1
01
1
0907-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0907-
23
BOLT; PUSH ROD
M8X35
0-10960-835-0
01
1
0907-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0907-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0907-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0907-
50
TANK; OIL,CLU
1-47530-183-1
01
1
0907-
51
CAP; OIL TANK,CLU
9-47525-032-1
01
1
0907-
52
BRACKET; OIL TANK,CLU M/CYL
9-47537-023-1
01
1
0907-
53
BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16
0-20800-516-0
01
1
0907-
54
NUT; BRKT,OIL TANK,CLU M/CYL
M5
0-91110-505-0
03
1
0907-
55
BAFFLE; RUBBER,CLU M/CYL
9-47529-031-0
01
1
0907-
58
WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3
0-91610-505-0
02
1
0907-
85
CLIP; HOSE TO M/CYL
(B) ID=15
9-09715-098-0
02
1
0907-
85
CLIP; HOSE TO M/CYL
(A) ID=14 L=44
9-09917-427-0
02
1
0907-
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
0907-
140
BOLT; BRKT
(A) M5X16
0-20800-516-0
02
1
0907-
140
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0907-
140
BOLT; BRKT
(C) M8X30 FLANGE
0-28650-830-0
02
1
0907-
140
BOLT; BRKT
(D) M10X25 FLANGE
0-28651-025-0
02
1
0907-
164
BOLT; CLU M/CYL
M10X70 FLANGE
0-28051-070-0
02
1
0907-
177
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0907-
178
CAP; OIL TANK HOSE
1-47539-005-0
01
1
0907-
179
CLIP; CAP TO OIL TANK
ID=15
9-09715-098-0
01
1
0907-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50540-616-0
02
1
0907-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0907-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0907-
