◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#15812) — 371 parça

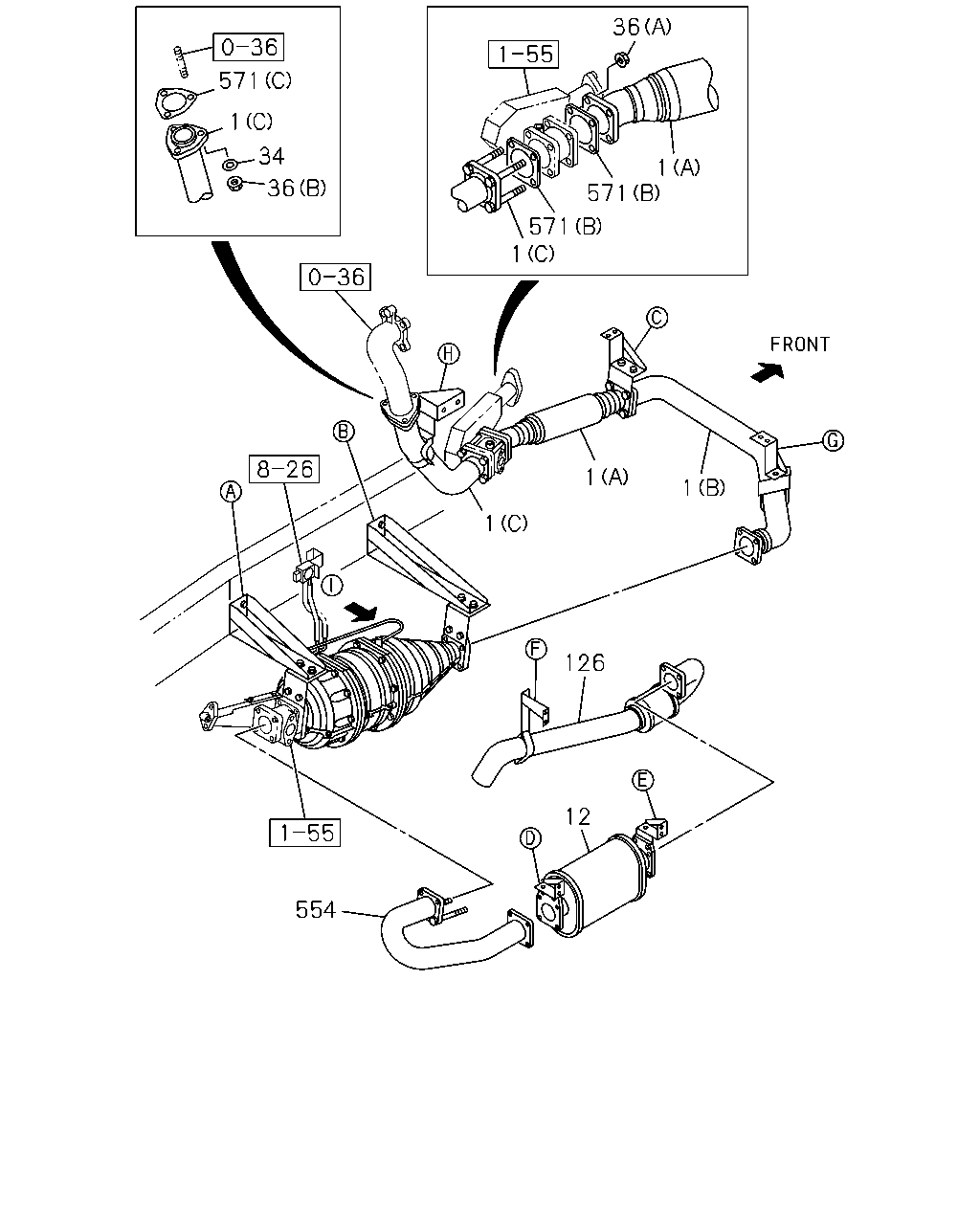

çizim 63067
36 571 1 34 1 571 36 571 1 1 1 1 126 12 554
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-98135-787-0 01 1 0910-
1 PIPE; EXH
(A) 		8-98053-009-0 01 1 0907-
1 PIPE; EXH
(B) 		8-98053-014-0 01 1 0907-0909
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (B) 		8-98053-014-0 01 1 0910-
1 PIPE; EXH
(C) 		8-98127-101-0 01 1 0907-
12 SILENCER ASM; EXH
EURO3 SPECIFICATION(NT3) 		8-98142-620-0 01 1 0910-
12 SILENCER ASM; EXH 1-22141-201-1 01 1 0907-0909
12 SILENCER ASM; EXH
EURO5 SPECIFICATION(NT5) 		1-22141-201-1 01 1 0910-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0907-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0907-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0907-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0910-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0910-
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) 		8-98117-593-0 01 1 0910-
126 PIPE; EXH,RR 8-98053-016-1 01 1 0907-0909
126 PIPE; EXH,RR
EURO5 SPECIFICATION(NT5) 		8-98053-016-1 01 1 0910-
554 PIPE; EXH,SILENCER 8-98053-015-1 01 1 0907-0909
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-015-1 01 1 0910-
571 GASKET
(A) 		1-22116-040-0 01 1 0907-
571 GASKET
(B) ID=85.8 		1-22116-043-0 02 1 0907-
571 GASKET
(C) ID=81 		8-98043-481-0 01 1 0907-

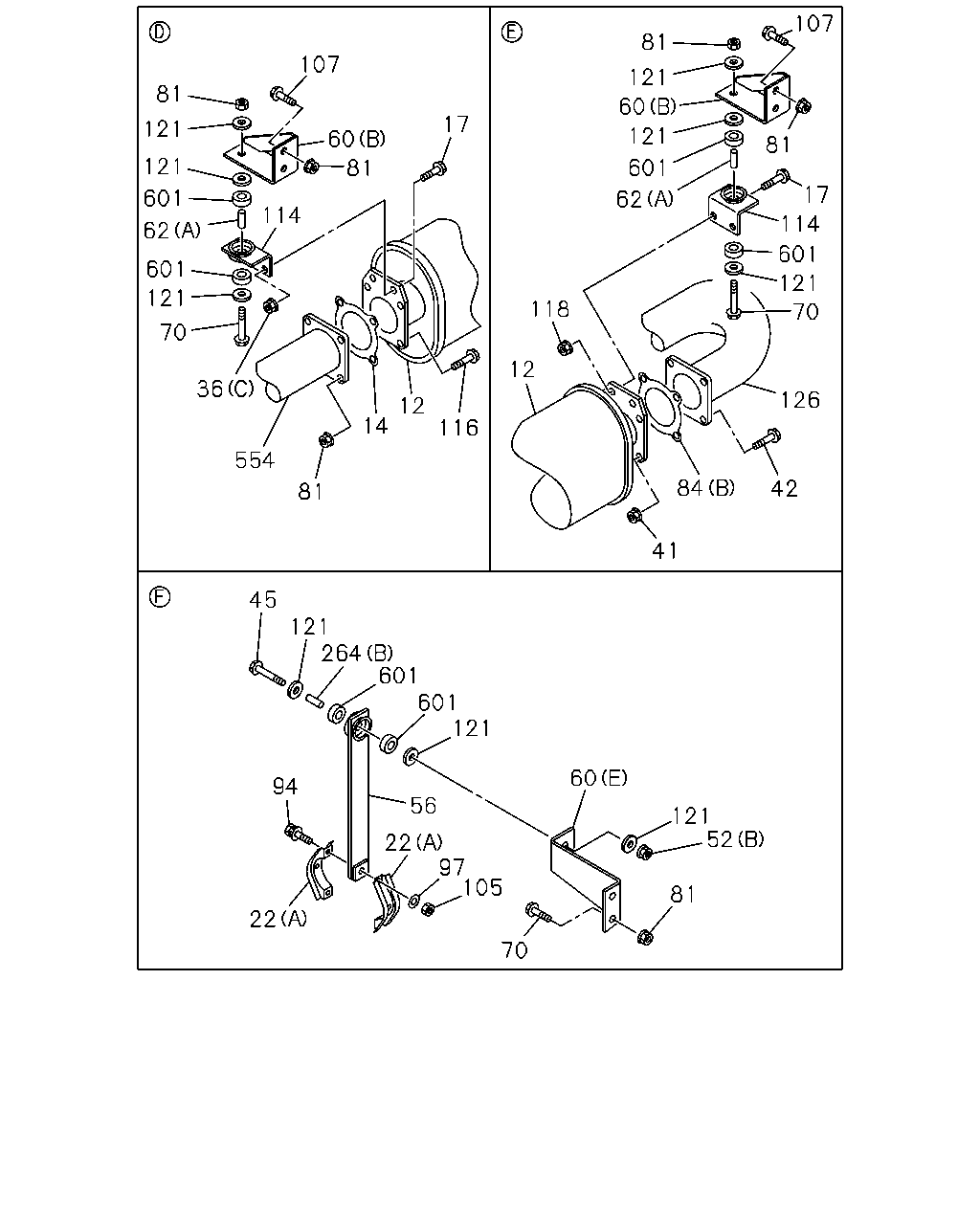

çizim 102356
107 81 107 121 81 60 17 121 121 60 81 121 601 81 17 601 62 114 14 62 601 601 121 121 118 70 70 12 36 126 12 14 116 554 84 42 81 41 45 121 264 601 601 121 60 94 56 121 52 22 97 105 81 22 70
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
EURO3 SPECIFICATION(NT3) 		8-98142-620-0 01 1 0910-
12 SILENCER ASM; EXH 1-22141-201-1 01 1 0907-0909
12 SILENCER ASM; EXH
EURO5 SPECIFICATION(NT5) 		1-22141-201-1 01 1 0910-
14 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-98096-305-0 01 1 0910-
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0907-0909
14 GASKET; SILENCER TO EXH PIPE
EURO5 SPECIFICATION(NT5) 		1-22116-042-0 01 1 0910-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0907-0909
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0907-0909
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0910-
17 BOLT; EXH PIPE
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 04 1 0910-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0907-0909
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) ID=80-84 		1-22133-233-0 02 1 0910-
22 CLAMP; EXH PIPE
(B) 		8-98073-250-0 02 1 0907-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0907-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0907-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0910-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0910-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0907-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE 		0-28651-235-0 04 1 0907-
45 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X60 FLANGE 		0-28051-060-0 01 1 0910-
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0910-
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 02 1 0910-
52 NUT; BRKT
EURO3 SPECIFICATION(NT3) (C) M10 LOCK NUT 		0-91370-010-0 01 1 0910-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 08 1 0907-0909
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M12 FLANGE 		0-91180-212-0 08 1 0910-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
56 BRACKET; CLAMP,EXH PIPE
L=254 		1-22131-527-1 01 1 0907-0909
56 BRACKET; CLAMP,EXH PIPE
EURO5 SPECIFICATION(NT5) L=254 		1-22131-527-1 01 1 0910-
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NT3) (B) 		8-98135-868-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(F) 		8-97616-175-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		8-97616-175-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(A) 		8-97616-177-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		8-97616-177-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(C) 		8-98058-651-0 01 1 0907-
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(E) 		8-98058-655-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98058-655-0 01 1 0910-
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0907-0909
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0910-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 04 1 0907-0909
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 04 1 0910-0910
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 04 1 0910-
70 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X60 FLANGE 		0-28051-060-0 02 1 0910-
70 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X35 FLANGE 		0-28651-035-0 02 1 0910-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 06 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 06 1 0910-
70 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0910-
70 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 FLANGE 		0-91180-210-0 02 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
81 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0910-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0907-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0910-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0910-
84 GASKET; EXH PIPE
EURO3 SPECIFICATION(NT3) (B) 		8-98096-305-0 01 1 0910-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0907-0909
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22116-040-0 01 1 0910-
84 GASKET; EXH PIPE
(B) 		1-22116-042-0 01 1 0907-0909
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22116-042-0 01 1 0910-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0907-0909
94 BOLT; CLAMP
EURO5 SPECIFICATION(NT5) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0910-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0907-0909
97 WASHER; PL,CLAMP
ID=10.5 		0-91614-510-0 02 1 0910-0910
97 WASHER; PL,CLAMP
EURO5 SPECIFICATION(NT5) ID=10.5 		0-91614-510-0 02 1 0910-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0907-0909
105 NUT; CLAMP
EURO5 SPECIFICATION(NT5) M10 		0-91110-510-0 02 1 0910-
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0907-
114 BRACKET; EXH SILENCER
EURO3 SPECIFICATION(NT3) 		8-98117-589-0 02 1 0910-
114 BRACKET; EXH SILENCER 1-22139-348-0 02 1 0907-0909
114 BRACKET; EXH SILENCER
EURO5 SPECIFICATION(NT5) 		1-22139-348-0 02 1 0910-
116 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X35 FLANGE 		0-28651-035-0 02 1 0910-
116 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0907-0909
116 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0910-
118 NUT; SILENCER MTG BRKT
EURO3 SPECIFICATION(NT3) M10 FLANGE 		0-91180-210-0 02 1 0910-
118 NUT; SILENCER MTG BRKT
M12 FLANGE 		0-91180-212-0 02 1 0907-0909
118 NUT; SILENCER MTG BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0910-
121 WASHER; PL,BRKT
EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2 		8-98010-405-0 09 1 0910-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0907-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0907-0909
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0910-
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) 		8-98117-593-0 01 1 0910-
126 PIPE; EXH,RR 8-98053-016-1 01 1 0907-0909
126 PIPE; EXH,RR
EURO5 SPECIFICATION(NT5) 		8-98053-016-1 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
EURO3 SPECIFICATION(NT3) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0907-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 02 1 0907-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 02 1 0910-0910
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 02 1 0910-
554 PIPE; EXH,SILENCER 8-98053-015-1 01 1 0907-0909
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-015-1 01 1 0910-
601 MOUNTING
EURO3 SPECIFICATION(NT3) 		8-98055-817-0 06 1 0910-
601 MOUNTING 8-98055-817-0 04 1 0907-
601 MOUNTING 8-98055-817-0 16 1 0907-0909
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 16 1 0910-

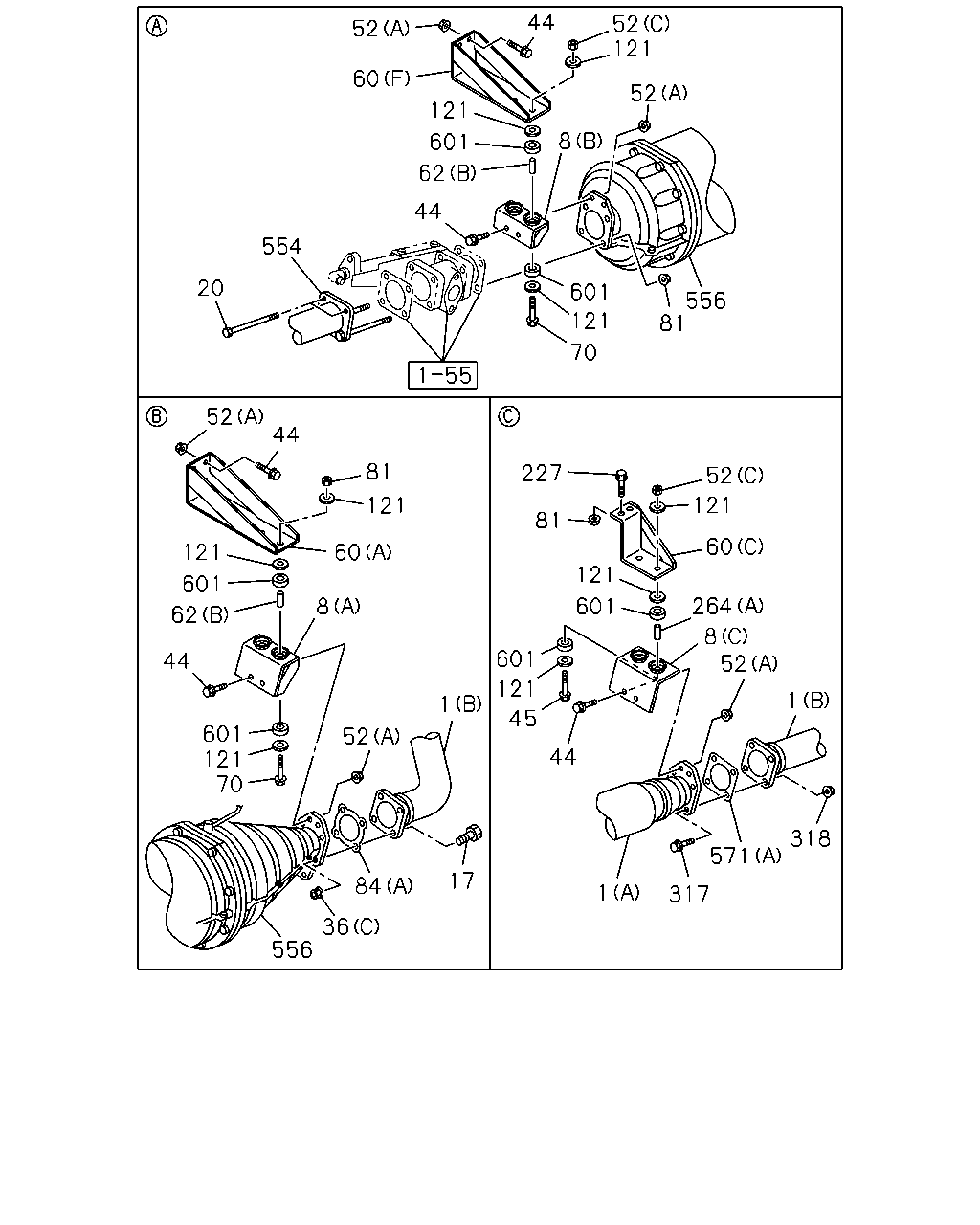

çizim 102357
44 52 121 52 60 52 121 8 601 62 44 554 20 601 556 81 121 70 52 44 81 227 52 121 121 81 60 121 60 121 601 264 601 8 62 8 52 601 44 121 1 1 45 601 121 70 52 44 318 571 17 84 1 317 36 556
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-98135-787-0 01 1 0910-
1 PIPE; EXH
(A) 		8-98053-009-0 01 1 0907-
1 PIPE; EXH
(B) 		8-98053-014-0 01 1 0907-0909
1 PIPE; EXH
EURO5 SPECIFICATION(NT5) (B) 		8-98053-014-0 01 1 0910-
1 PIPE; EXH
(C) 		8-98127-101-0 01 1 0907-
8 BRACKET; EXH PIPE
EURO3 SPECIFICATION(NT3) (D) 		8-98133-130-0 01 1 0910-
8 BRACKET; EXH PIPE
(A) 		1-22152-160-0 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22152-160-0 01 1 0910-
8 BRACKET; EXH PIPE
(B) 		1-22152-161-1 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22152-161-1 01 1 0910-
8 BRACKET; EXH PIPE
(C) 		8-98058-652-0 01 1 0907-
8 BRACKET; EXH PIPE
(D) 		8-98058-654-0 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (D) 		8-98058-654-0 01 1 0910-
8 BRACKET; EXH PIPE
(E) 		8-98135-434-0 01 1 0907-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0907-0909
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0907-0909
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 0910-
17 BOLT; EXH PIPE
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 04 1 0910-
20 BOLT; FLANGE,EXH PIPE
M10X100 FLANGE 		0-28051-000-0 02 1 0907-0909
20 BOLT; FLANGE,EXH PIPE
EURO5 SPECIFICATION(NT5) M10X100 FLANGE 		0-28051-000-0 02 1 0910-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0907-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0907-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0907-0909
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0910-
36 NUT; EXH PIPE
EURO5 SPECIFICATION(NT5) (C) M12 FLANGE 		0-91180-212-0 04 1 0910-
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0907-0909
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X30 FLANGE 		0-28651-030-0 04 1 0910-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 05 1 0907-
44 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 08 1 0907-0909
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X30 FLANGE 		0-28651-230-0 08 1 0910-
45 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X60 FLANGE 		0-28051-060-0 01 1 0910-
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0910-
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 02 1 0910-
52 NUT; BRKT
EURO3 SPECIFICATION(NT3) (C) M10 LOCK NUT 		0-91370-010-0 01 1 0910-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 08 1 0907-0909
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M12 FLANGE 		0-91180-212-0 08 1 0910-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NT3) (B) 		8-98135-868-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(F) 		8-97616-175-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		8-97616-175-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(A) 		8-97616-177-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		8-97616-177-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(C) 		8-98058-651-0 01 1 0907-
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(E) 		8-98058-655-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98058-655-0 01 1 0910-
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0907-0909
62 TUBE; DIST,BRKT
(A) L=25 		1-14234-083-0 02 1 0910-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 04 1 0907-0909
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 04 1 0910-0910
62 TUBE; DIST,BRKT
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 04 1 0910-
70 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X60 FLANGE 		0-28051-060-0 02 1 0910-
70 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X35 FLANGE 		0-28651-035-0 02 1 0910-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 06 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 06 1 0910-
70 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0910-
70 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 02 1 0907-0909
70 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X35 FLANGE 		0-28651-235-0 02 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 FLANGE 		0-91180-210-0 02 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
81 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0910-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0907-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0910-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0910-
84 GASKET; EXH PIPE
EURO3 SPECIFICATION(NT3) (B) 		8-98096-305-0 01 1 0910-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0907-0909
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22116-040-0 01 1 0910-
84 GASKET; EXH PIPE
(B) 		1-22116-042-0 01 1 0907-0909
84 GASKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22116-042-0 01 1 0910-
121 WASHER; PL,BRKT
EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2 		8-98010-405-0 09 1 0910-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0907-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0907-0909
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0910-
227 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0907-
264 TUBE; DIST,SUPPORT RUBBER
EURO3 SPECIFICATION(NT3) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0907-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 02 1 0907-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 02 1 0910-0910
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 02 1 0910-
317 BOLT; EXH PIPE,FRT
M12X35 FLANGE 		0-28651-235-0 04 1 0907-
318 NUT; EXH PIPE,FRT
M12 FLANGE 		0-91180-212-0 04 1 0907-
554 PIPE; EXH,SILENCER 8-98053-015-1 01 1 0907-0909
554 PIPE; EXH,SILENCER
EURO5 SPECIFICATION(NT5) 		8-98053-015-1 01 1 0910-
556 DPD ASM 8-97610-535-4 01 1 0907-0909
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97610-535-4 01 1 0910-1011
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97622-907-4 01 1 1012-
571 GASKET
(A) 		1-22116-040-0 01 1 0907-
571 GASKET
(B) ID=85.8 		1-22116-043-0 02 1 0907-
571 GASKET
(C) ID=81 		8-98043-481-0 01 1 0907-
601 MOUNTING
EURO3 SPECIFICATION(NT3) 		8-98055-817-0 06 1 0910-
601 MOUNTING 8-98055-817-0 04 1 0907-
601 MOUNTING 8-98055-817-0 16 1 0907-0909
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 16 1 0910-

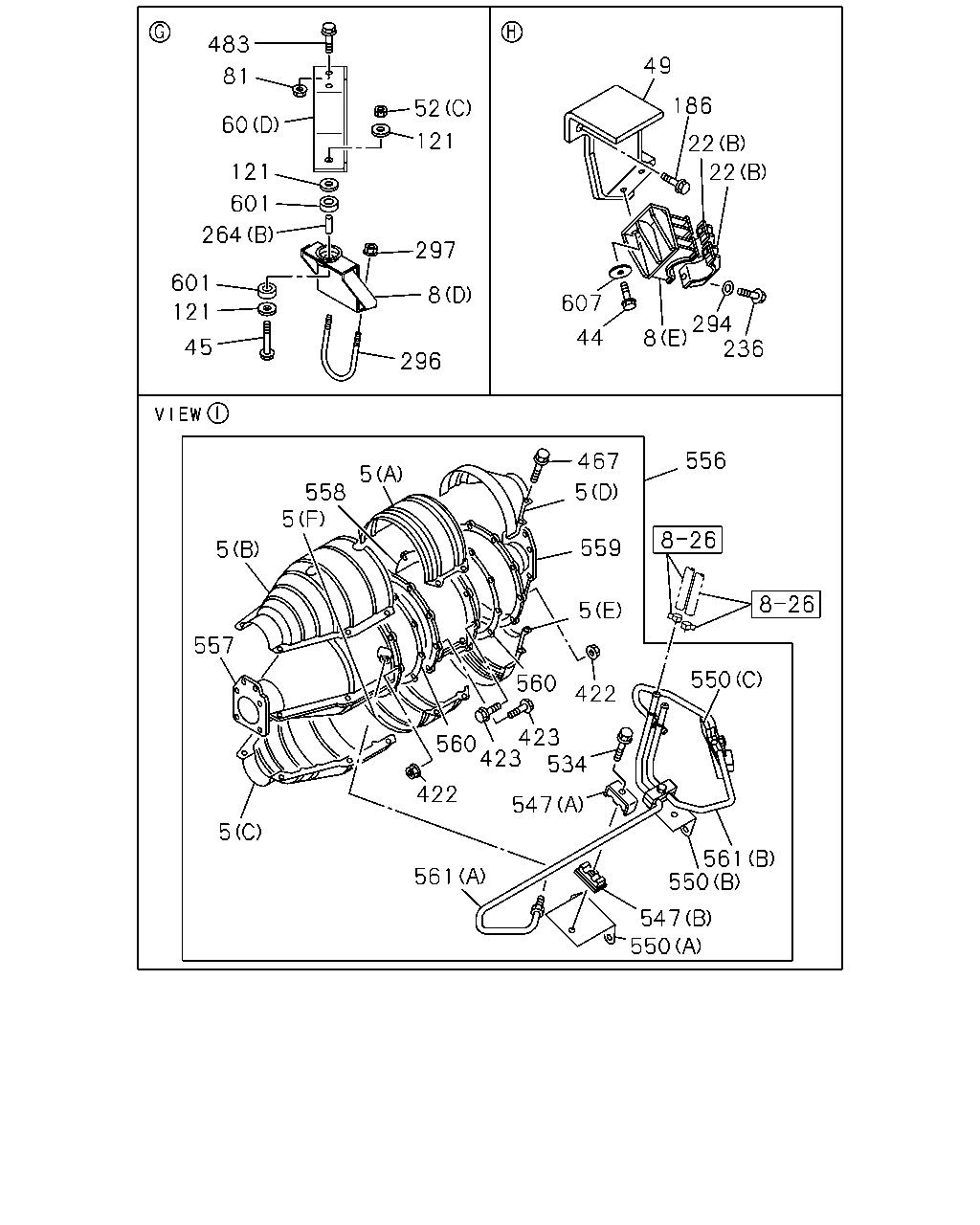

çizim 102360
483 49 81 186 52 60 121 22 121 22 601 264 297 601 8 607 121 294 8 236 44 45 296 556 467 5 5 558 5 559 5 5 557 550 560 422 423 560 423 534 422 547 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (B) 		8-97611-098-0 01 1 0910-
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (C) 		8-97611-099-0 01 1 0910-
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (A) 		8-97611-100-0 01 1 0910-
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (F) 		8-97611-101-0 01 1 0910-
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (D) 		8-97611-102-0 01 1 0910-
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0907-0909
5 PROTECTOR; HEAT
EURO5 SPECIFICATION(NT5) (E) 		8-97611-103-0 01 1 0910-
8 BRACKET; EXH PIPE
EURO3 SPECIFICATION(NT3) (D) 		8-98133-130-0 01 1 0910-
8 BRACKET; EXH PIPE
(A) 		1-22152-160-0 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) 		1-22152-160-0 01 1 0910-
8 BRACKET; EXH PIPE
(B) 		1-22152-161-1 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (B) 		1-22152-161-1 01 1 0910-
8 BRACKET; EXH PIPE
(C) 		8-98058-652-0 01 1 0907-
8 BRACKET; EXH PIPE
(D) 		8-98058-654-0 01 1 0907-0909
8 BRACKET; EXH PIPE
EURO5 SPECIFICATION(NT5) (D) 		8-98058-654-0 01 1 0910-
8 BRACKET; EXH PIPE
(E) 		8-98135-434-0 01 1 0907-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0907-0909
22 CLAMP; EXH PIPE
EURO5 SPECIFICATION(NT5) (A) ID=80-84 		1-22133-233-0 02 1 0910-
22 CLAMP; EXH PIPE
(B) 		8-98073-250-0 02 1 0907-
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0907-0909
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X30 FLANGE 		0-28651-030-0 04 1 0910-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 05 1 0907-
44 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 08 1 0907-0909
44 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M12X30 FLANGE 		0-28651-230-0 08 1 0910-
45 BOLT; BRKT
EURO3 SPECIFICATION(NT3) M10X60 FLANGE 		0-28051-060-0 01 1 0910-
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0907-0909
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0910-
45 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M10X60 FLANGE 		0-28051-060-0 02 1 0910-
49 BRACKET; EXH PIPE TO TRANS 8-98126-760-1 01 1 0907-
52 NUT; BRKT
EURO3 SPECIFICATION(NT3) (C) M10 LOCK NUT 		0-91370-010-0 01 1 0910-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 08 1 0907-0909
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (A) M12 FLANGE 		0-91180-212-0 08 1 0910-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-0909
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (B) M10 FLANGE 		0-91180-210-0 02 1 0910-
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0907-0909
52 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
52 NUT; BRKT
EURO5 SPECIFICATION(NT5) (C) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NT3) (B) 		8-98135-868-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-392-0 02 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (B) 		1-22152-392-0 02 1 0910-
60 BRACKET; FRAME TO BRKT
(F) 		8-97616-175-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (F) 		8-97616-175-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(A) 		8-97616-177-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (A) 		8-97616-177-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(C) 		8-98058-651-0 01 1 0907-
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
(D) 		8-98058-653-0 01 1 0910-
60 BRACKET; FRAME TO BRKT
(E) 		8-98058-655-0 01 1 0907-0909
60 BRACKET; FRAME TO BRKT
EURO5 SPECIFICATION(NT5) (E) 		8-98058-655-0 01 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 FLANGE 		0-91180-210-0 02 1 0910-
81 NUT; BRKT
EURO3 SPECIFICATION(NT3) M10 LOCK NUT 		0-91370-010-0 02 1 0910-
81 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0910-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0907-
81 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M12 FLANGE 		0-91180-212-0 02 1 0910-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 06 1 0907-0909
81 NUT; BRKT
EURO5 SPECIFICATION(NT5) M10 LOCK NUT 		0-91370-010-0 06 1 0910-
121 WASHER; PL,BRKT
EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2 		8-98010-405-0 09 1 0910-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0907-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0907-0909
121 WASHER; PL,BRKT
EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0910-
186 BOLT; BRKT TO ENG
M10X20 FLANGE 		0-28151-020-0 02 1 0907-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 		0-20851-035-0 04 1 0907-
264 TUBE; DIST,SUPPORT RUBBER
EURO3 SPECIFICATION(NT3) (B) L=22 		9-22159-024-0 01 1 0910-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 		1-14234-083-0 02 1 0907-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		1-22159-392-0 02 1 0907-0909
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 02 1 0910-0910
264 TUBE; DIST,SUPPORT RUBBER
EURO5 SPECIFICATION(NT5) (B) L=22 		9-22159-024-0 02 1 0910-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		0-91610-510-0 04 1 0907-
296 U-BOLT; FRT EXH PIPE
EURO3 SPECIFICATION(NT3) 		1-22113-101-0 01 1 0910-
296 U-BOLT; FRT EXH PIPE 1-22113-009-0 01 1 0907-0909
296 U-BOLT; FRT EXH PIPE
EURO5 SPECIFICATION(NT5) 		1-22113-009-0 01 1 0910-
297 NUT; U-BOLT,FRT EXH PIPE
M8 		0-91110-508-0 04 1 0907-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0907-0909
422 NUT; PIPE
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 20 1 0910-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0907-0909
423 BOLT; PIPE
EURO5 SPECIFICATION(NT5) M8X35 FLANGE 		0-28650-835-0 20 1 0910-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0907-0909
467 BOLT; PROTECTOR
EURO5 SPECIFICATION(NT5) M6X16 		8-98019-179-0 14 1 0910-
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28650-830-0 02 1 0907-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0907-0909
534 BOLT; CLIP
EURO5 SPECIFICATION(NT5) M6X35 FLANGE 		0-28650-635-0 03 1 0910-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0907-0909
547 CLIP; PIPE
EURO5 SPECIFICATION(NT5) (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0910-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0907-0909
547 CLIP; PIPE
EURO5 SPECIFICATION(NT5) (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0910-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0907-0909
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (C) 		8-97611-085-0 01 1 0910-
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 0907-0909
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97611-096-0 01 1 0910-
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 0907-0909
550 BRACKET; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97611-097-0 01 1 0910-
556 DPD ASM 8-97610-535-4 01 1 0907-0909
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97610-535-4 01 1 0910-1011
556 DPD ASM
EURO5 SPECIFICATION(NT5) 		8-97622-907-4 01 1 1012-
557 CATALYST ASM 8-97608-054-6 01 1 0907-0909
557 CATALYST ASM
EURO5 SPECIFICATION(NT5) 		8-97608-054-6 01 1 0910-
558 FILTER ASM 8-97608-056-2 01 1 0907-0909
558 FILTER ASM
EURO5 SPECIFICATION(NT5) 		8-97608-056-2 01 1 0910-
559 COVER; RR 8-97611-090-0 01 1 0907-0909
559 COVER; RR
EURO5 SPECIFICATION(NT5) 		8-97611-090-0 01 1 0910-1011
559 COVER; RR
EURO5 SPECIFICATION(NT5) 		8-97622-903-0 01 1 1012-
560 GASKET; DPD 8-97611-092-0 02 1 0907-0909
560 GASKET; DPD
EURO5 SPECIFICATION(NT5) 		8-97611-092-0 02 1 0910-
561 PIPE; DPD
(A) 		8-97613-322-0 01 1 0907-0909
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97613-322-0 01 1 0910-1011
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (A) 		8-97622-908-0 01 1 1012-
561 PIPE; DPD
(B) 		8-97613-323-0 01 1 0907-0909
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97613-323-0 01 1 0910-1011
561 PIPE; DPD
EURO5 SPECIFICATION(NT5) (B) 		8-97622-909-0 01 1 1012-
601 MOUNTING
EURO3 SPECIFICATION(NT3) 		8-98055-817-0 06 1 0910-
601 MOUNTING 8-98055-817-0 04 1 0907-
601 MOUNTING 8-98055-817-0 16 1 0907-0909
601 MOUNTING
EURO5 SPECIFICATION(NT5) 		8-98055-817-0 16 1 0910-
607 WASHER; BRKT
OD=32 T=6.0 		8-94416-693-0 03 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
