◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#15811) — 27 parça
çizim 62891
1 87 2
BalonParca AdiParca NoAdetTipApplied Date
1 SEDIMENTER; FUEL
EURO3 SPECIFICATION(NT3) (B) 		8-98086-193-1 01 1 0910-
1 SEDIMENTER; FUEL
(A) 		8-98023-327-2 01 1 0907-1002
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1003-
2 ELEMENT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-1002
2 ELEMENT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1111
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1112-
2 ELEMENT; FUEL FILTER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-481-1 01 1 0910-
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1112-
2 ELEMENT; FUEL FILTER
EURO3 SPECIFICATION(NT3) (B) BEST VALUE PARTS 		1-87610-094-1 01 1 0910-
87 CASE ASM; SEDIMENTER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-482-1 01 1 0910-
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 0907-

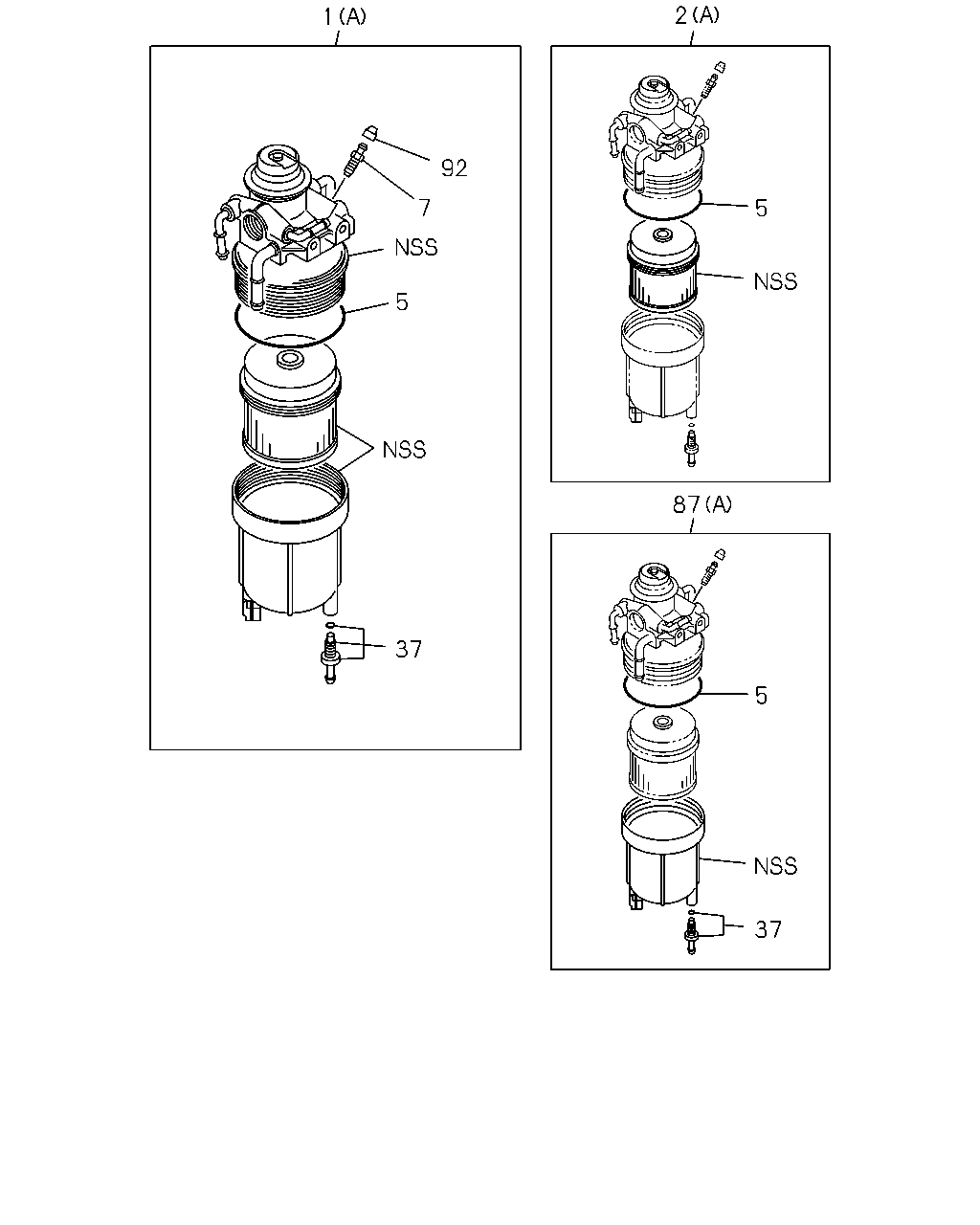

çizim 62899
2 1 92 7 5 5 87 37 5 37
BalonParca AdiParca NoAdetTipApplied Date
1 SEDIMENTER; FUEL
EURO3 SPECIFICATION(NT3) (B) 		8-98086-193-1 01 1 0910-
1 SEDIMENTER; FUEL
(A) 		8-98023-327-2 01 1 0907-1002
1 SEDIMENTER; FUEL
(A) 		8-98162-904-4 01 1 1003-
2 ELEMENT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-1002
2 ELEMENT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1111
2 ELEMENT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1112-
2 ELEMENT; FUEL FILTER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-481-1 01 1 0910-
2 ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1112-
2 ELEMENT; FUEL FILTER
EURO3 SPECIFICATION(NT3) (B) BEST VALUE PARTS 		1-87610-094-1 01 1 0910-
5 GASKET; UPR COVER,SEDIMENTER 8-98037-015-0 01 1 0907-1111
5 GASKET; UPR COVER,SEDIMENTER 8-98203-600-0 01 1 1112-
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 0907-
37 PLUG; SENSOR 8-98037-095-0 01 1 0907-
87 CASE ASM; SEDIMENTER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-482-1 01 1 0910-
87 CASE ASM; SEDIMENTER
(A) 		8-98039-987-1 01 1 0907-
92 CAP; DRAIN 8-98034-314-0 01 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
