Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

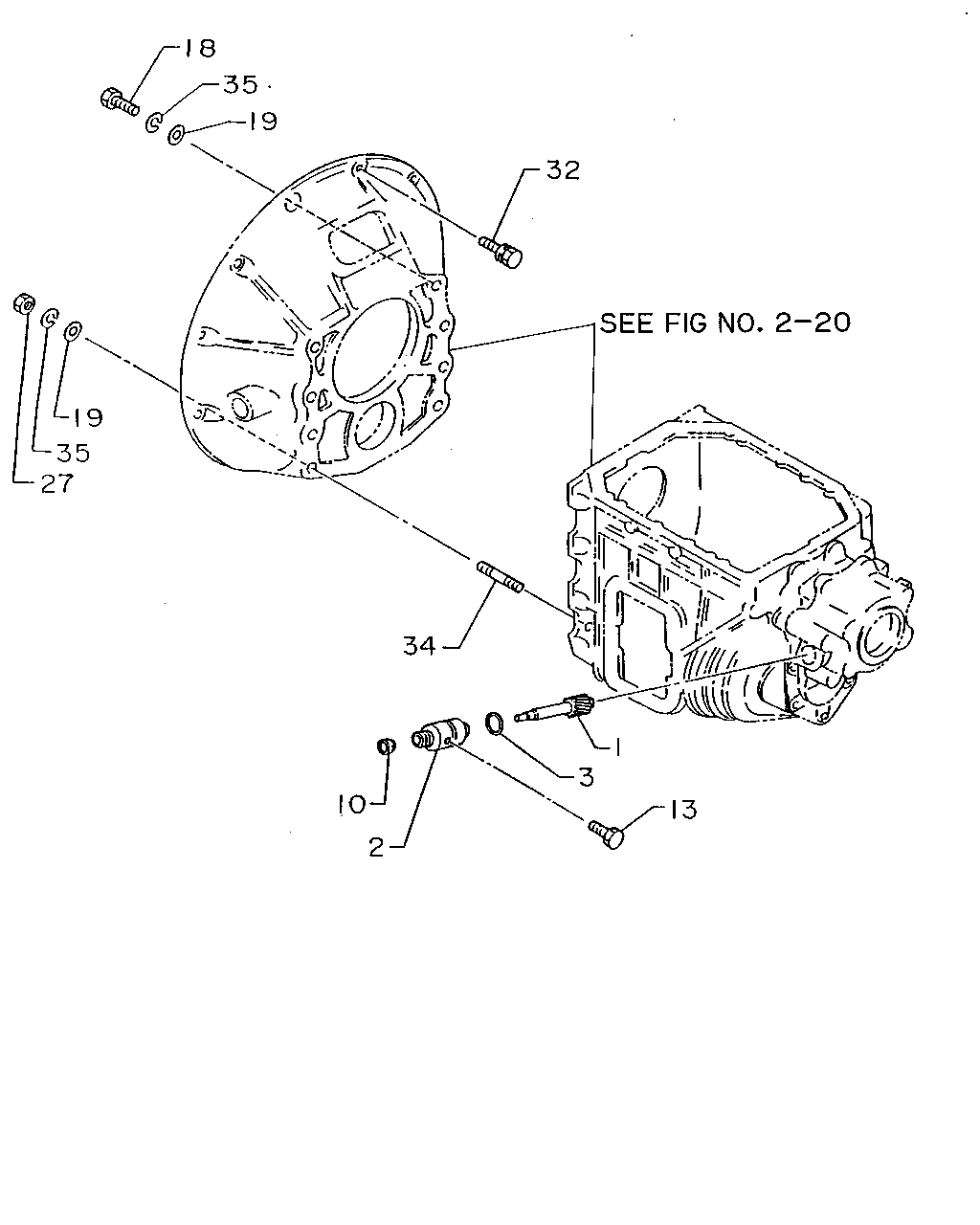

2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#1581) — 20 parça
Tümü
A - MLD6D M/T
B - MBG5B M/T
18
35
19
32
34
10
2
3
1
13
27
35
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=12
1-33372-107-5
01
1
9207-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-058-3
01
1
9207-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
9207-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
9207-
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
9207-
●
18
BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER
0-50151-440-0
05
1
9207-
●
18
BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER
0-50151-640-0
06
1
9207-
●
19
WASHER; PL,CLU HSG TO TRANS
ID=15
9-09160-514-0
01
1
9207-
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
9207-
●
27
NUT; CLU HSG TO TRANS
EXC. TRANSMISSION FRONT PTO<RC2> M14
9-99110-514-0
01
1
9207-
●
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
9207-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. FIRE TRUCK(RA9) M10X35 W/LK&PL WASHER
0-50151-035-0
03
1
9207-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO<RC2> M10X30 W/LK&PL WASHER
0-50151-030-0
10
1
9207-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO<RC2> M10X35 W/LK&PL WASHER
0-50151-035-0
02
1
9207-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. TRANSMISSION FRONT PTO<RC2> M10X30 W/LK&PL WASHER
0-50151-030-0
09
1
9207-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X32 W/LK&PL WASHER
0-50151-032-0
10
1
9207-
●
34
STUD; CLU HSG
EXC. FIRE TRUCK(RA9) M14X39 L=67
1-09302-145-1
01
1
9207-
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
9207-
●
35
WASHER; LK,CLU HSG TO TRANS
ID=14.2
9-09150-514-0
01
1
9207-
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
9207-
●
