11209 - LV434(RHD) EURO3/5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

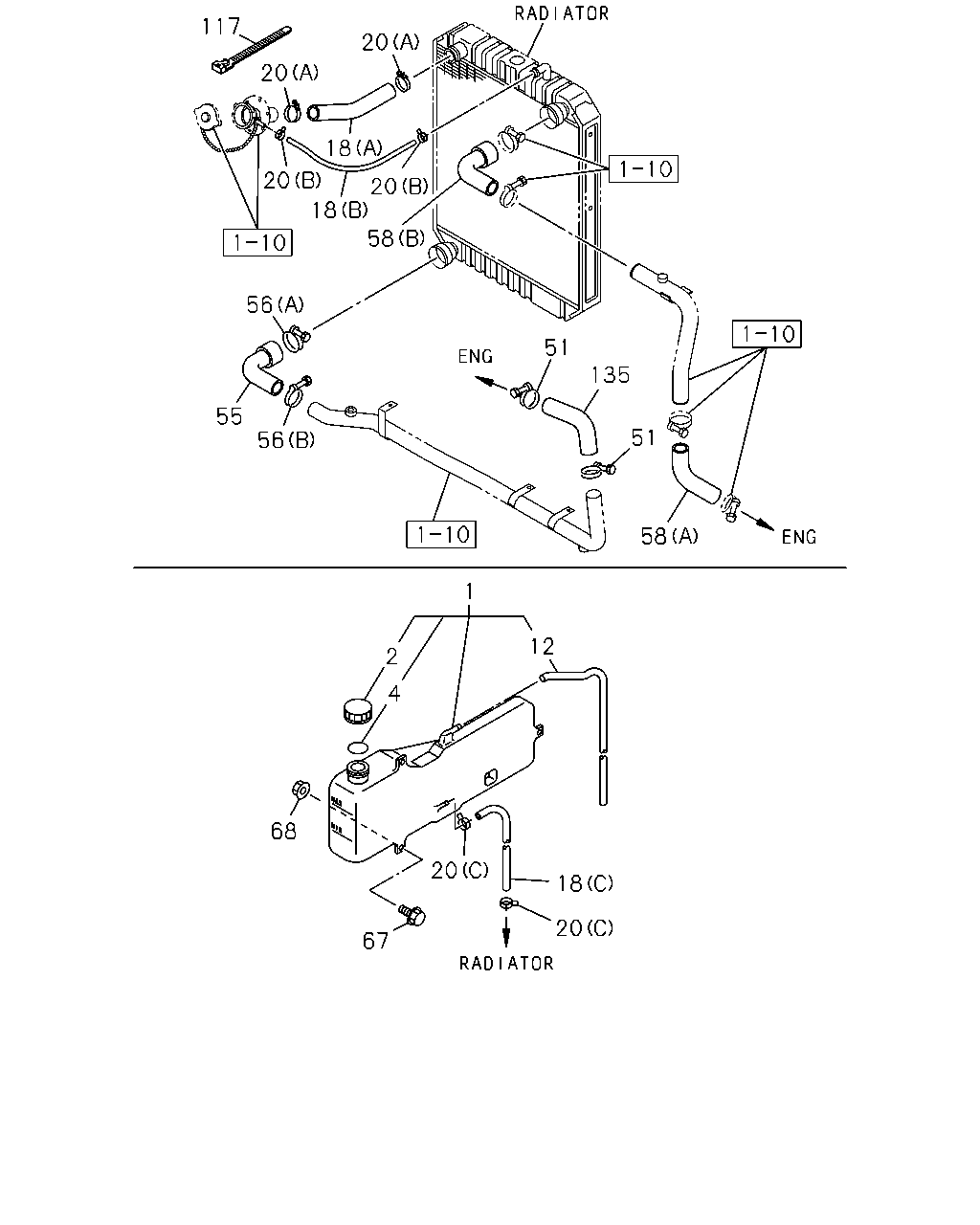

1-11 — RADIATOR HOSE AND SUB TANK
(#15804) — 20 parça
117
20
20
18
20
20
18
58
56
51
135
55
51
56
58
1
12
2
4
68
20
18
20
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-078-1
01
1
0907-
2
CAP; SURGE TANK
OD=51 NO-HOLE
1-22440-039-0
01
1
0907-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
0907-
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
0907-
18
HOSE; RAD TO SURGE TANK
(B) L=600 SERVICED BY L=3000
0-03559-300-0
01
1
0907-
18
HOSE; RAD TO SURGE TANK
(C) L=1500 SERVICED BY L=3000
0-03557-300-0
01
1
0907-
18
HOSE; RAD TO SURGE TANK
(A)
1-21437-914-0
01
1
0907-
20
CLIP; HOSE,RAD
(A) ID=48
1-09704-064-0
02
1
0907-
20
CLIP; HOSE,RAD
(B) ID=14
1-09704-102-0
02
1
0907-
20
CLIP; HOSE,RAD
(C) ID=12
8-94238-610-0
02
1
0907-
51
CLIP; WATER HOSE,RAD
ID=63
1-09704-106-0
02
1
0907-
55
HOSE; WATER,RAD OUTLET
1-21437-773-1
01
1
0907-
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
01
1
0907-
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-106-0
01
1
0907-
58
HOSE; WATER,RAD TO PIPE
(A) L=130
1-09360-578-1
01
1
0907-
58
HOSE; WATER,RAD TO PIPE
(B)
1-21437-774-1
01
1
0907-
67
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0907-
68
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0907-
117
CLIP; BAND
L=250
5-09707-030-1
01
1
0907-
135
HOSE; WATER,ENG TO CONN
L=130
1-09360-578-1
01
1
0907-
