2-20 — MANUAL TRANSMISSION ASM AND CASE (#1580) — 119 parça

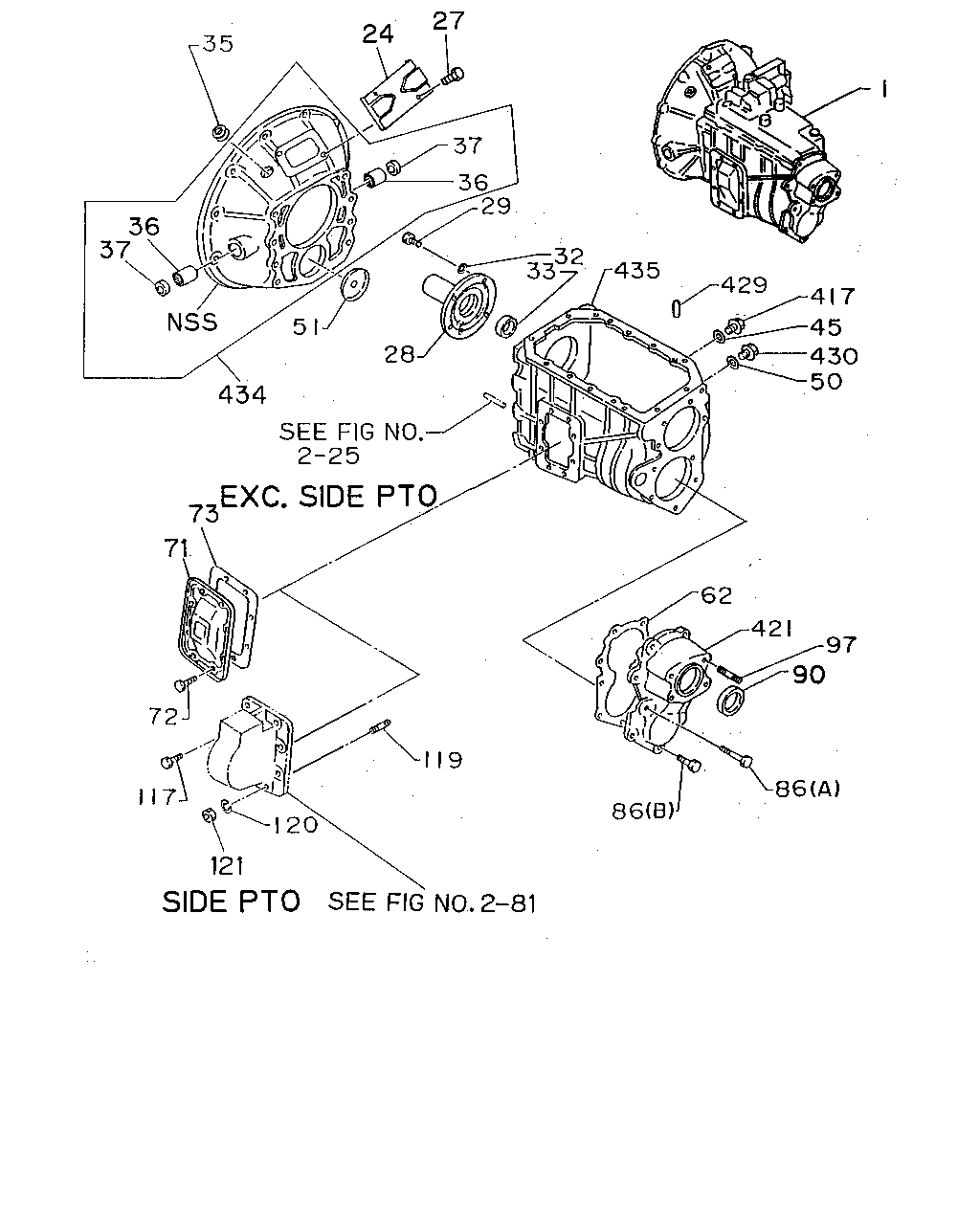

35 24 27 37 36 29 32 33 28 51 36 37 434 73 71 72 117 121 120 119 86 86 90 97 421 62 50 430 45 417 429 435 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL FIRE TRUCK(RA9) 14 INCH SPICER CLUTCH(SFF)	1-33031-077-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL FIRE TRUCK(RA9) EXC. 14 INCH SPICER CLUTCH(SFF)	1-33022-319-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL EXC. FIRE TRUCK(RA9),14 INCH SPICER CLUTCH(SFF)	1-33019-345-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) EXC. FIRE TRUCK(RA9)	1-33031-075-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) ASSISTER SHIFT CONTROL<WX8>	1-33036-540-0	01	1	9207-9207		●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33031-010-0	01	1	9207-		●
1	TRANSMISSION ASM; MANUAL EXC. 14 INCH SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33022-894-0	01	1	9207-		●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9207-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9207-	●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9207-9312	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9207-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9207-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9207-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9207-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9207-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9207-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9207-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9207-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9207-9405	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9207-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9207-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9207-9402		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9207-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9207-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9207-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9207-		●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO<RC2> M10X16 FLANGE	0-28181-016-0	06	1	9207-	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	02	1	9207-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO<RC2>,TRANSMISSION SIDEPTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9207-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9207-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9207-	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	09	1	9207-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9207-		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9207-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=58 NOK	1-09625-505-0	01	1	9207-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=60 KOYO	1-09625-522-0	01	1	9207-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=63 NOK	1-09625-513-0	01	1	9207-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9207-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10X30 W/LK WASHER	0-50051-030-0	06	1	9207-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9207-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10X28	0-50051-028-0	06	1	9207-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9207-	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO(SD8) ID=10.2	9-09150-510-0	02	1	9207-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9207-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10	9-09110-510-0	02	1	9207-	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-021-0	01	1	9207-9405	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-022-0	01	1	9406-	●	●
421	COVER; RR,TRANS	9-33131-148-2	01	1	9207-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9207-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9207-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9207-	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9207-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9207-		●
435	CASE; TRANS	1-33111-157-3	01	1	9207-	●
435	CASE; TRANS	1-33111-235-0	01	1	9207-		●

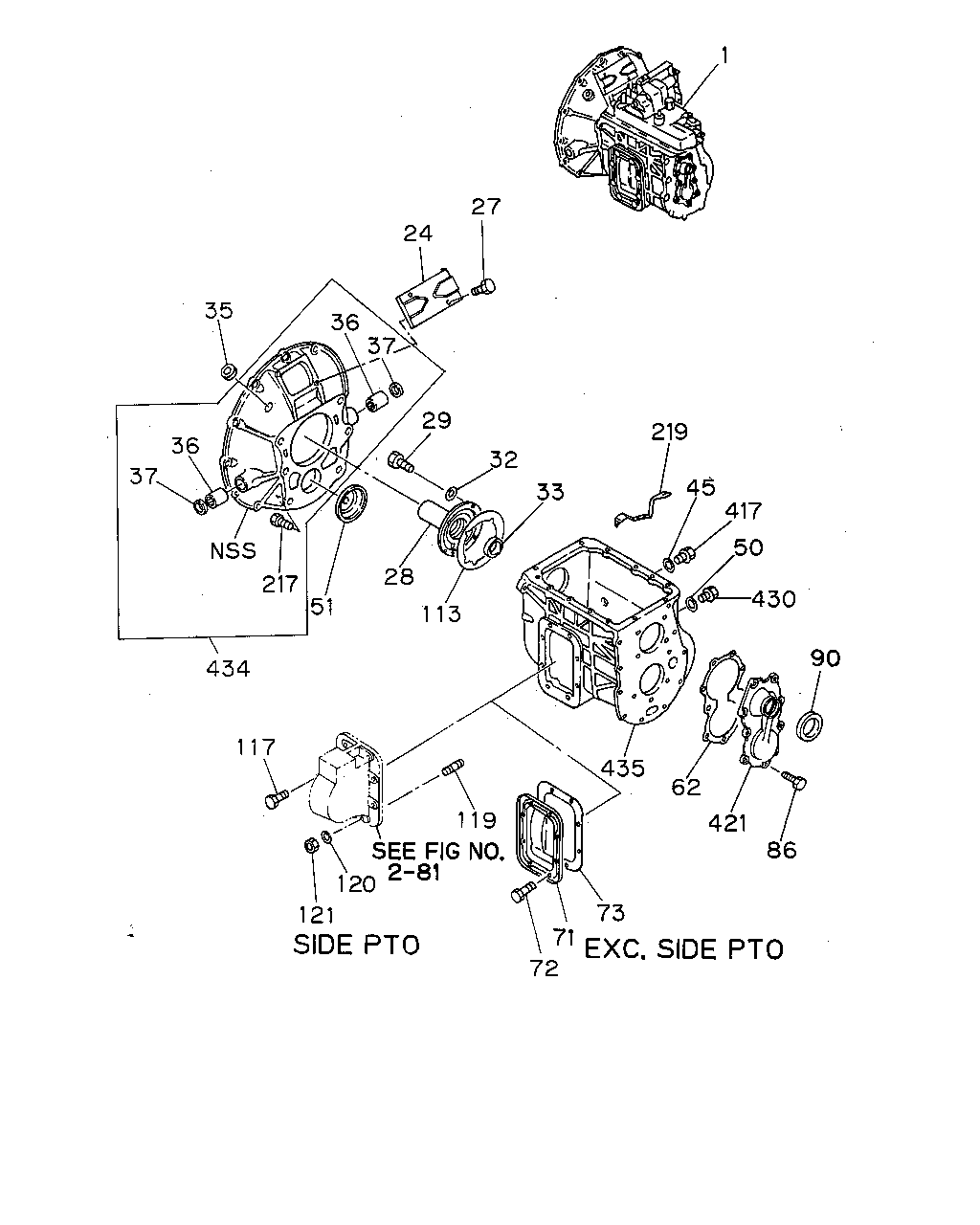

1 27 24 36 37 35 36 37 217 51 28 29 32 33 113 434 117 121 120 119 219 45 417 50 430 90 86 421 62 435 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL FIRE TRUCK(RA9) 14 INCH SPICER CLUTCH(SFF)	1-33031-077-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL FIRE TRUCK(RA9) EXC. 14 INCH SPICER CLUTCH(SFF)	1-33022-319-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL EXC. FIRE TRUCK(RA9),14 INCH SPICER CLUTCH(SFF)	1-33019-345-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) EXC. FIRE TRUCK(RA9)	1-33031-075-0	01	1	9207-	●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) ASSISTER SHIFT CONTROL<WX8>	1-33036-540-0	01	1	9207-9207		●
1	TRANSMISSION ASM; MANUAL 14 INCH SPICER CLUTCH(SFF) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33031-010-0	01	1	9207-		●
1	TRANSMISSION ASM; MANUAL EXC. 14 INCH SPICER CLUTCH(SFF),ASSISTER SHIFT CONTROL<WX8>	1-33022-894-0	01	1	9207-		●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9207-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9207-	●	●
28	COVER; FRT,TRANS CASE	1-33121-036-3	01	1	9207-9312	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9401-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9207-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9207-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9207-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9207-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9207-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9207-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9207-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9207-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9207-9405	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9207-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9207-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9207-9402		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9207-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9207-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9207-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9207-		●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO<RC2> M10X16 FLANGE	0-28181-016-0	06	1	9207-	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO<RC2> M10X28 FLANGE	0-28181-028-0	02	1	9207-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO<RC2>,TRANSMISSION SIDEPTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9207-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9207-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9207-	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	09	1	9207-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9207-		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9207-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=58 NOK	1-09625-505-0	01	1	9207-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=60 KOYO	1-09625-522-0	01	1	9207-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=63 NOK	1-09625-513-0	01	1	9207-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-008-0	01	1	9207-9312	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10X30 W/LK WASHER	0-50051-030-0	06	1	9207-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9207-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10X28	0-50051-028-0	06	1	9207-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9207-	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO(SD8) ID=10.2	9-09150-510-0	02	1	9207-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9207-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO(SD8) M10	9-09110-510-0	02	1	9207-	●	●
217	BOLT; CLU HSG TO FRT PTO TRANSMISSION FRONT PTO<RC2>	1-09020-034-0	01	1	9207-	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9207-	●
417	PLUG; OIL FILLER,TRANS	1-09604-021-0	01	1	9207-9405	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-022-0	01	1	9406-	●	●
421	COVER; RR,TRANS	9-33131-148-2	01	1	9207-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9207-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9207-	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9207-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9207-		●
435	CASE; TRANS	1-33111-157-3	01	1	9207-	●
435	CASE; TRANS	1-33111-235-0	01	1	9207-		●
