0-65 — STARTER (#158) — 28 parça
çizim 94539
1
BalonParca AdiParca NoAdetTipApplied Date
1 SEAL KIT; STARTER
ASM PART: A = 1-81100-295-0 		1-81129-671-0 01 1 -
116 BOLT; BRKT
(A) ASM PART: A = 1-81100-295-0 		1-81129-604-0 01 1 -
116 BOLT; BRKT
(B) ASM PART: A = 1-81100-295-0 		1-81129-605-0 01 1 -
117 WASHER; CLUTCH
ASM PART: A = 1-81100-295-0 		8-94340-468-0 01 1 -

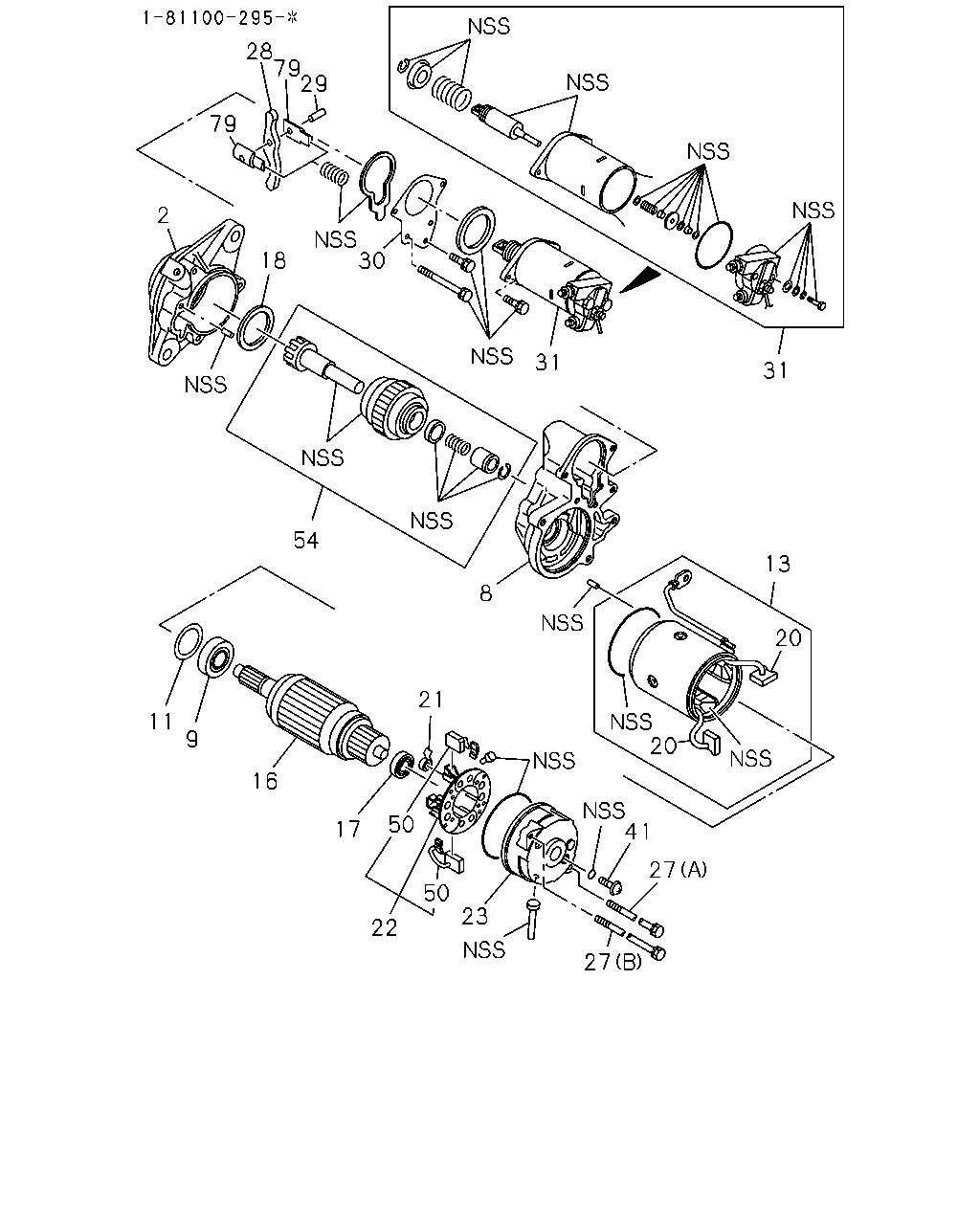

çizim 94648
28 79 29 79 2 30 18 31 31 54 13 8 20 21 20 11 9 16 41 50 17 27 50 23 22 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-295-0 		1-81123-041-1 01 1 -
8 BRACKET; CENTER STARTER
ASM PART: A = 1-81100-295-0 		1-81118-052-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
ASM PART: A = 1-81100-295-0 		8-94340-476-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 1-81100-295-0 		9-82125-213-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-295-0 		1-81129-704-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-295-0 		1-81121-061-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 1-81100-295-0 		1-81129-609-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 1-81100-295-0 		1-81116-057-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-295-0 		5-81117-019-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-295-0 		1-81118-057-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-295-0 		1-81115-218-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 1-81100-295-0 		1-81129-606-0 01 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 1-81100-295-0 		1-81129-607-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-295-0 		1-81127-037-0 01 1 -
29 PIN; SHIFT LEVER STARTER
ASM PART: A = 1-81100-295-0 		8-94340-471-0 01 1 -
30 PLATE; ENGAGE SW STARTER
ASM PART: A = 1-81100-295-0 		1-81129-670-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-295-0 		1-81151-094-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 1-81100-295-0 		1-81129-602-0 02 1 -
50 BRUSH; (-),STARTER
ASM PART: A = 1-81100-295-0 		1-81116-058-0 02 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-295-0 		1-81129-614-0 01 1 -
79 HOLDER; SHIFT LEVER
ASM PART: A = 1-81100-295-0 		1-81118-051-0 02 1 -
116 BOLT; BRKT
(A) ASM PART: A = 1-81100-295-0 		1-81129-604-0 01 1 -
116 BOLT; BRKT
(B) ASM PART: A = 1-81100-295-0 		1-81129-605-0 01 1 -
117 WASHER; CLUTCH
ASM PART: A = 1-81100-295-0 		8-94340-468-0 01 1 -
