Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

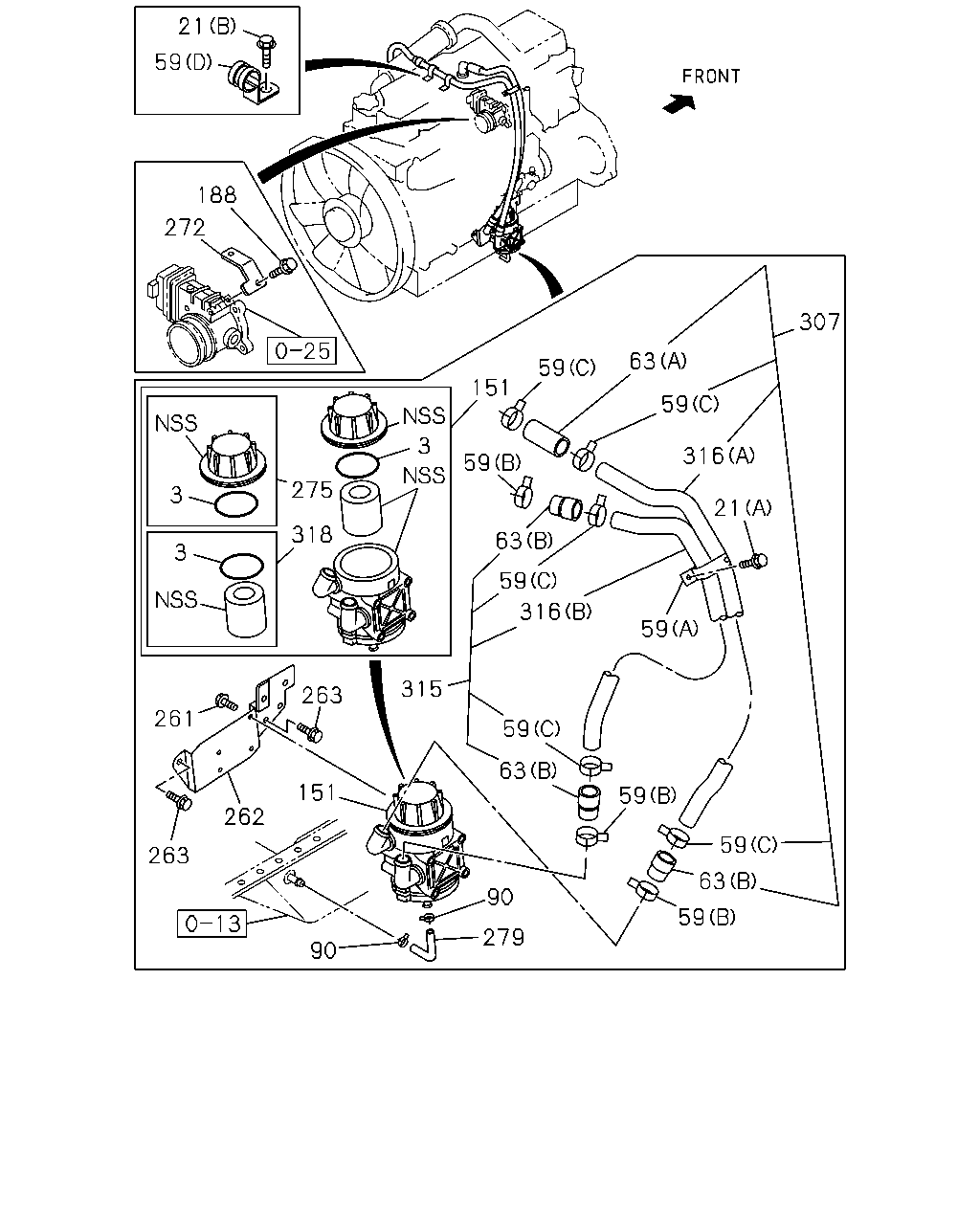

0-28 — VENTILATION SYSTEM
(#15784) — 30 parça
21
59
188
272
151
59
63
307
59
316
21
59
63
59
316
59
315
59
63
59
59
63
59
90
279
90
263
261
262
263
3
275
318
3
3
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0907-
21
BOLT; CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
0907-
21
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
02
1
0907-
59
CLIP; HOSE
(D) ID=31 H=30 L=35
1-09700-994-0
02
1
0907-
59
CLIP; HOSE
(A) ID=30X2 L=28
1-09701-266-0
01
1
0907-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
0907-
59
CLIP; HOSE
(C) ID=33.6
8-94362-518-0
05
1
0907-
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02828-070-0
01
1
0907-1005
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02728-070-0
01
1
1006-
63
HOSE; RUBBER,AIR BREATHER
(B)
1-09360-925-0
03
1
0907-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0907-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
0907-
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
0907-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
0907-
262
BRACKET; OIL SEPARETOR
EURO3 SPECIFICATION(NT3)
8-97604-921-0
01
1
0910-
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
0907-0909
262
BRACKET; OIL SEPARETOR
EURO5 SPECIFICATION(NT5)
8-97610-919-1
01
1
0910-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
0907-
272
BRACKET; PIPE
8-97607-397-0
01
1
0907-
275
CAP; PCV
8-97606-319-0
01
1
0907-
279
HOSE; RUBBER,OIL DRAIN
EURO3 SPECIFICATION(NT3) L=160
0-02709-160-0
01
1
0910-
279
HOSE; RUBBER,OIL DRAIN
L=210 SERVICED BY L=1000
0-02759-100-0
01
1
0907-0909
279
HOSE; RUBBER,OIL DRAIN
EURO5 SPECIFICATION(NT5) L=210 SERVICED BY L=1000
0-02759-100-0
01
1
0910-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98055-316-2
01
1
0907-1208
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98218-154-0
01
1
1209-
315
HOSE; RUBBER
8-97615-918-1
01
1
0907-1006
315
HOSE; RUBBER
8-98154-176-1
01
1
1007-
316
HOSE; BREATHER
(B) L=1320
8-97600-189-0
01
1
0907-
316
HOSE; BREATHER
(A) L=800
8-97602-932-0
01
1
0907-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
