Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

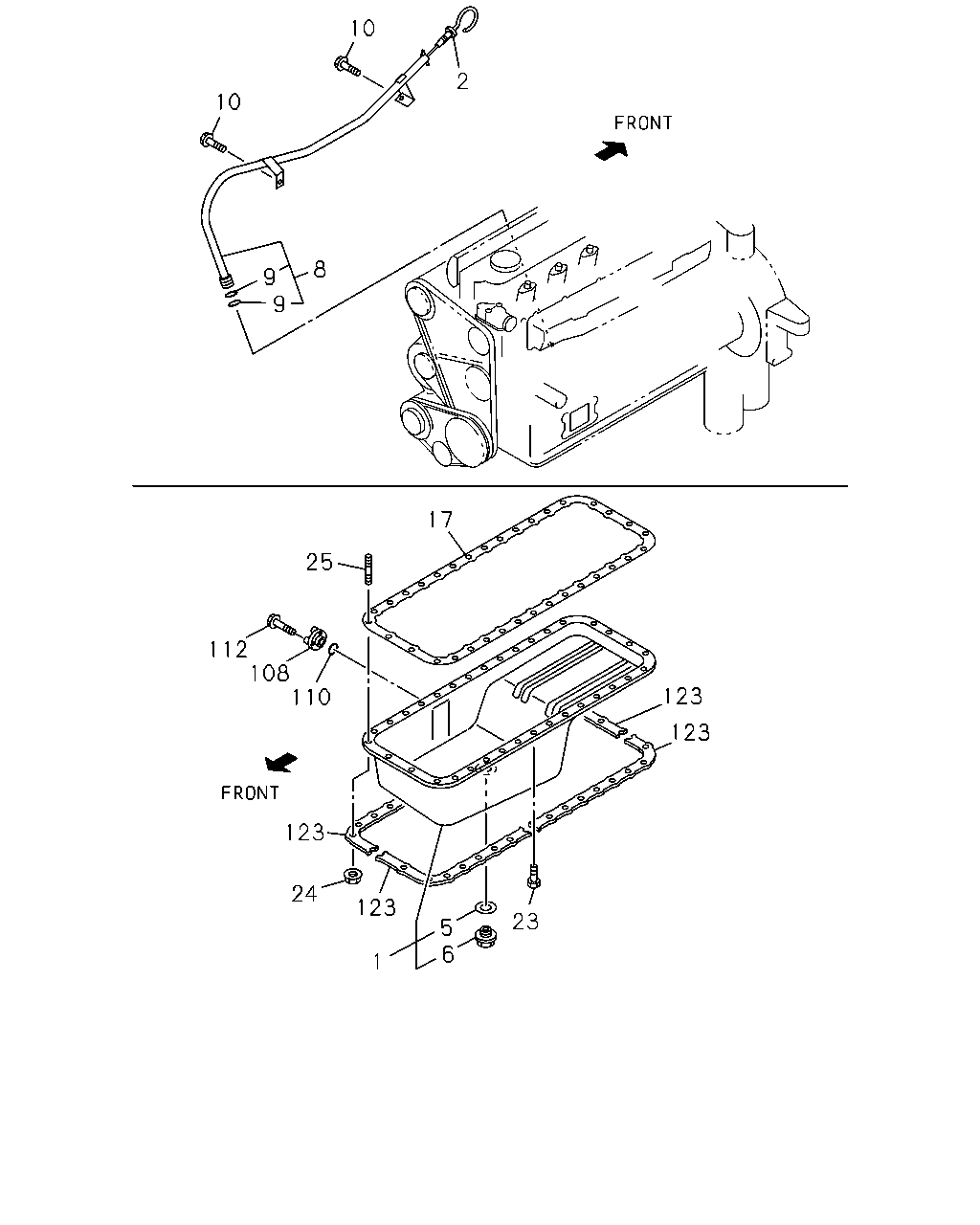

0-13 — OIL PAN AND LEVEL GAUGE
(#15777) — 32 parça
10
2
10
8
9
9
17
25
112
108
110
123
123
123
24
123
23
5
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
EURO3 SPECIFICATION(NT3)
8-97603-410-2
01
1
0910-
1
PAN ASM; OIL
8-98061-543-0
01
1
0907-0909
1
PAN ASM; OIL
EURO5 SPECIFICATION(NT5)
8-98061-543-0
01
1
0910-
2
GAUGE; OIL LEVEL
EURO3 SPECIFICATION(NT3)
8-98064-374-0
01
1
0910-1005
2
GAUGE; OIL LEVEL
EURO3 SPECIFICATION(NT3)
8-98170-480-0
01
1
1006-1212
2
GAUGE; OIL LEVEL
EURO3 SPECIFICATION(NT3)
8-98231-275-0
01
1
1301-
2
GAUGE; OIL LEVEL
8-98100-836-1
01
1
0907-0909
2
GAUGE; OIL LEVEL
EURO5 SPECIFICATION(NT5)
8-98100-836-1
01
1
0910-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) ID=24.4
1-09623-057-0
01
1
0910-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0907-0909
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) ID=24.5
8-94399-398-0
01
1
0910-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0907-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-98054-468-0
01
1
0907-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0907-
10
BOLT; GUIDE TUBE
M8X16 FLANGE
0-28050-816-0
01
1
0907-
10
BOLT; GUIDE TUBE
M6X12 FLANGE
0-28060-612-0
01
1
0907-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
0907-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
27
1
0907-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
07
1
0907-
25
STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
0907-
25
STUD; OIL PAN
M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
02
1
0907-0909
25
STUD; OIL PAN
EURO5 SPECIFICATION(NT5) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
02
1
0910-
108
COVER; OIL PAN
8-97609-994-0
01
1
0907-0909
108
COVER; OIL PAN
EURO5 SPECIFICATION(NT5)
8-97609-994-0
01
1
0910-
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
0907-0909
110
GASKET; SW,OIL LEVEL
EURO5 SPECIFICATION(NT5) ID=27
8-98056-488-0
01
1
0910-
112
BOLT; SW,OIL LEVEL
M6X25 FLANGE
0-28050-625-0
03
1
0907-0909
112
BOLT; SW,OIL LEVEL
EURO5 SPECIFICATION(NT5) M6X25 FLANGE
0-28050-625-0
03
1
0910-
123
RUBBER; SEAL OIL
FRONT
8-94391-755-0
01
1
0907-
123
RUBBER; SEAL OIL
REAR
8-94391-757-0
01
1
0907-
123
RUBBER; SEAL OIL
REAR
8-94391-758-0
01
1
0907-
123
RUBBER; SEAL OIL
FRONT
8-94392-548-0
01
1
0907-
