2-05 — CLUTCH PIPING (#1576) — 57 parça

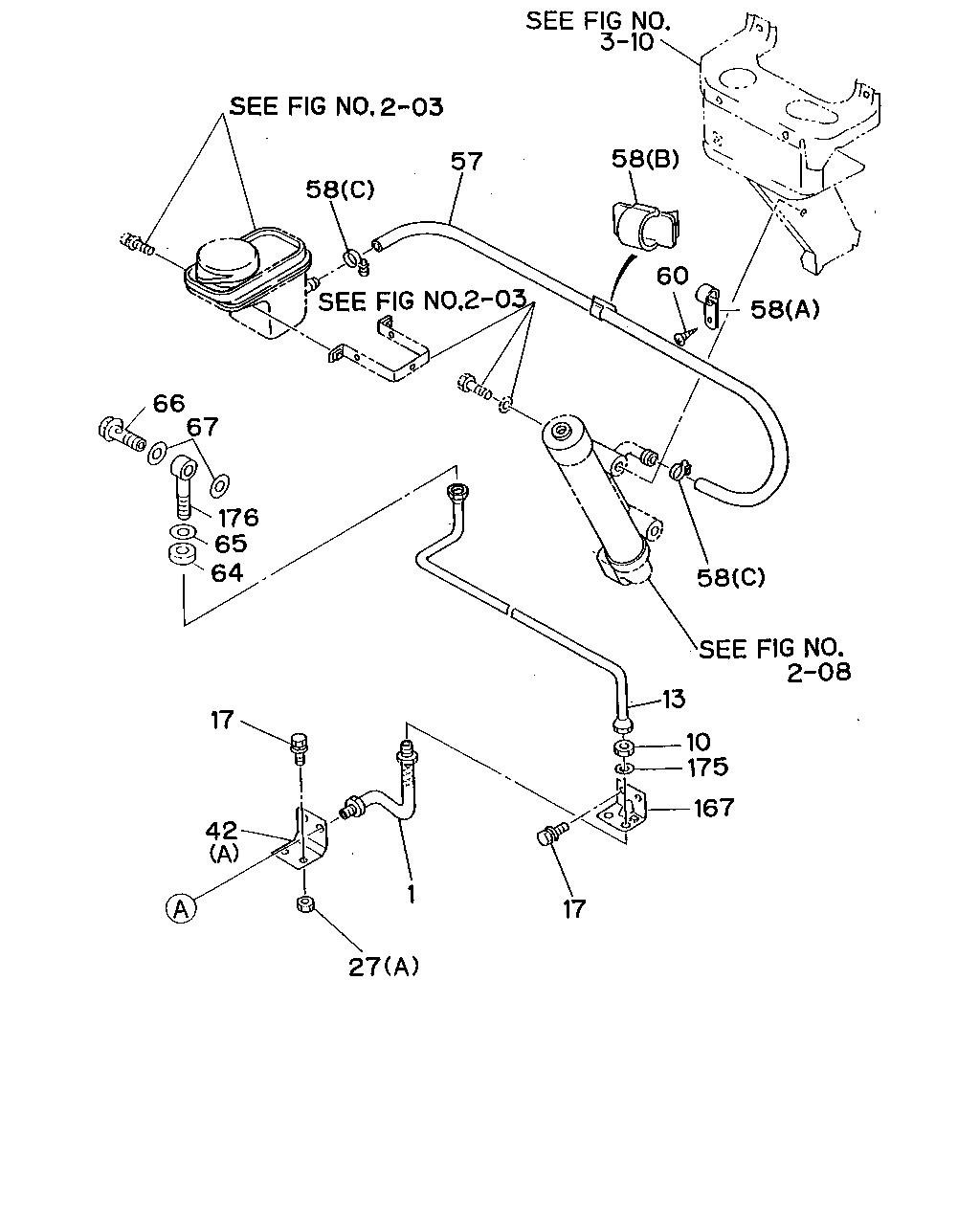

çizim 95094
58 57 58 60 58 58 13 10 175 167 17 1 17 64 65 176 67 66 42 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
L=400 		1-09364-263-0 01 1 9207- ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9207- ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47418-810-0 01 1 9207-9212 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47425-601-0 01 1 9301- ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
17 BOLT; BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207- ● ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 01 1 9207- ● ●
27 NUT; BRKT
(A) M8 		9-09110-408-0 02 1 9207- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9207-9306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9207- ● ●
57 HOSE; CLU M/CYL TO OIL TANK
L=1800 		1-09360-320-0 01 1 9207- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(C) ID=16 		1-09707-171-0 02 1 9207- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(B) ID=15 		1-09987-115-0 01 1 9207- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(A) 		9-09525-232-0 01 1 9207- ● ●
60 SCREW; RUBBER HOSE CLIP,CLU CONT
M6X16 W/LK&PL WASHER 		1-09981-439-0 01 1 9207- ● ●
64 SEAL; EYE JOINT,CLU M/CYL 1-73998-453-0 01 1 9207- ● ●
65 WASHER; PL,SEAL,CLU M/CYL
ID=15 OD=30 		9-09160-614-0 01 1 9207- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9207- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9207- ● ●
167 BRACKET; UNION 1-79738-097-3 01 1 9207- ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207- ● ●
176 JOINT; EYE,CLU M/CYL FLUID 1-09674-088-0 01 1 9207- ● ●

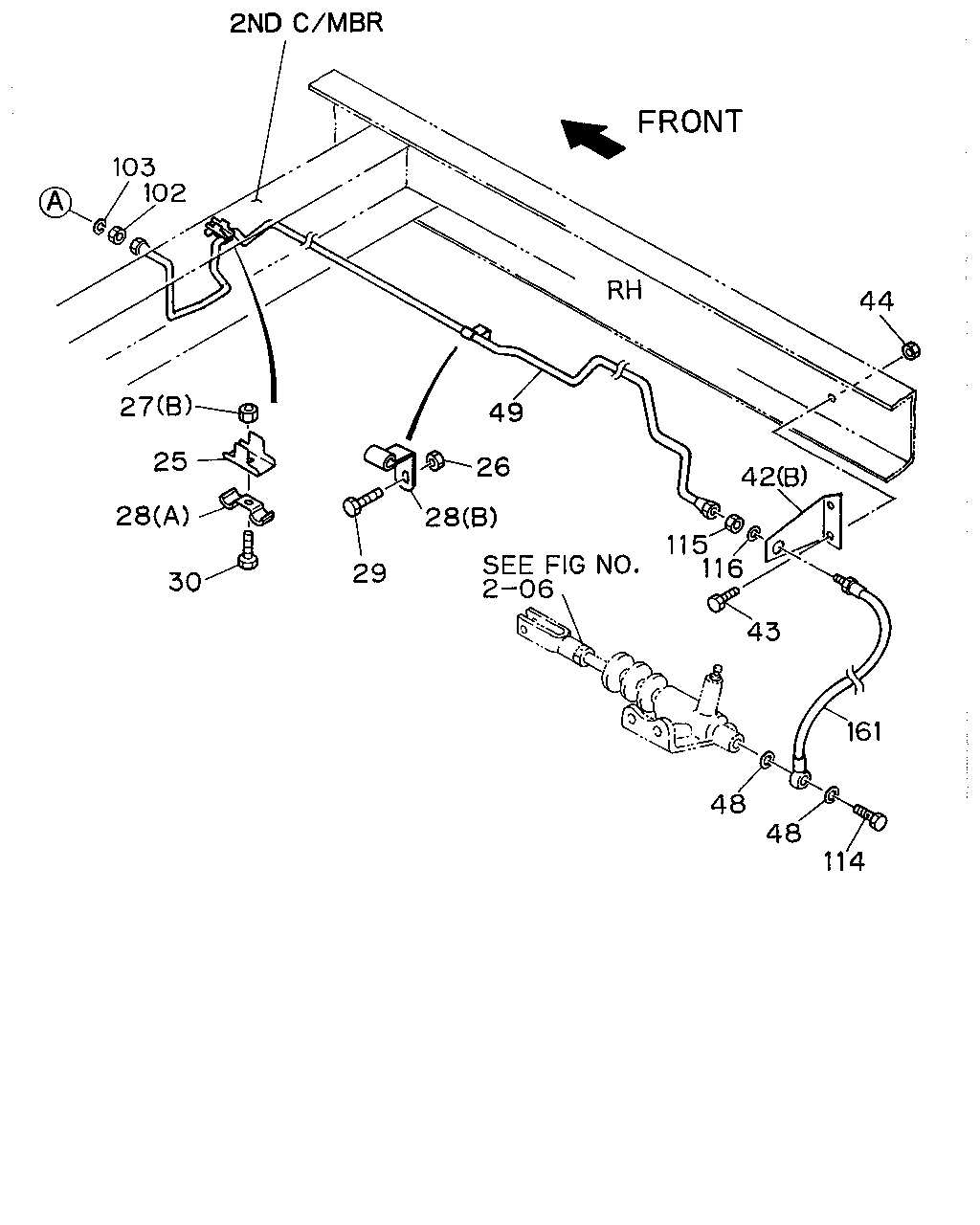

çizim 95478
103 102 27 25 28 30 29 28 26 49 42 44 116 115 43 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; OIL PIPE 1-47475-427-1 01 1 9207- ● ●
26 NUT; CLIP,OIL PIPE
FSS ALL(FSS***) M8 		9-09110-408-0 01 1 9207- ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 01 1 9207- ● ●
27 NUT; BRKT
(A) M8 		9-09110-408-0 02 1 9207- ● ●
28 CLIP; OIL PIPE
FSS ALL(FSS***) (B) 		1-09700-604-0 01 1 9207- ●
28 CLIP; OIL PIPE
(A) 		1-09700-747-0 01 1 9207- ● ●
29 BOLT; CLIP,OIL PIPE
FSS ALL(FSS***) M8X25 FLANGE 		0-28080-825-0 01 1 9207- ●
30 BOLT; BRKT
M8X40 FLANGE 		0-28080-840-0 01 1 9207- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9207-9306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9207- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9207- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.5 		1-09630-074-1 01 1 9207- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 		9-09851-004-0 01 1 9207- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FSS ALL(FSS***) L=2389 SERVICED BY L=2400 		1-47437-959-0 01 1 9207-9212 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FSS ALL(FSS***) L=2389 SERVICED BY L=2400 		1-47426-395-0 01 1 9301- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2500 SERVICED BY L=2700 		1-47434-415-0 01 1 9207-9212 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2500 SERVICED BY L=2700 		1-47434-415-0 01 1 9207-9212 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2509 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-9310 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2509 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-9310 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2496 SERVICED BY L=2700 		1-47426-396-0 01 1 9311- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2496 SERVICED BY L=2700 		1-47426-396-0 01 1 9311- ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9207- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9207- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9207- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207-9312 ● ●
161 HOSE; FLEX,SLAVE CYL
FSS ALL(FSS***) L=350 		1-09364-331-0 01 1 9207- ●
161 HOSE; FLEX,SLAVE CYL
FTS ALL(FTS***) TRANSMISSION FRONT PTO<RC2> L=450 		1-09364-595-0 01 1 9207- ●
161 HOSE; FLEX,SLAVE CYL
FTS ALL(FTS***) EXC. TRANSMISSION FRONT PTO<RC2> L=280 		1-09364-581-0 01 1 9207- ●
161 HOSE; FLEX,SLAVE CYL
L=280 		1-09364-581-0 01 1 9207- ●
