11208 - LV434(LHD) EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶

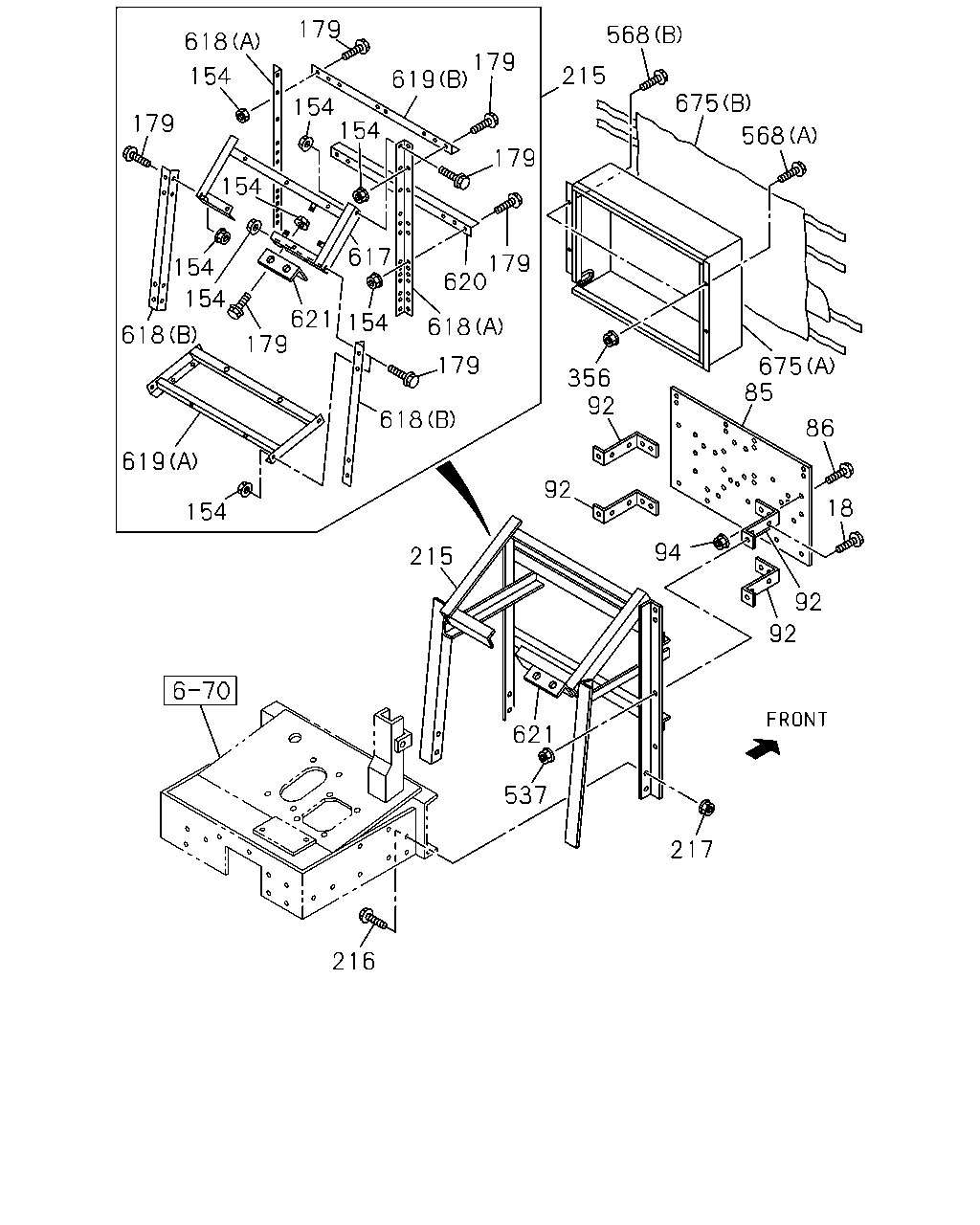

7-40 — INSTRUMENT PANEL AND BOX
(#15759) — 23 parça
179
154
618
179
179
619
154
154
154
154
154
618
619
154
179
621
154
617
179
179
620
618
179
618
215
92
92
356
215
568
675
568
675
85
86
18
92
92
217
216
537
621
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0910-
85
PANEL; ELEC
1-65600-732-1
01
1
0910-
86
BOLT; ELEC PNL
M8X25 FLANGE
0-28650-825-0
04
1
0910-
92
BRACKET; ELEC PANEL
8-94300-644-3
04
1
0910-
94
NUT; PANEL BRKT
M8 FLANGE
0-91180-108-0
04
1
0910-
154
NUT
M10
0-91110-510-0
14
1
0910-
179
BOLT; STAY,INST PANEL
M10X20 FLANGE
0-28051-020-0
14
1
0910-
215
BOARD ASM; DASH
1-65600-720-1
01
1
0910-
216
BOLT; DASH BOARD
M10X30 FLANGE
0-28651-030-0
08
1
0910-
217
NUT; DASH BOARD
M10 FLANGE
0-91180-210-0
08
1
0910-
356
NUT; COVER
M8 FLANGE
0-91180-108-0
04
1
0910-
537
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0910-
568
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0910-
568
BOLT; COVER
(B) M8X25 FLANGE
0-28650-825-0
02
1
0910-
617
STAY; DASH BOARD
1-65600-600-2
01
1
0910-
618
STAY; PEDAL BOARD
(A)
1-65600-565-0
02
1
0910-
618
STAY; PEDAL BOARD
(B)
1-65600-731-0
02
1
0910-
619
STAY; PEDAL BRKT
(B)
1-65600-467-2
01
1
0910-
619
STAY; PEDAL BRKT
(A)
1-65600-601-3
01
1
0910-
620
STAY; BACK MIRROR
1-65600-467-2
01
1
0910-
621
PEDAL; IDLING CONT
1-65600-730-1
01
1
0910-
675
COVER; ELEC PANEL
(A)
8-98147-340-0
01
1
0910-
675
COVER; ELEC PANEL
(B)
8-97531-011-1
01
1
0910-
