Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#15747) — 226 parça

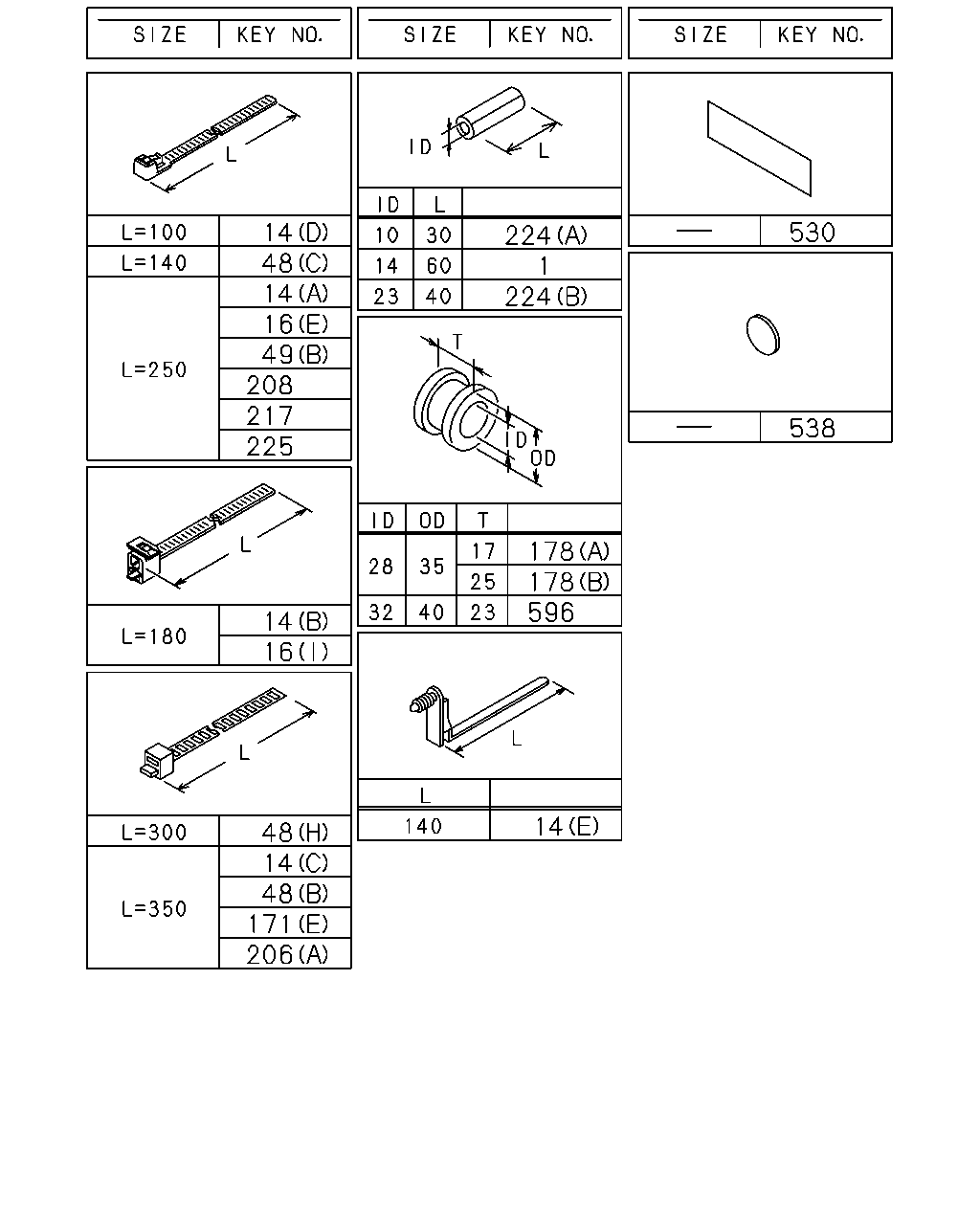

14 48 14 16 49 208 217 225 530 224 1 224 538 178 178 596 14 16 14 48 14 48 171 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER ID=14 OD=18 L=60	1-09337-030-0	03	1	1005-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	08	1	1005-1209
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	08	1	1210-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1005-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	02	1	1005-
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	06	1	1005-1106
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	09	1	1107-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	09	1	1206-
14	CLIP; BAND,HARNESS (D) L=100	5-09707-036-1	03	1	1005-1106
14	CLIP; BAND,HARNESS (E) L=140 THA	8-97122-360-0	01	1	1005-
16	CLIP; HARNESS (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS MZW6P M/T<RSZ> (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1005-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1005-
16	CLIP; HARNESS (M) ID=20 H=23 L=27	1-09700-861-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1005-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1005-
16	CLIP; HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1005-
16	CLIP; HARNESS (E) L=250 THA	5-09707-030-1	05	1	1005-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1005-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1005-
16	CLIP; HARNESS (H) ID=14 L=44	9-09917-427-0	03	1	1005-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	01	1	1005-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1005-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1005-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1005-
48	CLIP; FRAME HARNESS (H) L=300	1-09707-001-1	01	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	19	1	1005-
48	CLIP; FRAME HARNESS (A) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1005-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	02	1	1005-1005
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1005-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5 THA	1-09709-179-0	01	1	1005-
48	CLIP; FRAME HARNESS (C) L=140 THA	5-09707-031-1	02	1	1005-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1005-
49	CLIP; GEN HARNESS (B) L=250 THA	5-09707-030-1	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (E) L=350	1-09707-183-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (A) ID=18-24 L=14.5	1-09709-298-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (B) ID=16 L=28	0-95235-556-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (C) OD=9 H=6	1-09709-178-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (D) ID=21 L=24	8-94176-807-1	01	1	1005-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1008-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	1005-1007
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1005-
206	CLIP; FUEL TANK HARNESS (A) L=350	1-09707-183-0	04	1	1005-
206	CLIP; FUEL TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	04	1	1005-
208	CLIP; HARNESS,MAG VLV L=250 THA	5-09707-030-1	01	1	1005-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> L=250 THA	5-09707-030-1	01	1	1005-
208	CLIP; HARNESS,MAG VLV L=250 THA	5-09707-030-1	01	1	1005-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	1005-
224	SLEEVE; RUBBER,HARNESS (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1005-
224	SLEEVE; RUBBER,HARNESS (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	1005-
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	04	1	1005-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	1005-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1005-
596	GROMMET ID=32 OD=40 T=23	1-09332-112-0	01	1	1005-

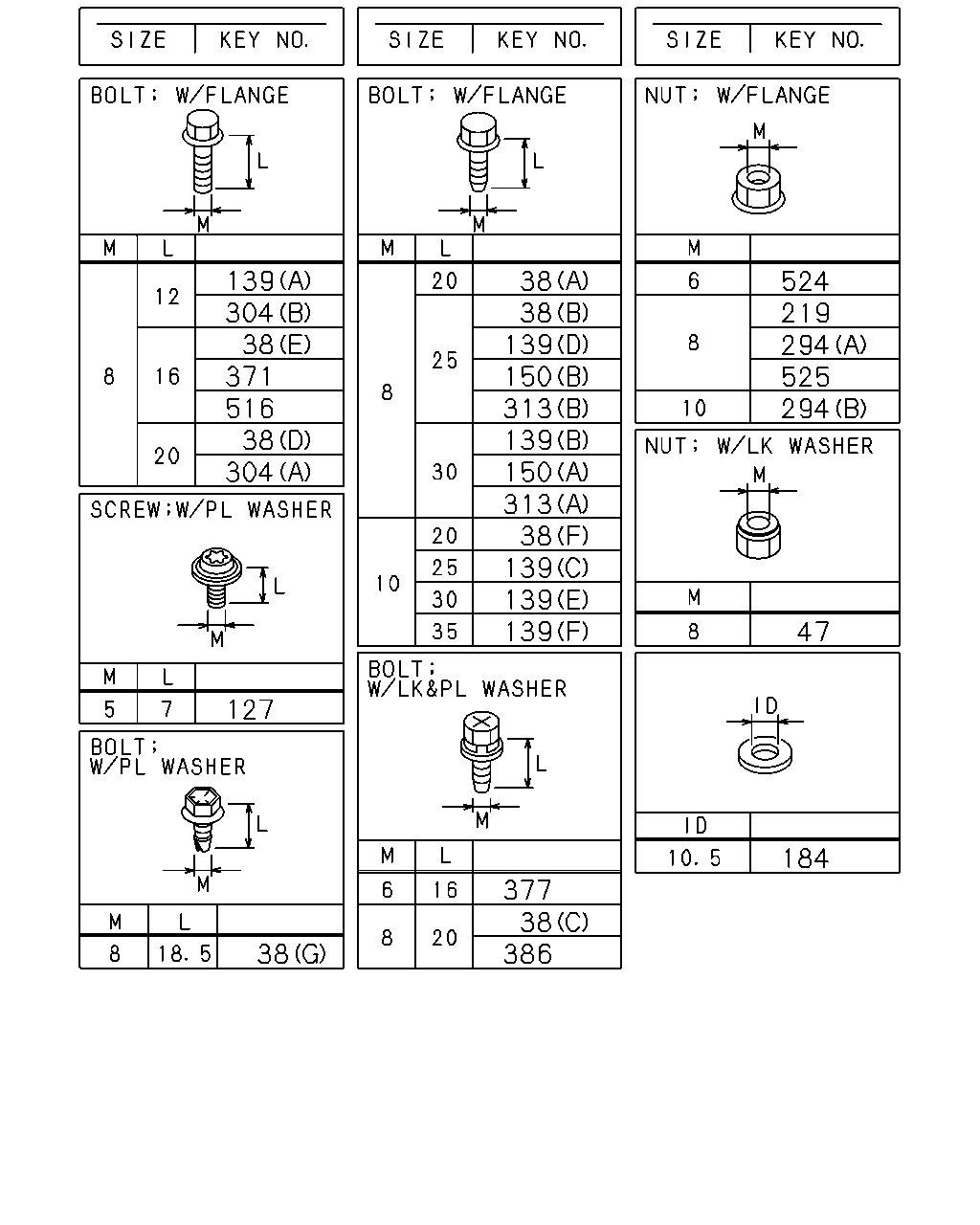

139 38 304 371 38 516 304 127 38 38 139 38 150 139 313 150 38 313 139 139 139 377 38 386 524 294 219 525 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS MZW6P M/T<RSZ> (E) M8X16 FLANGE THA	0-28050-816-0	01	1	1005-
38	BOLT; CLIP,HARNESS MLD6W M/T<Y2C> (F) M10X20 FLANGE THA	0-28751-020-0	01	1	1005-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1005-1202
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	04	1	1203-
38	BOLT; CLIP,HARNESS MZW6P M/T<RSZ> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1005-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1005-
38	BOLT; CLIP,HARNESS MZW6P M/T<RSZ> (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1005-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	01	1	1005-
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE THA	0-28050-816-0	02	1	1005-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE THA	0-28050-820-0	04	1	1005-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1005-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	06	1	1005-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1005-
139	BOLT; BRKT (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1005-
139	BOLT; BRKT (D) M8X25 FLANGE THA	0-28650-825-0	01	1	1005-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1005-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1005-
139	BOLT; BRKT (E) M10X30 FLANGE THA	0-28651-030-0	01	1	1005-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1005-
150	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1005-
150	BOLT; CLIP (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1005-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1005-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1005-
219	NUT M8 FLANGE THA	0-91180-108-0	04	1	1005-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1005-1007
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1005-1006
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1007-1212
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1005-1006
294	NUT (A) M8 FLANGE THA	0-91180-108-0	06	1	1005-1212
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1301-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1301-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1301-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1005-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1005-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1005-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1005-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1005-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1005-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	06	1	1005-1212
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1301-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1301-
371	BOLT; GEN HARNESS M8X16 FLANGE THA	0-28050-816-0	04	1	1005-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1005-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1005-
516	BOLT; HARNESS MLD6W M/T<Y2C> M8X16 FLANGE THA	0-28050-816-0	02	1	1005-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1005-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1007-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1008-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1008-
525	NUT; CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1008-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1005-1006
525	NUT; CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1005-1006
525	NUT; CLIP MZW6P M/T<RSZ> M8 FLANGE THA	0-91180-108-0	01	1	1007-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1005-1006
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1005-1006
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1007-

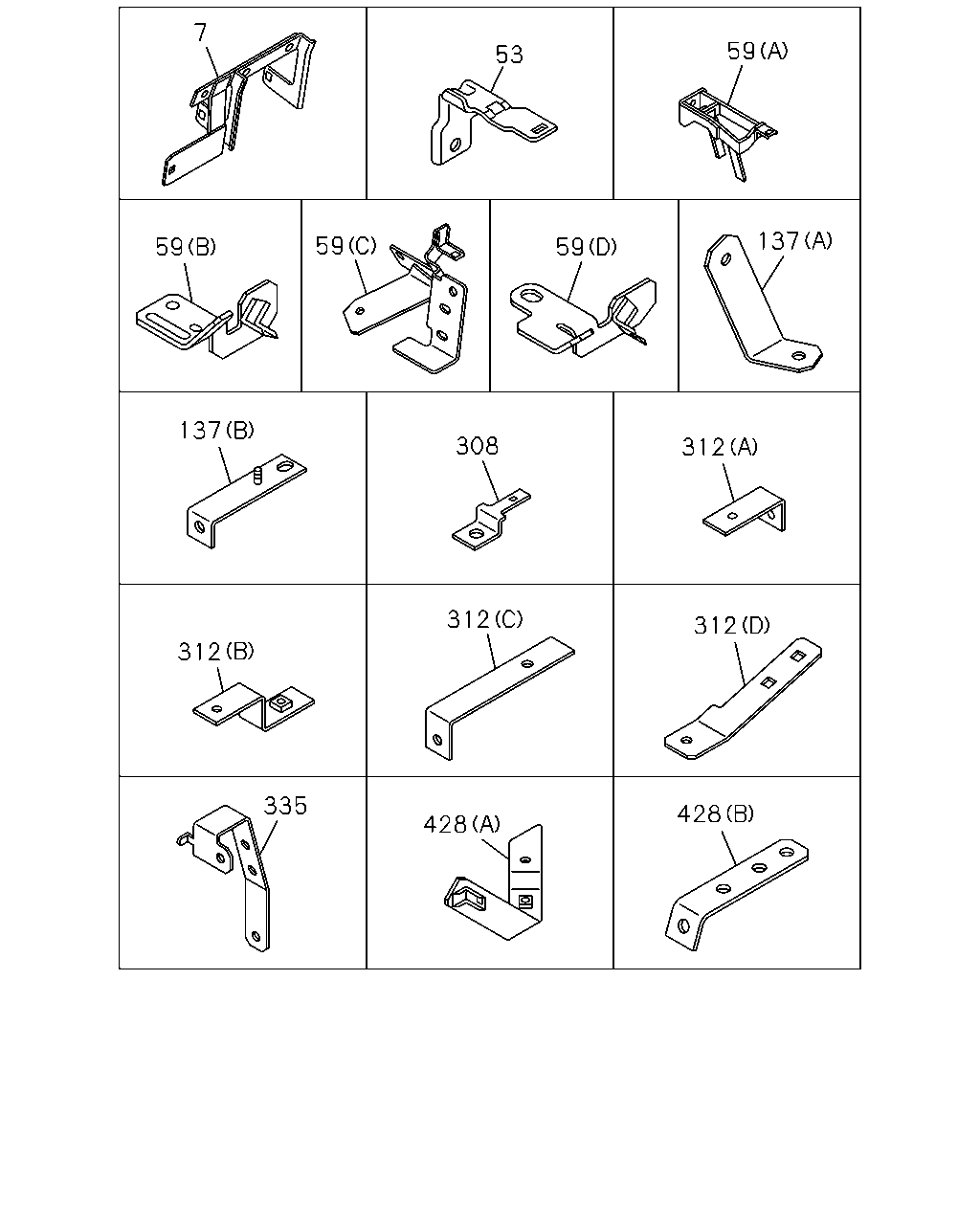

7 53 59 59 59 59 137 137 308 312 312 312 312 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1005-
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1205-
53	BRACKET; HARNESS	8-98052-458-0	01	1	1005-
59	BRACKET; FRAME HARNESS MZW6P M/T<RSZ> (A)	8-97609-264-2	01	1	1005-
59	BRACKET; FRAME HARNESS MLD6W M/T<Y2C> (A)	8-97627-325-0	01	1	1005-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1005-1502
59	BRACKET; FRAME HARNESS (D)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1005-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1005-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1005-
308	BRACKET; CLIP,ENG HARNESS	8-97602-870-1	01	1	1005-
312	BRACKET; CLIP HARNESS MZW6P M/T<RSZ> (C) THA	1-34656-009-0	01	1	1005-
312	BRACKET; CLIP HARNESS MZW6P M/T<RSZ> (D)	8-98097-366-0	01	1	1005-
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1005-
312	BRACKET; CLIP HARNESS (B)	8-97609-110-1	01	1	1005-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1005-
428	BRACKET (B)	1-82698-167-0	01	1	1005-
428	BRACKET (A) THA	8-98133-254-0	01	1	1005-

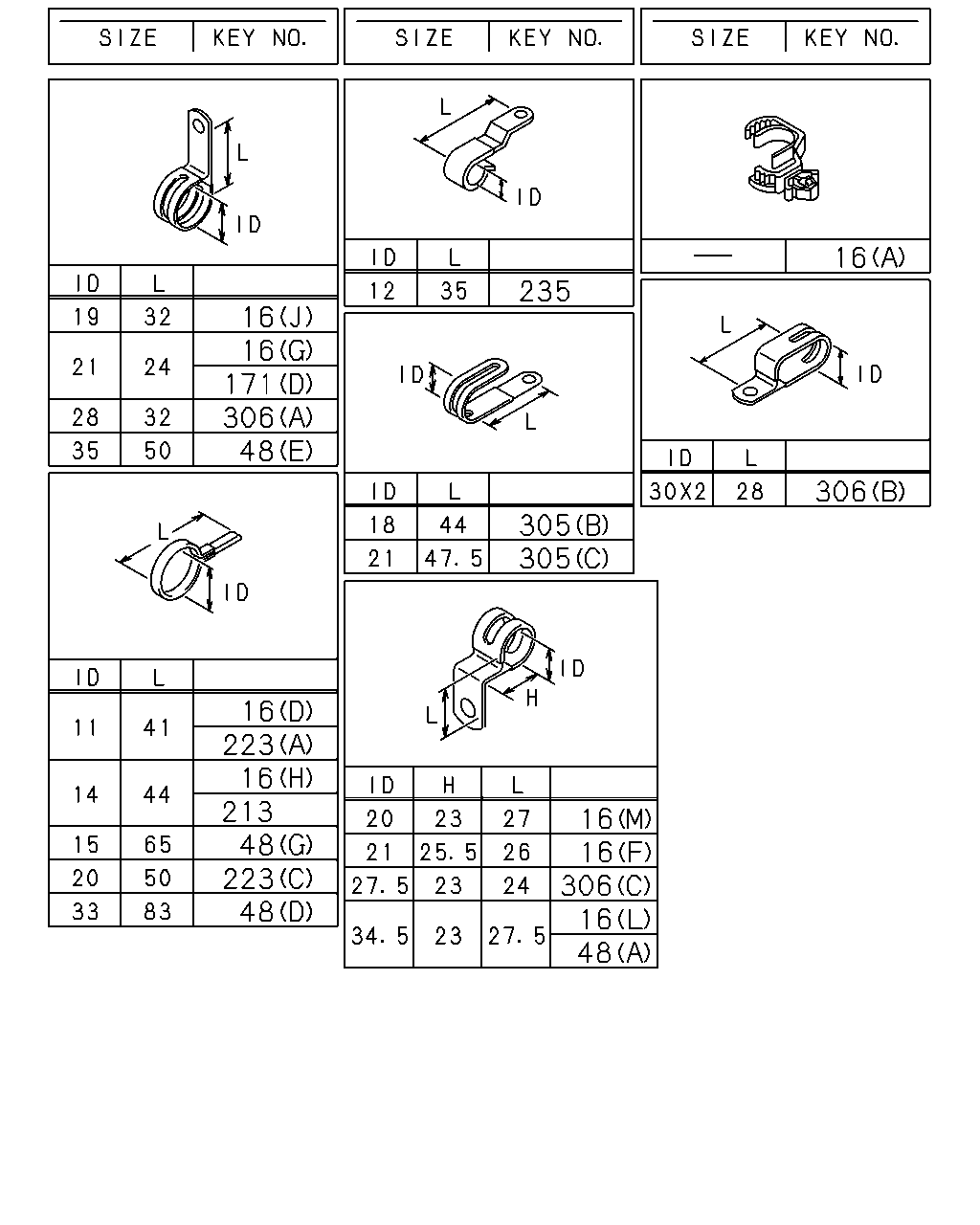

16 235 16 16 171 306 48 306 305 305 16 223 16 213 48 223 48 16 16 306 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS MZW6P M/T<RSZ> (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1005-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1005-
16	CLIP; HARNESS (M) ID=20 H=23 L=27	1-09700-861-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1005-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1005-
16	CLIP; HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1005-
16	CLIP; HARNESS (E) L=250 THA	5-09707-030-1	05	1	1005-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1005-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1005-
16	CLIP; HARNESS (H) ID=14 L=44	9-09917-427-0	03	1	1005-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	01	1	1005-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1005-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1005-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1005-
48	CLIP; FRAME HARNESS (H) L=300	1-09707-001-1	01	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	19	1	1005-
48	CLIP; FRAME HARNESS (A) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1005-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	02	1	1005-1005
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1005-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5 THA	1-09709-179-0	01	1	1005-
48	CLIP; FRAME HARNESS (C) L=140 THA	5-09707-031-1	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (E) L=350	1-09707-183-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (A) ID=18-24 L=14.5	1-09709-298-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (B) ID=16 L=28	0-95235-556-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (C) OD=9 H=6	1-09709-178-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (D) ID=21 L=24	8-94176-807-1	01	1	1005-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1005-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	1005-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1005-
223	CLIP; AIR TANK HARNESS (C) ID=20 L=50	9-09917-430-0	07	1	1005-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T<Y2C> ID=12 L=35	5-09700-206-0	01	1	1005-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1005-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1005-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1005-
306	CLIP; HARNESS,ELEC GOV (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1005-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1005-
306	CLIP; HARNESS,ELEC GOV (B) ID=30X2 L=28	1-09701-266-0	01	1	1005-

16 171 305 49 171 223 470 48 116 16 16 171 206 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS MZW6P M/T<RSZ> (G) ID=21 L=24	8-94176-807-1	01	1	1005-
16	CLIP; HARNESS (K) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	04	1	1005-
16	CLIP; HARNESS (O) ID=14 H=50 L=20	1-09700-843-0	02	1	1005-
16	CLIP; HARNESS (M) ID=20 H=23 L=27	1-09700-861-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	1005-
16	CLIP; HARNESS (I) L=180	1-09707-162-1	01	1	1005-
16	CLIP; HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	01	1	1005-
16	CLIP; HARNESS (E) L=250 THA	5-09707-030-1	05	1	1005-
16	CLIP; HARNESS (F) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1005-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1005-
16	CLIP; HARNESS (H) ID=14 L=44	9-09917-427-0	03	1	1005-
16	CLIP; HARNESS (J) ID=19 L=32	1-09701-235-0	01	1	1005-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1005-
16	CLIP; HARNESS (N) L=40.6 THA	8-97229-357-0	02	1	1005-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1005-
48	CLIP; FRAME HARNESS (H) L=300	1-09707-001-1	01	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1005-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	19	1	1005-
48	CLIP; FRAME HARNESS (A) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1005-
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	02	1	1005-1005
48	CLIP; FRAME HARNESS (D) ID=33 L=83	1-09701-291-0	03	1	1006-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1005-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5 THA	1-09709-179-0	01	1	1005-
48	CLIP; FRAME HARNESS (C) L=140 THA	5-09707-031-1	02	1	1005-
49	CLIP; GEN HARNESS (A) ID=19 L=20	0-95235-836-0	04	1	1005-
49	CLIP; GEN HARNESS (B) L=250 THA	5-09707-030-1	01	1	1005-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (E) L=350	1-09707-183-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (A) ID=18-24 L=14.5	1-09709-298-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (B) ID=16 L=28	0-95235-556-0	01	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (C) OD=9 H=6	1-09709-178-0	02	1	1005-
171	CLIP; STARTER HARNESS MLD6W M/T<Y2C> (D) ID=21 L=24	8-94176-807-1	01	1	1005-
206	CLIP; FUEL TANK HARNESS (A) L=350	1-09707-183-0	04	1	1005-
206	CLIP; FUEL TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	04	1	1005-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	1005-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1005-
223	CLIP; AIR TANK HARNESS (C) ID=20 L=50	9-09917-430-0	07	1	1005-
305	CLIP; ENG HARNESS (A) ID=16 L=40	0-95235-576-0	01	1	1005-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1005-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1005-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
