2-01 — CLUTCH (#1574) — 74 parça

1 113 112 1 2 84 96 2 85 102 101 102 101 98 222 110 89 91 92 91 222 110 138 137 108 110 105 106 107 128 123 125 122 120 131 130 119 116 124 57 118 123 172 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH CLUTCH NF635C FACED DISC<BBF> EXC. 14 INCH SPICER CLUTCH(SFF) 14 INCH	1-31240-619-0	01	1	9207-9309	●	●
1	DISC; CLUTCH EXC. 14 INCH SPICER CLUTCH(SFF) 14 INCH	1-31240-671-0	01	1	9310-	●	●
1	DISC; CLUTCH EXC. CLUTCH NF635C FACED DISC<BBF>,14 INCH SPICER CLUTCH(SFF) 14 INCH	1-31240-301-0	01	1	9207-9309	●	●
1	DISC; CLUTCH 14 INCH SPICER CLUTCH(SFF) 14 INCH	1-31240-435-0	01	1	9207-	●	●
2	PLATE ASM; PRESSURE,CLU 14 INCH SPICER CLUTCH(SFF) (A)	1-31220-273-0	01	1	9207-9308	●	●
2	PLATE ASM; PRESSURE,CLU 14 INCH SPICER CLUTCH(SFF) (A)	1-31220-283-0	01	1	9309-	●	●
2	PLATE ASM; PRESSURE,CLU EXC. 14 INCH SPICER CLUTCH(SFF) (B)	1-31220-182-1	01	1	9207-	●	●
57	FORK; SHIFT,CLU 14 INCH SPICER CLUTCH(SFF)	1-31341-035-1	01	1	9207-	●
57	FORK; SHIFT,CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-31341-028-0	01	1	9207-	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9207-		●
84	PLATE; PRESSURE EXC. 14 INCH SPICER CLUTCH(SFF)	1-31221-044-0	01	1	9207-	●	●
85	BUSHING; RELEASE LEVER EXC. 14 INCH SPICER CLUTCH(SFF)	9-31239-116-0	08	1	9207-	●	●
89	PLATE; STRAP EXC. 14 INCH SPICER CLUTCH(SFF)	1-31229-001-0	08	1	9207-	●	●
91	SEAT; SPR EXC. 14 INCH SPICER CLUTCH(SFF) (A)	1-31219-012-0	12	1	9207-	●	●
91	SEAT; SPR EXC. 14 INCH SPICER CLUTCH(SFF) (B)	1-31219-013-0	12	1	9207-	●	●
92	SPRING; CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-09580-412-0	12	1	9207-	●	●
96	PIN; RELEASE LEVER EXC. 14 INCH SPICER CLUTCH(SFF) (A) L=49.0	1-31232-005-0	04	1	9207-	●	●
96	PIN; RELEASE LEVER EXC. 14 INCH SPICER CLUTCH(SFF) (B) L=57.0	1-31232-008-0	04	1	9207-	●	●
98	SPRING; RETURN EXC. 14 INCH SPICER CLUTCH(SFF)	1-31233-003-0	04	1	9207-	●	●
101	WASHER; RELEASE LEVER EXC. 14 INCH SPICER CLUTCH(SFF)	9-31239-039-0	08	1	9207-	●	●
102	PIN; SPLIT,RELEASE LEVER EXC. 14 INCH SPICER CLUTCH(SFF) OD=2.7 L=22	9-08113-022-0	08	1	9207-	●	●
105	NUT; SUPPORT EXC. 14 INCH SPICER CLUTCH(SFF)	9-31235-061-0	04	1	9207-	●	●
106	PLATE; LK,LEVER SUPPORT EXC. 14 INCH SPICER CLUTCH(SFF)	1-31239-019-0	04	1	9207-	●	●
107	BOLT; LK PLATE EXC. 14 INCH SPICER CLUTCH(SFF) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9207-	●	●
108	NUT; STRAP EXC. 14 INCH SPICER CLUTCH(SFF)	1-09449-036-0	04	1	9207-	●	●
110	WASHER; SPECIAL,STRAP EXC. 14 INCH SPICER CLUTCH(SFF) (B) T=3.2	1-09503-095-0	08	1	9207-	●	●
110	WASHER; SPECIAL,STRAP EXC. 14 INCH SPICER CLUTCH(SFF) (A) T=1.2	1-31229-009-0	04	1	9207-	●	●
112	FACING; FRICTION CLUTCH NF635C FACED DISC<BBF> EXC. 14 INCH SPICER CLUTCH(SFF)	1-31246-088-0	02	1	9207-9309	●	●
112	FACING; FRICTION EXC. CLUTCH NF635C FACED DISC<BBF>,14 INCH SPICER CLUTCH(SFF)	1-31246-033-0	02	1	9207-9309	●	●
113	RIVET; FACING EXC. CLUTCH NF635C FACED DISC<BBF>,14 INCH SPICER CLUTCH(SFF)	1-09732-009-0	36	1	9207-9309	●	●
116	BLOCK; SHIFT,CLU 14 INCH SPICER CLUTCH(SFF)	1-31321-061-0	01	1	9207-	●
116	BLOCK; SHIFT,CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-31321-054-0	01	1	9207-	●
116	BLOCK; SHIFT,CLU 14 INCH SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9207-		●
116	BLOCK; SHIFT,CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-31321-052-2	01	1	9207-		●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9207-	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9207-	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9207-	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9207-		●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9207-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9207-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9207-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A)	1-09700-814-1	01	1	9207-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B)	1-09700-644-1	01	1	9207-		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9207-		●
125	SHAFT; CLU 14 INCH SPICER CLUTCH(SFF)	1-31342-256-0	01	1	9207-	●
125	SHAFT; CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-31342-265-0	01	1	9207-	●
125	SHAFT; CLU 14 INCH SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9207-		●
125	SHAFT; CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-31342-169-1	01	1	9207-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9207-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9207-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9207-	●	●
137	BOLT; CLU COVER 14 INCH SPICER CLUTCH(SFF) M8X20	9-02060-820-0	12	1	9207-	●	●
137	BOLT; CLU COVER EXC. 14 INCH SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9207-9504	●	●
137	BOLT; CLU COVER EXC. 14 INCH SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●
138	WASHER; LK,CLU COVER 14 INCH SPICER CLUTCH(SFF) ID=8.2	9-09150-508-0	12	1	9207-	●	●
138	WASHER; LK,CLU COVER EXC. 14 INCH SPICER CLUTCH(SFF) ID=10.2	9-09150-510-0	12	1	9207-9504	●	●
172	LEVER KIT; RELEASE,CLU EXC. 14 INCH SPICER CLUTCH(SFF)	1-87830-620-0	01	1	9207-	●	●
222	BOLT; STRAP EXC. 14 INCH SPICER CLUTCH(SFF) (A)	1-09040-042-0	04	1	9207-	●	●
222	BOLT; STRAP EXC. 14 INCH SPICER CLUTCH(SFF) (B)	1-09040-043-0	04	1	9207-	●	●

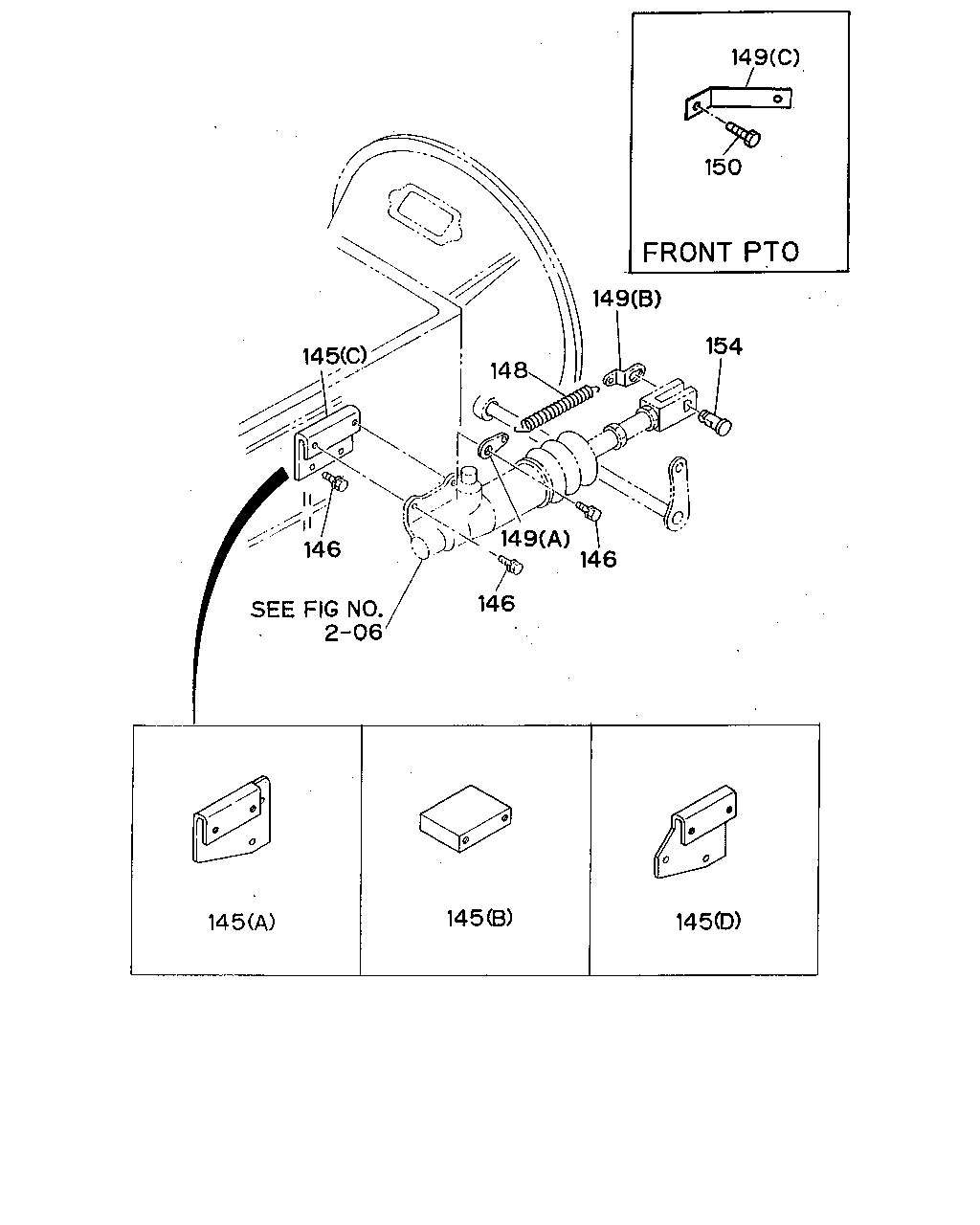

145 148 149 154 146 149 146 146 145 145 145 149 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
145	BRACKET; SLAVE CYL,OIL CLU 14 INCH SPICER CLUTCH(SFF) (B)	1-47476-116-0	01	1	9207-	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. 14 INCH SPICER CLUTCH(SFF) (C)	1-47579-007-0	01	1	9207-	●
145	BRACKET; SLAVE CYL,OIL CLU 14 INCH SPICER CLUTCH(SFF) (A)	1-47579-038-0	01	1	9207-		●
145	BRACKET; SLAVE CYL,OIL CLU EXC. 14 INCH SPICER CLUTCH(SFF) (D)	1-47579-051-0	01	1	9207-		●
146	BOLT; SLAVE CYL TO TRANS CASE 14 INCH SPICER CLUTCH(SFF) M10X87	1-09040-099-0	02	1	9207-	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. 14 INCH SPICER CLUTCH(SFF) M10X25 FLANGE	0-28181-025-0	04	1	9207-	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9207-		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9207-	●	●
149	EYE; SPRING,RETURN SPRING TRANSMISSION FRONT PTO<RC2> (C)	1-31426-017-0	01	1	9207-	●
149	EYE; SPRING,RETURN SPRING EXC. TRANSMISSION FRONT PTO<RC2> (B)	1-47324-005-1	01	1	9207-	●
149	EYE; SPRING,RETURN SPRING (B)	1-47324-005-1	01	1	9207-		●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-019-1	01	1	9207-	●	●
150	BOLT; SPRING EYE TRANSMISSION FRONT PTO<RC2> M10X18 FLANGE	0-28181-018-0	01	1	9207-	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9207-9312	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-	●	●
