◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11194 - FTR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#15736) — 135 parça

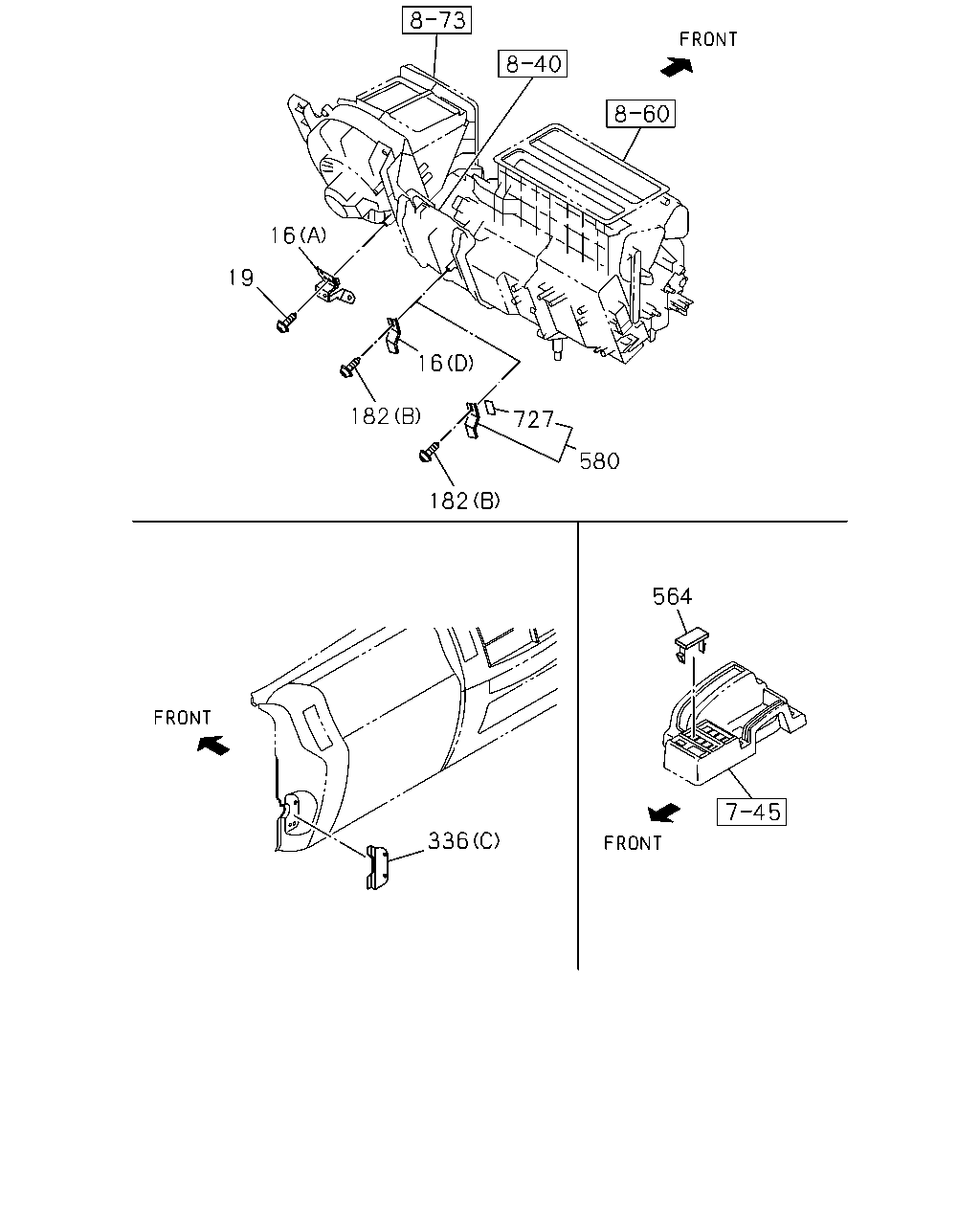

çizim 128605
16 19 16 182 727 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1005-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1005-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1005-
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 1005-1105
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1005-
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 1005-1010
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1005-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1005-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1005-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1005-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1005-
564 COVER; SW 8-97043-732-1 06 1 1005-
580 BRACKET; COVER 8-98017-528-1 01 1 1106-
727 SEAL; BRACKET 8-98186-934-0 01 1 1106-

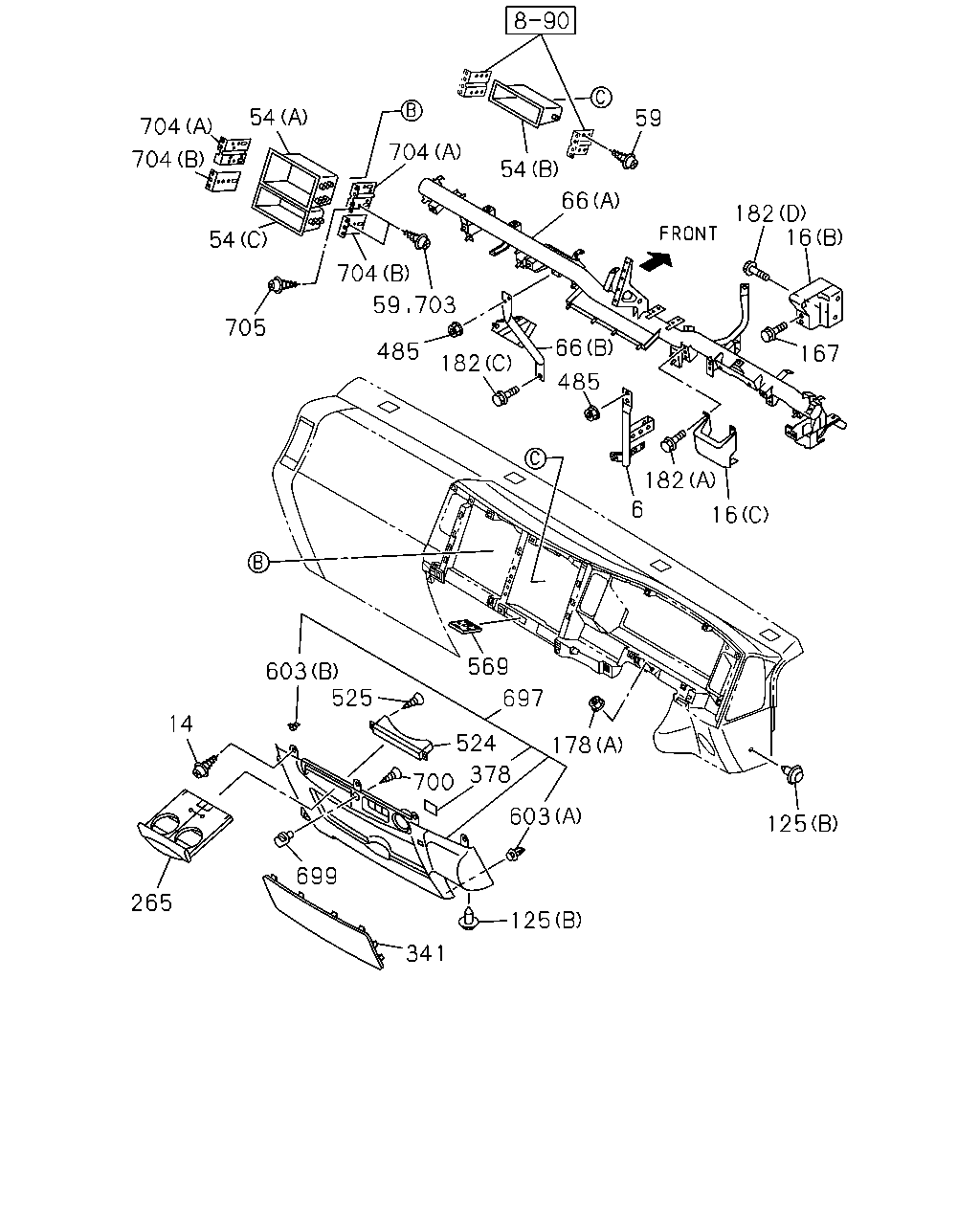

çizim 128627
59 182 167 16 66 54 704 54 704 704 54 705 704 59 703 485 66 182 485 182 6 16 14 603 525 569 697 178 125 603 125 341 378 524 700 699 265
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1005-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1005-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1005-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1005-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1005-
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 1005-1105
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1005-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1005-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1005-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1005-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1005-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1005-
66 REINFORCEMENT; INST PANEL
(A) 		8-98154-701-1 01 1 1005-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1005-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1005-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1005-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1005-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 1005-1010
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1005-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1005-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1005-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1005-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1005-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1005-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1005-
569 HOLDER; CARD 8-97410-276-1 01 1 1005-
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1005-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1005-1007
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1008-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1005-1007
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1005-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1005-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1005-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1005-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1005-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1005-

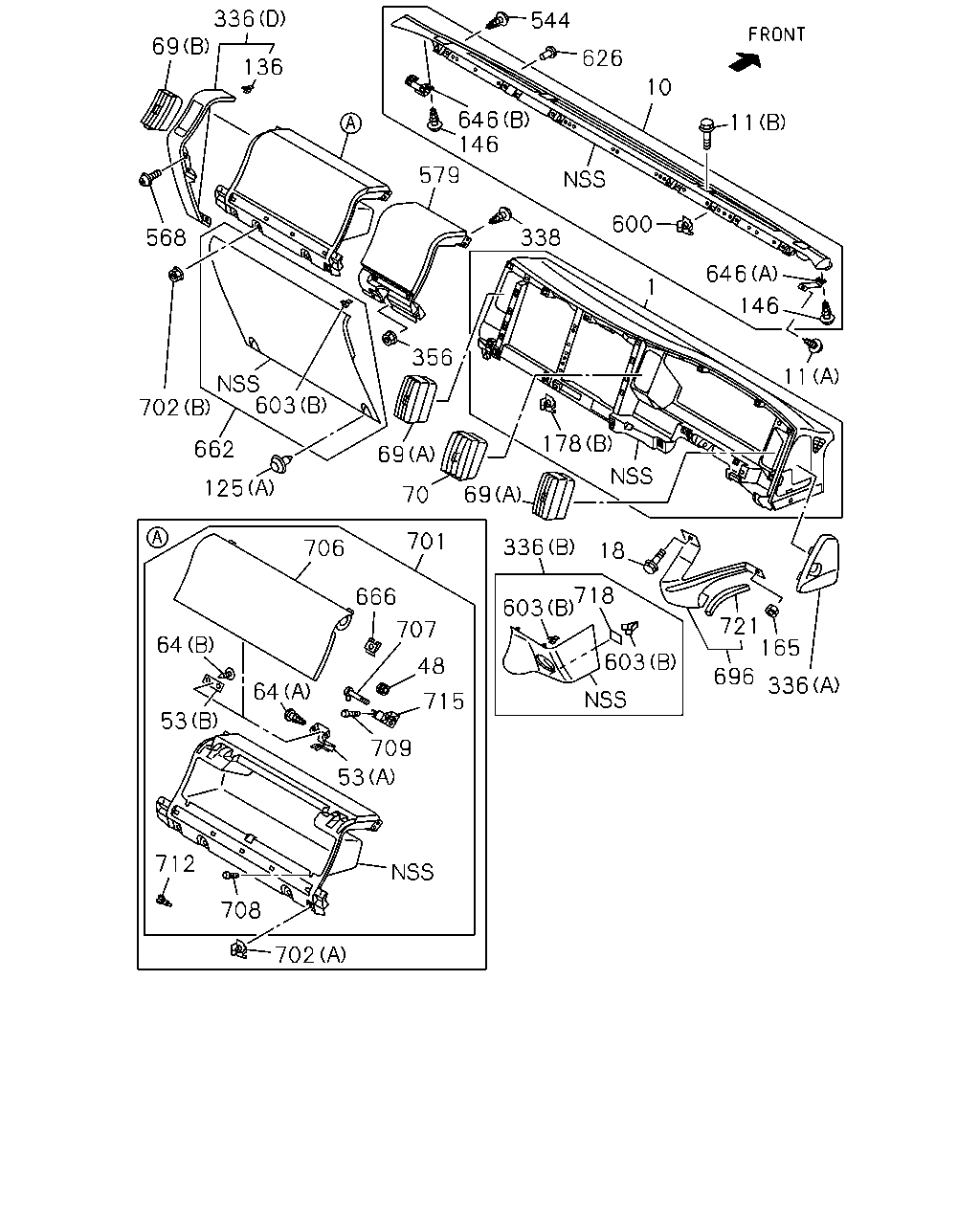

çizim 128661
336 69 568 702 662 125 706 666 701 70 69 336 603 69 718 603 696 336 721 18 178 11 146 646 600 338 579 146 646 626 544 10 11 707 48 715 709 53 702 708 712 64 53 64 603 356 136 165 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1005-
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1005-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1005-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1005-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 1005-1010
18 BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1011-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1005-1311
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
THA 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1005-1311
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
THA 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1005-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1005-1405
64 SCREW; STRIKER
(B) M4X85 THA 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1005-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1005-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1005-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1005-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1005-
136 CLIP; INST COVER 8-98076-254-0 02 1 1005-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1005-
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1005-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1005-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1005-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1005-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1005-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1005-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1005-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1005-
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1005-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1005-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1005-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1005-
600 NUT; PANEL 8-98037-629-0 02 1 1005-1008
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1005-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1005-1007
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1008-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1005-1007
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1005-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1005-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1005-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1005-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1005-1311
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1005-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1005-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1005-
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1005-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1005-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1005-1311
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1005-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1005-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1005-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1005-1311
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1005-1311
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1005-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1005-
