Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

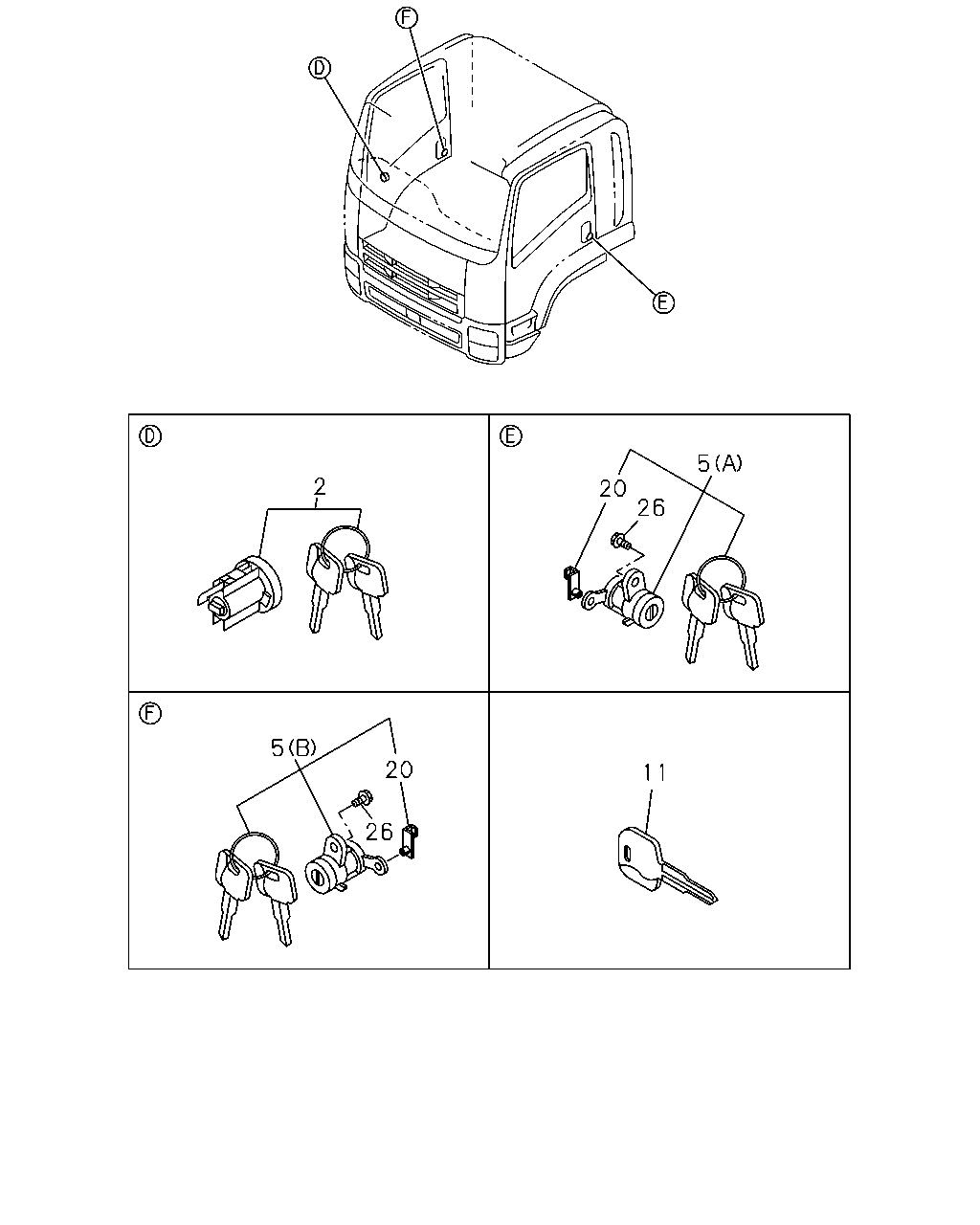

7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#15735) — 12 parça
◀
[730A] NO.2 (8 parça)
[730A] NO.1 (4 parça)
▶
5
2
20
26
5
20
11
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98055-148-0
01
1
1005-1204
2
BARREL ASM; W/KEY,STRG LOCK
THA
8-98201-342-0
01
1
1205-
5
CYLINDER ASM; DOOR LOCK
(B) THA
8-98055-149-0
01
1
1005-
5
CYLINDER ASM; DOOR LOCK
(A) THA
8-98055-150-0
01
1
1005-
11
KEY; BLANK
THA
8-98055-170-0
AR
1
1005-
20
SNAP; DOOR LOCK CYL
THA
8-98055-181-0
01
1
1005-
20
SNAP; DOOR LOCK CYL
THA
8-98055-182-0
01
1
1005-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1005-
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
THA
8-98097-288-1
01
1
1005-1204
1
CYLINDER SET; CAR LOCK
THA
8-98201-198-0
01
1
1205-
20
SNAP; DOOR LOCK CYL
THA
8-98055-181-0
01
1
1005-
20
SNAP; DOOR LOCK CYL
THA
8-98055-182-0
01
1
1005-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
