7-20 — MIRROR AND MIRROR STAY (#15734) — 94 parça

13 53 53 71 26 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1005-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1005-
14	MIRROR ASM; OUTSIDE	8-98045-690-0	01	1	1005-
14	MIRROR ASM; OUTSIDE	8-98108-511-0	01	1	1005-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1005-
26	COVER; OUTSIDE MIRROR	1-71707-221-0	01	1	1005-
26	COVER; OUTSIDE MIRROR	1-71707-222-0	01	1	1005-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1005-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1005-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1005-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-

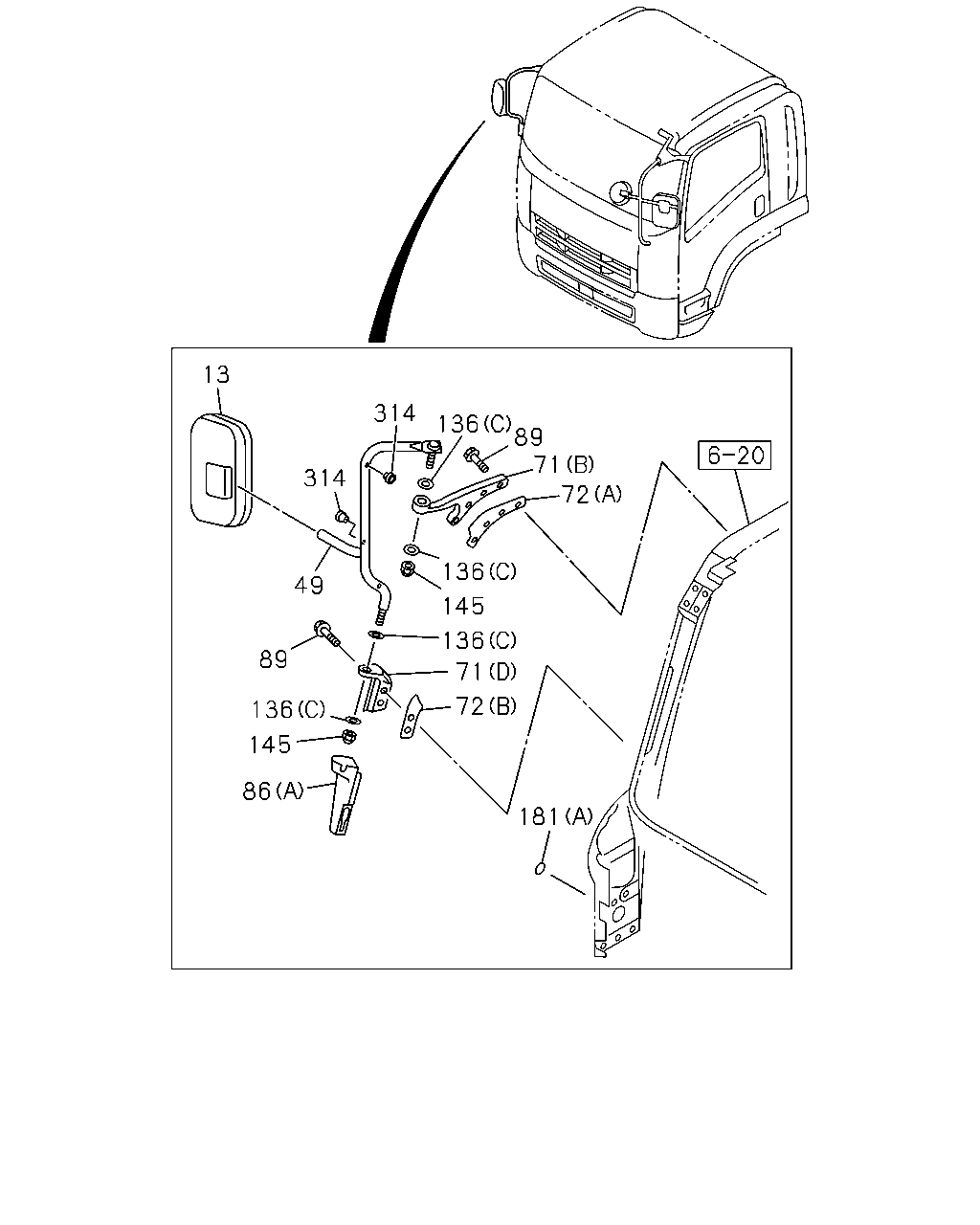

13 314 136 89 71 314 72 136 49 145 136 89 71 72 136 145 86 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1005-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1005-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1005-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1005-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1005-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1005-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-
72	SHEET (A)	8-98040-351-0	01	1	1005-
72	SHEET (B)	8-98040-353-1	01	1	1005-
72	SHEET (C)	8-98040-535-0	01	1	1005-
72	SHEET (D)	8-98040-537-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1005-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1005-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1005-
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1005-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1005-
181	SEAL; BRKT MATTRESS SLEEPER CAB<E40> (A) OD=25 BLACK THA	1-76798-019-0	04	1	1005-
314	BUFFER; STOPPER	8-94314-317-0	02	1	1005-

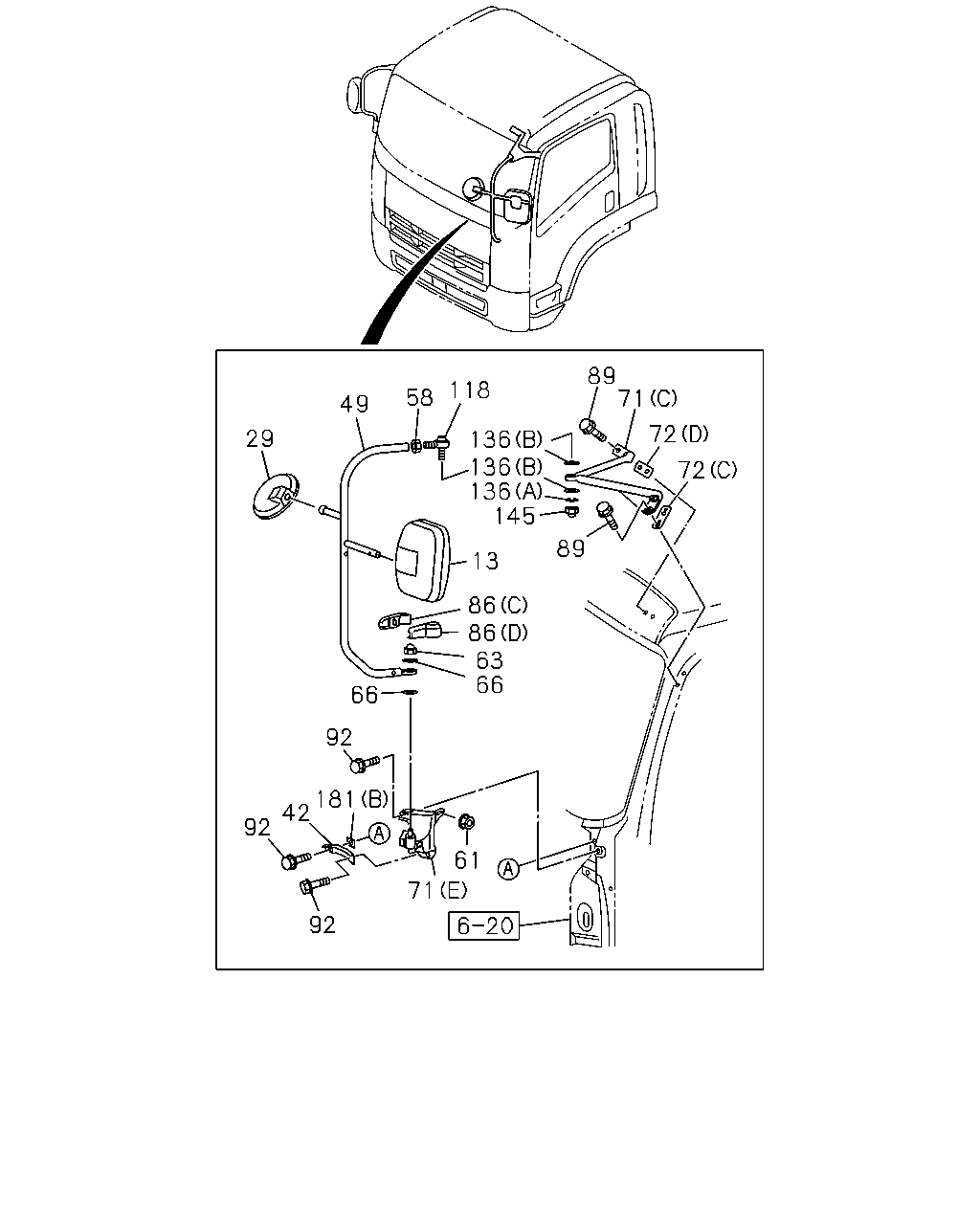

89 71 118 58 49 72 29 136 136 136 145 72 89 13 86 86 63 66 66 92 181 42 92 61 71 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98028-332-0	01	1	1005-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98104-068-0	01	1	1005-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1005-
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1005-
49	STAY; MIRROR SIDE	8-98085-112-1	01	1	1005-
49	STAY; MIRROR SIDE	8-98091-477-0	01	1	1005-1502
49	STAY; MIRROR SIDE	8-98305-582-0	01	1	1503-
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1005-
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE THA	0-91180-108-0	01	1	1005-
63	NUT; STAY M14 CAP NUT	8-98041-311-1	01	1	1005-1005
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1006-
66	WASHER; PL UPPER	8-98174-337-0	01	1	1006-1112
66	WASHER; PL UPPER	8-98201-756-0	01	1	1201-
66	WASHER; PL ID=14.5 OD=30	9-09851-946-0	02	1	1005-1005
66	WASHER; PL LOWER	0-91610-614-0	01	1	1006-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	04	1	1005-
71	BRACKET; OUTSIDE MIRROR (B)	8-98040-021-0	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-022-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1005-
71	BRACKET; OUTSIDE MIRROR (E)	8-98040-544-2	01	1	1005-1112
71	BRACKET; OUTSIDE MIRROR (E)	8-98201-957-0	01	1	1201-
72	SHEET (A)	8-98040-351-0	01	1	1005-
72	SHEET (B)	8-98040-353-1	01	1	1005-
72	SHEET (C)	8-98040-535-0	01	1	1005-
72	SHEET (D)	8-98040-537-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1005-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1005-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE THA	8-98076-109-0	04	1	1005-
118	JOINT ASM; BALL	1-71798-356-2	01	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1005-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1005-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1005-
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1005-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1005-
181	SEAL; BRKT MATTRESS SLEEPER CAB<E40> (A) OD=25 BLACK THA	1-76798-019-0	04	1	1005-

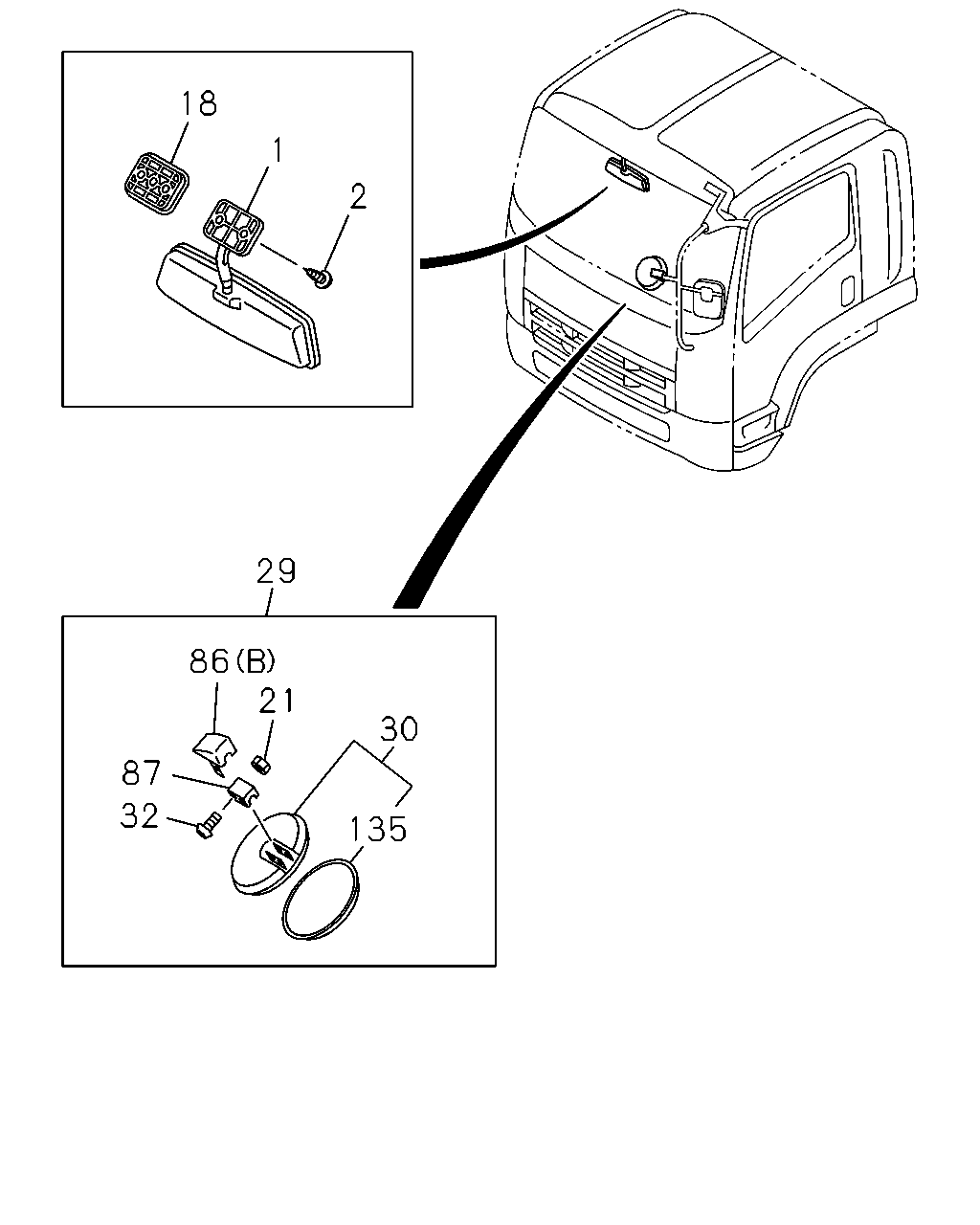

18 1 2 29 86 21 30 87 32 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM THA	8-97924-058-2	01	1	1005-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1005-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1005-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1005-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1005-
30	MIRROR; UNDER	1-71798-591-1	01	1	1005-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98040-541-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1005-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1005-
87	SPACER	1-71737-646-2	01	1	1005-
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
