◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11194 - FTR CNG(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

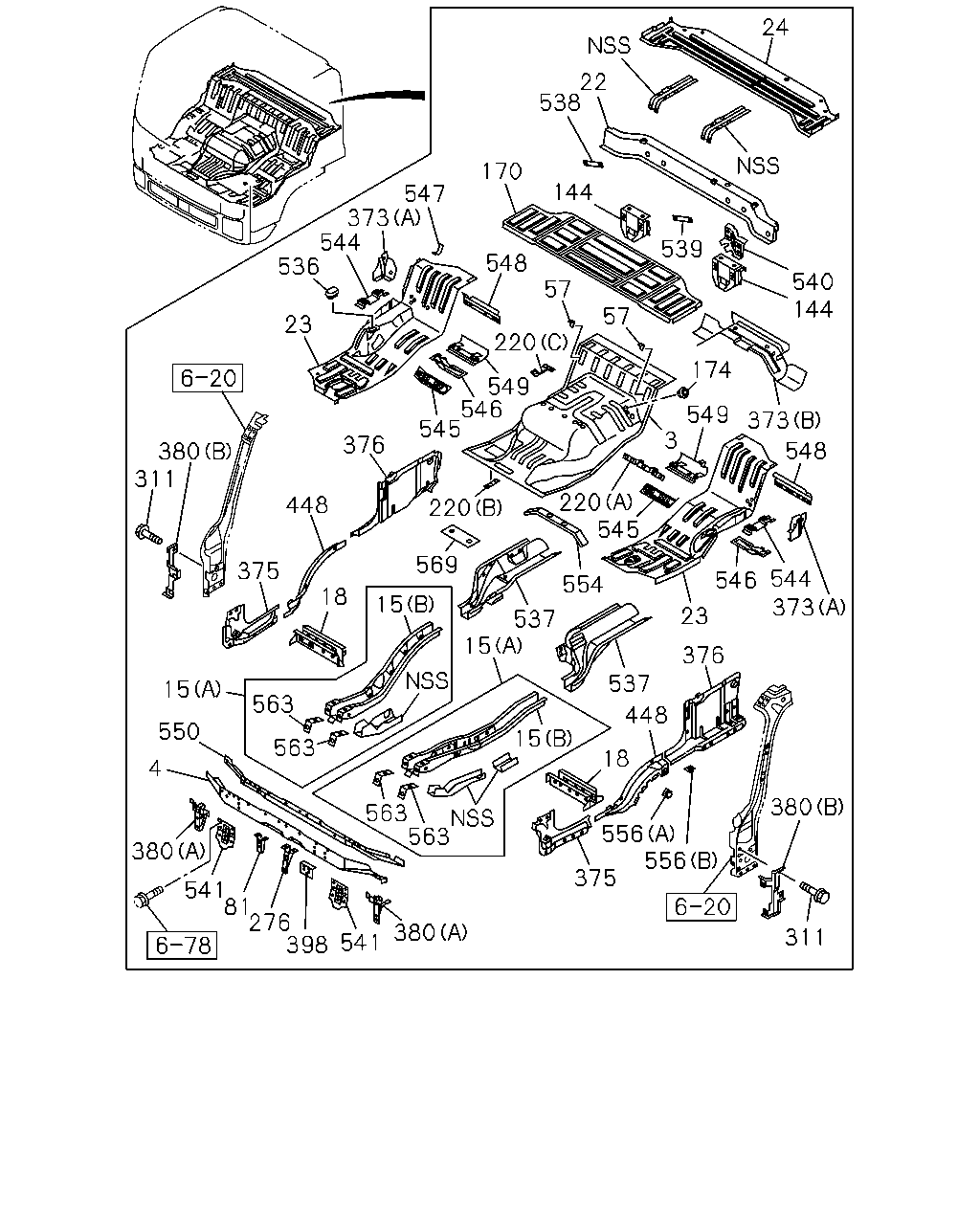

6-70 — FLOOR PANEL (#15724) — 64 parça
çizim 128614
24 22 538 170 144 547 373 544 536 539 548 540 144 57 57 23 220 174 549 549 546 545 373 3 376 548 380 311 220 545 448 220 569 375 544 373 546 554 18 15 23 537 15 376 537 15 563 448 550 563 15 18 4 563 563 380 556 556 380 375 541 81 276 398 380 311 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1005-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1005-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1005-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1005-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1005-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1005-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1005-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1005-
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1005-
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 1005-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1005-
24 PANEL; BED PAN 8-97584-378-6 01 1 1005-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1005-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1005-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1005-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1005-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1005-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1005-1112
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1005-1112
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1201-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1005-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1005-
220 PATCH
(C) 		8-97589-627-2 01 1 1005-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1005-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1005-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1005-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1005-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1005-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1005-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1005-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1005-1403
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1005-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1005-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1005-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1005-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1005-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1011-1305
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1306-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1005-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1005-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1005-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1005-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1005-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1005-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1005-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1005-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1005-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1005-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1005-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1005-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1005-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1005-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1005-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1005-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1005-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1005-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1005-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1005-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1005-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1005-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1005-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1005-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1005-
