Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

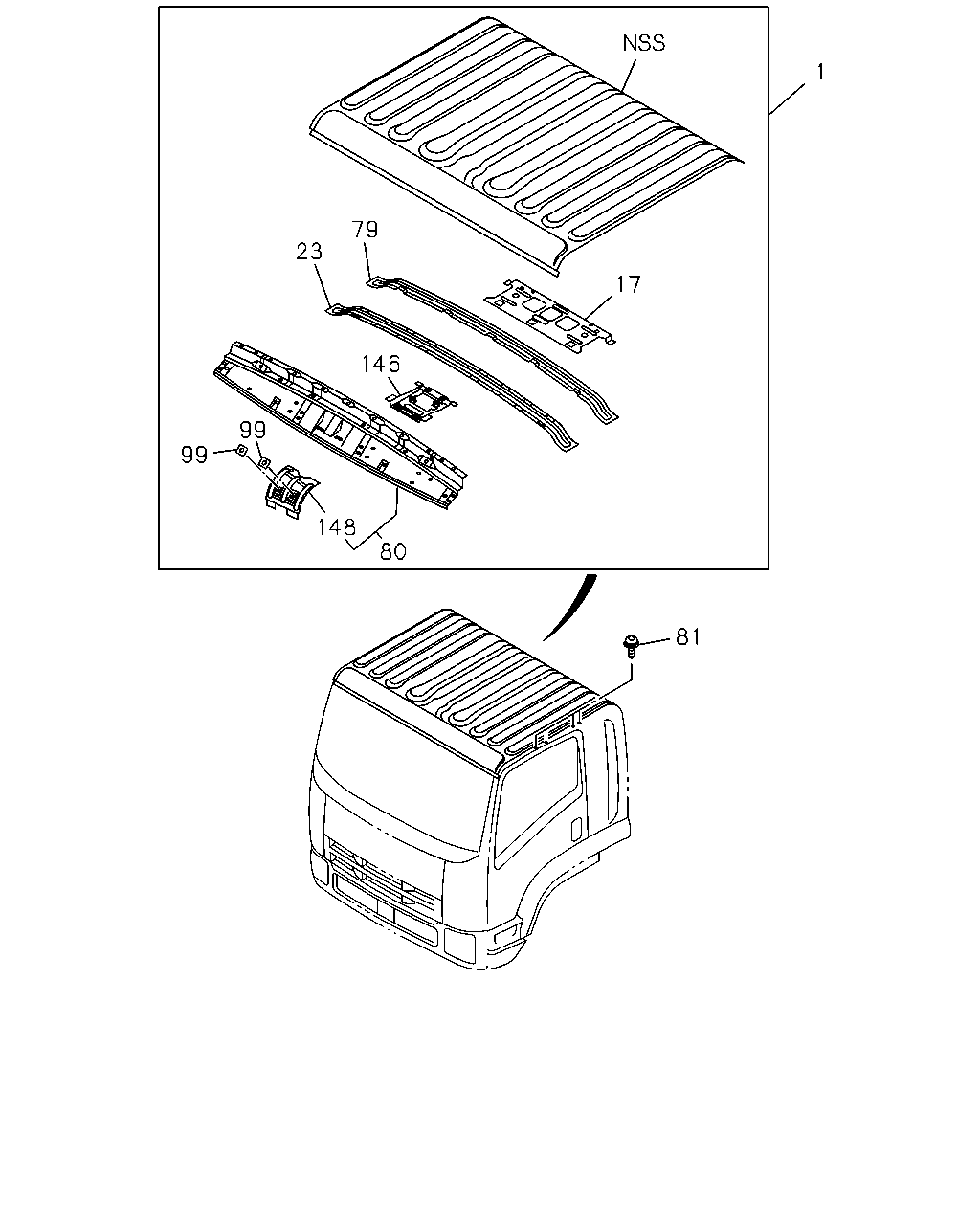

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#15722) — 15 parça
81
80
148
99
99
17
146
23
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
THA
8-97925-345-0
01
1
1005-
17
REINFORCEMENT; ROOF PNL CENTER
8-97584-203-5
01
1
1005-
23
REINFORCEMENT; ROOF PANEL,FRT
THA
8-98019-316-0
01
1
1005-
79
REINFORCEMENT; ROOF PANEL,RR
THA
8-97948-276-0
01
1
1306-1306
79
REINFORCEMENT; ROOF PANEL,RR
THA
8-97948-276-0
01
1
1307-
79
REINFORCEMENT; ROOF PANEL,RR
THA
8-97948-276-0
01
1
1307-
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-200-1
01
1
1005-1306
80
PANEL; HEADER,ROOF
THA
8-97925-343-0
01
1
1005-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1005-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1005-
146
REINFORCEMENT; ROOM LAMP
THA
8-98075-827-0
01
1
1005-
148
REINFORCEMENT; MIRROR
THA
8-97948-275-0
01
1
1306-1306
148
REINFORCEMENT; MIRROR
THA
8-97948-275-0
01
1
1307-
148
REINFORCEMENT; MIRROR
THA
8-97948-275-0
01
1
1307-
148
REINFORCEMENT; MIRROR
8-97411-015-1
01
1
1005-1306
