Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

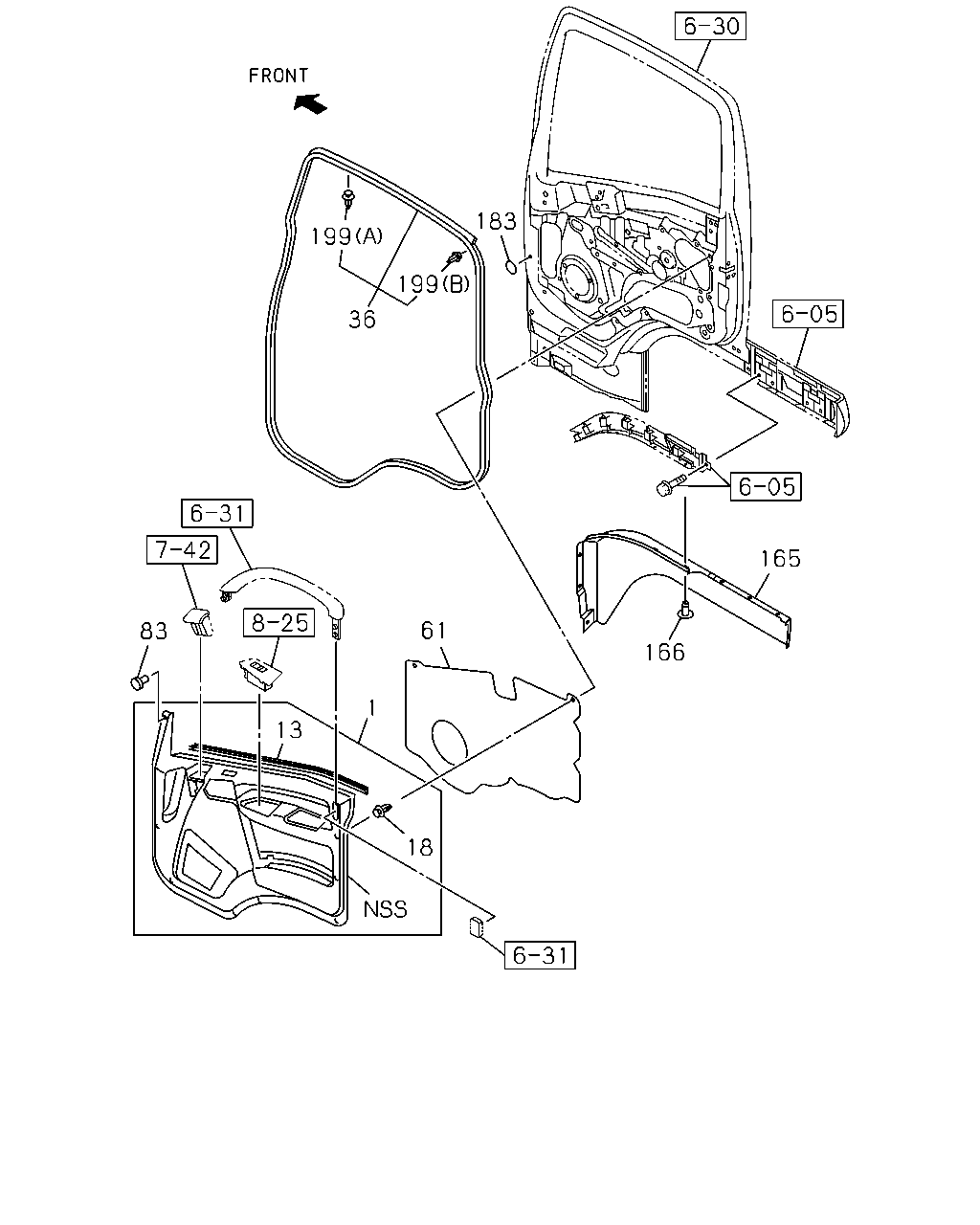

6-35 — FRONT DOOR TRIM
(#15719) — 25 parça
183
199
199
36
165
61
83
166
1
13
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
THA
8-97923-889-1
01
1
1005-
1
PAD; TRIM,FRT DOOR
THA
8-97923-890-1
01
1
1005-
13
SEAL; DOOR TRIM
THA
8-97923-891-0
01
1
1005-
13
SEAL; DOOR TRIM
THA
8-97923-892-0
01
1
1005-
18
CLIP; DOOR PAD
THA
8-98004-025-0
14
1
1005-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
1005-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-198-3
01
1
1005-1009
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1010-
61
SEAL; WATER,DOOR PAD
8-98029-394-2
01
1
1301-
61
SEAL; WATER,DOOR PAD
8-98029-395-2
01
1
1301-
61
SEAL; WATER,DOOR PAD
8-98029-394-2
01
1
1005-
61
SEAL; WATER,DOOR PAD
8-98029-395-2
01
1
1005-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1005-
165
LINER; DOOR LWR
8-98038-288-1
01
1
1005-
165
LINER; DOOR LWR
8-98038-289-1
01
1
1005-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
09
1
1005-
183
SEAL; LOCATION HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1005-
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
80
1
1005-1007
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
40
1
1008-1009
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
40
1
1008-1009
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
80
1
1010-
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
02
1
1005-1007
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
01
1
1008-1009
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
01
1
1008-1009
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
02
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
