Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

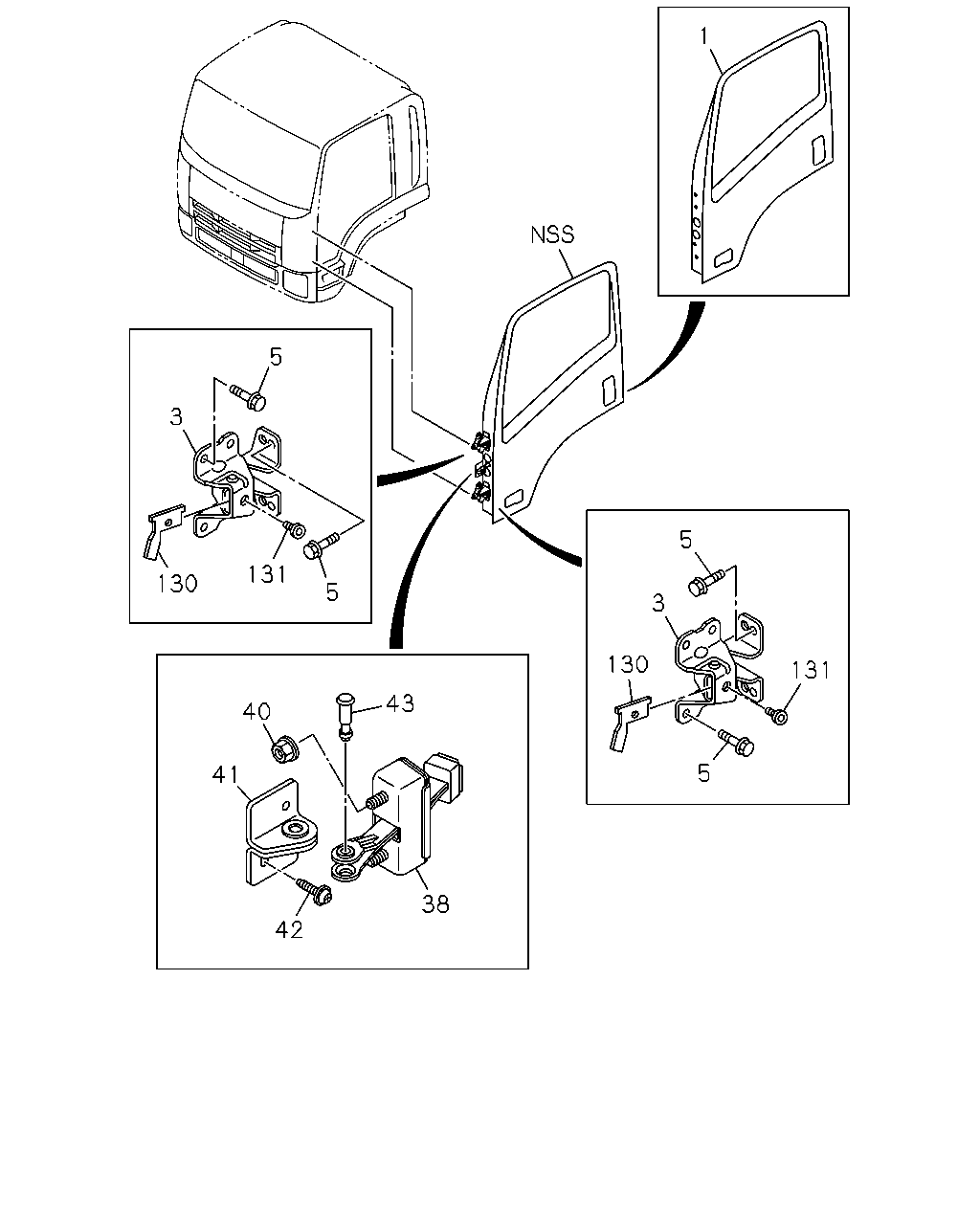

6-30 — FRONT DOOR AND HINGE
(#15716) — 16 parça
1
5
3
5
131
130
5
3
130
131
43
40
5
41
38
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98064-821-0
01
1
1005-
1
DOOR ASM; FRT,WO/TRIM
8-98064-822-0
01
1
1005-
3
HINGE; DOOR FRT
8-98038-293-0
04
1
1005-1104
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1105-
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
20
1
1005-
38
CHECKER ASM; DOOR
8-98029-417-5
02
1
1005-1203
38
CHECKER ASM; DOOR
8-98208-189-1
02
1
1204-1508
38
CHECKER ASM; DOOR
8-98296-601-0
02
1
1509-
40
NUT; CHECKER
M8 FLANGE
8-98029-441-0
04
1
1005-1012
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1101-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-
41
BRACKET; CHECKER
8-98029-290-3
02
1
1005-
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1005-
43
PIN
8-98037-152-2
02
1
1005-
130
STOPPER; HINGE
8-98038-299-1
04
1
1005-
131
BOLT; DOOR STOPPER
M10X11
8-98039-593-1
04
1
1005-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
