Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#1571) — 327 parça

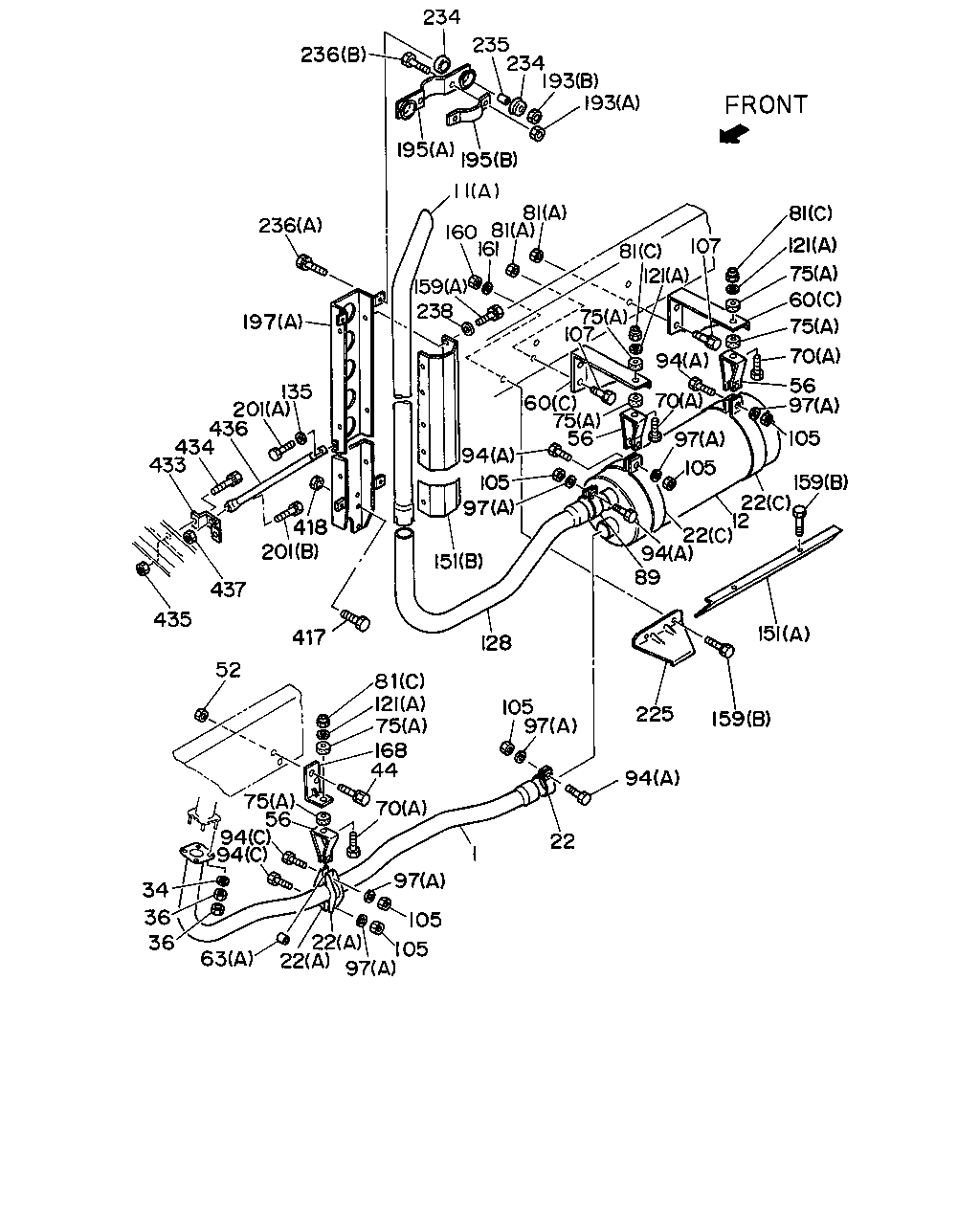

236 234 235 234 193 193 195 195 11 160 81 81 161 159 238 236 197 135 201 436 434 433 437 435 201 418 151 97 105 94 60 75 56 107 75 81 121 107 81 121 75 60 75 70 56 97 105 159 22 12 22 105 97 70 94 94 89 128 417 52 75 56 44 75 121 81 168 105 97 225 159 151 94 22 1 97 105 105 97 22 22 63 36 36 34 94 94 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH FSS ALL(FSS***) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-290-0	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-634-1	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***)	1-22121-634-1	01	1	9407-
1	PIPE; EXH FTS ALL(FTS***) EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-717-1	01	1	9207-9406
1	PIPE; EXH FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*)	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & BED CAB(FTS5MF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-291-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-292-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-793-1	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22121-793-1	01	1	9407-
11	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22112-754-1	01	1	9207-
11	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (A)	1-22112-760-1	01	1	9207-
11	PIPE; EXH,RR FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22112-844-0	01	1	9207-
12	SILENCER ASM; EXH FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M)	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22140-428-0	01	1	9207-
22	CLAMP; EXH PIPE (A) L=120	1-22133-231-0	02	1	9207-
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	02	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) ID=83.5	1-22133-178-1	01	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) ID=284	1-22133-185-0	02	1	9207-
34	WASHER; EXH PIPE	1-09500-007-0	04	1	9207-
36	NUT; EXH PIPE	9-09842-016-0	08	1	9207-
44	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-9307
44	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	02	1	9308-
52	NUT; BRKT VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> M10	9-09110-510-0	02	1	9207-
52	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10	9-09110-510-0	02	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> H=67	1-22139-041-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=163	1-22139-049-0	01	1	9207-
60	BRACKET; FRAME TO BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-462-1	01	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C)	1-22151-397-1	02	1	9207-
63	TUBE; DIST,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) L=8.5	1-22139-057-0	01	1	9207-
70	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	03	1	9207-
75	RUBBER; SUPPORT,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	06	1	9207-
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9207-
81	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10 LOCK NUT	9-09131-510-0	03	1	9207-
89	CLAMP; EXH SILENCER,RR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> ID=83.5	1-22133-178-1	01	1	9207-
94	BOLT; CLAMP (A) M10X45	0-50141-045-0	04	1	9207-
94	BOLT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10X40 W/SP&PL WASHER	0-50141-040-0	02	1	9207-
97	WASHER; PL,CLAMP (A)	9-09164-510-0	04	1	9207-
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
97	WASHER; PL,CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
105	NUT; CLAMP	9-09110-510-0	04	1	9207-
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
105	NUT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9307
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-9506
107	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9507-
121	WASHER; PL,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) ID=10.5 OD=32	9-09164-810-0	03	1	9207-
128	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4>	1-22112-758-1	01	1	9207-
128	PIPE; EXH,RR FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4>	1-22112-843-0	01	1	9207-
128	PIPE; EXH,RR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22112-772-3	01	1	9207-
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9207-
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-075-1	01	1	9207-9209
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-169-3	01	1	9207-
159	BOLT; HEAT PROTECTOR (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22 W/LK WASHER	0-50040-822-0	10	1	9207-
160	NUT; HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8	9-09110-408-0	02	1	9207-
161	WASHER; PL,HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ID=8.4 OD=22	9-09160-708-0	02	1	9207-
168	BRACKET; EXH PIPE,FRT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22130-344-0	01	1	9207-
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (C) M10	9-09110-510-0	09	1	9207-
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	04	1	9207-9301
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	04	1	9302-
193	NUT; BRKT,VERTICAL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	04	1	9302-
193	NUT; BRKT,VERTICAL PIPE FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-410-0	04	1	9207-9301
193	NUT; BRKT,VERTICAL PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-410-0	08	1	9207-9301
195	CLAMP; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> (A)	1-22133-181-0	02	1	9207-
195	CLAMP; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> (B)	1-22133-183-0	02	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22131-468-0	01	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-423-3	01	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-496-1	01	1	9207-
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9207-
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9207-
225	PROTECTOR; HEAT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-53459-750-0	01	1	9207-
225	PROTECTOR; HEAT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22119-256-0	01	1	9207-
234	RUBBER; SUPPORT,CLAMP VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9207-
235	TUBE; DIST,SUPPORT RUBBER VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9207-
236	BOLT; PIPE CLAMP TO BRKT VERTICAL TAIL PIPE<NC4> (A) M10X45 W/LK WASHER	0-50041-045-0	04	1	9207-
236	BOLT; PIPE CLAMP TO BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M8X30 W/LK WASHER	0-50040-830-0	04	1	9207-9301
236	BOLT; PIPE CLAMP TO BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 W/LK WASHER	0-50040-830-0	04	1	9302-
236	BOLT; PIPE CLAMP TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9301
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9207-
417	BOLT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	05	1	9207-9307
417	BOLT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	05	1	9308-
418	NUT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	05	1	9207-
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9207-
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M8X20 FLANGE	0-28080-820-0	02	1	9207-
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9207-
436	STAY; SUPPORT,EXH FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4>	1-22131-651-0	01	1	9207-
436	STAY; SUPPORT,EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22131-529-1	01	1	9207-
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9207-

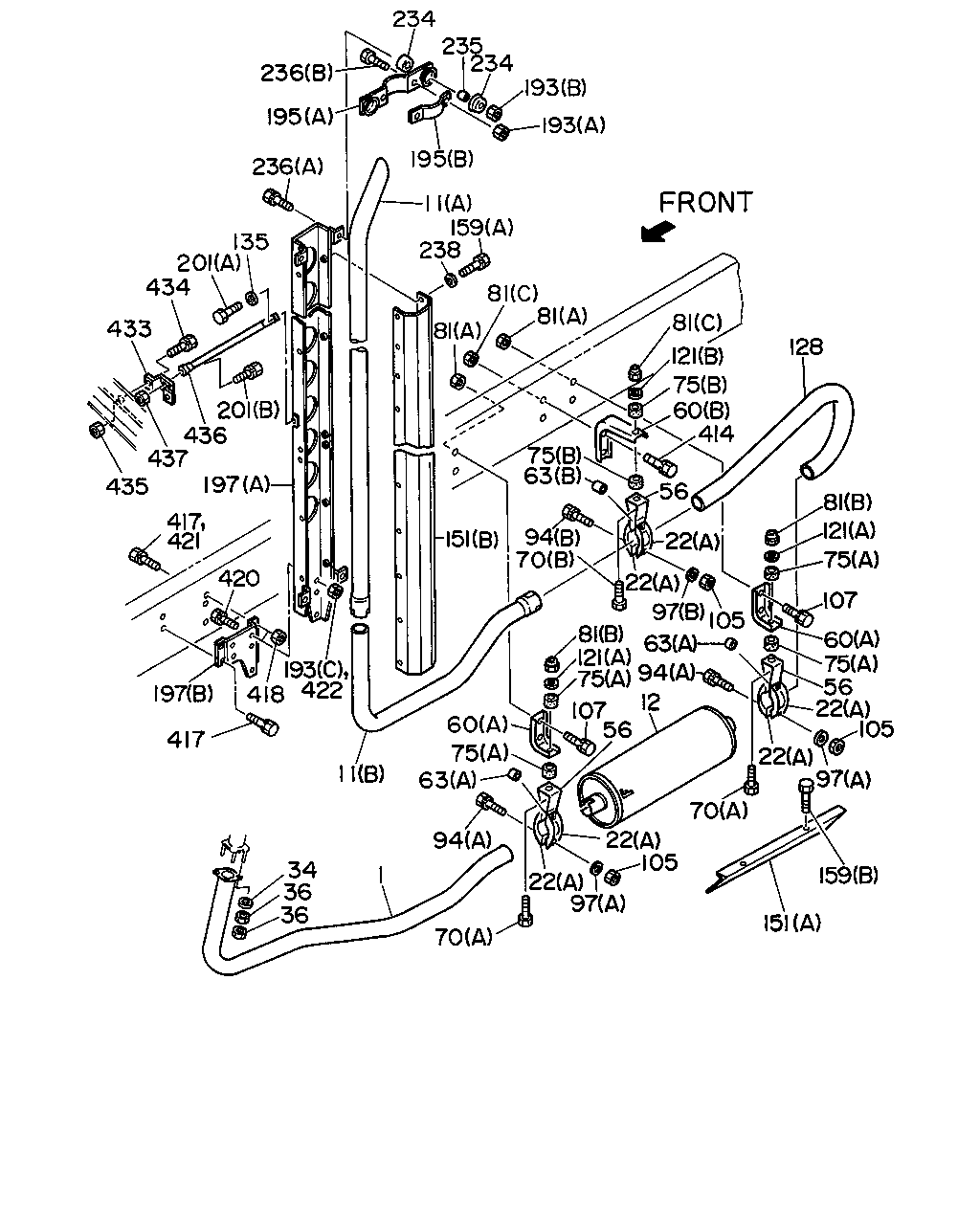

236 234 235 234 193 193 195 236 195 135 201 434 433 201 436 437 435 417 421 197 420 197 193 418 422 417 11 60 75 63 151 94 70 63 75 81 81 81 238 159 11 81 121 75 60 414 128 81 121 75 107 60 75 56 22 105 22 97 105 22 56 22 97 63 94 81 121 75 107 56 12 94 22 70 1 34 36 36 97 105 22 70 159 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH FSS ALL(FSS***) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-290-0	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-634-1	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***)	1-22121-634-1	01	1	9407-
1	PIPE; EXH FTS ALL(FTS***) EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-717-1	01	1	9207-9406
1	PIPE; EXH FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*)	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & BED CAB(FTS5MF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-291-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-292-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-793-1	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22121-793-1	01	1	9407-
11	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22112-754-1	01	1	9207-
11	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (A)	1-22112-760-1	01	1	9207-
11	PIPE; EXH,RR FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22112-844-0	01	1	9207-
12	SILENCER ASM; EXH FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M)	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22140-428-0	01	1	9207-
22	CLAMP; EXH PIPE (A) L=120	1-22133-231-0	02	1	9207-
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	02	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) ID=83.5	1-22133-178-1	01	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) ID=284	1-22133-185-0	02	1	9207-
34	WASHER; EXH PIPE	1-09500-007-0	04	1	9207-
36	NUT; EXH PIPE	9-09842-016-0	08	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> H=67	1-22139-041-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=163	1-22139-049-0	01	1	9207-
60	BRACKET; FRAME TO BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-462-1	01	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C)	1-22151-397-1	02	1	9207-
63	TUBE; DIST,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) L=8.5	1-22139-057-0	01	1	9207-
70	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	03	1	9207-
75	RUBBER; SUPPORT,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	06	1	9207-
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9207-
81	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10 LOCK NUT	9-09131-510-0	03	1	9207-
94	BOLT; CLAMP (A) M10X45	0-50141-045-0	04	1	9207-
94	BOLT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10X40 W/SP&PL WASHER	0-50141-040-0	02	1	9207-
97	WASHER; PL,CLAMP (A)	9-09164-510-0	04	1	9207-
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
97	WASHER; PL,CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
105	NUT; CLAMP	9-09110-510-0	04	1	9207-
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
105	NUT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9307
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-9506
107	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9507-
121	WASHER; PL,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) ID=10.5 OD=32	9-09164-810-0	03	1	9207-
128	PIPE; EXH,RR FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4>	1-22112-758-1	01	1	9207-
128	PIPE; EXH,RR FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4>	1-22112-843-0	01	1	9207-
128	PIPE; EXH,RR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22112-772-3	01	1	9207-
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9207-
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-075-1	01	1	9207-9209
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-169-3	01	1	9207-
159	BOLT; HEAT PROTECTOR (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22 W/LK WASHER	0-50040-822-0	10	1	9207-
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (C) M10	9-09110-510-0	09	1	9207-
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	04	1	9207-9301
193	NUT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	04	1	9302-
193	NUT; BRKT,VERTICAL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	04	1	9302-
193	NUT; BRKT,VERTICAL PIPE FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-410-0	04	1	9207-9301
193	NUT; BRKT,VERTICAL PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-410-0	08	1	9207-9301
195	CLAMP; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> (A)	1-22133-181-0	02	1	9207-
195	CLAMP; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> (B)	1-22133-183-0	02	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22131-468-0	01	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-423-3	01	1	9207-
197	BRACKET; EXH PIPE,VERTICAL FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-496-1	01	1	9207-
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9207-
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9207-
234	RUBBER; SUPPORT,CLAMP VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9207-
235	TUBE; DIST,SUPPORT RUBBER VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9207-
236	BOLT; PIPE CLAMP TO BRKT VERTICAL TAIL PIPE<NC4> (A) M10X45 W/LK WASHER	0-50041-045-0	04	1	9207-
236	BOLT; PIPE CLAMP TO BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M8X30 W/LK WASHER	0-50040-830-0	04	1	9207-9301
236	BOLT; PIPE CLAMP TO BRKT VERTICAL TAIL PIPE<NC4> (B) M8X30 W/LK WASHER	0-50040-830-0	04	1	9302-
236	BOLT; PIPE CLAMP TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9301
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9207-
414	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-9307
414	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-9307
414	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 FLANGE	0-28081-030-0	02	1	9308-
414	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 FLANGE	0-28081-030-0	02	1	9308-
417	BOLT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	05	1	9207-9307
417	BOLT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	05	1	9308-
418	NUT; BRKT FTS BED CAB & DOUBLE CAB(FTS5*F) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	05	1	9207-
420	BOLT; BRKT,VERTICAL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> M10X25 W/LK WASHER	0-50041-025-0	05	1	9207-
421	BOLT; PIPE BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> M10X32 W/LK WASHER	0-50041-032-0	05	1	9207-9307
421	BOLT; PIPE BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	05	1	9308-
422	NUT; PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	03	1	9207-
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9207-
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M8X20 FLANGE	0-28080-820-0	02	1	9207-
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9207-
436	STAY; SUPPORT,EXH FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4>	1-22131-651-0	01	1	9207-
436	STAY; SUPPORT,EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22131-529-1	01	1	9207-
437	NUT; STAY VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9207-

107 161 160 107 225 159 81 121 60 75 63 56 94 22 97 70 1 34 36 36 81 75 63 75 60 81 121 75 81 22 97 126 105 22 70 159 151 105 12 22 94 56

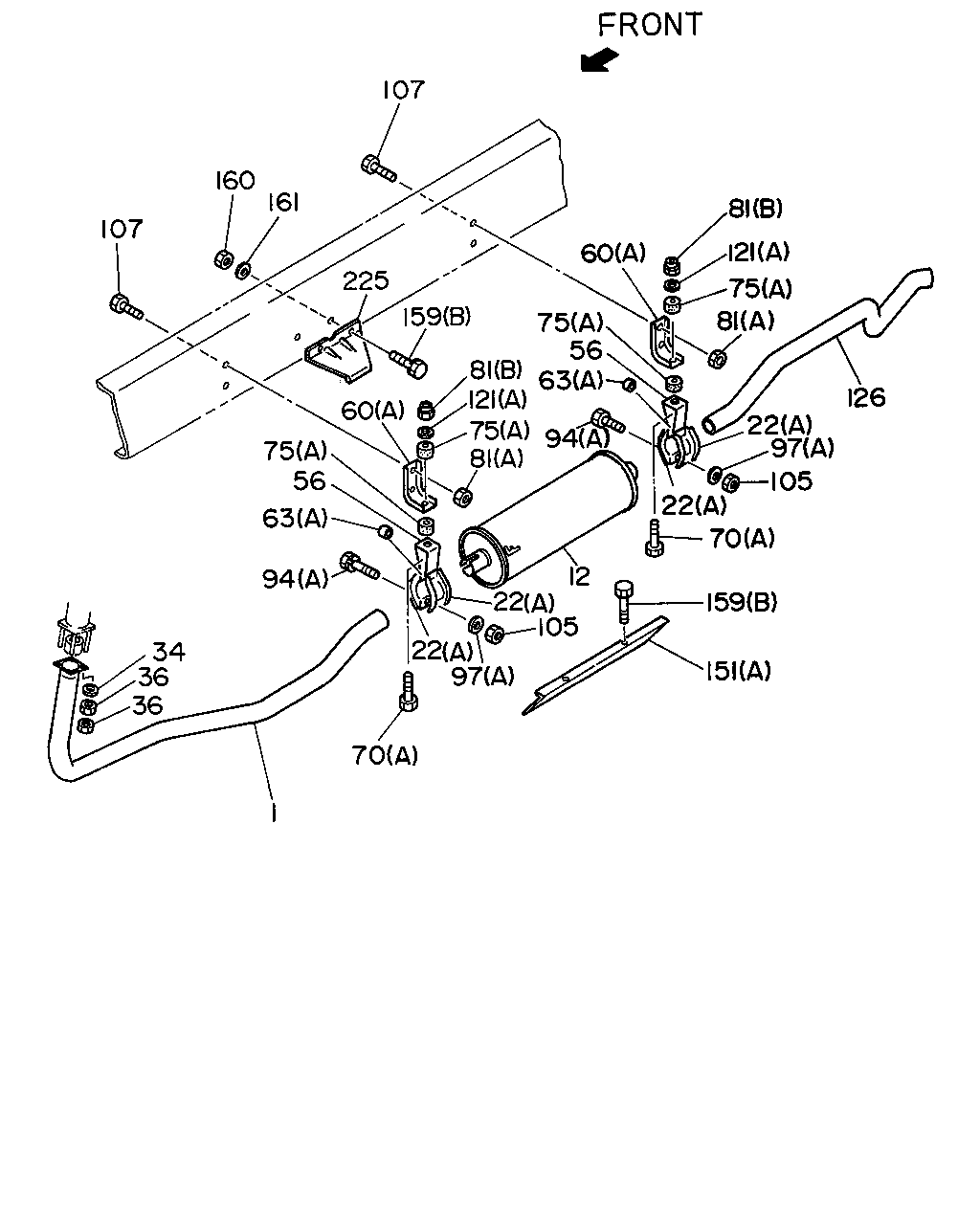

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH FSS ALL(FSS***) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-290-0	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-634-1	01	1	9207-9406
1	PIPE; EXH FSS ALL(FSS***)	1-22121-634-1	01	1	9407-
1	PIPE; EXH FTS ALL(FTS***) EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-717-1	01	1	9207-9406
1	PIPE; EXH FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*)	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22121-717-1	01	1	9407-
1	PIPE; EXH FTS MIDDLE CHASSIS & BED CAB(FTS5MF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-291-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ANTI NOISE EQUIPMENT ECE<SLK>	1-22122-292-0	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22121-793-1	01	1	9207-9406
1	PIPE; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22121-793-1	01	1	9407-
12	SILENCER ASM; EXH FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M)	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-497-2	01	1	9207-
12	SILENCER ASM; EXH FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-22140-428-0	01	1	9207-
22	CLAMP; EXH PIPE (A) L=120	1-22133-231-0	02	1	9207-
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	02	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (B) ID=83.5	1-22133-178-1	01	1	9207-
22	CLAMP; EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) ID=284	1-22133-185-0	02	1	9207-
34	WASHER; EXH PIPE	1-09500-007-0	04	1	9207-
36	NUT; EXH PIPE	9-09842-016-0	08	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) VERTICAL TAIL PIPE<NC4> H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> H=67	1-22139-041-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9207-
56	BRACKET; CLAMP,EXH PIPE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> H=163	1-22139-049-0	01	1	9207-
60	BRACKET; FRAME TO BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	1-22131-471-0	01	1	9207-
60	BRACKET; FRAME TO BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A)	1-22131-462-1	01	1	9207-
60	BRACKET; FRAME TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C)	1-22151-397-1	02	1	9207-
63	TUBE; DIST,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) L=11	1-22139-026-0	01	1	9207-
63	TUBE; DIST,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) L=8.5	1-22139-057-0	01	1	9207-
70	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	01	1	9207-
70	BOLT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	03	1	9207-
75	RUBBER; SUPPORT,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) OD=30	1-22159-106-1	02	1	9207-
75	RUBBER; SUPPORT,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	06	1	9207-
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9207-
81	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (C) M10	9-09131-510-0	01	1	9207-
81	NUT; BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (B) M10	9-09131-510-0	02	1	9207-
81	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10 LOCK NUT	9-09131-510-0	03	1	9207-
94	BOLT; CLAMP (A) M10X45	0-50141-045-0	04	1	9207-
94	BOLT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B) M10X45	0-50141-045-0	02	1	9207-
94	BOLT; CLAMP FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (C) M10X40 W/SP&PL WASHER	0-50141-040-0	02	1	9207-
97	WASHER; PL,CLAMP (A)	9-09164-510-0	04	1	9207-
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
97	WASHER; PL,CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-510-0	02	1	9207-
105	NUT; CLAMP	9-09110-510-0	04	1	9207-
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> EXC. SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
105	NUT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13>	9-09110-510-0	02	1	9207-
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9307
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-9506
107	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9507-
121	WASHER; PL,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS MIDDLE CHASSIS & BED CAB(FTS5MF) VERTICAL TAIL PIPE<NC4> (B)	9-09164-810-0	01	1	9207-
121	WASHER; PL,BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4> (A)	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4> (A) ID=10.5 OD=32	9-09164-810-0	03	1	9207-
126	PIPE; EXH,RR SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. VERTICAL TAIL PIPE<NC4>	1-22113-068-0	01	1	9207-
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>,SPARE WHEEL CARRIER FRAME SIDE<P13>	1-22112-851-1	01	1	9207-
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-075-1	01	1	9207-9209
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> (B)	1-22159-169-3	01	1	9207-
159	BOLT; HEAT PROTECTOR (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (B) M8X25 FLANGE	0-28080-825-0	02	1	9207-
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> (A) M8X22 W/LK WASHER	0-50040-822-0	10	1	9207-
160	NUT; HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8	9-09110-408-0	02	1	9207-
161	WASHER; PL,HEAT PROTECTOR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ID=8.4 OD=22	9-09160-708-0	02	1	9207-
225	PROTECTOR; HEAT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) VERTICAL TAIL PIPE<NC4>	1-53459-750-0	01	1	9207-
225	PROTECTOR; HEAT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. VERTICAL TAIL PIPE<NC4>	1-22119-256-0	01	1	9207-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
