5-01 — FRAME AND OTHER PARTS
(#15706) — 47 parça
◀

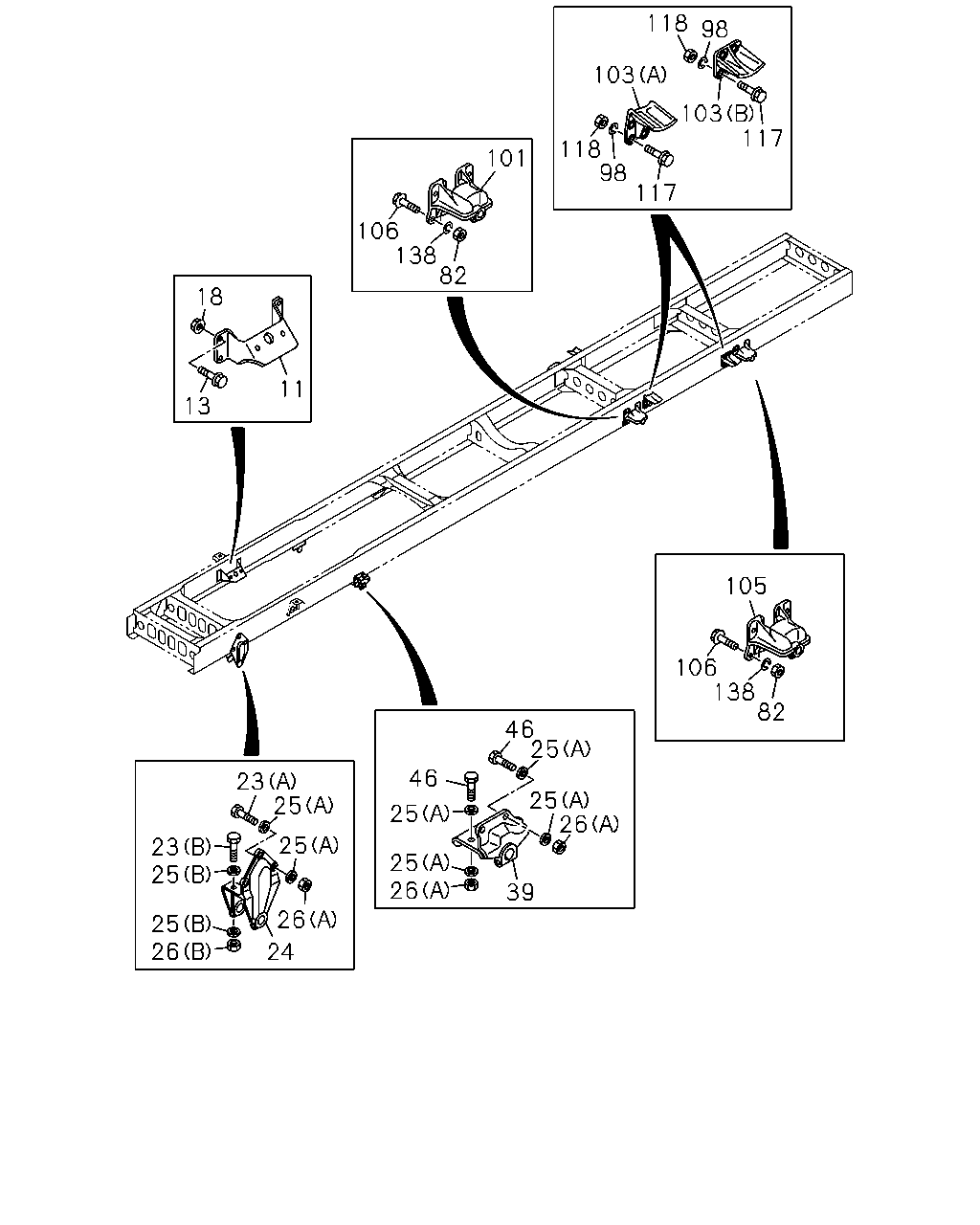

[501A] BRACKET (24 parça)

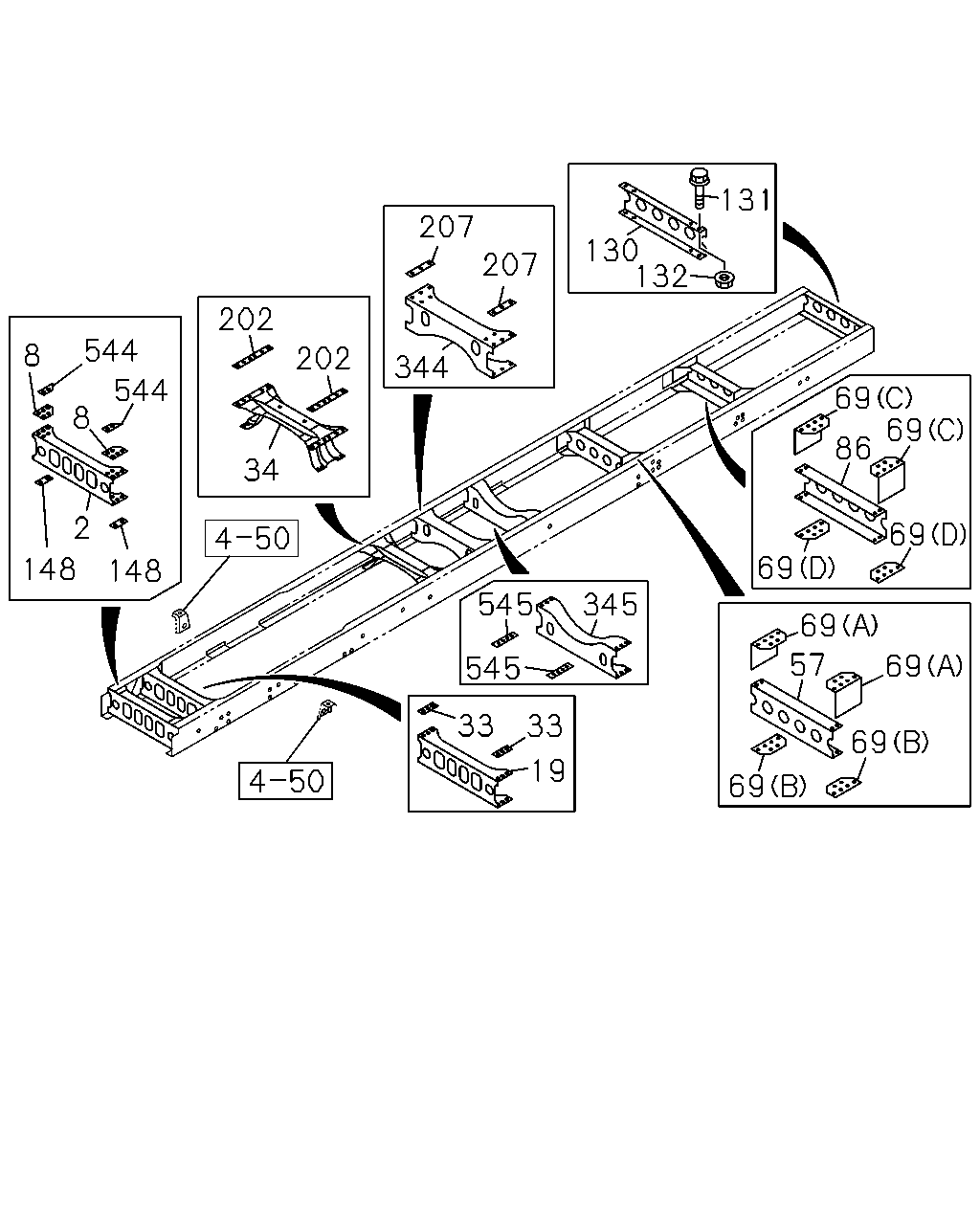

[501A] CROSS MEMBER (23 parça)
▶
118
98
103
103
117
118
98
101
117
106
138
82
18
11
13
105
106
138
82
46
25
46
23
25
25
25
26
25
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
THA
8-97619-549-0
02
1
1005-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA
0-28661-240-0
08
1
1005-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1005-
23
BOLT; BRKT,SPR
(A) M14X50 THA
0-20951-450-0
06
1
1005-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1005-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1005-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1005-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1005-
25
WASHER; PL,BRKT
(A) ID=15 THA
8-98010-627-1
28
1
1005-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1005-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1005-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1005-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1005-
46
BOLT; BRKT FIX
M14X50 THA
0-20951-450-0
08
1
1005-
82
NUT; BRKT
M14 THA
0-91110-514-0
20
1
1005-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1005-
101
BRACKET; RR SPR,FRT
THA
8-97916-134-0
02
1
1005-
103
STOPPER; SUB SPR
(A) THA
8-97916-135-0
02
1
1005-
103
STOPPER; SUB SPR
(B) THA
8-97916-136-0
02
1
1005-
105
BRACKET; RR SPR,RR
THA
8-97916-134-0
02
1
1005-
106
BOLT; BRKT
M14X50 THA
0-20951-450-0
20
1
1005-
117
BOLT; STOPPER
M14X50 THA
0-20951-450-0
16
1
1005-
118
NUT; STOPPER
M14 THA
0-91110-514-0
16
1
1005-
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
20
1
1005-
131
130
132
207
207
202
544
8
202
344
544
69
69
86
8
34
69
2
69
148
148
545
345
69
57
545
69
69
33
33
19
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
1005-
8
GUSSET; 1ST C/MBR
THA
8-97611-027-0
02
1
1005-
19
MEMBER; CROSS,2ND
8-97610-853-4
01
1
1005-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1005-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1005-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97924-678-0
01
1
1005-
69
GUSSET; RR SUSP,UPR
(B)
8-97610-865-0
02
1
1005-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-866-0
02
1
1005-
69
GUSSET; RR SUSP,UPR
(C)
8-97612-266-1
01
1
1005-
69
GUSSET; RR SUSP,UPR
(C)
8-97612-267-1
01
1
1005-
69
GUSSET; RR SUSP,UPR
(A) THA
8-97924-714-0
01
1
1005-
69
GUSSET; RR SUSP,UPR
(A) THA
8-97924-715-0
01
1
1005-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-678-0
01
1
1005-
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1005-
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1005-
132
NUT; END C/MBR
M12 THA
0-91110-512-0
04
1
1005-
148
SPACER; C/MBR
8-97611-039-0
02
1
1005-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1005-
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1005-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1005-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1005-
544
PLATE; CAB FRT MTG
THA
8-97611-030-0
02
1
1005-
545
SPACER; 5TH C/MBR
0.24KG
8-97611-245-0
02
1
1005-
