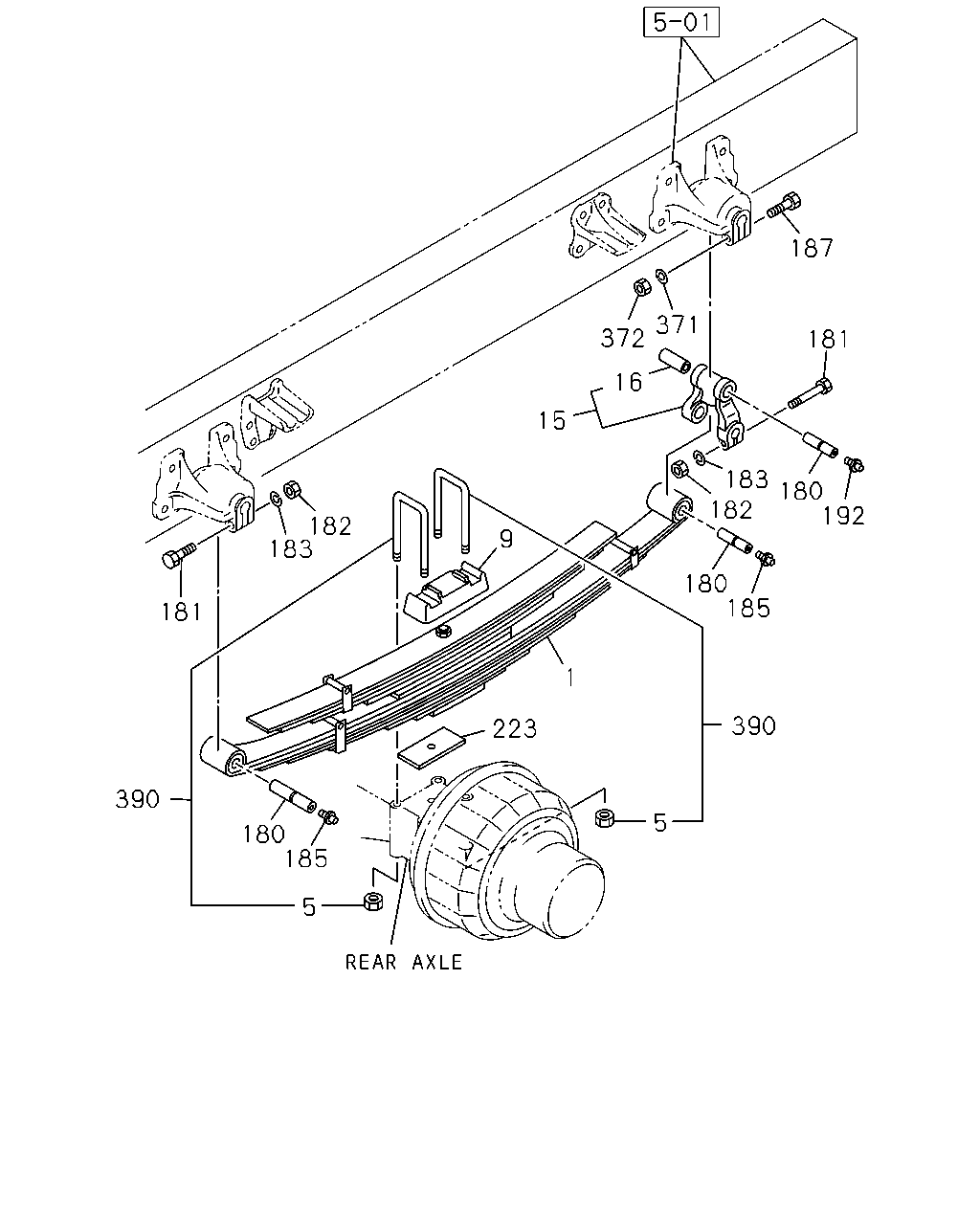

4-60 — REAR SUSPENSION
(#15703) — 19 parça
187
371
372
181
16
15
183
182
180
192
182
183
9
180
185
181
1
390
223
390
5
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-564-0
02
1
1005-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1005-
9
PAD; U BOLT,RR SPR
THA
8-97916-138-0
02
1
1005-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1005-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1005-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
06
1
1005-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1005-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1005-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1005-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1005-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1005-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1005-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1005-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1005-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1005-
223
SPACER; U BOLT,RR SPR
1-51377-166-0
02
1
1005-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
02
1
1005-
372
NUT; SHACKLE
M14 THA
0-91110-514-0
02
1
1005-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
1005-
