4-55A — FRONT LEAF SPRING (#157003) — 32 parça

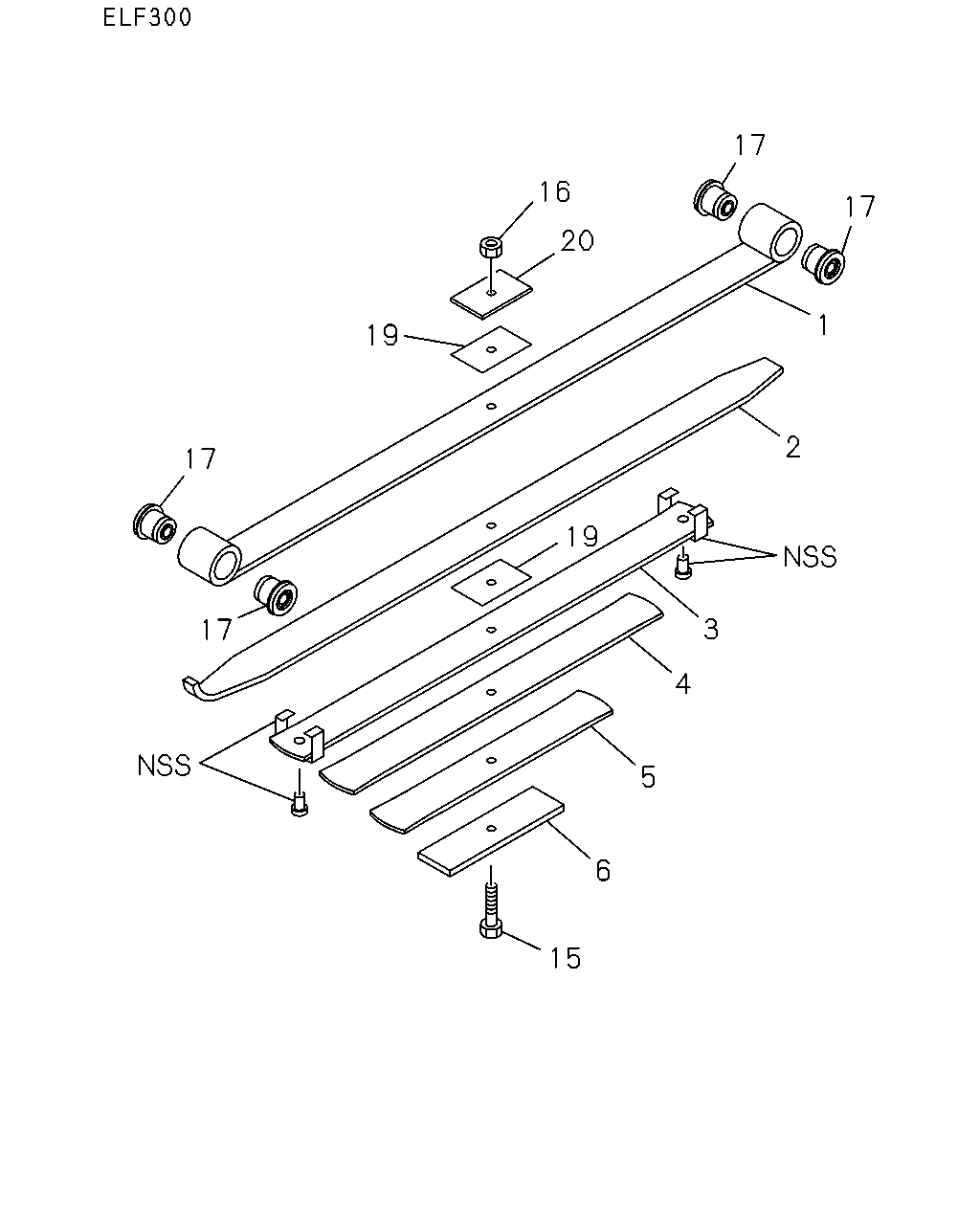

çizim 174984
17 16 17 20 1 19 2 17 19 3 17 4 5 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-897-0 		8-98094-372-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-898-0 		8-98094-378-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-897-0 		8-98094-373-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-898-0 		8-98094-379-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-897-0 		8-98094-374-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-898-0 		8-98094-380-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-897-0 		8-98094-375-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-898-0 		8-98094-381-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-897-0 		8-98094-376-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-898-0 		8-98094-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98041-353-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98040-327-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-94478-008-1 05 1 -
20 SEAT; LEAF SPR,FRT
ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98040-316-0 02 1 -

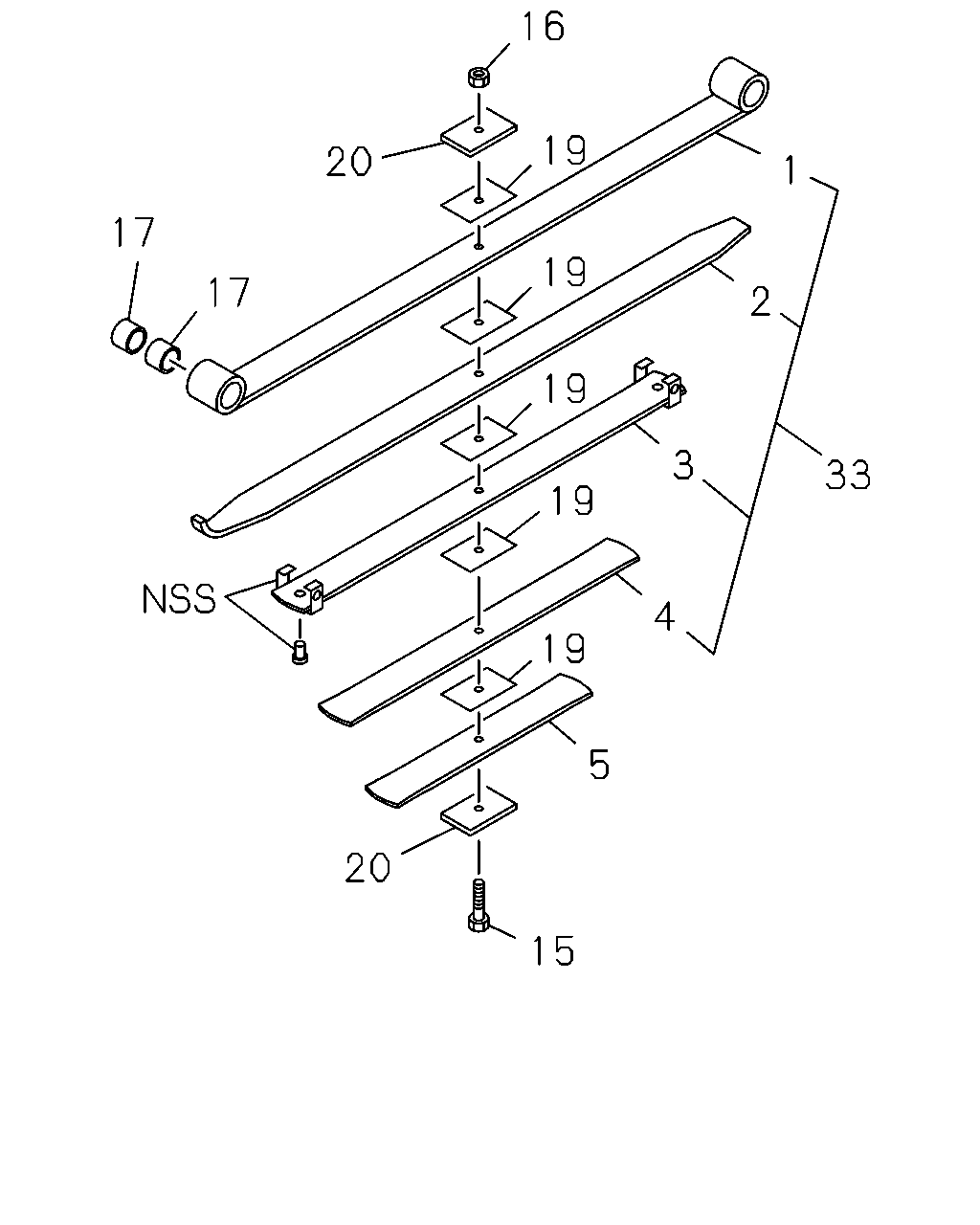

çizim 174992
20 16 19 19 19 19 19 3 2 1 33 4 5 15 20 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-897-0 		8-98094-372-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-898-0 		8-98094-378-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-897-0 		8-98094-373-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-898-0 		8-98094-379-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-897-0 		8-98094-374-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-898-0 		8-98094-380-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-897-0 		8-98094-375-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-898-0 		8-98094-381-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-897-0 		8-98094-376-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-898-0 		8-98094-382-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98041-353-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98040-327-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-94478-008-1 05 1 -
20 SEAT; LEAF SPR,FRT
ASM PART: A = 8-98079-897-0, B = 8-98079-898-0 		8-98040-316-0 02 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98079-897-0 		8-98094-371-0 01 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98079-898-0 		8-98094-377-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
