1-45 — WATER SEDIMENTER; FUEL (#1570) — 54 parça

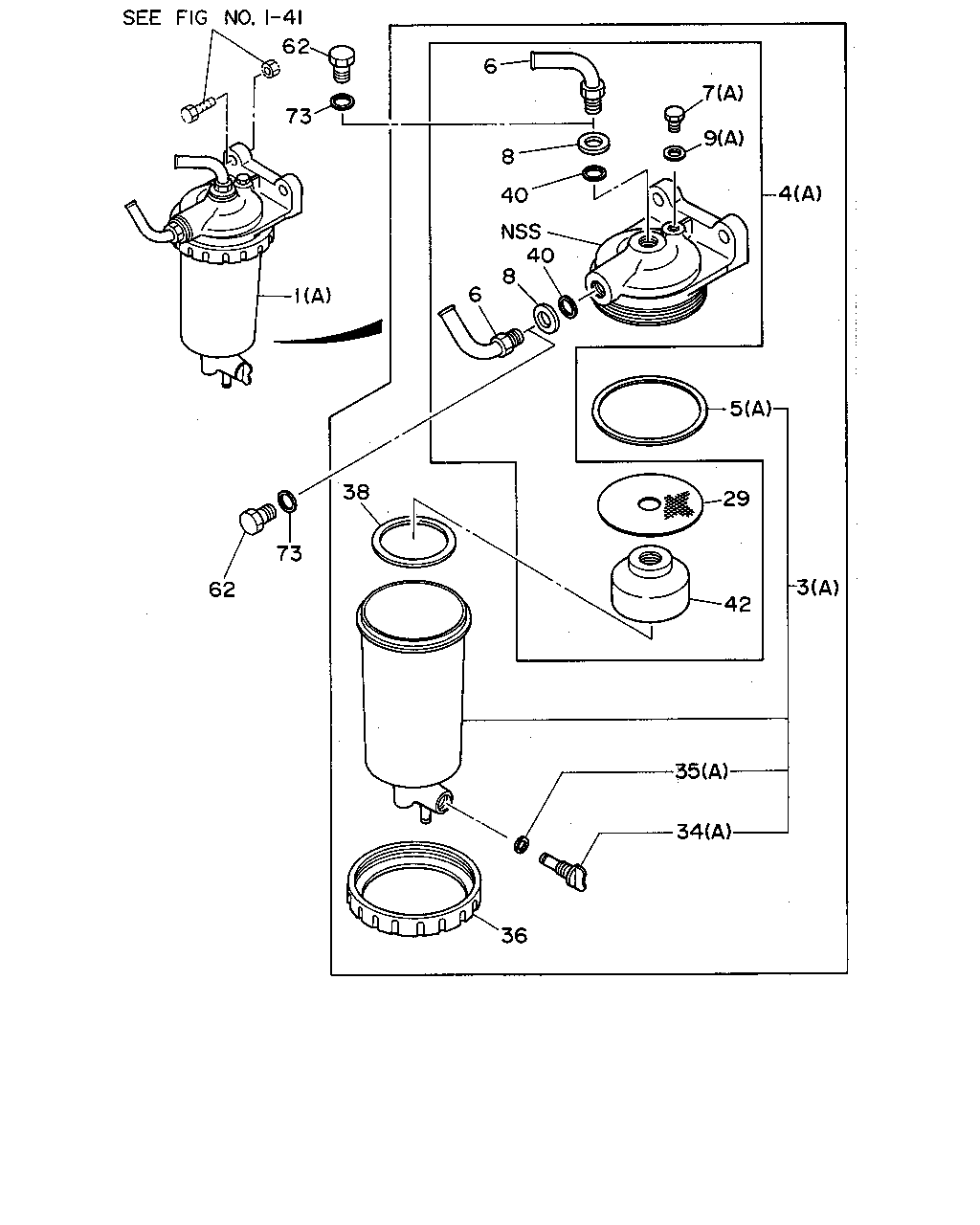

62 73 1 62 73 38 6 8 40 40 8 6 7 9 4 5 29 3 42 35 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13200-807-0	01	1	9207-
1	SEDIMENTER; FUEL EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13200-817-0	01	1	9207-
1	SEDIMENTER; FUEL PRE FUEL FILTER<W21> (B)	1-13200-533-3	01	1	9207-
3	BODY ASM; SEDIMENTER (A)	1-13211-192-0	01	1	9207-
3	BODY ASM; SEDIMENTER PRE FUEL FILTER<W21> (B)	5-13211-005-1	02	1	9207-
4	COVER; UPR,SEDIMENTER ASM FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13212-151-0	01	1	9207-
4	COVER; UPR,SEDIMENTER ASM EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13212-153-0	01	1	9207-
4	COVER; UPR,SEDIMENTER ASM PRE FUEL FILTER<W21> (B)	1-13212-096-1	01	1	9207-
5	GASKET; UPR COVER,SEDIMENTER (A)	1-09623-491-0	01	1	9207-
5	GASKET; UPR COVER,SEDIMENTER PRE FUEL FILTER<W21> (B)	9-13213-601-0	02	1	9207-
6	CONNECTOR ASM; SEDIMENTER EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-13229-002-0	02	1	9207-
7	PLUG; DRAIN,SEDIMENTER (A)	9-13219-070-0	01	1	9207-
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER<W21> (B)	1-13219-138-0	02	1	9207-
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER<W21> (C)	1-13219-139-0	01	1	9207-
8	STOPPER; CONN,SEDIMENTER EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-13229-001-0	02	1	9207-
9	GASKET; DRAIN PLUG & CONNECTOR (A)	1-09630-082-0	01	1	9207-
9	GASKET; DRAIN PLUG & CONNECTOR PRE FUEL FILTER<W21> (B)	5-09623-006-0	01	1	9207-
29	SCREEN ASM; SEDIMENTER	1-13219-228-0	01	1	9207-
34	PLUG; DRAIN,FUEL FILTER (A)	1-13219-225-0	01	1	9207-
34	PLUG; DRAIN,FUEL FILTER PRE FUEL FILTER<W21> (B) M8X10	9-09862-068-0	02	1	9207-
35	GASKET; DRAIN PLUG (A)	1-09623-490-0	01	1	9207-
35	GASKET; DRAIN PLUG PRE FUEL FILTER<W21> (B)	9-09920-255-0	02	1	9207-
36	RING; BODY TO CASE	1-13219-226-0	01	1	9207-
38	FLOAT; SEDIMENTER	1-13219-227-0	01	1	9207-
40	GASKET; CONNECTOR TO COVER EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=19.2	1-09630-085-0	02	1	9207-
42	PLATE; BAFFLE	1-13219-229-0	01	1	9207-
62	BOLT; EYE,FUEL FILTER FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M14X27 FLANGE	1-09675-086-0	02	1	9207-
73	GASKET; EYE JOINT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=19.2	1-09630-085-0	04	1	9207-

1 7 4 33 7 9 5 32 2 10 32 11 3 12 13 35 34 34 13 35 12 3 11 2 10 32 32 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13200-807-0	01	1	9207-
1	SEDIMENTER; FUEL EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13200-817-0	01	1	9207-
1	SEDIMENTER; FUEL PRE FUEL FILTER<W21> (B)	1-13200-533-3	01	1	9207-
2	ELEMENT; FUEL FILTER PRE FUEL FILTER<W21>	9-88511-191-1	02	1	9207-
3	BODY ASM; SEDIMENTER (A)	1-13211-192-0	01	1	9207-
3	BODY ASM; SEDIMENTER PRE FUEL FILTER<W21> (B)	5-13211-005-1	02	1	9207-
4	COVER; UPR,SEDIMENTER ASM FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13212-151-0	01	1	9207-
4	COVER; UPR,SEDIMENTER ASM EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-13212-153-0	01	1	9207-
4	COVER; UPR,SEDIMENTER ASM PRE FUEL FILTER<W21> (B)	1-13212-096-1	01	1	9207-
5	GASKET; UPR COVER,SEDIMENTER (A)	1-09623-491-0	01	1	9207-
5	GASKET; UPR COVER,SEDIMENTER PRE FUEL FILTER<W21> (B)	9-13213-601-0	02	1	9207-
7	PLUG; DRAIN,SEDIMENTER (A)	9-13219-070-0	01	1	9207-
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER<W21> (B)	1-13219-138-0	02	1	9207-
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER<W21> (C)	1-13219-139-0	01	1	9207-
9	GASKET; DRAIN PLUG & CONNECTOR (A)	1-09630-082-0	01	1	9207-
9	GASKET; DRAIN PLUG & CONNECTOR PRE FUEL FILTER<W21> (B)	5-09623-006-0	01	1	9207-
10	SEAT; ELEMENT,SEDIMENTER PRE FUEL FILTER<W21>	9-09651-068-0	02	1	9207-
11	SPRING; SET,SCREEN PRE FUEL FILTER<W21>	9-09742-109-0	02	1	9207-
12	GASKET; CENTER BOLT PRE FUEL FILTER<W21>	9-09720-541-0	02	1	9207-
13	BOLT; CENTER,SEDIMENTER PRE FUEL FILTER<W21>	1-13231-033-0	02	1	9207-
32	GASKET; FUEL FILTER PRE FUEL FILTER<W21>	9-09720-542-0	04	1	9207-
33	WASHER; DRAIN PLUG PRE FUEL FILTER<W21>	1-13239-003-0	02	1	9207-
34	PLUG; DRAIN,FUEL FILTER (A)	1-13219-225-0	01	1	9207-
34	PLUG; DRAIN,FUEL FILTER PRE FUEL FILTER<W21> (B) M8X10	9-09862-068-0	02	1	9207-
35	GASKET; DRAIN PLUG (A)	1-09623-490-0	01	1	9207-
35	GASKET; DRAIN PLUG PRE FUEL FILTER<W21> (B)	9-09920-255-0	02	1	9207-
