0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#157) — 91 parça

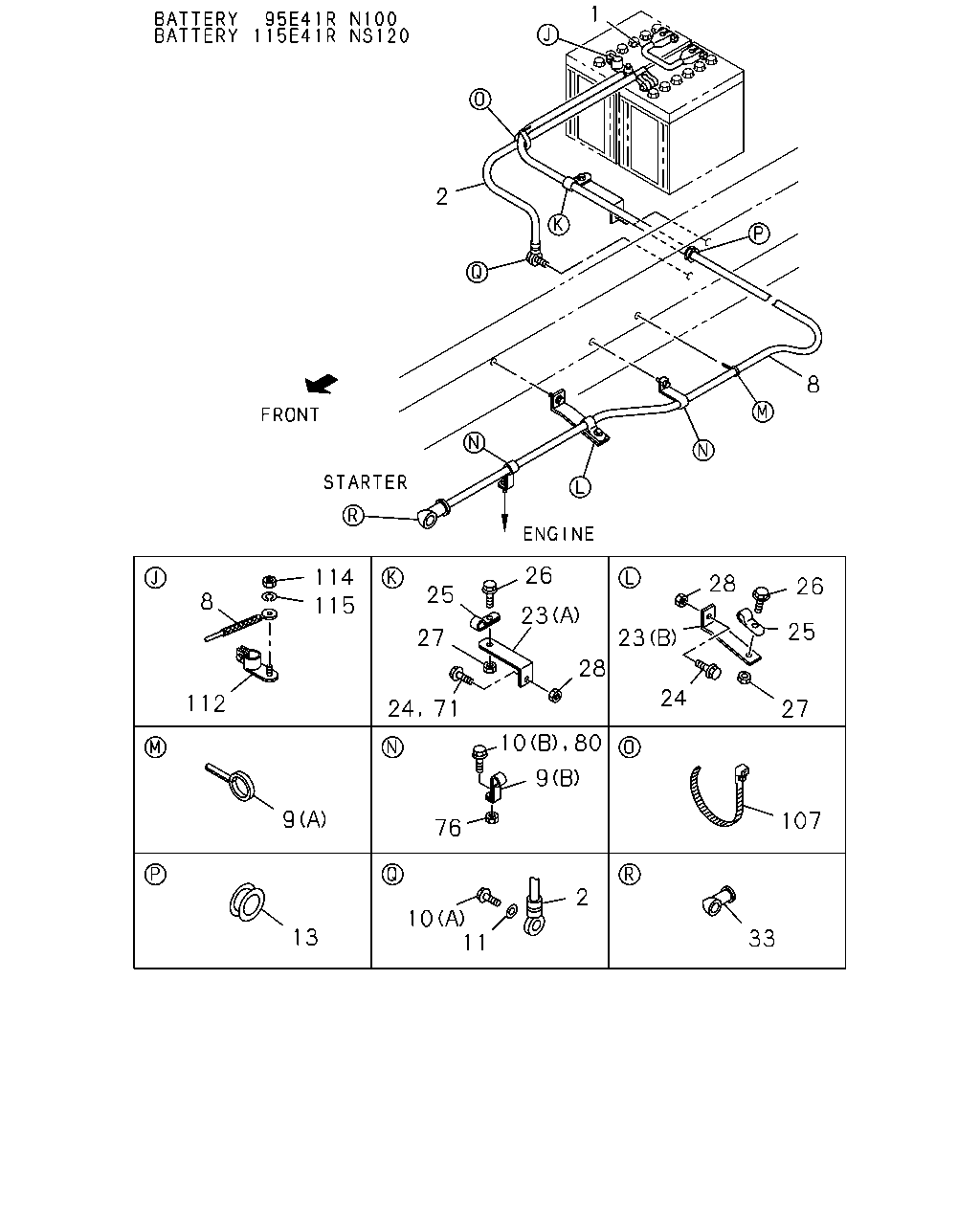

1 2 8 26 114 115 28 26 25 8 23 25 27 23 28 24 112 24 71 27 9 9 107 76 2 10 11 13 33 10 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	9-82932-233-1	01	1	9212-9407	●	●
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	1-82650-265-0	01	1	9408-	●	●
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9212-	●	●
2	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=185	1-82650-067-2	01	1	9212-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=850	1-82650-219-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1450	1-82650-217-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1700	1-82650-209-1	01	1	9212-	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14 L=44	9-09917-427-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14 L=44	9-09917-427-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 H=45 L=20	1-09701-161-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9212-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82699-584-0	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=95	1-82699-085-0	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55	1-47475-304-0	01	1	9212-	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
24	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	02	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 W/LK WASHER	0-50040-820-0	01	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	03	1	9212-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9212-	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9212-	●	●
76	NUT; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
80	BOLT; BATTERY CABLE CLIP M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9212-	●	●
107	CLIP; BAND BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=140	5-09707-031-0	01	1	9212-	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9212-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9212-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9212-	●	●

26 114 25 115 8 23 28 27 112 24 71 28 26 25 23 9 24 27 10 76 33 9 2 10 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=185	1-82650-067-2	01	1	9212-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=850	1-82650-219-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1450	1-82650-217-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1700	1-82650-209-1	01	1	9212-	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14 L=44	9-09917-427-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14 L=44	9-09917-427-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 H=45 L=20	1-09701-161-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9212-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82699-584-0	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=95	1-82699-085-0	01	1	9212-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55	1-47475-304-0	01	1	9212-	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
24	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	02	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 L=28	1-09700-872-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 W/LK WASHER	0-50040-820-0	01	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	03	1	9212-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9212-	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9212-	●	●
76	NUT; BATTERY CABLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9212-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9212-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9212-	●	●

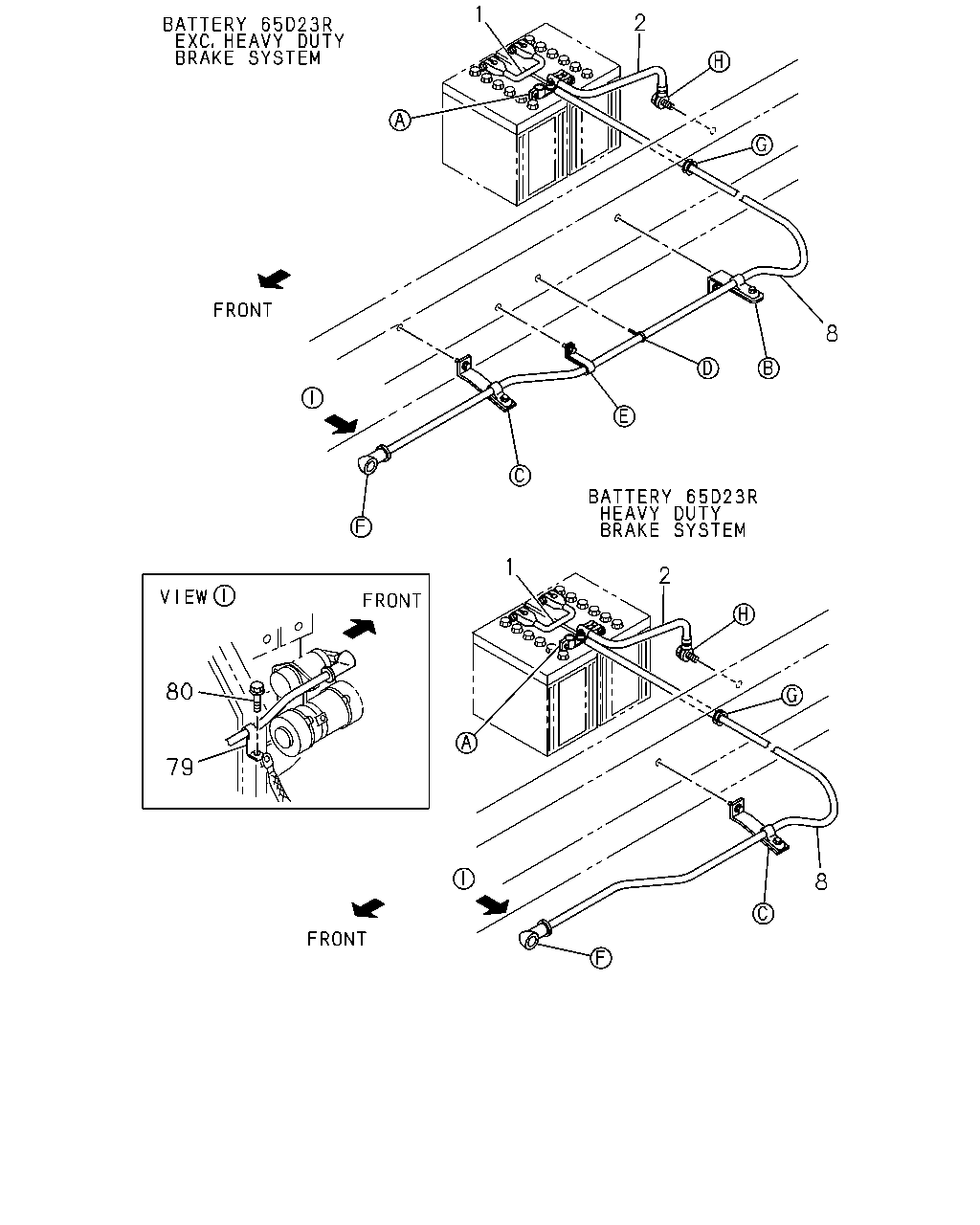

1 2 8 1 2 80 79 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	9-82932-233-1	01	1	9212-9407	●	●
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	1-82650-265-0	01	1	9408-	●	●
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9212-	●	●
2	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=185	1-82650-067-2	01	1	9212-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=850	1-82650-219-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1450	1-82650-217-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1700	1-82650-209-1	01	1	9212-	●	●
79	CLIP; BATTERY CABLE ID=16 H=30 L=30	1-09701-080-0	01	1	9212-	●	●
80	BOLT; BATTERY CABLE CLIP M8X14 FLANGE	0-28080-814-0	01	1	9212-	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9212-	●	●
