4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#15697) — 66 parça

268 268 46 34 31 44 280 58 157 61 59 68 280 41 65 63 79 41 277 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

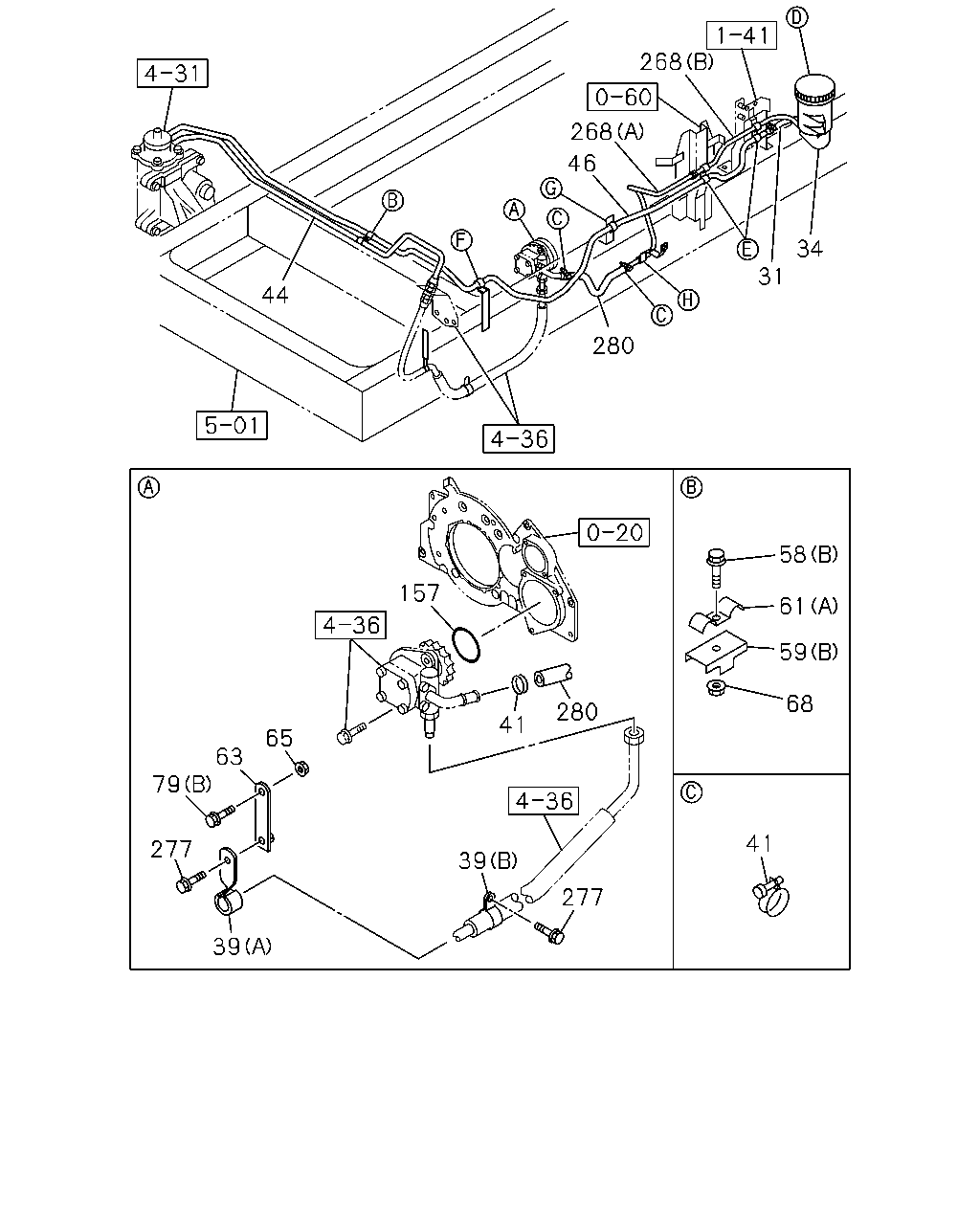

31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1005-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1005-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1005-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1005-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1005-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1005-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1005-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1005-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1005-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1005-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1005-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1005-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1005-
63	BRACKET; CLIP,P/S	1-47476-396-1	01	1	1005-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1005-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1005-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1005-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1005-
79	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1005-
79	BOLT; BRKT (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1005-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1005-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1005-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1005-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	1005-1006
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	1005-1006
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1007-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	1005-

2 31 3 37 1 37 46 1 5 25 19 26 12 37 268 34 19 37 15 58 65 61 61 59 61 79 65 59 58 58 79 263 284 264 54 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

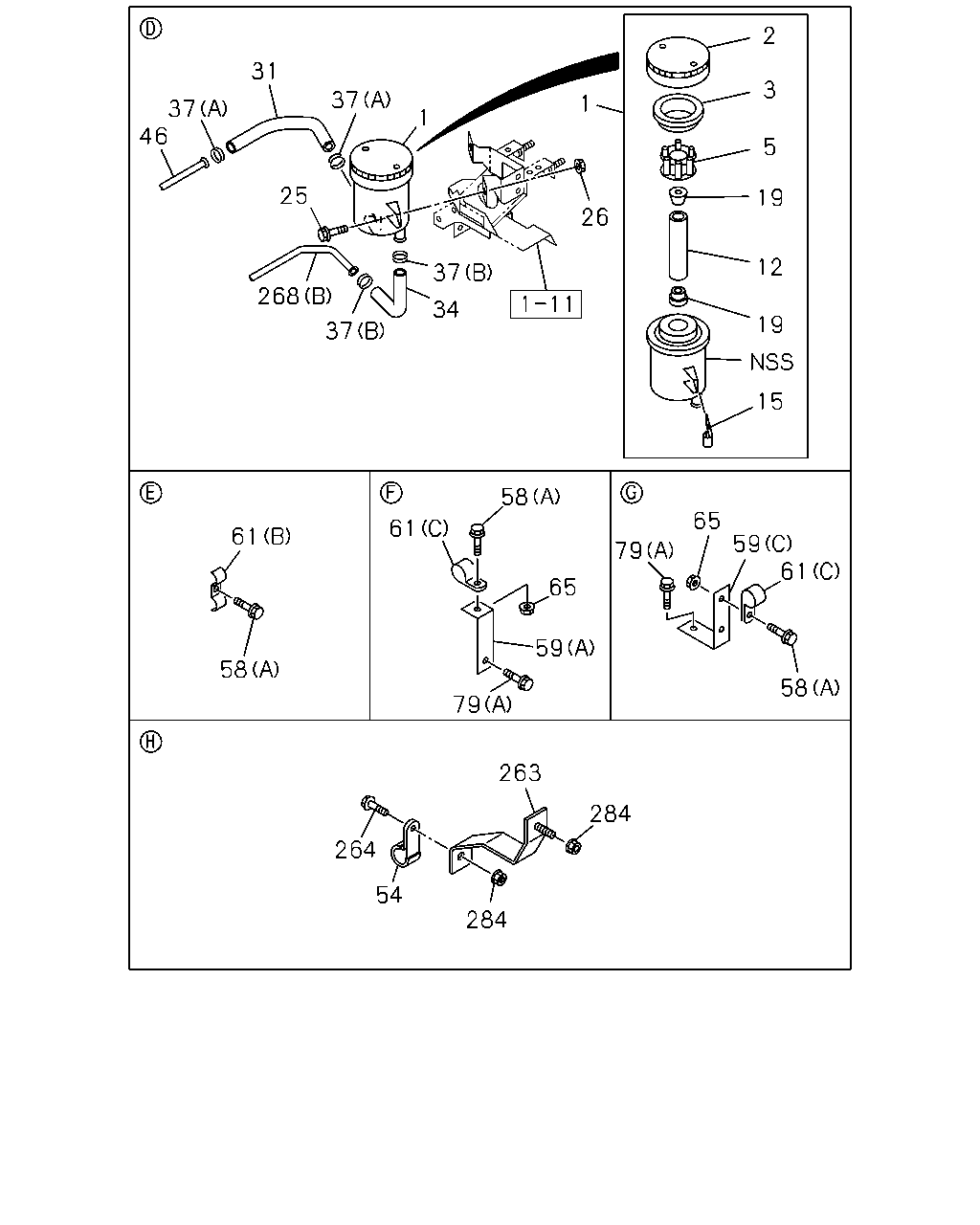

1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	1005-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	1005-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1005-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1005-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1005-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1005-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1005-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1005-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1005-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1005-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1005-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1005-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1005-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1005-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1005-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1005-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1005-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1005-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1005-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1005-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1005-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1005-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1005-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1005-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1005-
79	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1005-
79	BOLT; BRKT (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1005-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	1005-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1005-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1005-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1005-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1005-
