Sayfa 1-41 - Isuzu EPC

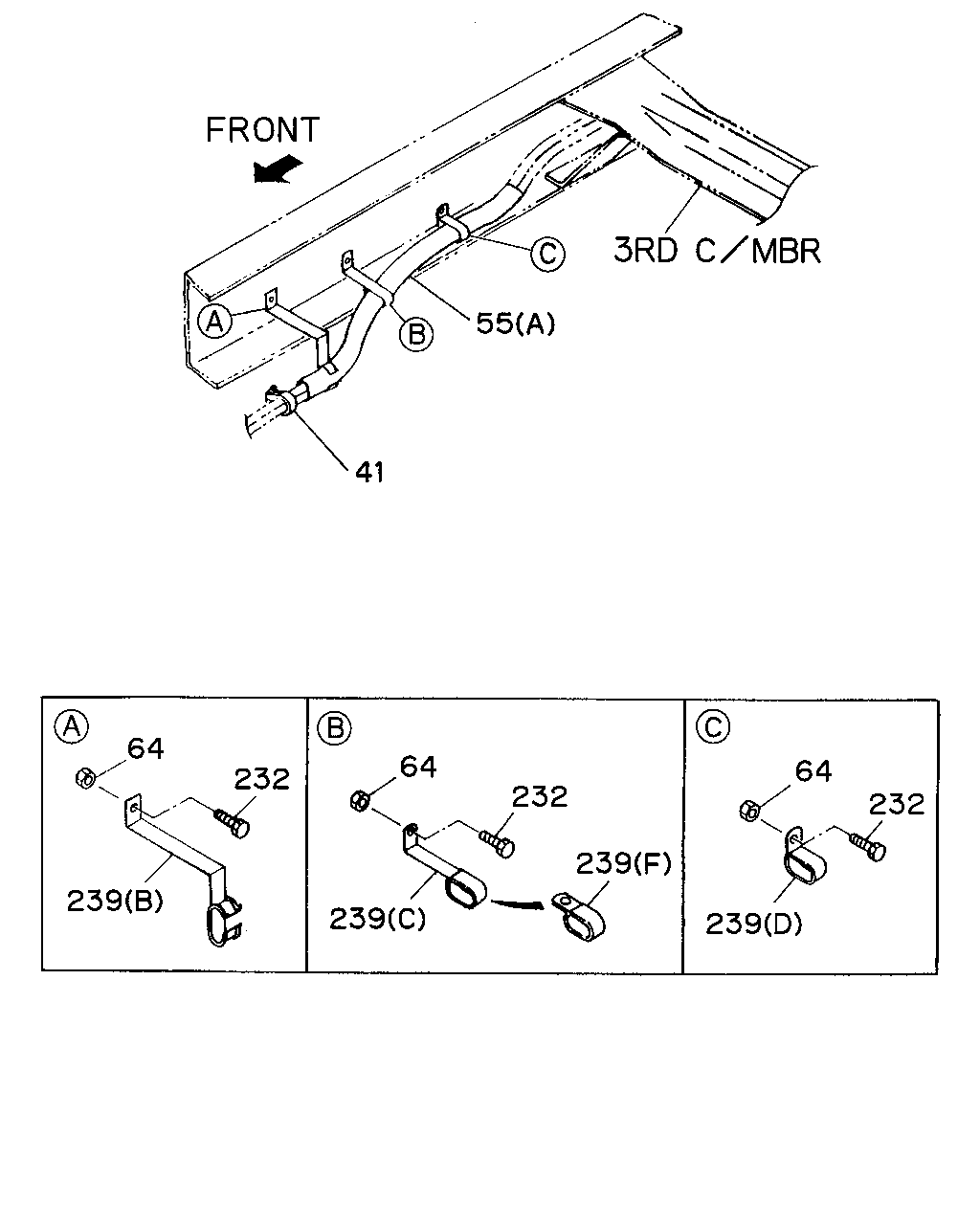

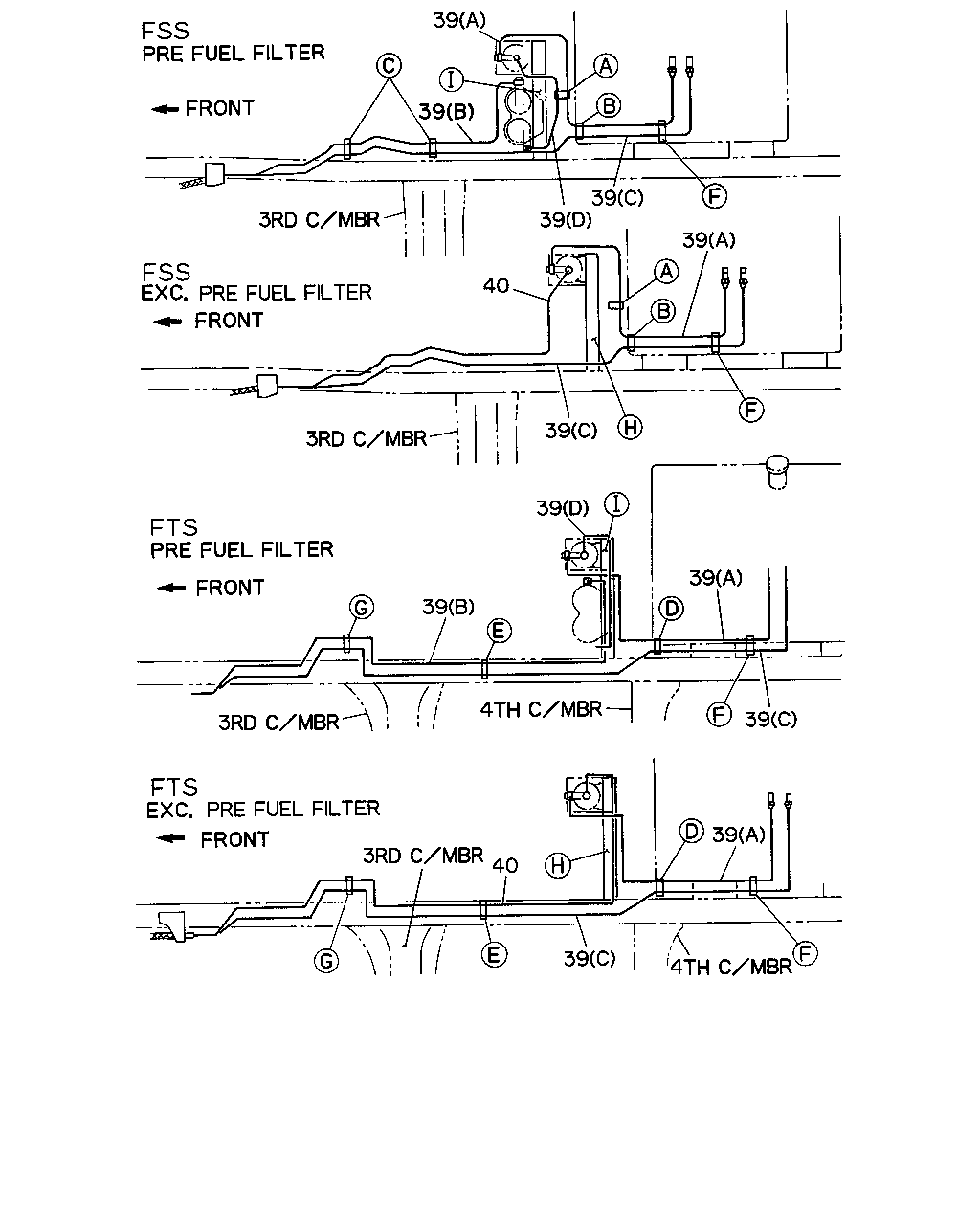

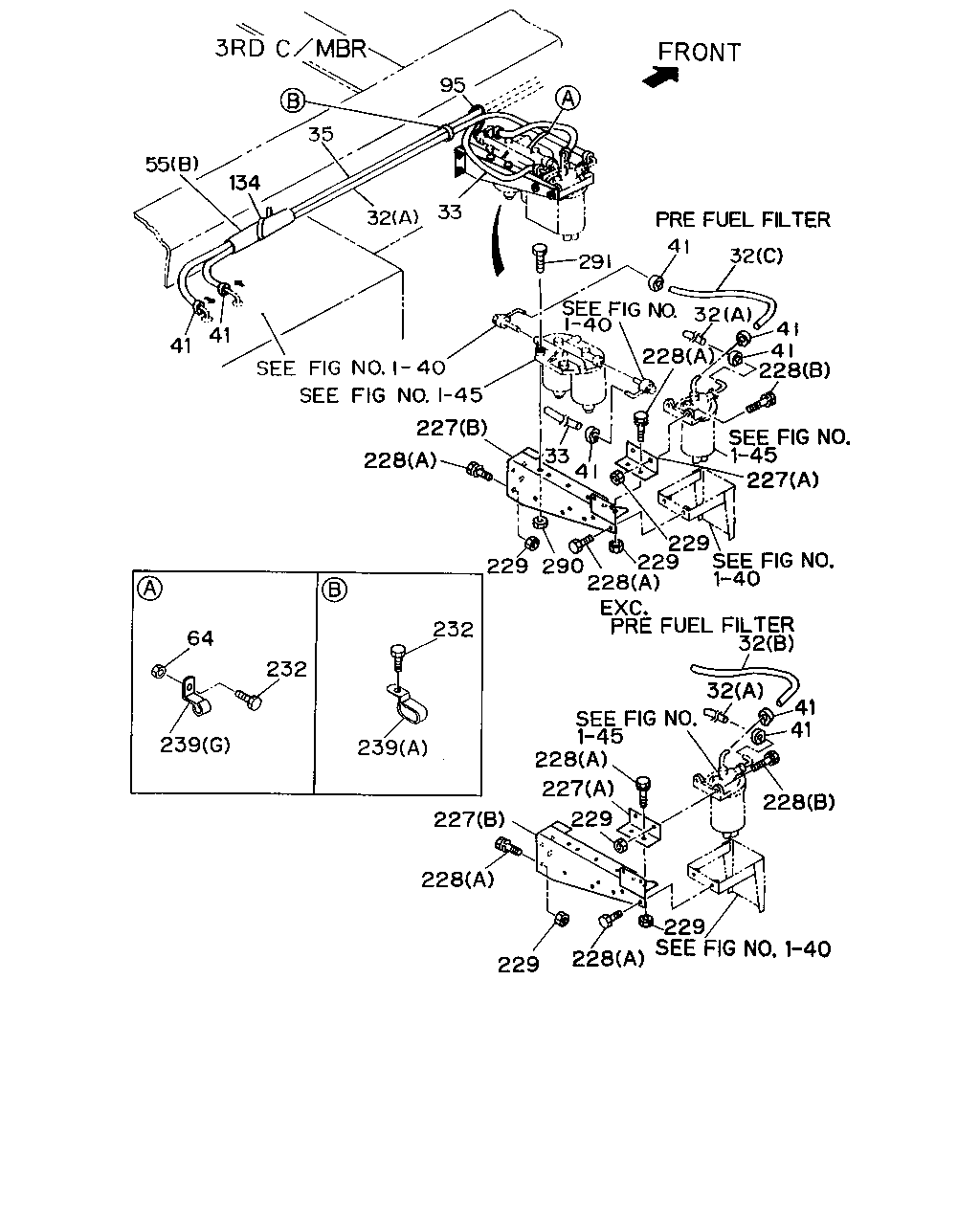

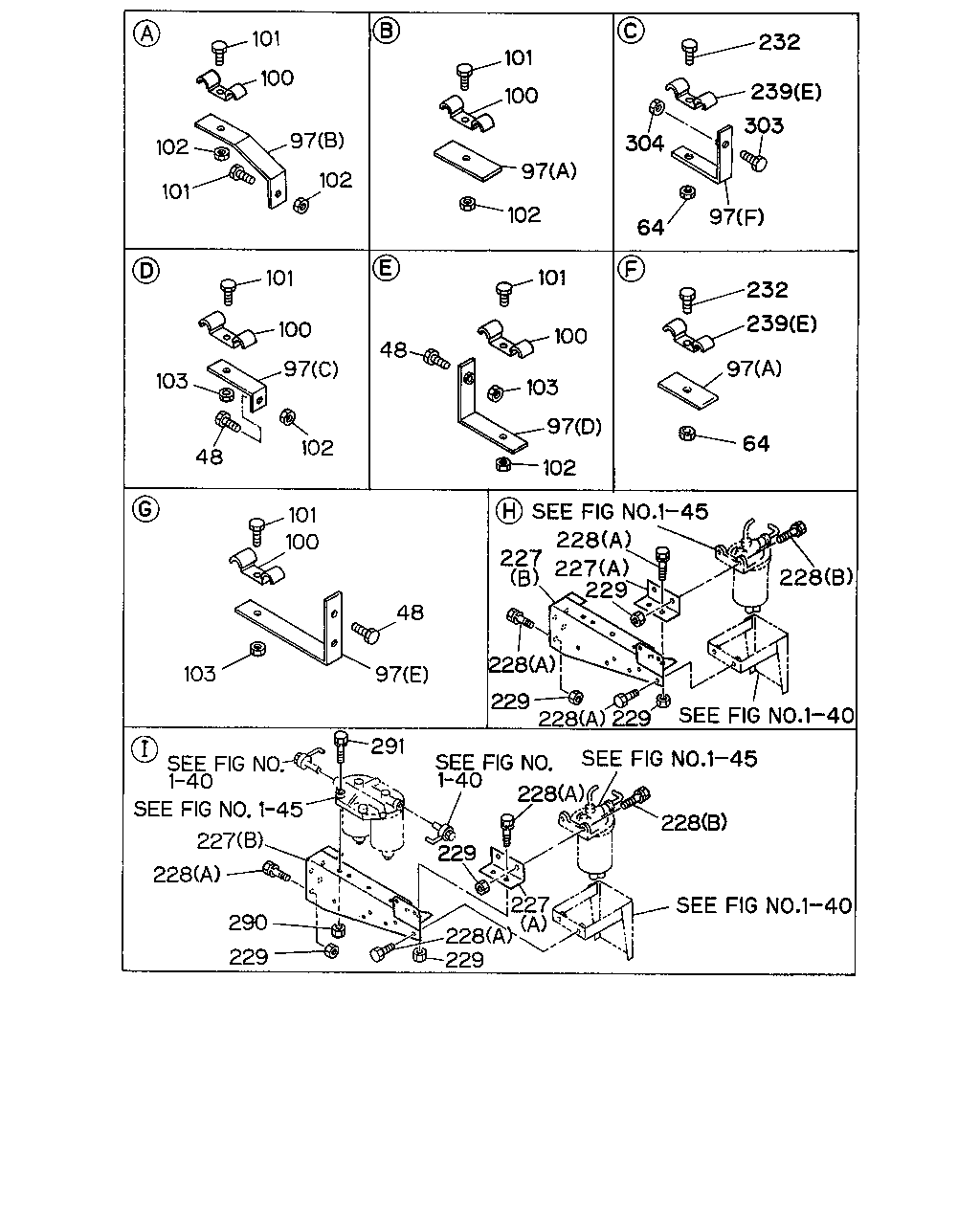

1-41 — FUEL PIPING; CHASSIS (#1569) — 336 parça

95 35 134 55 41 41 33 32 291 41 32 32 228 41 41 228 227 229 229 228 41 33 227 227 229 290 32 32 41 41 228 229 228 229 228 227 228 227 229 239 232 232 64 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (C) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (B) L=1900 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
32	PIPE; DELIVERY,FUEL TANK FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
32	PIPE; DELIVERY,FUEL TANK FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
32	PIPE; DELIVERY,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> (B) L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> (B) L=2300 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9),PRE FUEL FILTER<W21> (B) L=2300 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> (B) L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
32	PIPE; DELIVERY,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FRAME SIDE<N20> (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
33	PIPE; VINYL,DELIVERY,PRE FILTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> WHEEL BASE 3800MM(38W) L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
33	PIPE; VINYL,DELIVERY,PRE FILTER FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
33	PIPE; VINYL,DELIVERY,PRE FILTER FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) L=2050 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
33	PIPE; VINYL,DELIVERY,PRE FILTER FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FSS SHORT CHASSIS & BED CAB(FSS5MC) L=2350 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FTS SHORT CHASSIS & BED CAB(FTS5MC) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9207-9309
35	PIPE; FUEL TANK,RETURN FTS SHORT CHASSIS & BED CAB(FTS5MC) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) L=2750 SERVICED BY L=10000	1-09366-161-0	01	1	9207-9309
35	PIPE; FUEL TANK,RETURN FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FRAME SIDE<N20> EXC. FIRE TRUCK(RA9) L=2750 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>, PRE FUEL FILTER<W21> ID=15	9-09715-098-0	06	1	9207-
41	CLIP; FUEL PIPE,FUEL TANK PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=15	9-09715-098-0	08	1	9207-
55	COVER; PIPE,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B) L=1300	1-09360-677-1	01	1	9207-
55	COVER; PIPE,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (A) L=1200	1-09360-710-1	01	1	9207-9309
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (A) L=1050	1-09360-184-1	01	1	9310-
55	COVER; PIPE,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6> (A) L=800	1-09360-379-1	01	1	9207-9310
55	COVER; PIPE,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6> (A) L=400	1-09360-183-1	01	1	9311-
64	NUT; CLIP FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	01	1	9207-
64	NUT; CLIP FSS SHORT CHASSIS & BED CAB(FSS5MC) M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	04	1	9207-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
95	BUSHING; PIPE,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=28 OD=35 T=17	9-09956-256-1	01	1	9207-9211
95	BUSHING; PIPE,FUEL TANK FTS SHORT CHASSIS & BED CAB(FTS5MC) ID=28 OD=35 T=17	9-09956-256-1	01	1	9310-
95	BUSHING; PIPE,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> ID=28 OD=35 T=17	9-09956-256-1	01	1	9310-
134	CLIP; BAND,FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6> L=250	5-09707-030-0	02	1	9207-9211
134	CLIP; BAND,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) L=250	5-09707-030-0	02	1	9207-9211
134	CLIP; BAND,FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS ALL(FTS***) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. FUEL TANK 200L FMCSR<PK6> L=250	5-09707-030-1	02	1	9212-
134	CLIP; BAND,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=250	5-09707-030-1	02	1	9212-
134	CLIP; BAND,FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=250	5-09707-030-1	01	1	9212-
134	CLIP; BAND,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=250	5-09707-030-1	01	1	9212-
227	BRACKET; FUEL SEDIMENTER FSS SHORT CHASSIS & BED CAB(FSS5MC) (B)	1-22518-126-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (A)	1-19755-108-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (B)	1-22518-092-3	01	1	9207-
228	BOLT; BRKT,SEDIMENTER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (A) M10X30 W/LK WASHER	0-50041-030-0	05	1	9207-
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9207-
229	NUT; BRKT,FUEL FILTER FSS SHORT CHASSIS & BED CAB(FSS5MC) M10	9-09110-510-0	02	1	9207-
229	NUT; BRKT,FUEL FILTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) M10	9-09110-510-0	05	1	9207-
232	BOLT; CLIP,PIPE PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9207-9207
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS ALL(FTS***) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X16 FLANGE	0-28080-816-0	02	1	9208-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR<PK6> (G) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9207-9207
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	02	1	9207-9207
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (F) ID=16X2 L=50	9-09535-586-0	01	1	9208-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (C)	1-09700-926-0	02	1	9311-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	8-94107-544-0	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	8-94107-544-0	01	1	9208-9210
290	NUT; FILTER TO BRKT PRE FUEL FILTER<W21> M10	9-09110-510-0	02	1	9207-
291	BOLT; FILER TO BRKT PRE FUEL FILTER<W21> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9207-

55 41 64 239 232 64 232 239 239 64 232 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>, PRE FUEL FILTER<W21> ID=15	9-09715-098-0	06	1	9207-
41	CLIP; FUEL PIPE,FUEL TANK PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=15	9-09715-098-0	08	1	9207-
55	COVER; PIPE,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B) L=1300	1-09360-677-1	01	1	9207-
55	COVER; PIPE,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (A) L=1200	1-09360-710-1	01	1	9207-9309
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (A) L=1050	1-09360-184-1	01	1	9310-
55	COVER; PIPE,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6> (A) L=800	1-09360-379-1	01	1	9207-9310
55	COVER; PIPE,FUEL TANK FTS BED CAB & DOUBLE CAB(FTS5*F) FIRE TRUCK(RA9) EXC. FUEL TANK 200L FMCSR<PK6> (A) L=400	1-09360-183-1	01	1	9311-
64	NUT; CLIP FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	01	1	9207-
64	NUT; CLIP FSS SHORT CHASSIS & BED CAB(FSS5MC) M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	04	1	9207-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
232	BOLT; CLIP,PIPE PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9207-9207
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS ALL(FTS***) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X16 FLANGE	0-28080-816-0	02	1	9208-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR<PK6> (G) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9207-9207
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	02	1	9207-9207
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (F) ID=16X2 L=50	9-09535-586-0	01	1	9208-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (C)	1-09700-926-0	02	1	9311-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	8-94107-544-0	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	8-94107-544-0	01	1	9208-9210

232 239 303 97 304 64 102 97 100 101 101 100 97 102 102 101 101 100 103 97 102 48 101 48 100 103 232 239 97 64 97 102 228 228 227 227 228 229 228 228 229 48 101 100 103 97 291 227 228 290 229 229 228 227 229 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	03	1	9207-
64	NUT; CLIP FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	01	1	9207-
64	NUT; CLIP FSS SHORT CHASSIS & BED CAB(FSS5MC) M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	04	1	9207-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
64	NUT; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
97	BRACKET; CLIP FUEL TANK 200L FMCSR<PK6> (C)	1-47465-745-0	01	1	9207-
97	BRACKET; CLIP FUEL TANK 200L FMCSR<PK6> (D)	1-47475-810-1	01	1	9207-
97	BRACKET; CLIP FUEL TANK 200L FMCSR<PK6> (E)	1-47475-968-0	01	1	9207-
97	BRACKET; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (A)	1-47475-299-2	01	1	9207-9208
97	BRACKET; CLIP FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> (A)	1-47475-299-2	01	1	9207-9208
97	BRACKET; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FUEL TANK 160L<NG6> (A)	1-47475-299-2	01	1	9207-9208
97	BRACKET; CLIP FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A) L=50	1-47475-299-2	01	1	9209-
97	BRACKET; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (A) L=50	1-47475-299-2	01	1	9209-
97	BRACKET; CLIP FUEL TANK 200L FMCSR<PK6> (A) L=50	1-47475-299-2	01	1	9209-
97	BRACKET; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (F)	1-47475-809-1	02	1	9207-
97	BRACKET; CLIP FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (B)	1-47476-176-0	01	1	9207-
100	CLIP; FUEL PIPE FUEL TANK 200L FMCSR<PK6> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	9207-
100	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28080-820-0	03	1	9207-
101	BOLT; CLIP,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X20 FLANGE	0-28080-820-0	01	1	9207-
101	BOLT; CLIP,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28080-825-0	02	1	9207-
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	01	1	9207-
102	NUT; CLIP,FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8	9-09110-408-0	03	1	9207-
103	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	03	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS SHORT CHASSIS & BED CAB(FSS5MC) (B)	1-22518-126-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (A)	1-19755-108-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (B)	1-22518-092-3	01	1	9207-
228	BOLT; BRKT,SEDIMENTER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) (A) M10X30 W/LK WASHER	0-50041-030-0	05	1	9207-
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9207-
229	NUT; BRKT,FUEL FILTER FSS SHORT CHASSIS & BED CAB(FSS5MC) M10	9-09110-510-0	02	1	9207-
229	NUT; BRKT,FUEL FILTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***) M10	9-09110-510-0	05	1	9207-
232	BOLT; CLIP,PIPE PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9207-9207
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS ALL(FTS***) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> M8X16 FLANGE	0-28080-816-0	01	1	9208-
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X16 FLANGE	0-28080-816-0	02	1	9208-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) PRE FUEL FILTER<W21> EXC. FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
232	BOLT; CLIP,PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6>,PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR<PK6> (G) ID=11 H=20 L=20	5-09700-351-0	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9207-9207
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) (B)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS SHORT CHASSIS & BED CAB(FSS5MC) (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (D) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (E) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9207-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (C) ID=20X2 L=55	1-09700-554-0	02	1	9207-9207
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3800MM(38W) EXC. FUEL TANK 160L<NG6> (F) ID=16X2 L=50	9-09535-586-0	01	1	9208-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (D) ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (A) ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS ALL(FTS***) EXC. FUEL TANK 200L FMCSR<PK6>,FIRE TRUCK(RA9) (C)	1-09700-926-0	02	1	9311-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (B)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS SHORT CHASSIS & BED CAB(FTS5MC) (C)	8-94107-544-0	01	1	9208-9210
239	CLIP; FUEL PIPE FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. FUEL TANK 200L FMCSR<PK6> (C)	8-94107-544-0	01	1	9208-9210
290	NUT; FILTER TO BRKT PRE FUEL FILTER<W21> M10	9-09110-510-0	02	1	9207-
291	BOLT; FILER TO BRKT PRE FUEL FILTER<W21> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9207-
303	BOLT; BRKT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	01	1	9207-
303	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28080-820-0	01	1	9209-
303	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28080-825-0	02	1	9207-
304	NUT; BRKT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	01	1	9207-
304	NUT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8	9-09110-408-0	02	1	9207-

39 39 39 39 40 39 39 39 39 39 39 39 40 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FIRE TRUCK(RA9) (A) L=431	1-22511-637-0	01	1	9207-9212
39	PIPE; FUEL FIRE TRUCK(RA9) (A) L=431	1-22511-738-0	01	1	9301-
39	PIPE; FUEL FIRE TRUCK(RA9) (C) L=409	1-22511-638-0	01	1	9207-9212
39	PIPE; FUEL FIRE TRUCK(RA9) (C) L=409	1-22511-747-0	01	1	9301-
39	PIPE; FUEL FUEL TANK 200L FMCSR<PK6> (A) L=1289	1-22511-725-0	01	1	9207-9212
39	PIPE; FUEL FUEL TANK 200L FMCSR<PK6> (A) L=1289	1-22511-742-0	01	1	9301-
39	PIPE; FUEL FUEL TANK 200L FMCSR<PK6> (C) L=2708	1-22511-726-0	01	1	9207-9212
39	PIPE; FUEL FUEL TANK 200L FMCSR<PK6> (C) L=2708	1-22511-751-0	01	1	9301-
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> WHEEL BASE 3600MM(36W) (B) L=1494	1-22511-648-0	01	1	9207-9212
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> WHEEL BASE 3600MM(36W) (B) L=1494	1-22511-731-0	01	1	9301-
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) PRE FUEL FILTER<W21> WHEEL BASE 3600MM(36W) (D) L=485	1-22511-689-0	01	1	9207-
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (A) L=1136	1-22511-723-0	01	1	9207-9212
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (A) L=1136	1-22511-741-0	01	1	9301-
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (C) L=2148	1-22511-724-0	01	1	9207-9212
39	PIPE; FUEL FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) (C) L=2148	1-22511-750-0	01	1	9301-
39	PIPE; FUEL FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> PRE FUEL FILTER<W21> (B) L=2047	1-22511-568-0	01	1	9207-9212
39	PIPE; FUEL FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> PRE FUEL FILTER<W21> (B) L=2047	1-22511-744-0	01	1	9301-
39	PIPE; FUEL FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> PRE FUEL FILTER<W21> (D) L=572	1-22511-693-0	01	1	9207-
40	PIPE; FUEL,SUCTION FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) EXC. PRE FUEL FILTER<W21> L=1843	1-22511-695-0	01	1	9207-9212
40	PIPE; FUEL,SUCTION FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) EXC. PRE FUEL FILTER<W21> L=1843	1-22511-746-0	01	1	9301-
40	PIPE; FUEL,SUCTION FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> EXC. PRE FUEL FILTER<W21> L=2328	1-22511-694-0	01	1	9207-9212
40	PIPE; FUEL,SUCTION FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FMCSR<PK6> EXC. PRE FUEL FILTER<W21> L=2328	1-22511-745-0	01	1	9301-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
