◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11194 - FTR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#15688) — 142 parça

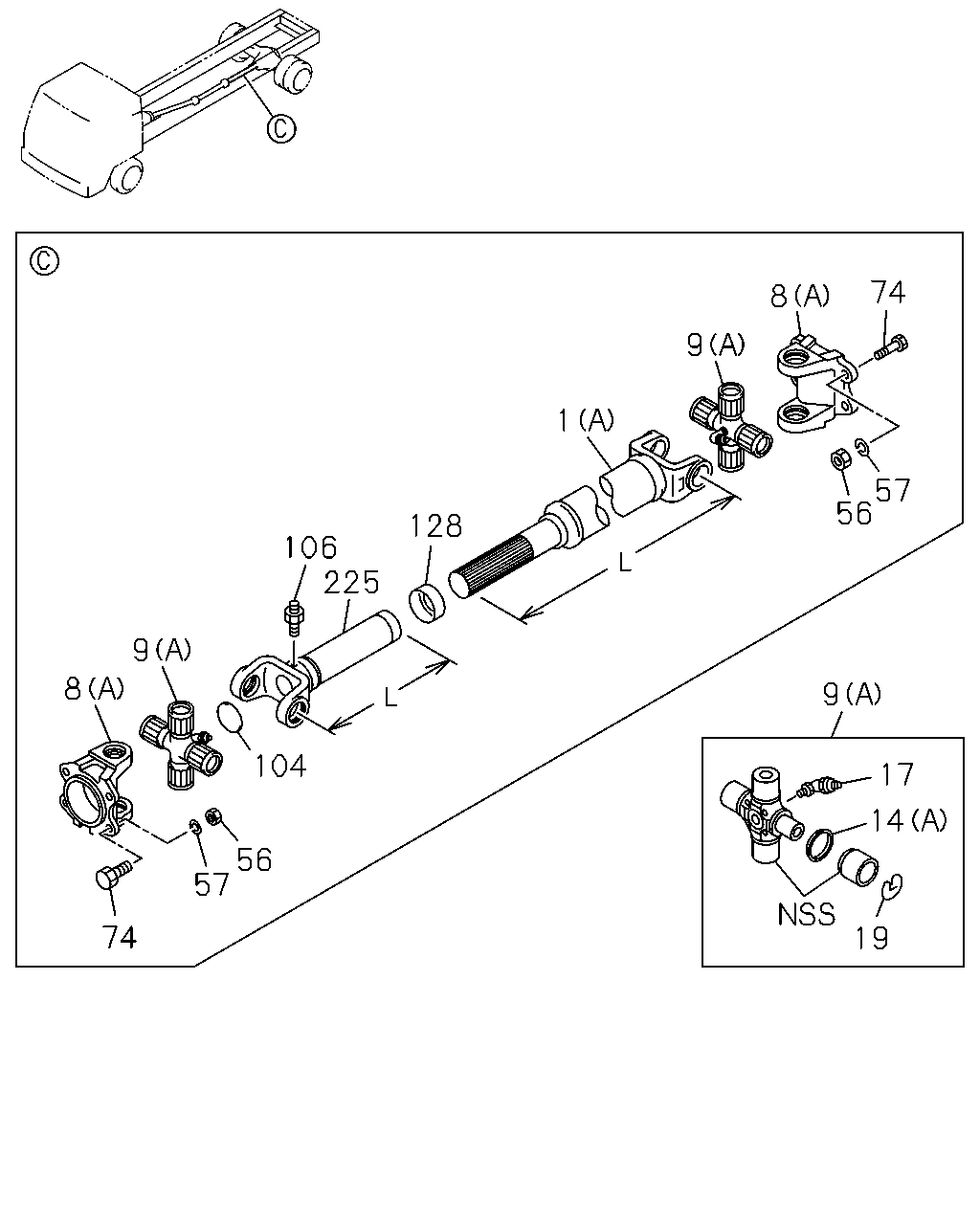

çizim 128834
74 8 9 1 57 56 128 106 225 9 8 9 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
MZW6P M/T<RSZ> L=719 THA 		8-98069-957-0 01 1 1506-
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506-
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506-
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1005-1111
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=719 THA 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1005-
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 1005-
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 1005-
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T<RSZ> THA 		8-98178-052-0 01 1 1506-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 03 1 1506-
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 1005-1111
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 1005-
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 1005-1111
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 03 1 1005-
14 COVER; DUST,SPIDER
MZW6P M/T<RSZ> THA 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 12 1 1506-
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 1005-1111
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 1005-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1005-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 1005-
56 NUT; YOKE
M14 THA 		0-91110-514-0 08 1 1005-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1005-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1005-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1005-
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1506-
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1005-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1506-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1005-
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1506-
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1005-
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1506-
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1005-

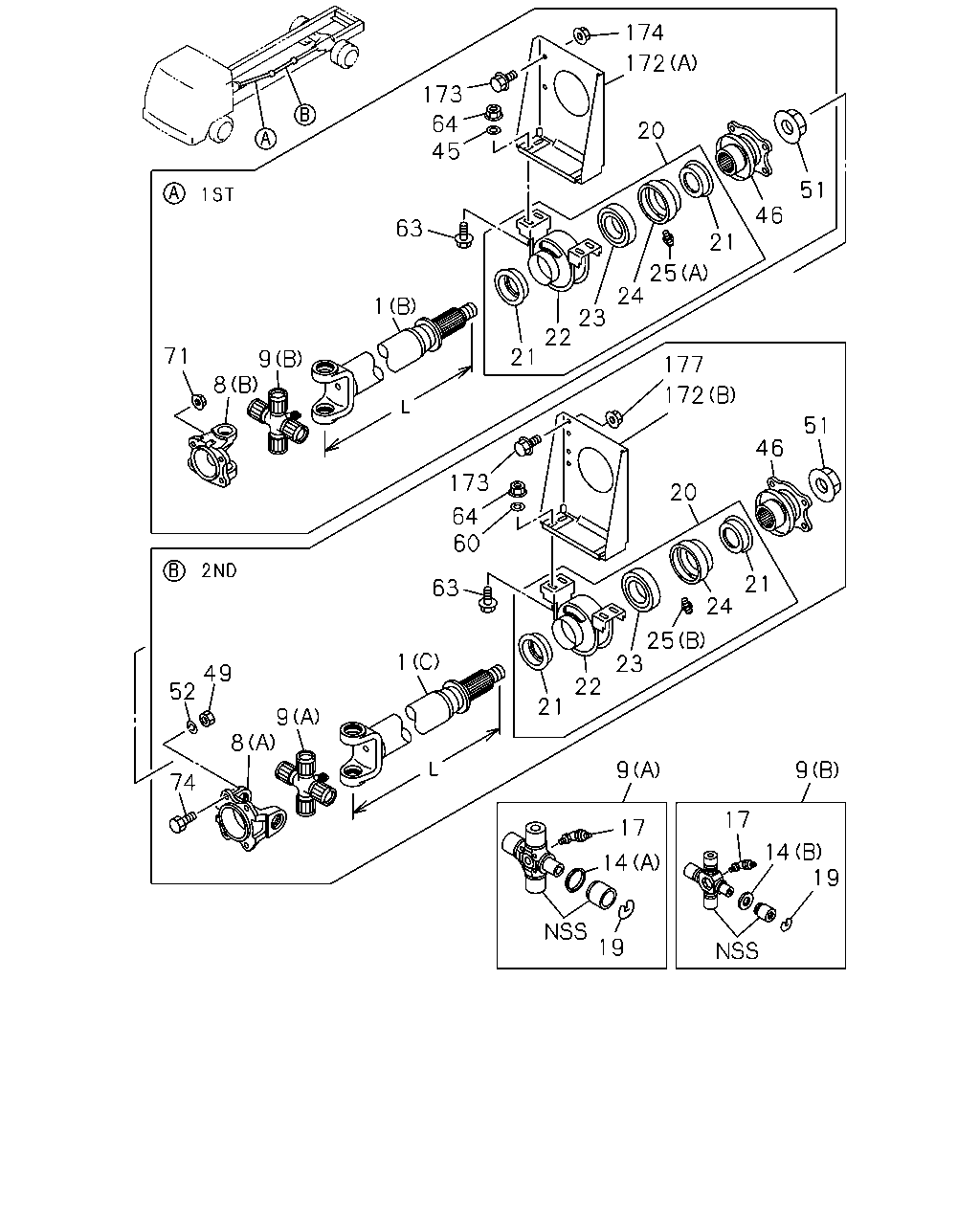

çizim 128851
174 172 173 64 45 20 51 46 63 21 25 24 1 23 22 71 21 9 8 177 172 51 46 173 20 64 60 21 63 24 25 23 1 49 52 22 21 9 8 9 9 74 17 17 14 19 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
MZW6P M/T<RSZ> L=719 THA 		8-98069-957-0 01 1 1506-
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506-
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506-
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1005-1111
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=719 THA 		8-98069-957-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1005-
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 1005-
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 1005-
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T<RSZ> THA 		8-98178-052-0 01 1 1506-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 03 1 1506-
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 1005-1111
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 1005-
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 03 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 1005-1111
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 03 1 1005-
14 COVER; DUST,SPIDER
MZW6P M/T<RSZ> THA 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 12 1 1506-
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 1005-1111
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 1005-
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1005-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 1506-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 1005-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 1005-
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T<RSZ> THA 		8-98020-881-0 01 1 1506-
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506-
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1005-1111
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1005-1111
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
MZW6P M/T<RSZ> ID=54 THA 		1-09625-161-0 02 1 1506-
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506-
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1005-
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1005-
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T<RSZ> THA 		1-37516-059-0 01 1 1506-
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506-
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1005-
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1005-
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T<RSZ> THA 		9-00090-071-0 01 1 1506-
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506-
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1005-
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1005-
24 RETAINER; CENTER BRG,1ST
MZW6P M/T<RSZ> THA 		8-98020-882-0 01 1 1506-
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506-
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1005-1111
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1005-1111
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T<RSZ> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1506-
25 NIPPLE; GREASE,CENTER BRG
THA 		8-98020-889-0 01 1 1506-
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1005-
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1005-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 1005-
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T<RSZ> THA 		8-98020-815-0 01 1 1506-
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506-
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1005-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1005-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112-
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1005-
51 NUT; FLANGE,SPLINED
MZW6P M/T<RSZ> M30 THA 		8-97160-857-0 01 1 1506-
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506-
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1005-
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1005-
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1005-
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 1005-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1005-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1005-
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1005-
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1005-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1005-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1005-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1005-
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 1005-
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1005-
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 08 1 1005-
174 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1005-
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 1005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
