3-75 — BRAKE PIPING; AIR,FRONT
(#15685) — 23 parça
◀

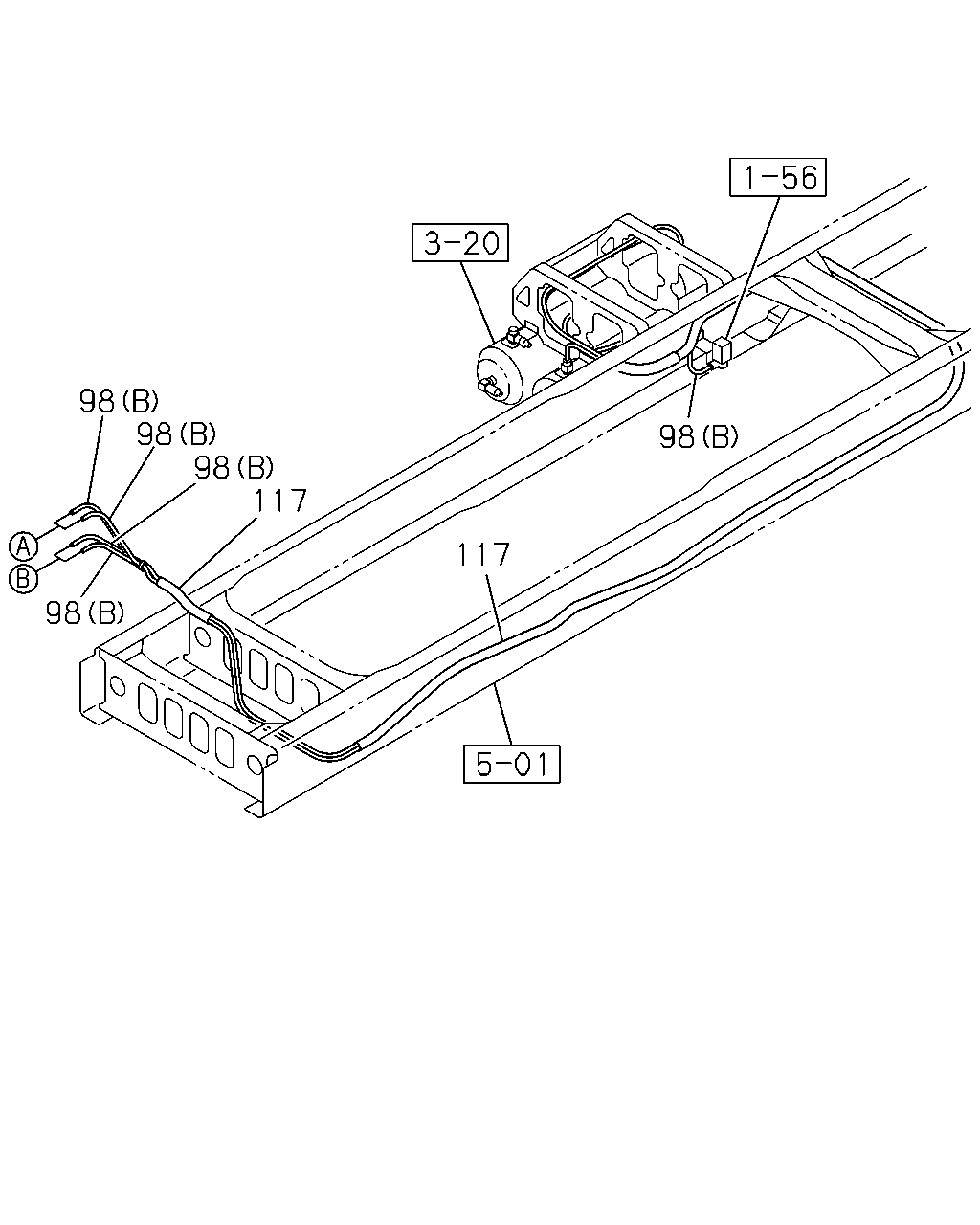

[375A] FRAME SIDE (10 parça)

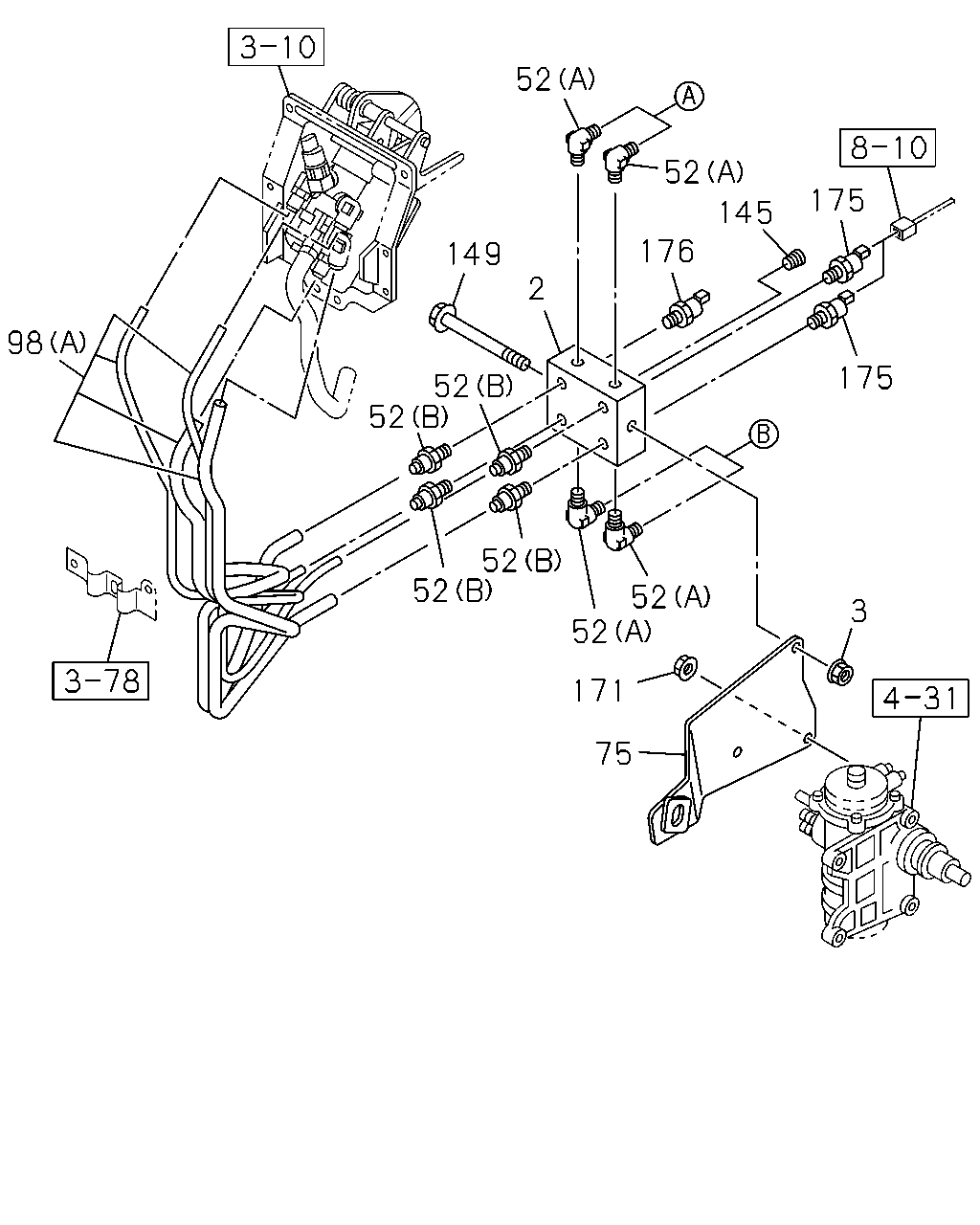

[375A] CAB UNDER (13 parça)
▶
98
98
98
117
98
117
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
(A) THA
8-97625-675-0
01
1
1005-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1005-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1005-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA
1-87411-035-0
01
1
1207-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA
1-87411-035-0
01
1
1207-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
03
1
1207-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
05
1
1207-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1005-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 THA
1-87411-034-0
AR
1
1005-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA
1-87411-035-0
AR
1
1005-
52
52
175
145
176
149
2
98
175
52
52
52
52
52
52
3
171
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
THA
8-98057-394-1
01
1
1005-
3
NUT; PIPE UNION
M8 FLANGE THA
0-91180-108-0
01
1
1005-
52
CONNECTOR; NYLON TUBE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
04
1
1005-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1005-
75
BRACKET; UNION
8-98099-485-1
01
1
1005-
98
TUBE; NYLON
(A) THA
8-97625-675-0
01
1
1005-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1005-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1005-
145
PLUG
PT1/4 THA
9-99204-513-0
01
1
1005-
149
BOLT; UNION
M8X100 FLANGE THA
0-28050-800-0
01
1
1005-
171
NUT; BRACKET
M10 FLANGE THA
0-91180-210-0
02
1
1005-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1005-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1005-
