Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#15682) — 15 parça
◀

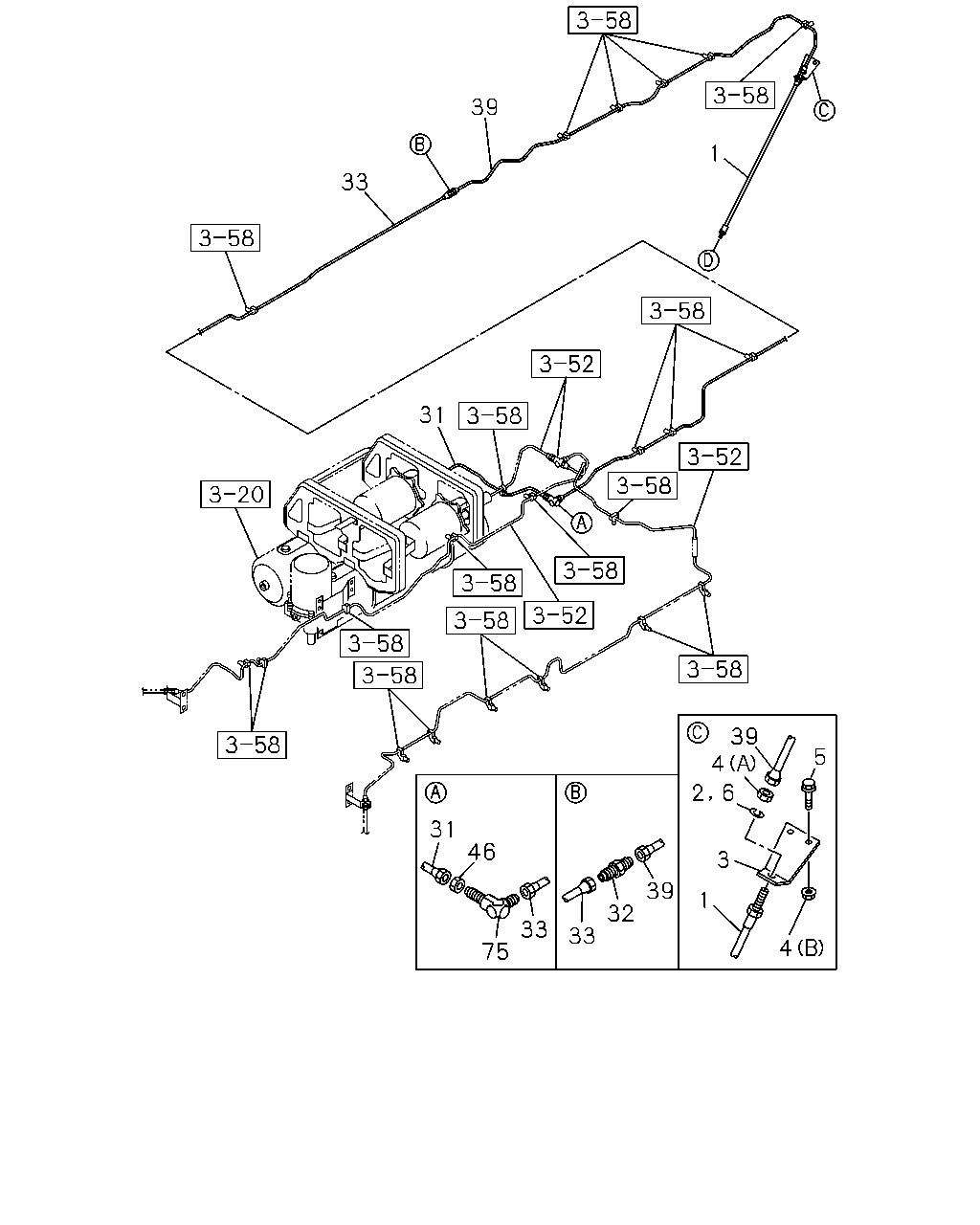

[355A] FRAME SIDE (13 parça)

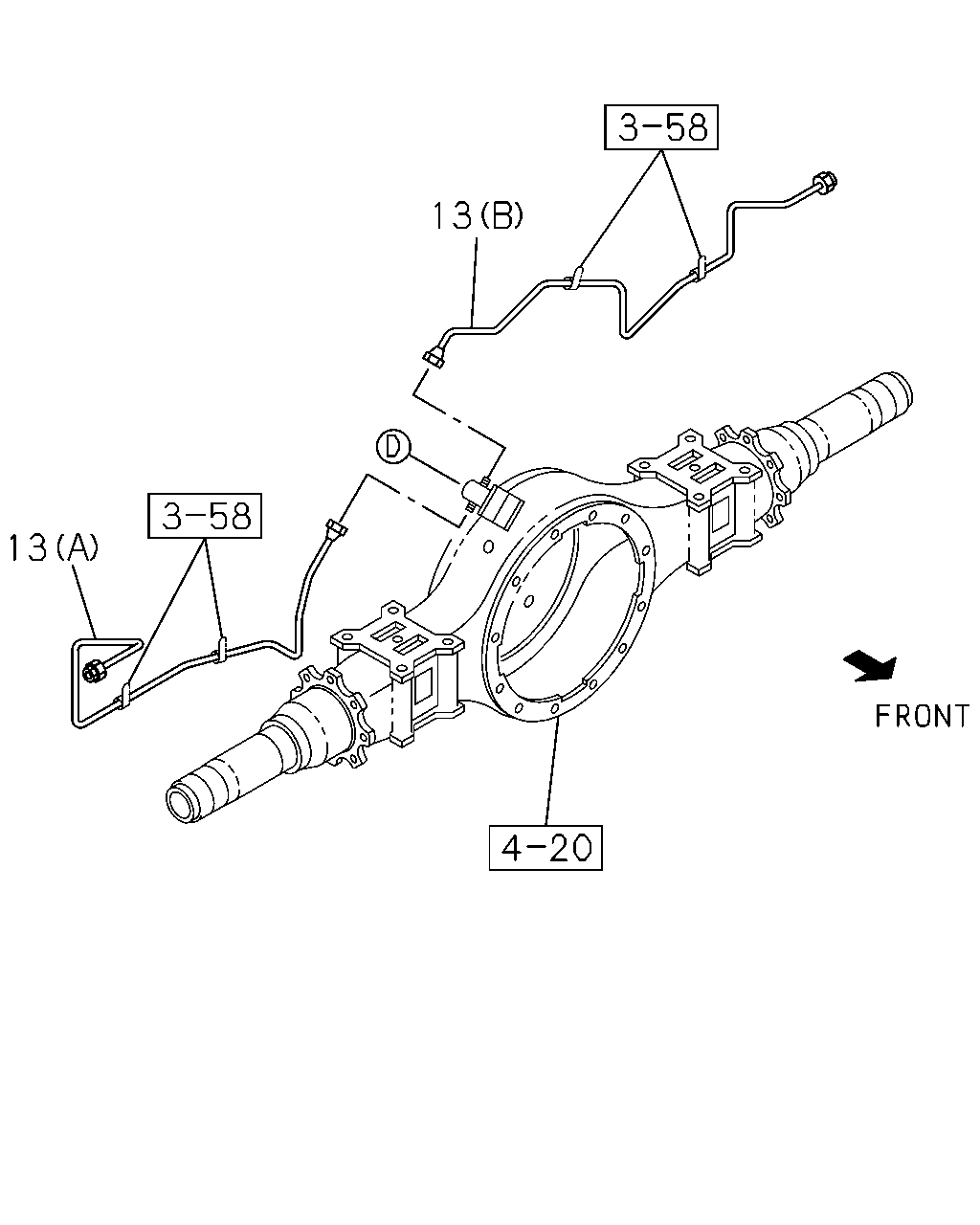

[355A] REAR AXLE SIDE (2 parça)
▶
39
1
33
31
39
4
5
2
6
31
46
3
39
1
32
33
33
4
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
1005-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
1005-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
1005-
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M12
9-09840-280-0
01
1
1005-
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE THA
0-91180-108-0
02
1
1005-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE THA
0-28650-825-0
02
1
1005-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
1005-
31
PIPE; OIL,AIR MASTER TO UNION
L=504 SERVICED BY L=550
1-47428-724-0
01
1
1005-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
1005-
33
PIPE; OIL,UNION TO UNION
L=2545 SERVICED BY L=2650 THA
1-47428-743-0
01
1
1005-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2062 SERVICED BY L=2200 THA
1-47428-740-0
01
1
1005-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1005-
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
1005-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
(A) THA
8-98134-989-0
01
1
1005-
13
PIPE; BRK,RR AXLE
(B) THA
8-98134-990-0
01
1
1005-
