Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

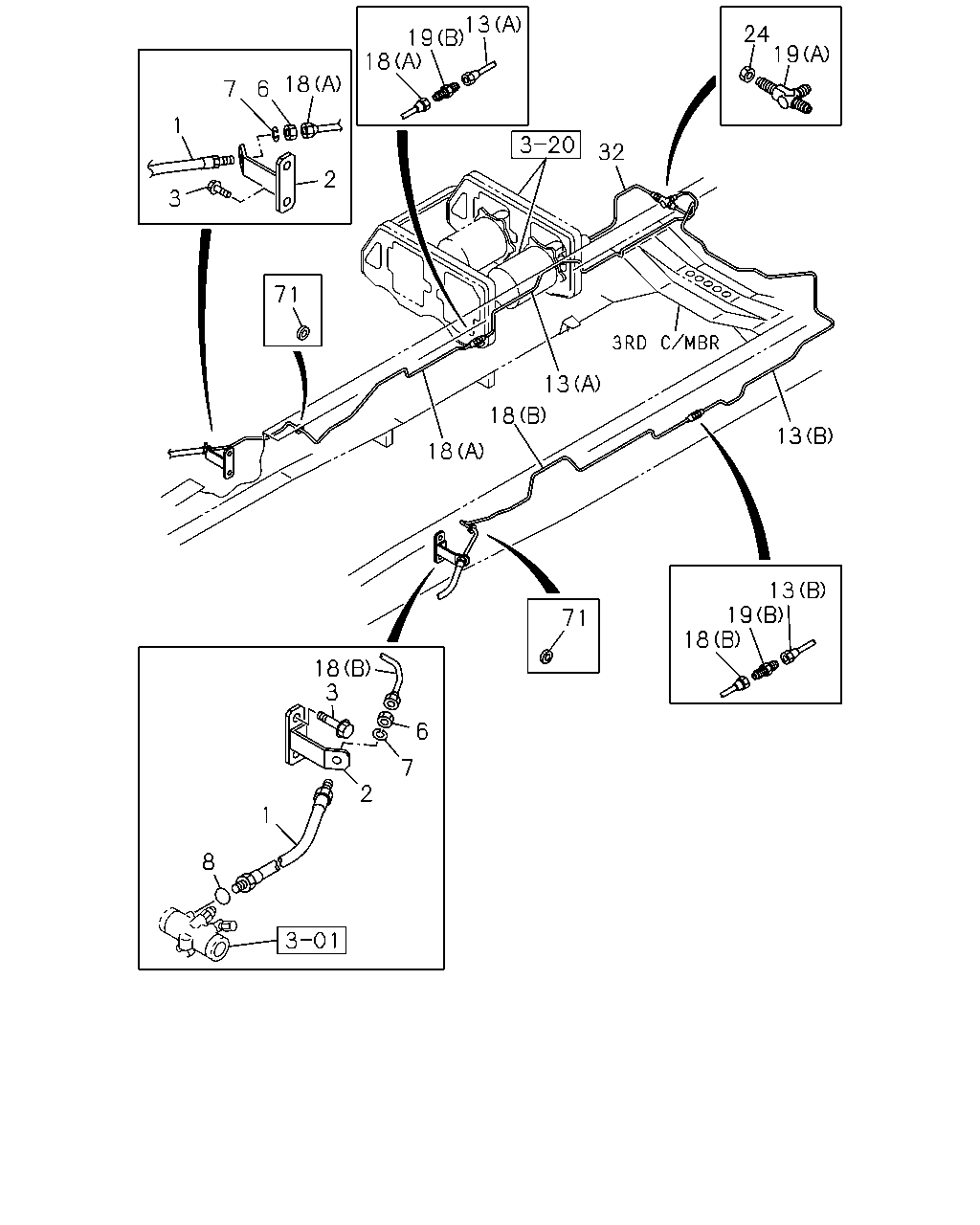

3-52 — BRAKE PIPING; OIL,FRONT
(#15681) — 16 parça
13
19
18
24
19
18
7
6
1
32
2
3
71
13
18
13
18
13
19
18
71
18
3
6
7
2
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05212-610-0
02
1
1005-
2
BRACKET; FLEX HOSE,FRT BRK
8-98118-251-1
02
1
1005-1107
2
BRACKET; FLEX HOSE,FRT BRK
8-98177-524-0
02
1
1108-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE THA
0-28650-825-0
04
1
1005-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
1005-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
1005-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
1005-
13
PIPE; OIL,UNION TO UNION
(A) L=1208 SERVICED BY L=1250 THA
1-47428-733-0
01
1
1005-
13
PIPE; OIL,UNION TO UNION
(B) L=1439 SERVICED BY L=1500 THA
1-47428-735-0
01
1
1005-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1734 SERVICED BY L=1820 THA
1-47428-738-0
01
1
1005-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1231 SERVICED BY L=1250 THA
1-47428-733-0
01
1
1005-
19
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
02
1
1005-
19
UNION; OIL PIPE
(A) M12 3WAY
0-92138-906-0
01
1
1005-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1005-
32
PIPE; OIL,AIR MASTER TO UNION
L=405 THA
8-98084-318-0
01
1
1005-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1005-
