Isuzu WW
▶
TRUCKS
▶
FTR
▶
11194 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#15680) — 46 parça
◀

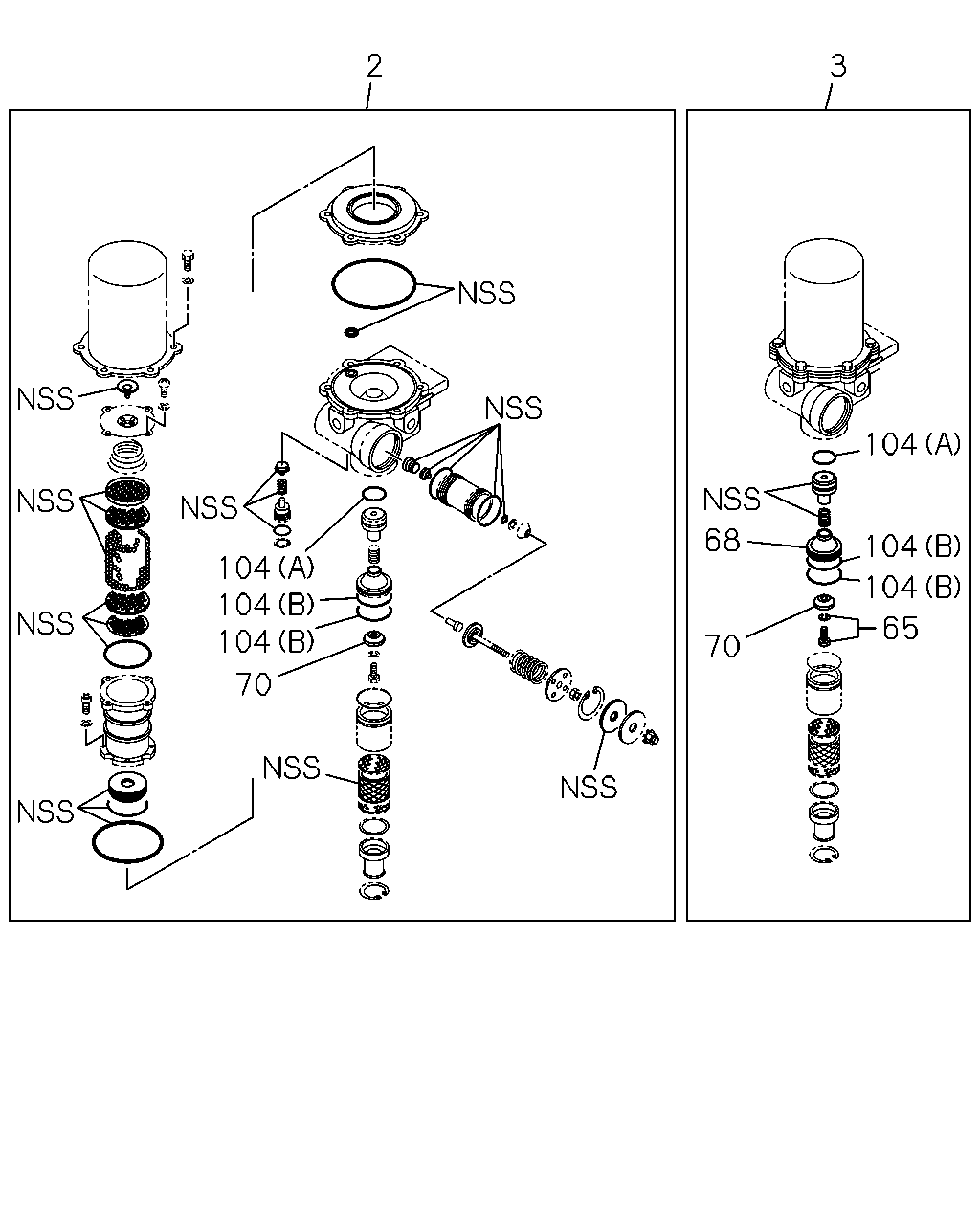

[346A] PISTON AND REPAIR KIT (10 parça)
[346A] FIXING (9 parça)

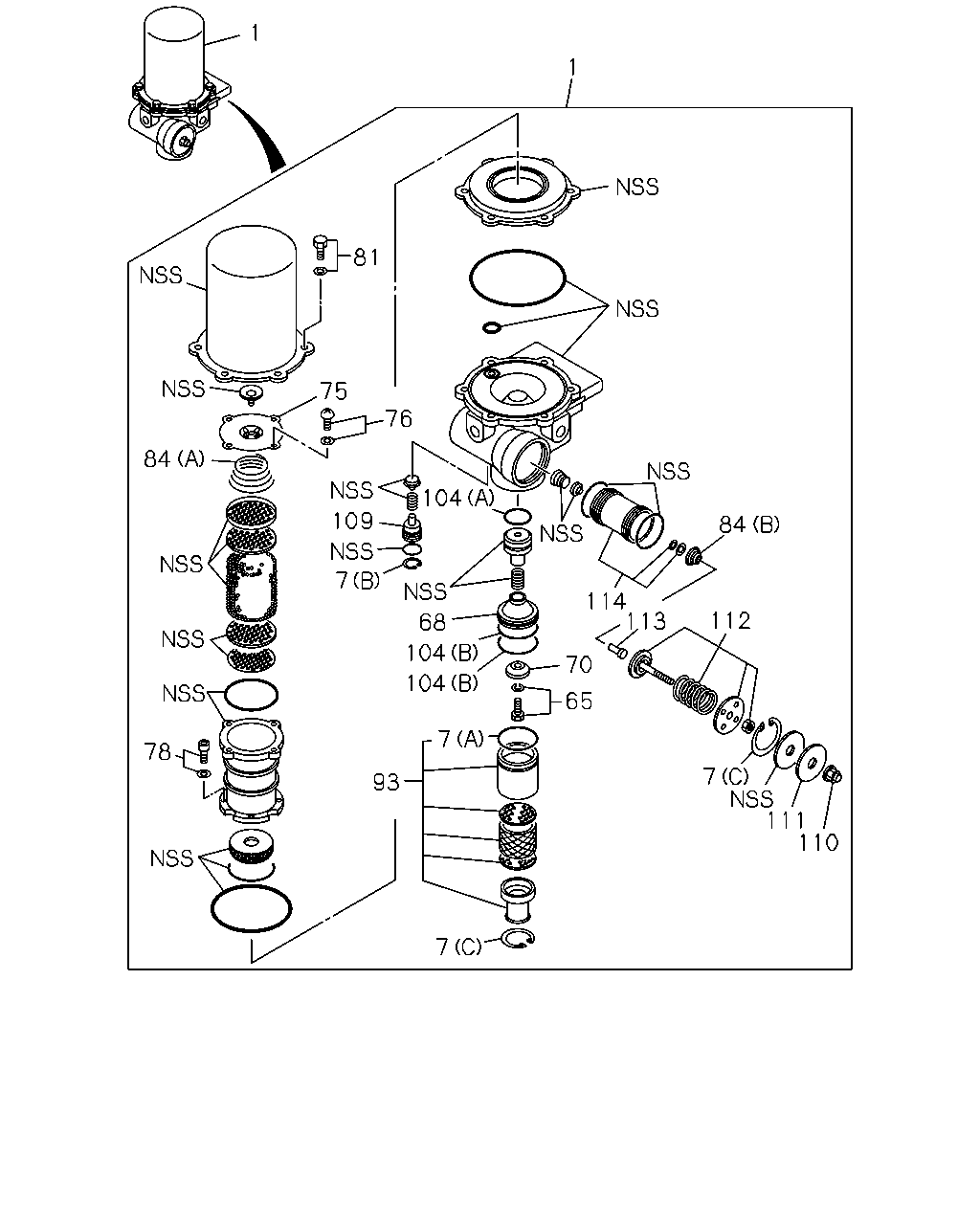

[346A] COMPONENT (27 parça)
▶
2
3
104
68
104
104
104
104
104
65
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-457-0
01
1
1005-1211
2
REPAIR KIT; AIR DRYER
THA
8-98226-323-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1005-1211
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1212-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1005-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1005-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1005-
104
GASKET
(A)
1-48199-495-0
01
1
1005-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1005-
13
10
10
1
8
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
1005-1211
1
DRYER; AIR
THA
8-98225-287-0
01
1
1212-1307
1
DRYER; AIR
THA
8-97948-209-1
01
1
1308-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW THA
1-09660-960-0
01
1
1005-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW IMA
0-92134-315-0
01
1
1005-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
1005-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE THA
0-28651-035-0
04
1
1005-
11
BRACKET; AIR DRYER
THA
8-97614-691-1
01
1
1005-
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
1005-
1
1
81
75
76
84
104
109
84
7
114
113
112
68
104
70
104
65
7
78
7
111
110
93
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
1005-1211
1
DRYER; AIR
THA
8-98225-287-0
01
1
1212-1307
1
DRYER; AIR
THA
8-97948-209-1
01
1
1308-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1005-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1005-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1005-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1005-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1005-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1005-
75
COVER; CASE,AIR DRYER
THA
1-48199-427-0
01
1
1005-
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
1005-
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
1005-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
1005-
84
SPRING; AIR DRYER
(A) THA
1-48199-425-0
01
1
1005-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1005-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1005-
104
GASKET
(A)
1-48199-495-0
01
1
1005-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1005-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1005-
110
NUT; CAP
THA
1-48199-527-0
01
1
1005-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1005-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1005-1408
112
SCREW & SPRING ASM; AIR DRYER
THA
8-98292-687-0
01
1
1409-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1005-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1005-1408
114
PISTON ASM; GOVERNOR
THA
8-98292-688-0
01
1
1409-
