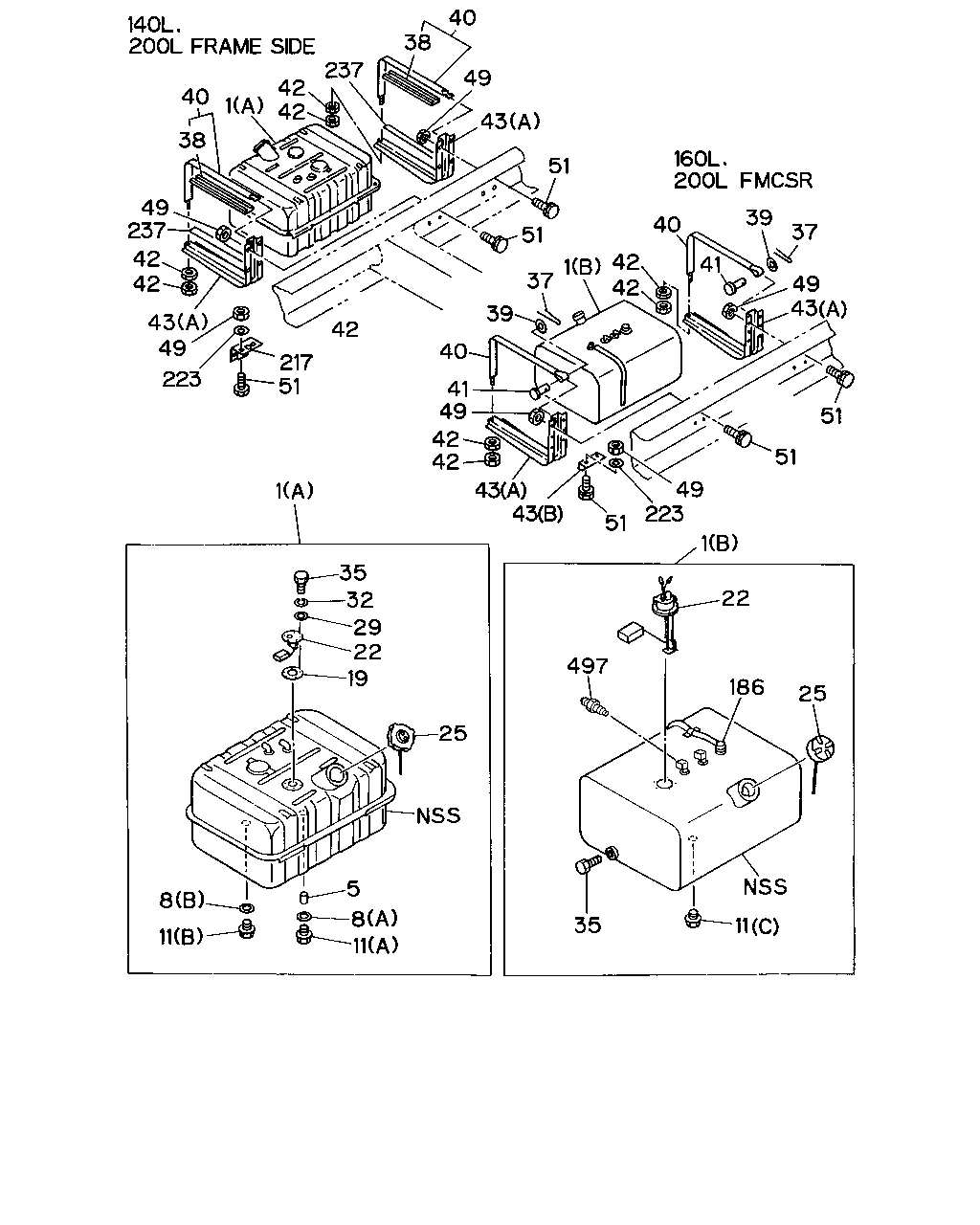

1-40 — FUEL TANK (#1568) — 73 parça

285 282 283 286 55 287 281 275 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	CLIP; FUEL PIPE FIRE TRUCK(RA9)	9-09917-347-0	01	1	9207-
72	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M8	9-09110-508-0	02	1	9207-
72	NUT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8	9-09110-508-0	02	1	9207-
72	NUT; BRKT FIRE TRUCK(RA9) M8	9-09110-508-0	02	1	9207-
275	HOSE; FLEX,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=400	1-09364-252-0	02	1	9207-
275	HOSE; FLEX,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) L=400	1-09364-252-0	02	1	9207-
275	HOSE; FLEX,FUEL TANK FIRE TRUCK(RA9) L=400	1-09364-252-0	02	1	9207-
281	BRACKET; FLEX HOSE FUEL TANK 200L FMCSR<PK6>	1-47476-021-0	01	1	9207-
281	BRACKET; FLEX HOSE FIRE TRUCK(RA9)	1-47476-021-0	01	1	9207-
281	BRACKET; FLEX HOSE FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W)	1-47476-167-0	01	1	9207-
282	NUT; FLEX HOSE,FUEL TANK FUEL TANK 200L FMCSR<PK6> M16	9-99111-416-0	02	1	9207-
282	NUT; FLEX HOSE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M16	9-99111-416-0	02	1	9207-
282	NUT; FLEX HOSE,FUEL TANK FIRE TRUCK(RA9) M16	9-99111-416-0	02	1	9207-
283	WASHER; LK,FLEX HOSE,FUEL TANK FUEL TANK 200L FMCSR<PK6> ID=16.2	9-09150-516-0	02	1	9207-9312
283	WASHER; LK,FLEX HOSE,FUEL TANK FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) ID=16.2	9-09150-516-0	02	1	9207-9312
283	WASHER; LK,FLEX HOSE,FUEL TANK FIRE TRUCK(RA9) ID=16.2	9-09150-516-0	02	1	9207-9312
285	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	02	1	9207-
285	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) WHEEL BASE 3600MM(36W) M8X25 FLANGE	0-28080-825-0	02	1	9207-
285	BOLT; BRKT FIRE TRUCK(RA9) M8X25 FLANGE	0-28080-825-0	02	1	9207-
286	BOLT; CLIP FIRE TRUCK(RA9) M10X25 W/LK WASHER	0-50041-025-0	01	1	9207-
287	NUT; CLIP FIRE TRUCK(RA9) M10	9-09110-510-0	01	1	9207-

11 35 25 186 22 1 497 25 5 8 11 11 8 19 22 29 32 35 1 51 223 49 43 43 42 42 49 41 40 39 37 1 42 42 51 51 43 49 37 39 40 41 51 51 42 217 51 223 49 43 42 42 237 49 38 40 1 42 42 237 38 40 49 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 160L<NG6> (B) 730.5X597X413 160L	1-22400-976-0	01	1	9207-
1	TANK; FUEL EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (A) 720X610X353 140L	1-22400-490-4	01	1	9207-
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (B) 864X597X413 200L	1-22400-975-0	01	1	9207-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22400-571-4	01	1	9207-
5	STRAINER; FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22460-001-1	01	1	9207-9402
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B) T=2.0	9-09923-030-0	01	1	9207-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22416-001-0	01	1	9207-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (C)	1-09604-082-0	01	1	9207-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-09604-052-0	01	1	9207-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M18X12	1-09604-081-0	01	1	9207-
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>	9-83135-011-0	01	1	9207-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9207-
22	UNIT; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83141-086-1	01	1	9207-
22	UNIT; FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6>	1-83141-059-0	01	1	9207-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-056-0	01	1	9207-
25	CAP; FILLER,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9207-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22440-033-2	01	1	9207-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=5.3	9-09160-505-0	01	1	9207-
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9207-
35	SCREW; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9207-
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	9207-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9207-
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9207-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=650	1-22553-022-1	02	1	9207-
39	WASHER; PL,SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9207-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	9207-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> L=905	1-22550-183-2	02	1	9207-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9207-
41	PIN; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9207-
42	NUT; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9207-
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-354-2	02	1	9207-
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-53461-432-1	02	1	9207-
43	BRACKET; FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-156-5	02	1	9207-9212
43	BRACKET; FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-401-1	02	1	9301-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	9207-
49	NUT; BRKT FUEL TANK 160L<NG6> M12	9-99110-512-0	10	1	9207-
49	NUT; BRKT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	08	1	9207-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9207-
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>, FUEL TANK 200L FMCSR<PK6> M12X35 W/LK WASHER	0-50041-235-0	16	1	9207-9307
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>, FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9308-
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M12X32 W/LK WASHER	0-50041-232-0	08	1	9207-9307
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	08	1	9308-
186	VALVE; GT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9207-
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FRAME SIDE<N20>	1-53461-322-1	02	1	9207-
223	WASHER; PL,LWR BRKT FIX FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FUEL TANK 160L<NG6> ID=12.5 OD=26	9-09160-612-0	04	1	9207-
223	WASHER; PL,LWR BRKT FIX FTS BED CAB & DOUBLE CAB(FTS5*F) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> ID=12.5 OD=26	9-09160-612-0	04	1	9207-
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=580	1-22553-003-0	02	1	9207-
497	NIPPLE; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M16 & NPTF3/8 STRAIGHT	1-09650-405-1	02	1	9207-

330 331 329 331 324 331 331 330 329

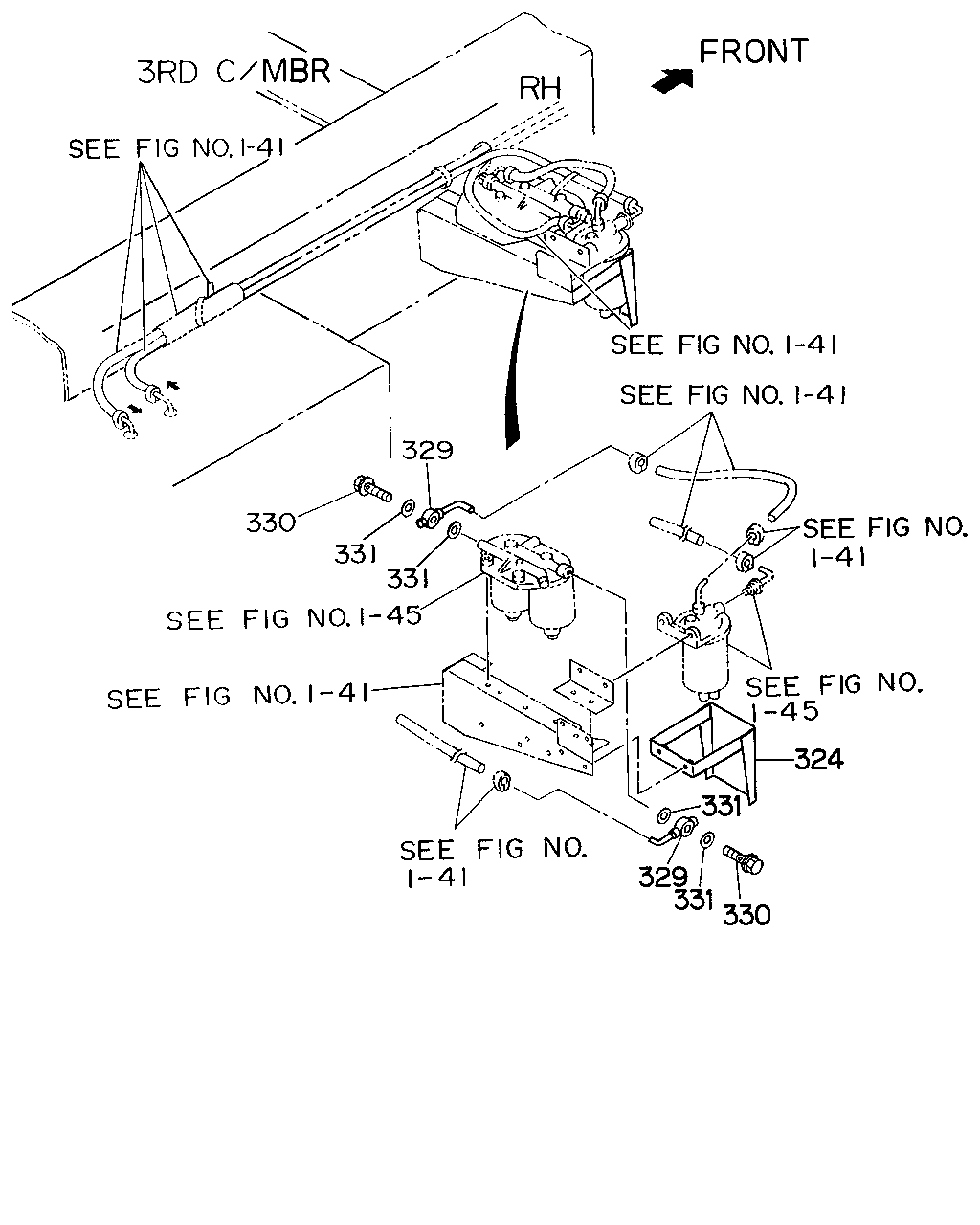

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
324	PROTECTOR; FUEL SEDIMENTER FSS MIDDLE CHASSIS & BED CAB(FSS5MF) FTS ALL(FTS***)	1-19751-090-1	01	1	9207-
329	JOINT ASM; EYE,FUEL PIPE PRE FUEL FILTER<W21> EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	5-15411-472-0	02	1	9207-
330	BOLT; EYE,JOINT PRE FUEL FILTER<W21> M14X27 FLANGE	1-09675-086-0	02	1	9207-
331	GASKET; EYE JOINT PRE FUEL FILTER<W21> ID=14.2 OD=19.2	1-09630-085-0	04	1	9207-
