3-20 — AIR TANK (#15676) — 71 parça

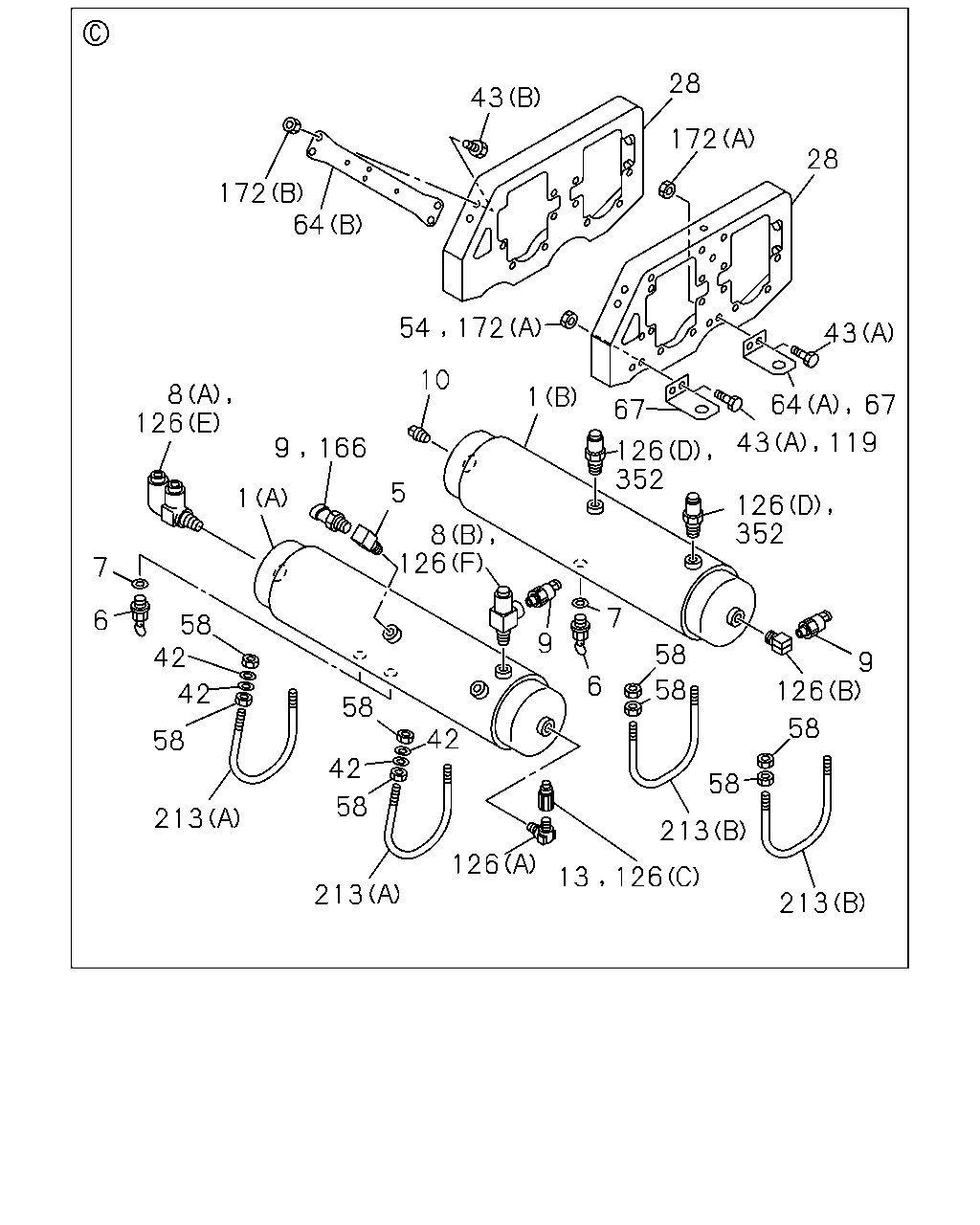

çizim 128818
213 213 126 13 126 213 58 42 42 58 42 42 58 6 7 58 213 6 9 7 58 58 58 126 58 9 352 126 43 352 126 67 1 10 5 126 8 166 9 1 126 8 172 54 64 172 64 67 119 43 28 172 28 43
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-500-0 01 1 1005-1203
1 TANK ASM; AIR
(A) THA 		8-98202-943-0 01 1 1204-
1 TANK ASM; AIR
(B) 		1-48370-501-0 01 1 1005-1203
1 TANK ASM; AIR
(B) THA 		8-98202-944-0 01 1 1204-
5 UNION; AIR TANK
PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1005-1203
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1005-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1005-
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1005-1203
8 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 & RC1/4 3WAY THA 		1-09661-027-0 01 1 1005-1203
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 02 1 1005-1203
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 03 1 1204-
10 PLUG; AIR TANK
PT3/8 THA 		9-09204-517-0 01 1 1005-
13 ADAPTER; NYLON TUBE
DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1005-1203
28 BRACKET; AIR TANK
THA 		8-97913-537-3 02 1 1005-
42 WASHER; PL
ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1005-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1005-1203
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1204-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1005-
54 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 02 1 1005-1203
58 NUT; BAND,AIR TANK
M8 THA 		0-91110-508-0 16 1 1005-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-349-0 01 1 1005-1203
64 STAY; AIR TANK,MAIN
(A) 		1-48317-349-0 02 1 1204-
64 STAY; AIR TANK,MAIN
(B) 		1-53318-293-1 01 1 1005-
67 STAY; SUB TANK 1-48317-349-0 01 1 1005-1203
119 BOLT; STAY
M8X20 FLANGE THA 		0-28650-820-0 02 1 1005-1203
126 CONNECTOR; ELBOW
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1204-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1204-
126 CONNECTOR; ELBOW
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1204-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 & RC1/4 3WAY THA 		1-09661-027-0 01 1 1204-
126 CONNECTOR; ELBOW
(A) M22 & PT3/4 ELBOW 		1-09650-277-0 01 1 1005-
126 CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1005-1203
126 CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 02 1 1204-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1005-1203
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1005-1203
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1204-
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1005-
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1005-
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1005-
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1005-1203

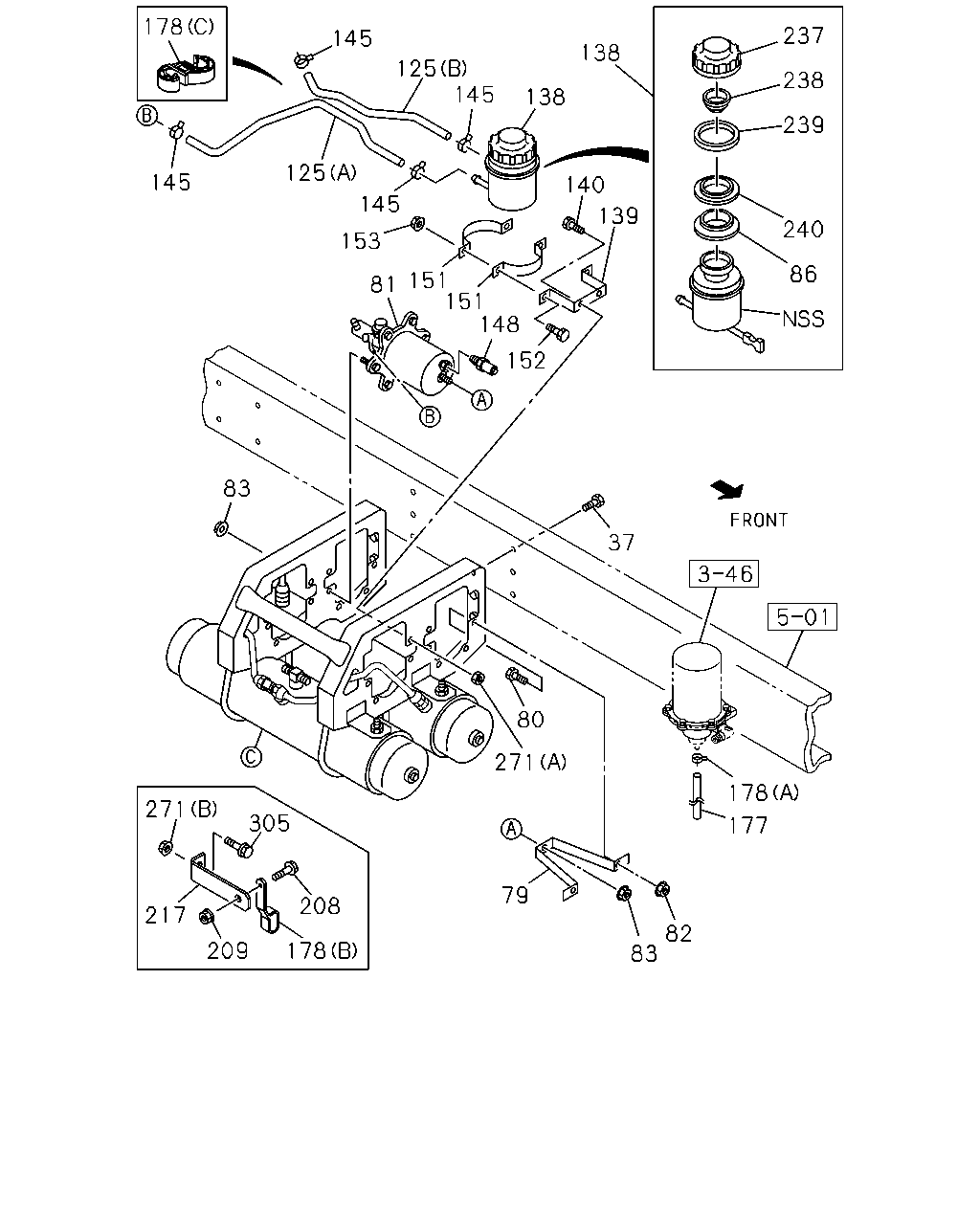

çizim 128841
178 237 145 138 125 145 238 138 239 125 145 140 145 139 240 153 86 151 151 148 81 152 83 37 80 271 178 271 305 177 79 208 217 82 83 209 178
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE THA 		0-28651-240-0 06 1 1005-
79 STAY; AIR MASTER TO BRKT 8-98120-254-0 02 1 1005-
80 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1005-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-663-1 02 1 1005-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1005-
83 NUT; AIR MASTER
M10 FLANGE THA 		0-91180-210-0 10 1 1005-
86 SEAL; DUST 1-47529-019-0 01 1 1005-
125 HOSE; OIL TANK TO AIR MASTER
(B) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1005-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98098-558-0 01 1 1005-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1005-
139 BRACKET; OIL TANK 1-47537-081-2 01 1 1005-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1005-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1005-
148 CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1005-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1005-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE THA 		0-28650-820-0 02 1 1005-
153 NUT; OIL TANK TO BAND
M8 FLANGE THA 		0-91180-108-0 02 1 1005-1301
153 NUT; OIL TANK TO BAND
M8 THA 		0-91110-508-0 02 1 1302-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 1005-
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 02 1 1005-
178 CLIP; HOSE
(B) 		9-09917-171-0 01 1 1005-
178 CLIP; HOSE
(A) ID=21 THA 		8-94242-034-0 01 1 1005-
208 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1005-
209 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1005-
217 BRACKET; RUBBER HOSE
L=112 		1-47475-694-1 01 1 1005-
237 CAP; OIL TANK 1-47525-030-0 01 1 1005-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1005-
239 FILTER; DUST 1-47529-017-0 01 1 1005-
240 HOLDER; FILTER 1-47529-018-0 01 1 1005-
271 NUT; BRKT,HOSE
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1005-
271 NUT; BRKT,HOSE
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1005-
305 BOLT; BRKT,HOSE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1005-
