1-31 — AIR DUCT (#1567) — 110 parça

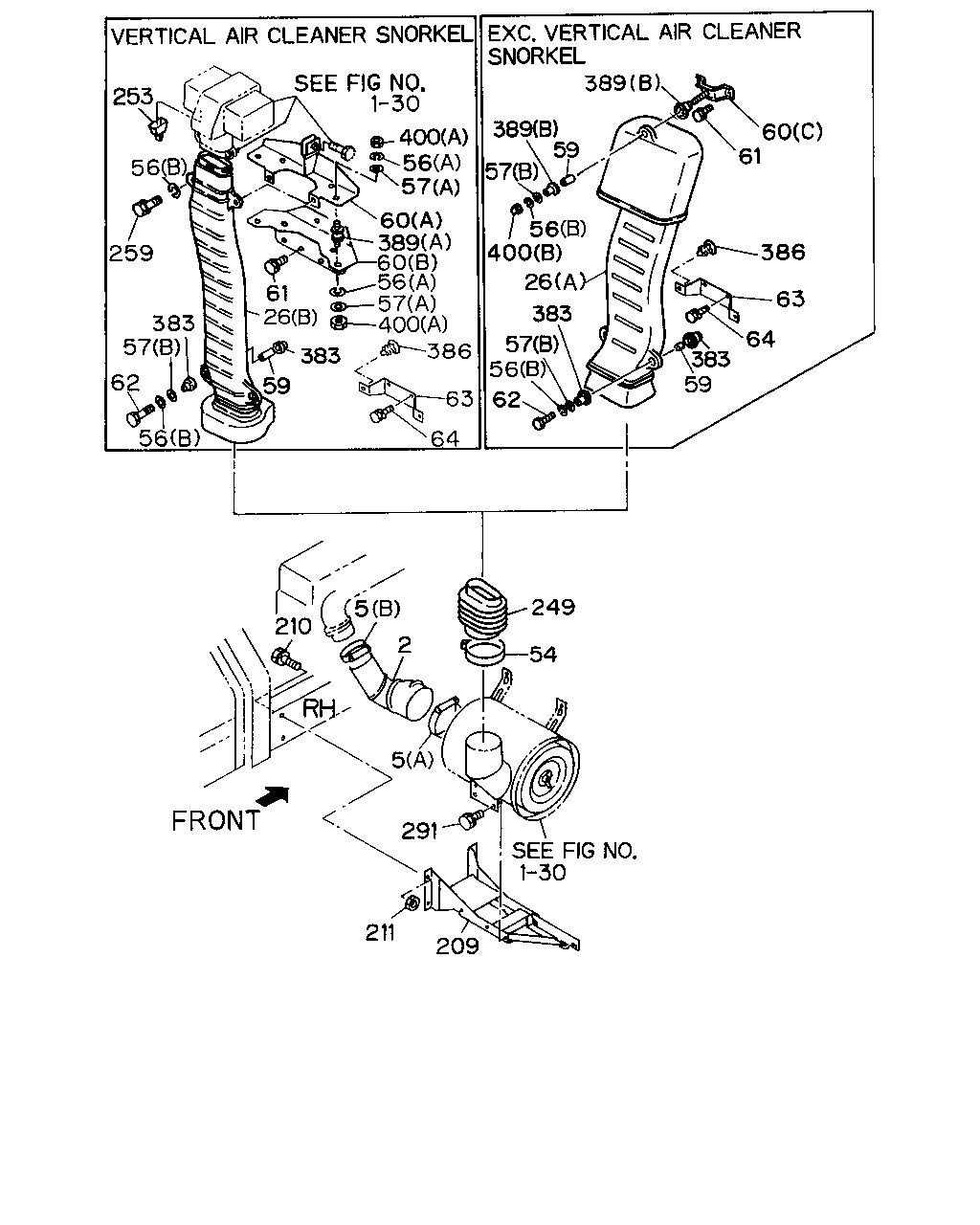

253 56 259 383 57 62 56 59 383 26 61 400 56 57 60 389 60 56 57 400 386 63 64 62 56 57 383 26 400 56 57 389 389 59 60 61 386 63 64 383 59 249 54 209 211 291 5 2 5 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FSS ALL(FSS***)	1-14231-647-0	01	1	9207-
2	HOSE; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*)	1-14231-565-0	01	1	9207-
2	HOSE; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14231-708-1	01	1	9207-
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9207-
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-155-0	01	1	9207-
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-102-0	01	1	9207-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-077-5	01	1	9207-9406
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-130-0	01	1	9407-
54	CLIP; GASKET,AIR DUCT ID=137	1-09707-113-0	01	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-09985-180-0	08	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10	1-09985-185-0	02	1	9207-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10	1-09985-185-0	03	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-09985-173-0	08	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-09985-184-0	02	1	9207-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-09985-184-0	03	1	9207-
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9207-
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9207-
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9207-
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9207-
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9207-
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) PARTIAL OIL FILTER<KC1>	1-53497-214-5	01	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) EXC. PARTIAL OIL FILTER<KC1>	1-53497-213-4	01	1	9207-
209	BRACKET; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) PARTIAL OIL FILTER<KC1>	1-53497-284-0	01	1	9207-
209	BRACKET; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) EXC. PARTIAL OIL FILTER<KC1>	1-53497-245-1	01	1	9207-
209	BRACKET; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) PARTIAL OIL FILTER<KC1>	1-53497-292-2	01	1	9207-
209	BRACKET; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. PARTIAL OIL FILTER<KC1>	1-53497-289-2	01	1	9207-
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X40 W/LK WASHER	0-50041-240-0	04	1	9207-9307
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X40 FLANGE	0-28081-240-0	04	1	9308-9503
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X35 FLANGE	0-28081-235-0	04	1	9504-
210	BOLT; ACL BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12X55	0-10806-255-0	04	1	9207-9307
210	BOLT; ACL BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12X50 FLANGE	0-28081-250-0	04	1	9308-
211	NUT; BRKT FSS ALL(FSS***) M12	9-99110-512-0	03	1	9207-
211	NUT; BRKT FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) M12	9-99110-512-0	04	1	9207-
211	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12	9-99110-512-0	02	1	9207-
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	01	1	9207-
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17>	1-14219-192-0	02	1	9207-
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9207-
259	BOLT; AIR DUCT TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE	0-28080-820-0	02	1	9207-
291	BOLT; ACL M8X22 FLANGE	0-28080-822-0	04	1	9207-
383	RUBBER; SUPPORT,AIR INT,LWR OD=40 T=18.5	1-14119-267-0	04	1	9207-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14119-189-0	04	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14119-267-0	02	1	9207-
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A) M10	1-09984-121-0	08	1	9207-
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B) M10	1-09984-145-0	01	1	9207-

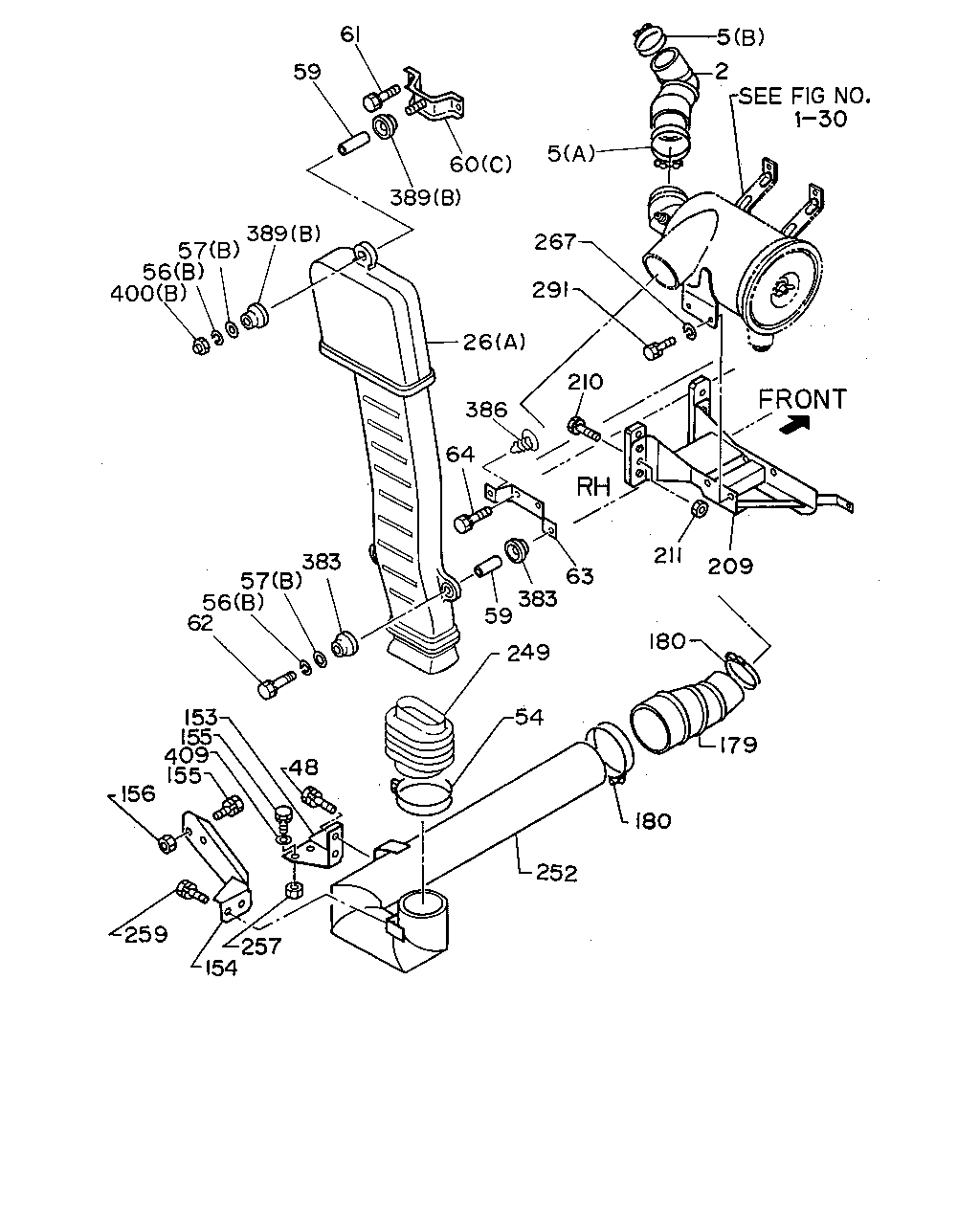

5 2 5 267 291 26 210 386 64 211 209 180 179 180 252 54 249 59 383 63 61 59 389 57 56 400 383 57 56 62 153 155 48 155 409 156 259 257 154 60 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FSS ALL(FSS***)	1-14231-647-0	01	1	9207-
2	HOSE; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*)	1-14231-565-0	01	1	9207-
2	HOSE; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14231-708-1	01	1	9207-
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9207-
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-155-0	01	1	9207-
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-102-0	01	1	9207-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-077-5	01	1	9207-9406
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-130-0	01	1	9407-
48	BOLT; AIR DUCT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE	0-28080-820-0	02	1	9207-
54	CLIP; GASKET,AIR DUCT ID=137	1-09707-113-0	01	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-09985-180-0	08	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10	1-09985-185-0	02	1	9207-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10	1-09985-185-0	03	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-09985-173-0	08	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-09985-184-0	02	1	9207-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-09985-184-0	03	1	9207-
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9207-
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9207-
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9207-
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9207-
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9207-
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9207-
153	BRACKET; ACL,FRT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14239-202-0	01	1	9207-
154	BRACKET; ACL,RR FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14239-185-0	01	1	9207-
155	BOLT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X25 FLANGE	0-28080-825-0	04	1	9207-
156	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8	9-09110-408-0	02	1	9207-
179	HOSE; AIR INT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14231-707-1	01	1	9207-
180	CLIP; AIR INT HOSE FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ID=104-142	1-09707-155-0	02	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) PARTIAL OIL FILTER<KC1>	1-53497-214-5	01	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) EXC. PARTIAL OIL FILTER<KC1>	1-53497-213-4	01	1	9207-
209	BRACKET; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) PARTIAL OIL FILTER<KC1>	1-53497-284-0	01	1	9207-
209	BRACKET; ACL FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) EXC. PARTIAL OIL FILTER<KC1>	1-53497-245-1	01	1	9207-
209	BRACKET; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) PARTIAL OIL FILTER<KC1>	1-53497-292-2	01	1	9207-
209	BRACKET; ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) EXC. PARTIAL OIL FILTER<KC1>	1-53497-289-2	01	1	9207-
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X40 W/LK WASHER	0-50041-240-0	04	1	9207-9307
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X40 FLANGE	0-28081-240-0	04	1	9308-9503
210	BOLT; ACL BRKT FSS ALL(FSS**) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M) M12X35 FLANGE	0-28081-235-0	04	1	9504-
210	BOLT; ACL BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12X55	0-10806-255-0	04	1	9207-9307
210	BOLT; ACL BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12X50 FLANGE	0-28081-250-0	04	1	9308-
211	NUT; BRKT FSS ALL(FSS***) M12	9-99110-512-0	03	1	9207-
211	NUT; BRKT FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) M12	9-99110-512-0	04	1	9207-
211	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M12	9-99110-512-0	02	1	9207-
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	01	1	9207-
252	DUCT; AIR INT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)	1-14231-706-1	01	1	9207-
257	NUT; BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8	9-09110-408-0	02	1	9207-
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9207-
259	BOLT; AIR DUCT TO BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE	0-28080-820-0	02	1	9207-
267	WASHER; LK,ACL FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ID=12.2	9-09150-512-0	04	1	9207-9307
291	BOLT; ACL M8X22 FLANGE	0-28080-822-0	04	1	9207-
383	RUBBER; SUPPORT,AIR INT,LWR OD=40 T=18.5	1-14119-267-0	04	1	9207-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14119-189-0	04	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14119-267-0	02	1	9207-
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A) M10	1-09984-121-0	08	1	9207-
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (B) M10	1-09984-145-0	01	1	9207-
409	WASHER; PL,BRKT FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) ID=8.4 OD=18	9-09160-608-0	02	1	9207-
