Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#15664) — 271 parça

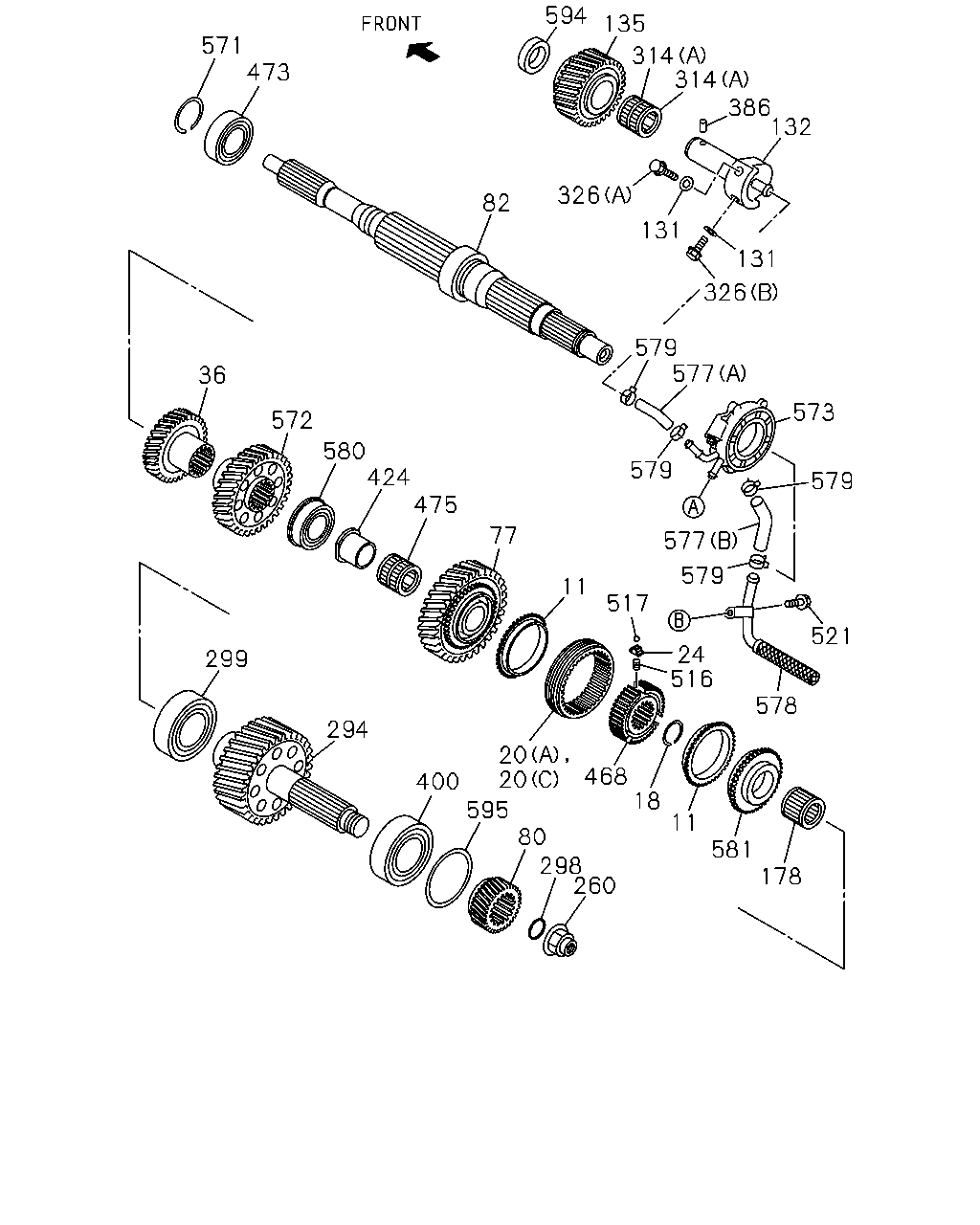

299 294 400 595 80 298 260 178 581 11 18 468 20 20 516 578 24 521 579 577 517 11 77 475 424 580 572 36 82 579 573 579 579 577 326 131 132 386 131 326 314 314 135 594 473 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1005-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1005-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1005-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1005-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1005-1210	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1005-1210	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1005-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1005-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	1005-1010	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1005-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1005-1203	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	1005-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1005-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1005-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1005-1308	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1005-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1005-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1005-		●
132	SHAFT; REV	8-98009-372-0	01	1	1005-	●
132	SHAFT; REV	1-33351-017-0	01	1	1005-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1005-	●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	1005-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1005-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1005-	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1005-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1005-	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1005-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1005-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1005-	●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1005-	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1005-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1005-	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1005-	●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1005-	●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1005-	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1005-	●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1005-	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1005-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1005-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1005-	●
521	BOLT M8X12 FLANGE THA	0-28050-812-0	01	1	1005-	●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1005-	●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	1005-1010	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1011-	●
573	PUMP ASM; OIL	8-98044-683-0	01	1	1005-1205	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1005-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1005-	●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1005-	●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	06	1	1005-1205	●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1206-	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1005-	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1005-	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1005-	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1005-	●

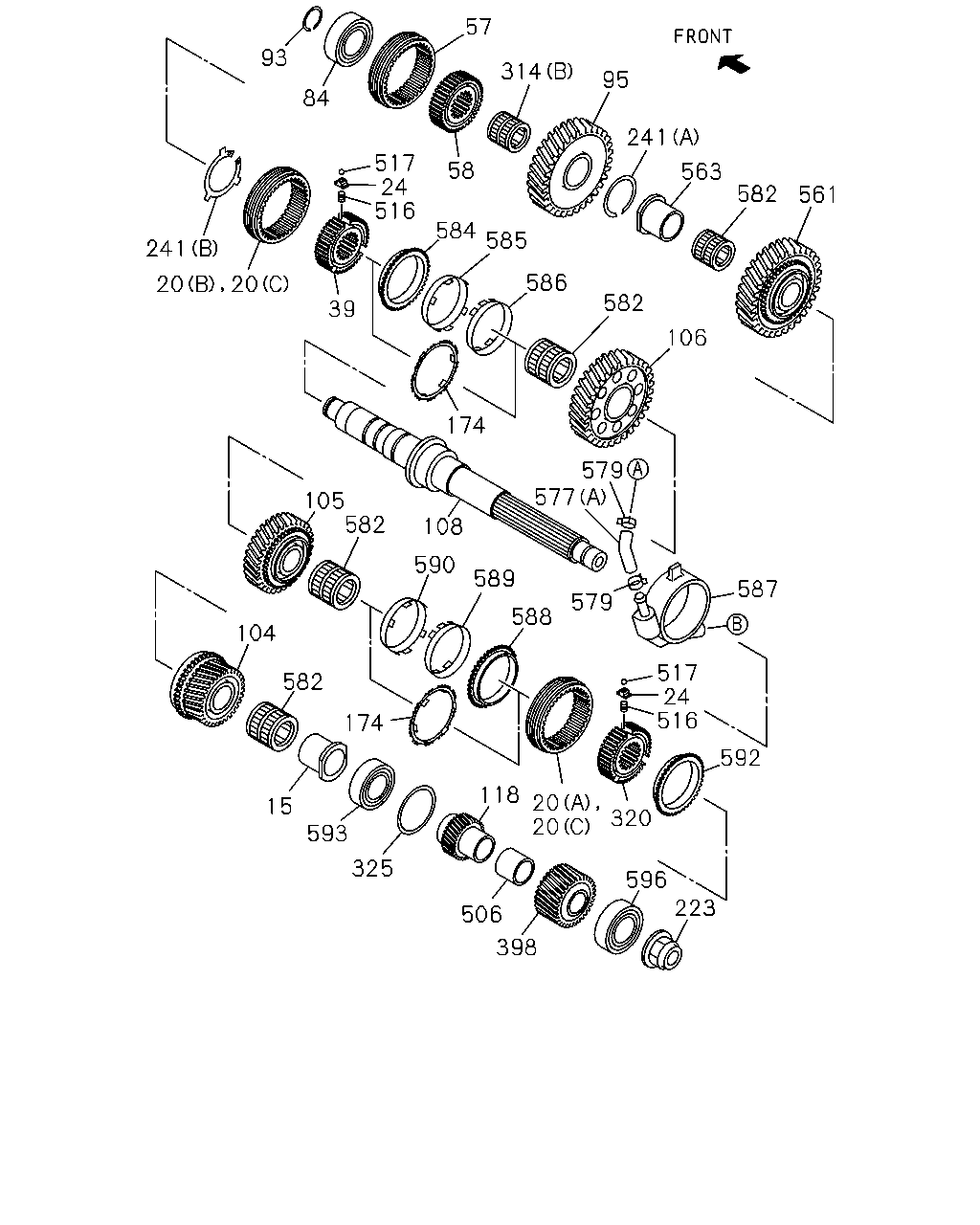

561 582 563 241 95 314 57 93 84 241 20 20 39 105 582 104 582 174 15 593 325 506 398 223 596 20 320 20 118 588 589 579 517 24 516 587 577 579 174 108 590 584 516 24 517 585 586 582 106 592 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1005-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1005-1210	●
20	SLEEVE (C) Z=45	8-97241-296-1	03	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1005-1210	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1005-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1005-		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1005-1501	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1005-		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1005-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1005-		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1005-	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1005-		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1005-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1005-		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1005-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1005-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1005-	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	1005-1010	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	1005-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	1005-1010	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1005-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1005-	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1005-1209	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	1005-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1005-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	1005-		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-	●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1005-	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1005-	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1005-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1005-	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1005-	●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1005-1501	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1005-	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1005-	●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1005-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1005-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1005-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1005-	●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1005-	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1005-	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1005-	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1005-	●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	06	1	1005-1205	●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1206-	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1005-	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1005-1210	●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1211-1308	●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508	●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1005-1508	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1005-1210	●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1211-1308	●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508	●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	1005-1205	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1005-1209	●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1210-1308	●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508	●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1005-1508	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1005-1209	●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1210-1308	●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508	●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1005-	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1005-	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1005-	●

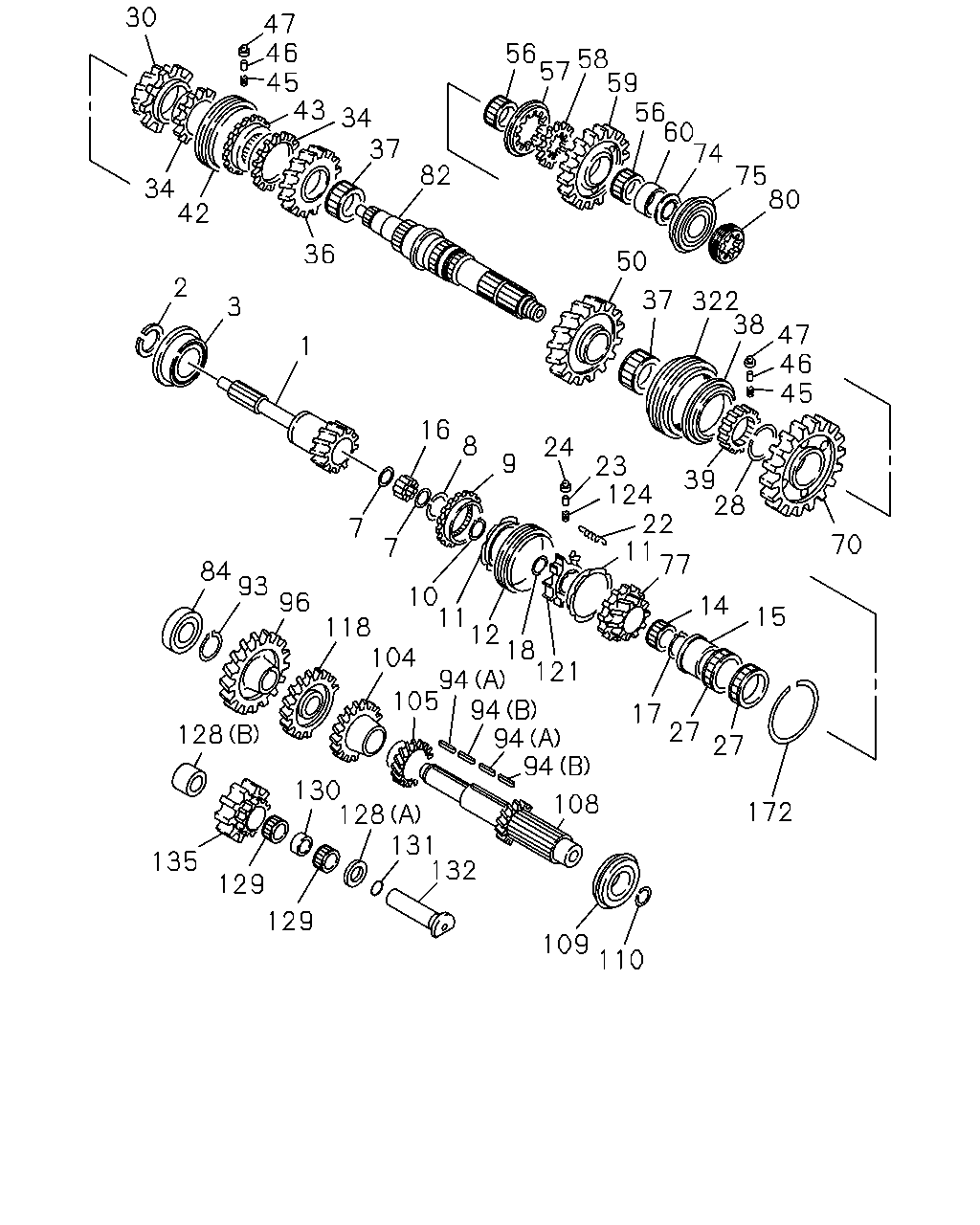

30 47 46 45 43 56 58 57 59 56 60 74 34 37 82 75 80 34 42 36 50 2 37 322 38 3 47 46 45 1 16 8 24 9 23 124 22 11 77 39 28 7 70 7 84 93 96 10 11 12 18 121 94 105 94 94 94 14 15 118 104 17 27 128 27 130 128 131 132 108 172 135 129 129 109 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	1005-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	1005-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	1005-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	1005-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	1005-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	1005-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	1005-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	1005-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	1005-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	1005-		●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1005-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1005-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	1005-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	1005-		●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1005-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	1005-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	1005-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1005-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1005-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	1005-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	1005-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1005-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1005-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	1005-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	1005-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	1005-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	1005-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	1005-1010	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1005-		●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	1005-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	1005-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	1005-		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1005-1501	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1005-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	1005-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	1005-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	1005-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1005-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1005-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	1005-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	1005-		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1005-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1005-		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1005-	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1005-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	1005-		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	1005-		●
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	1005-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	1005-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	1005-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	1005-		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1005-1203	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	1005-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1005-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1005-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1005-1308	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1005-		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1005-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1005-		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1005-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1005-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	1005-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	1005-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	1005-		●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	1005-1010	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	1005-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	1005-1010	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1005-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1005-1209	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-	●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	1005-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	1005-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	1005-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	1005-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1005-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	1005-		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	1005-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	1005-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	1005-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	1005-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	1005-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	1005-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	1005-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1005-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1005-		●
132	SHAFT; REV	8-98009-372-0	01	1	1005-	●
132	SHAFT; REV	1-33351-017-0	01	1	1005-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1005-	●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	1005-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	1005-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	1005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
