Sayfa 2-20 - Isuzu EPC

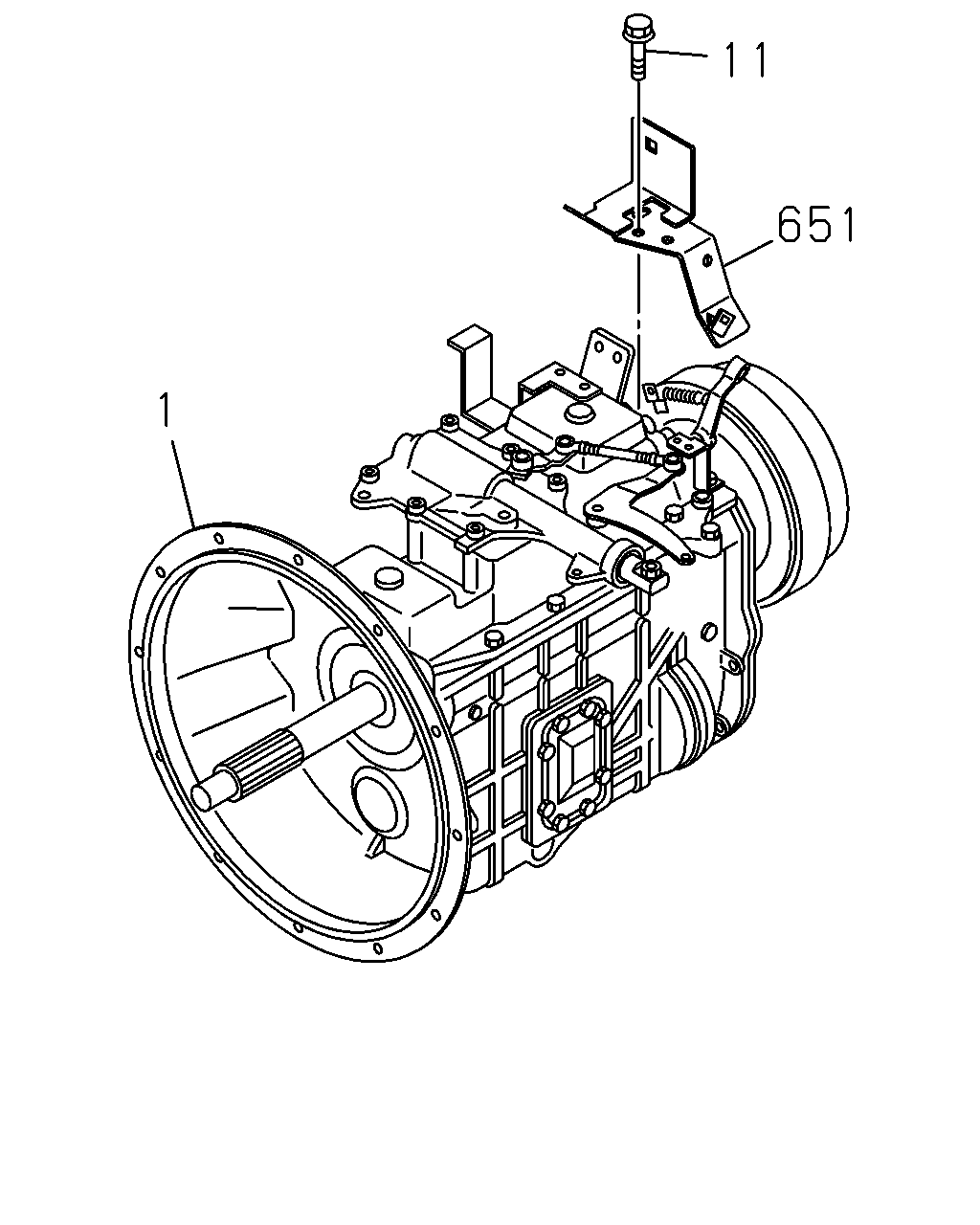

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL THA	8-97924-934-0	01	1	1005-	●
1	TRANSMISSION ASM; MANUAL THA	8-97924-778-0	01	1	1005-		●
11	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	1005-		●
651	BRACKET; T/M HARNESS THA	8-98141-228-0	01	1	1005-		●

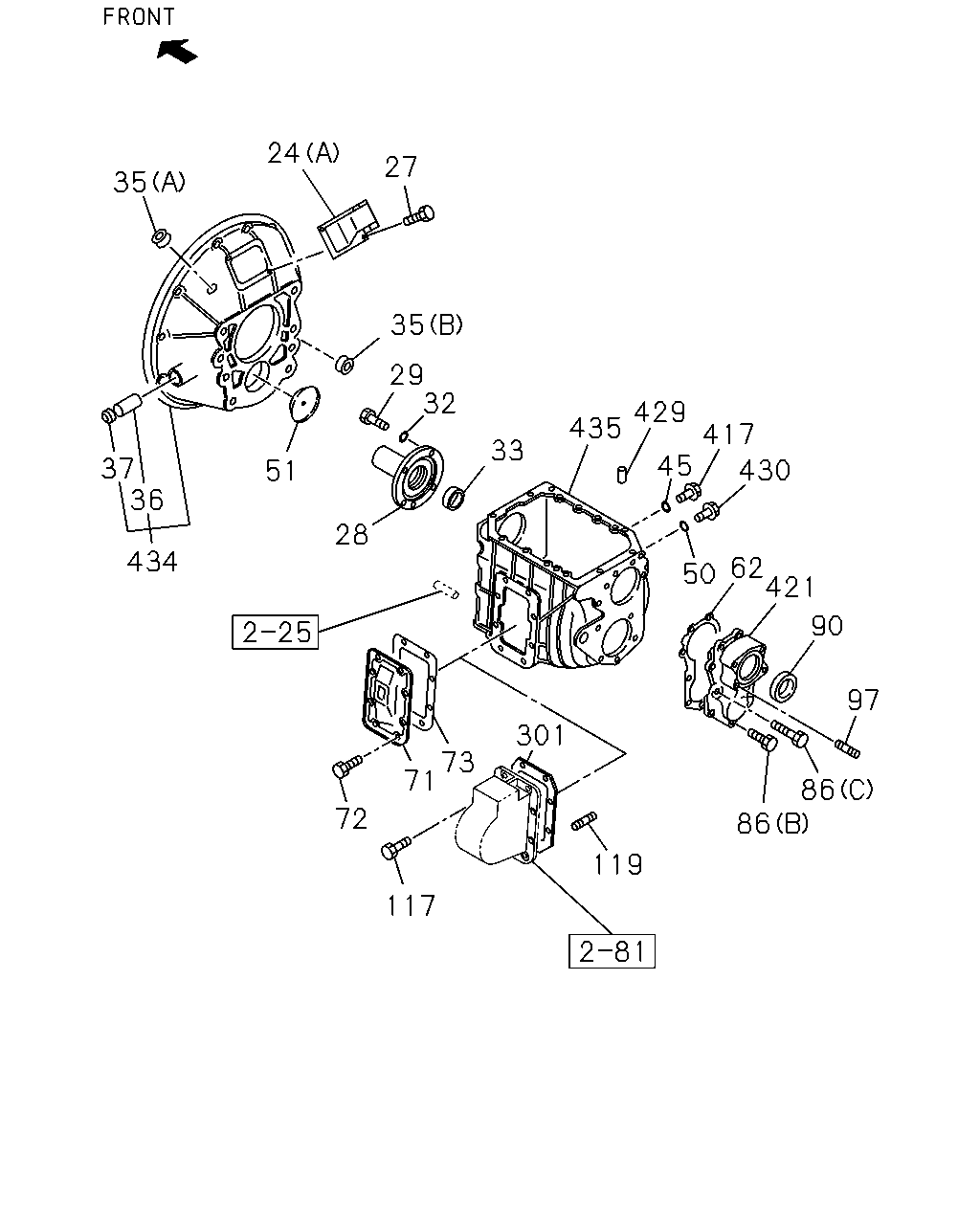

35 24 27 35 29 51 37 36 434 32 28 33 435 429 430 417 45 50 62 421 90 97 86 86 119 301 73 71 72 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1005-1410	●	●
24	COVER; CHECK HOLE,DUST 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6> (B)	8-98283-062-0	01	1	1411-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1005-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1005-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	1005-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	1005-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	1005-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1005-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1005-		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	1005-		●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	1005-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1005-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1005-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1005-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1005-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1005-1404	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1005-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	1005-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	1005-		●
71	COVER; SIDE,TRANS CASE	8-98122-318-0	01	1	1005-1408	●
71	COVER; SIDE,TRANS CASE 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6>	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	1005-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE THA	0-28151-016-0	08	1	1005-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1005-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	1005-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1005-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1005-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1005-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6> NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> NOK	1-09625-513-0	01	1	1005-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1005-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1005-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1005-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1005-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1005-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	1005-		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38119-037-0	01	1	1005-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1005-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1005-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1005-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1005-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	1005-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1005-1404	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1005-		●
434	HOUSING; CLU	8-98004-506-2	01	1	1005-	●
434	HOUSING; CLU	1-31110-169-0	01	1	1005-		●
435	CASE; TRANS	8-98123-098-1	01	1	1005-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	1005-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

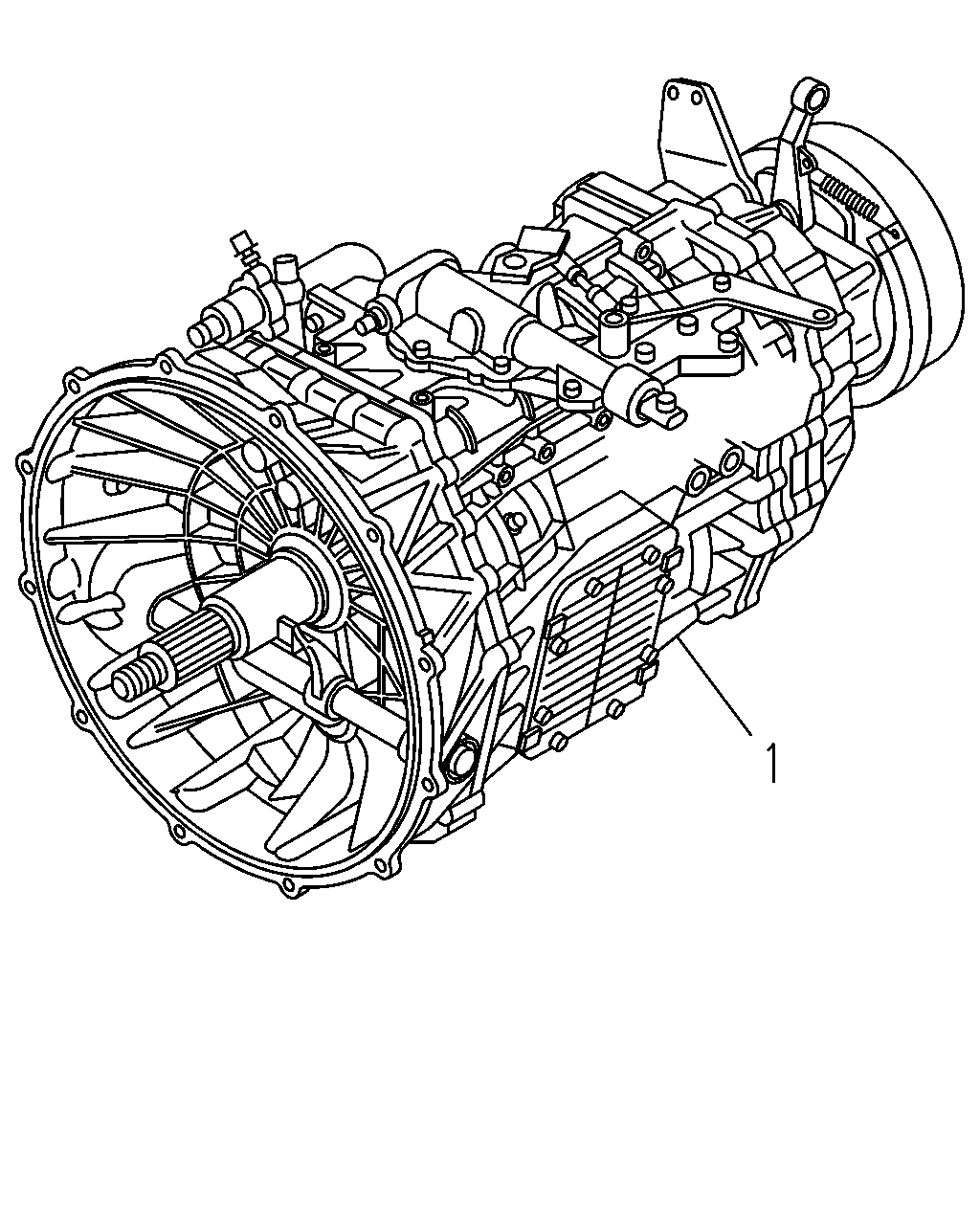

	1	TRANSMISSION ASM; MANUAL THA	8-97924-934-0	01	1	1005-	●
	1	TRANSMISSION ASM; MANUAL THA	8-97924-778-0	01	1	1005-		●

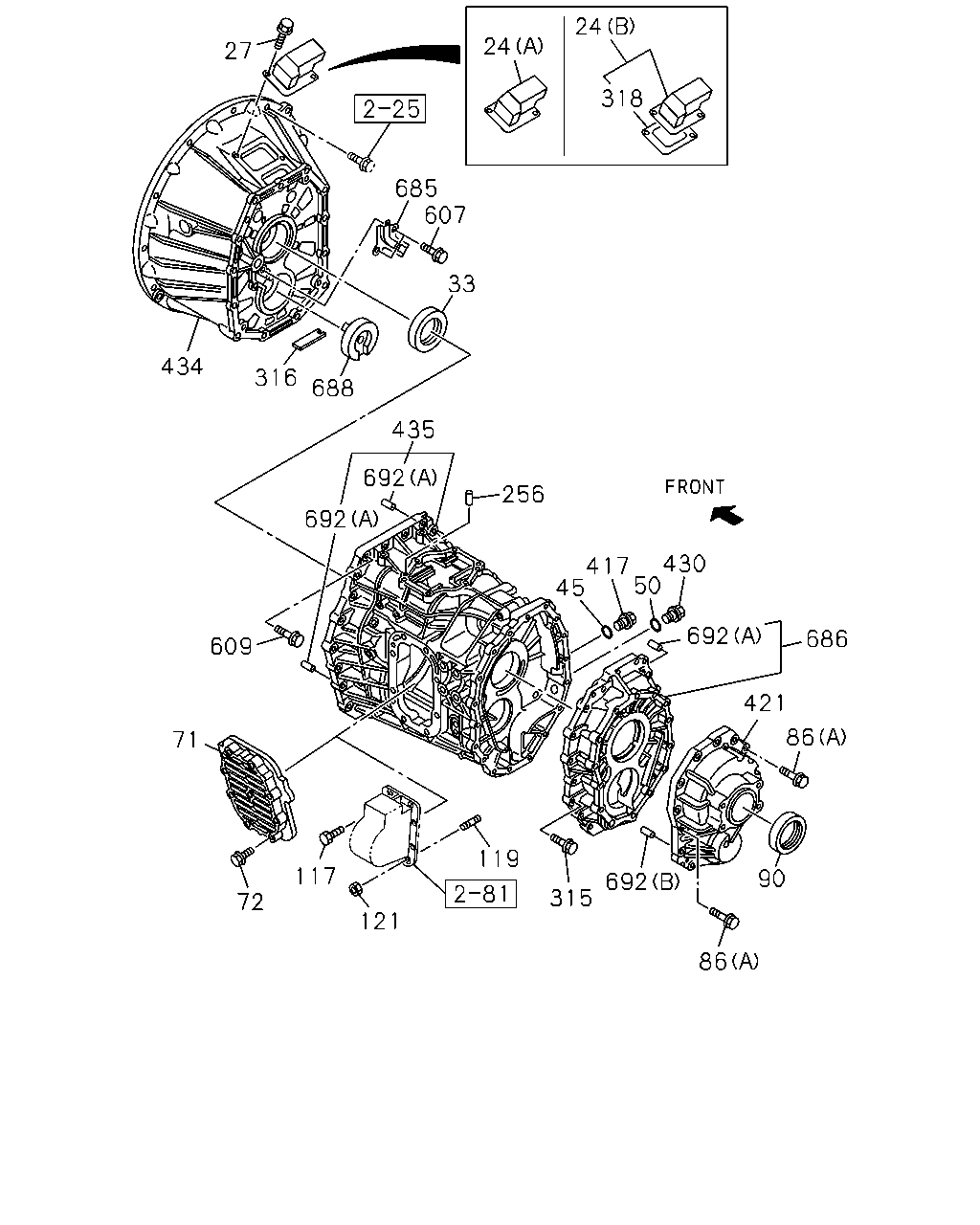

27 24 24 318 685 607 33 688 316 434 435 256 692 692 609 71 72 117 121 119 315 692 86 90 86 421 686 692 430 50 417 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)	8-98284-107-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1005-1410	●	●
24	COVER; CHECK HOLE,DUST 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6> (B)	8-98283-062-0	01	1	1411-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1005-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1005-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE THA	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1005-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1005-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1005-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1005-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1005-1404	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1005-		●
71	COVER; SIDE,TRANS CASE	8-98122-318-0	01	1	1005-1408	●
71	COVER; SIDE,TRANS CASE 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6>	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	1005-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE THA	0-28151-016-0	08	1	1005-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	1-09044-081-0	08	1	1005-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1005-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1005-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1005-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6> NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> NOK	1-09625-513-0	01	1	1005-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> NOK	1-09625-513-0	01	1	1104-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 FLANGE	0-28151-040-0	02	1	1005-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	8-98044-944-0	06	1	1005-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X35 L=50	0-44011-035-0	06	1	1005-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	1005-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	06	1	1005-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE THA	0-91180-210-0	02	1	1005-		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1005-	●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1005-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1005-	●
318	GASKET; COVER 15" CLUTCH<RE9> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>,PTO CONTROL<SV6>	1-31139-023-0	01	1	1411-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1005-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1005-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1005-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1005-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1005-1404	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1005-		●
434	HOUSING; CLU	8-98004-506-2	01	1	1005-	●
434	HOUSING; CLU	1-31110-169-0	01	1	1005-		●
435	CASE; TRANS	8-98123-098-1	01	1	1005-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	1-33111-355-0	01	1	1005-		●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1005-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1005-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	1005-	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1005-	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1005-1110	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1005-	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1005-	●
