1-30 — AIR CLEANER (#1566) — 22 parça

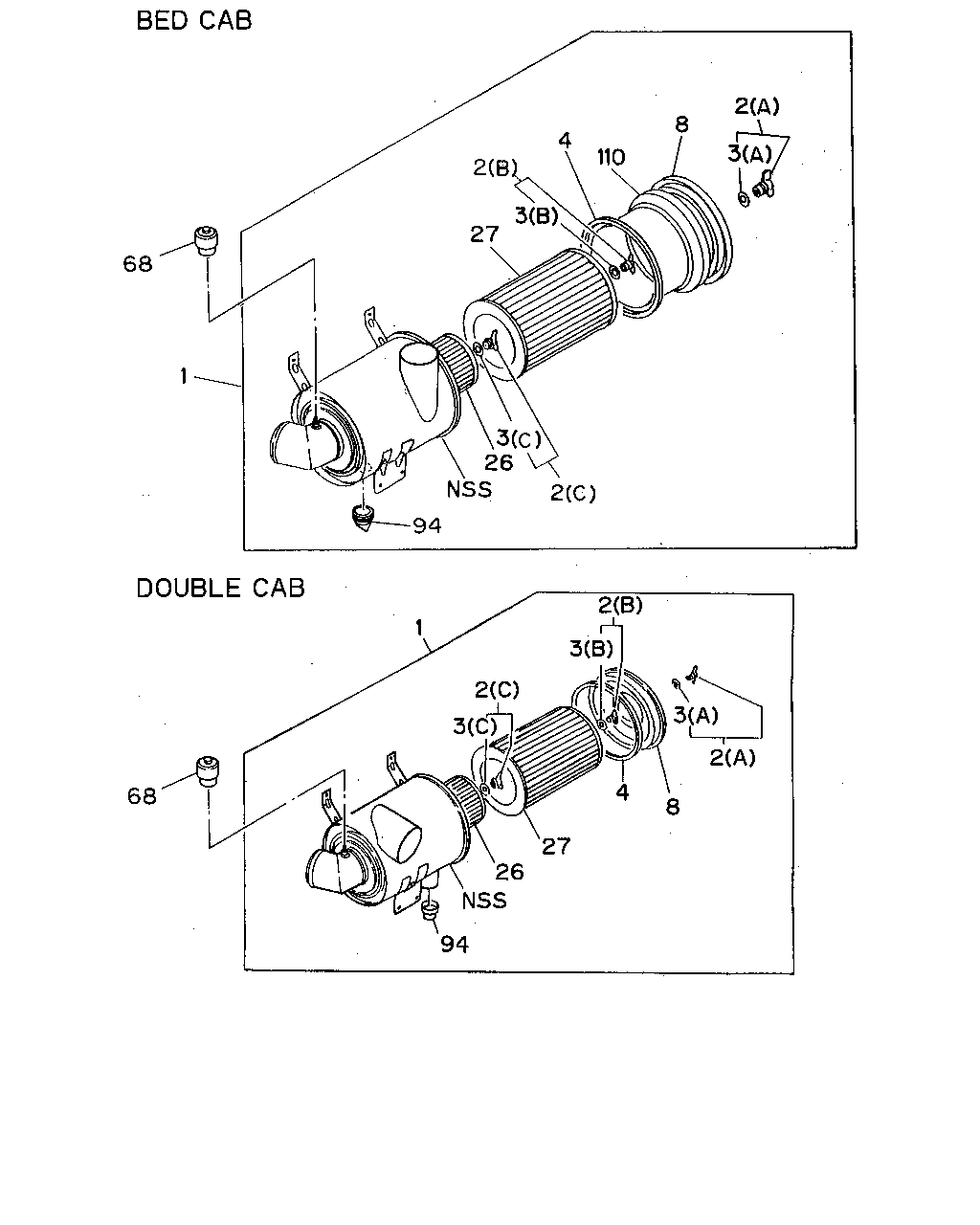

çizim 94422
1 68 94 26 3 2 27 3 2 4 110 8 2 3 1 2 3 2 3 68 94 27 26 4 8 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) 		1-14210-559-4 01 1 9207-
1 CLEANER ASM; AIR
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) 		1-14210-623-1 01 1 9207-
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9207-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9207-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9207-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9207-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-156-0 01 1 9207-
3 WASHER; SEAL,WING NUT
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) (C) 		9-14219-177-0 01 1 9207-
3 WASHER; SEAL,WING NUT
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (C) 		1-14219-177-0 01 1 9207-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9207-
8 COVER ASM; ACL
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) 		1-14212-086-0 01 1 9207-
8 COVER ASM; ACL
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) 		1-14212-092-0 01 1 9207-
26 FILTER; ACL,INNER 1-14215-145-0 01 1 9207-
27 FILTER; ACL,OUTER 1-14215-171-0 01 1 9207-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9207-
94 VALVE; VACUATOR
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) 		1-14219-192-0 01 1 9207-
94 VALVE; VACUATOR
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) 		1-14219-129-0 01 1 9207-
110 ADAPTER; ACL
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) 		1-14219-184-0 01 1 9207-

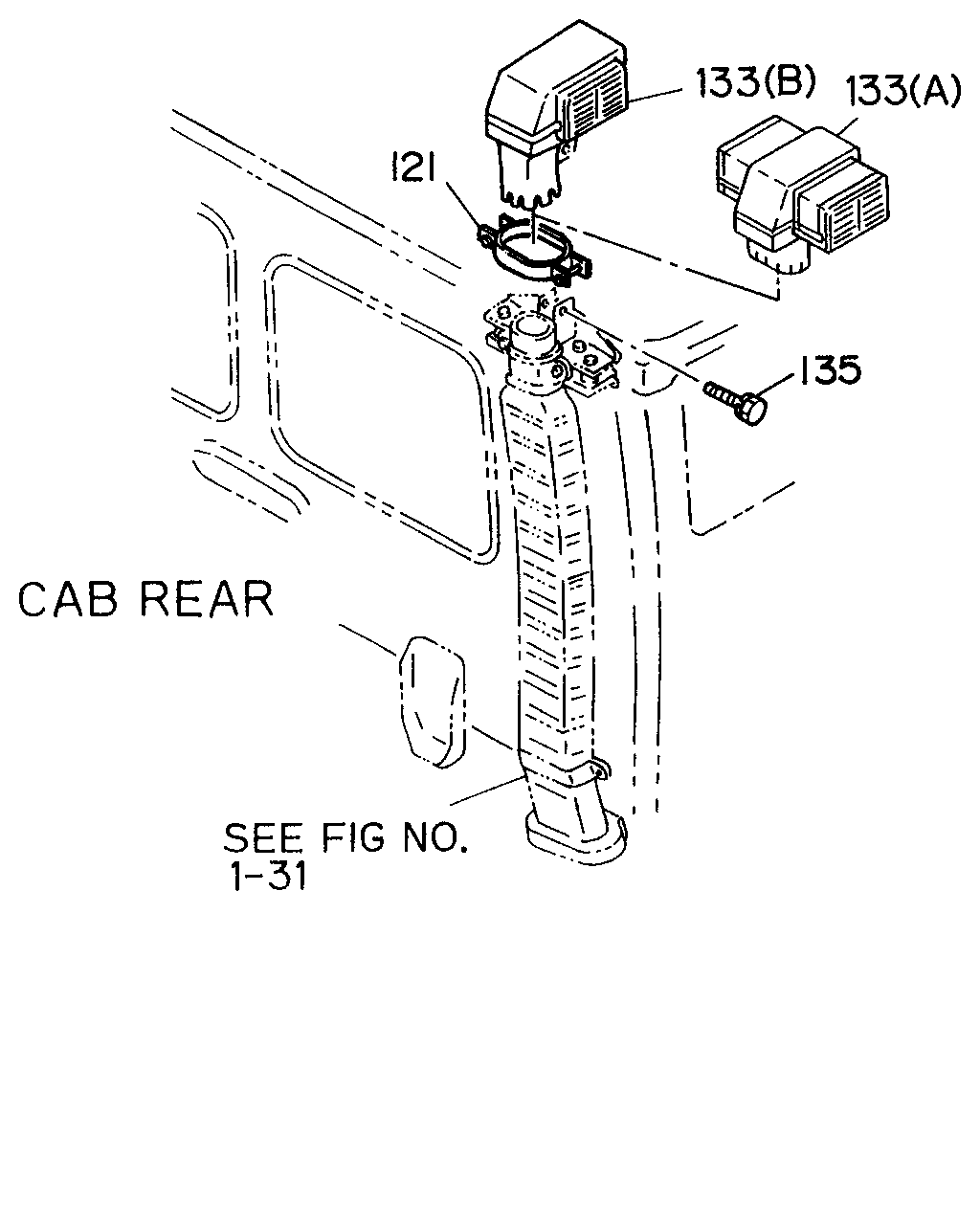

çizim 94569
135 133 133 121
BalonParca AdiParca NoAdetTipApplied Date
121 CLAMP; INL HOOD,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09707-160-0 01 1 9207-
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17> (A) 		1-14210-660-0 01 1 9207-
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> EXC. SHIPPING EQUIPMENT(VK5),PRE CLEANER<W17> (B) 		1-14210-661-0 01 1 9207-
135 BOLT; AIR INL HOOD
VERTICAL AIR CLEANER SNORKEL<PP3> M8X25 		1-09980-511-0 01 1 9207-
