◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11194 - FTR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#15655) — 10 parça

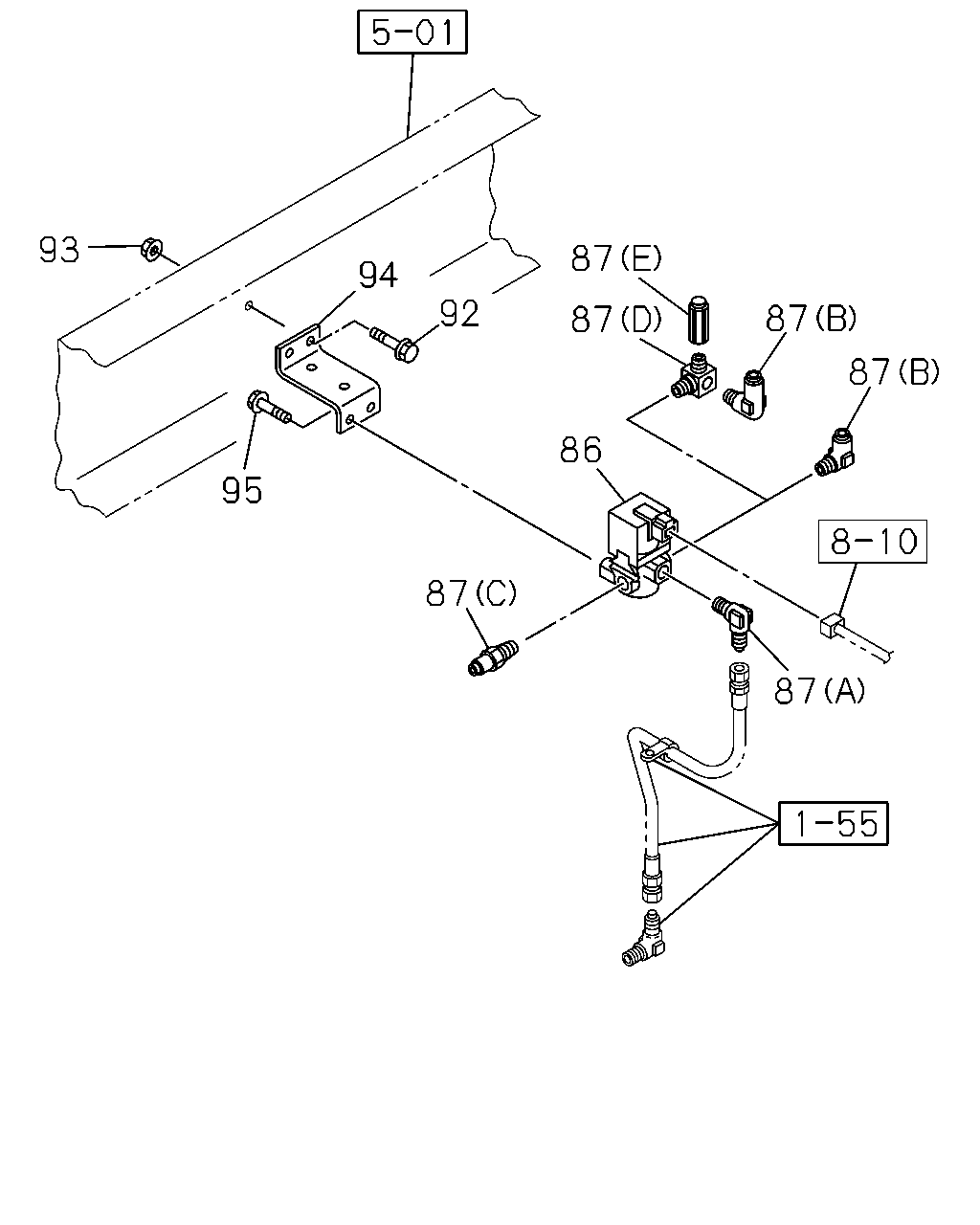

çizim 128771
93 87 94 92 87 87 87 86 95 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1005-
87 CONNECTOR
PTO CONTROL<SV6> (D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1005-
87 CONNECTOR
PTO CONTROL<SV6> (E) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1005-
87 CONNECTOR
PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1005-
87 CONNECTOR
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1005-
87 CONNECTOR
PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1005-
92 BOLT; MAG VLV
M8X30 FLANGE THA 		0-28650-830-0 02 1 1005-
93 NUT; MAG VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1005-
94 BRACKET; MAG VLV,EXH BRAKE
PTO CONTROL<SV6> THA 		8-98154-633-0 01 1 1005-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
PTO CONTROL<SV6> M8X20 FLANGE THA 		0-28650-820-0 02 1 1005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
