1-11 — RADIATOR HOSE AND SUB TANK
(#1565) — 34 parça
◀

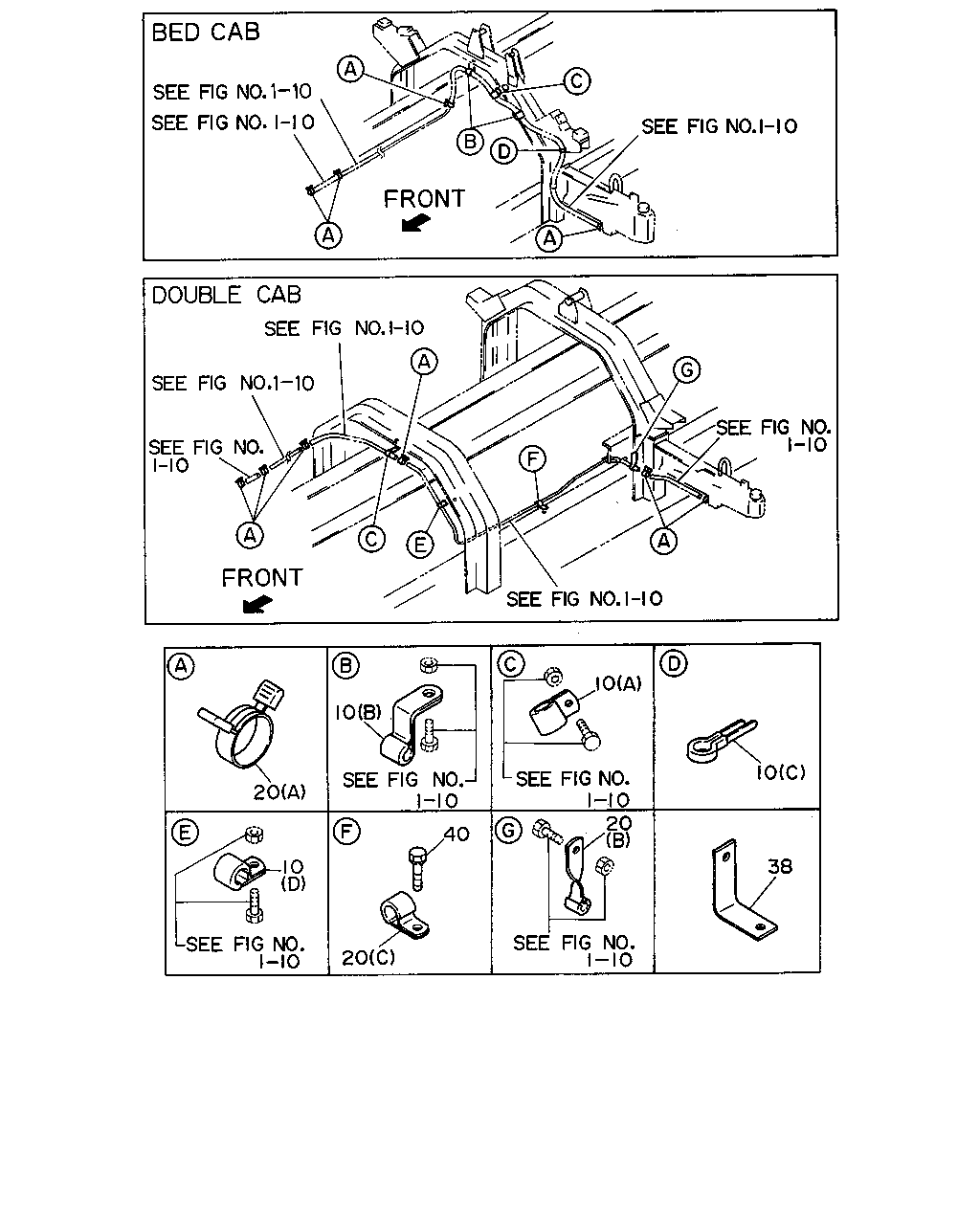

[111A] NO.2 (10 parça)

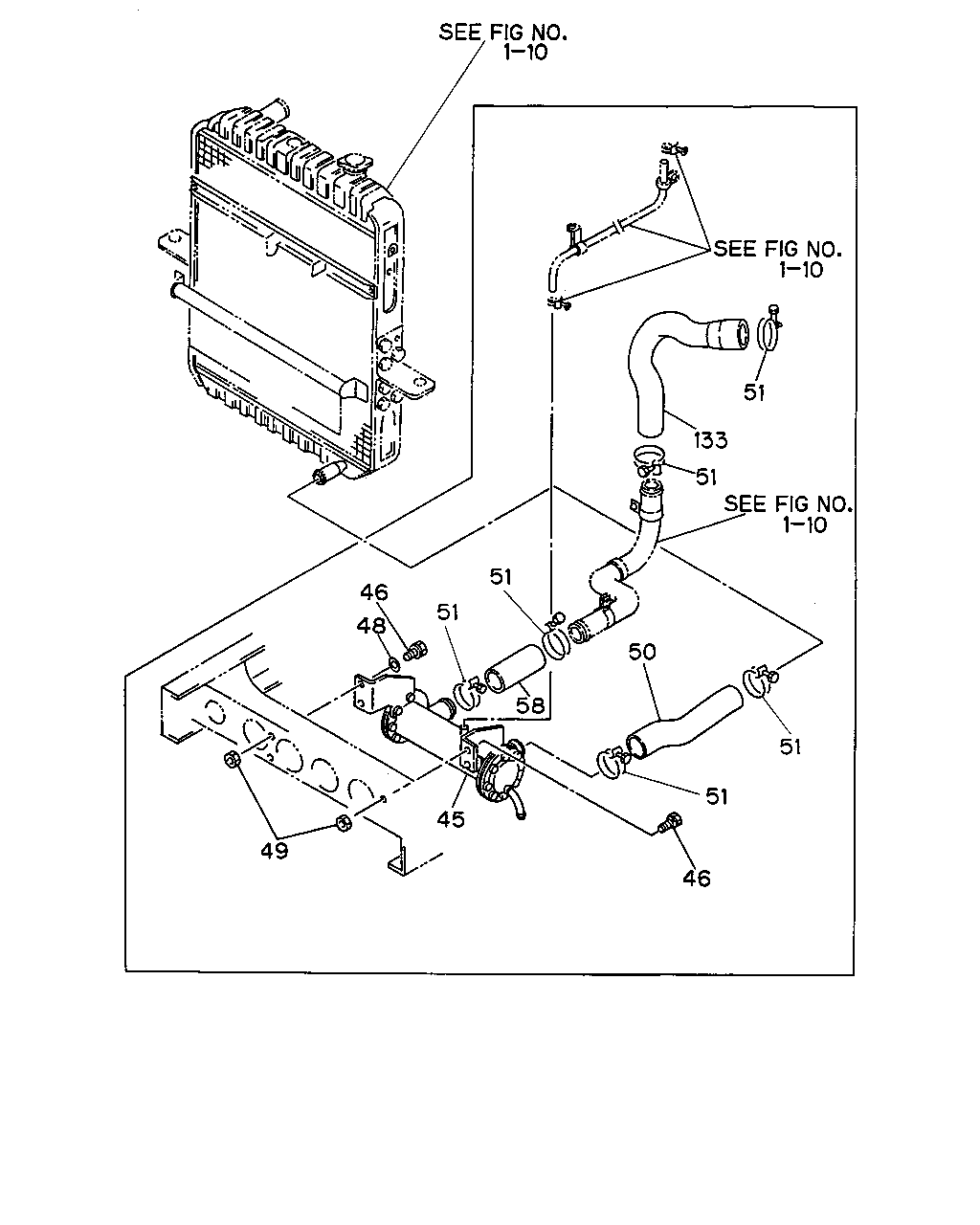

[111A] NO.3 (9 parça)

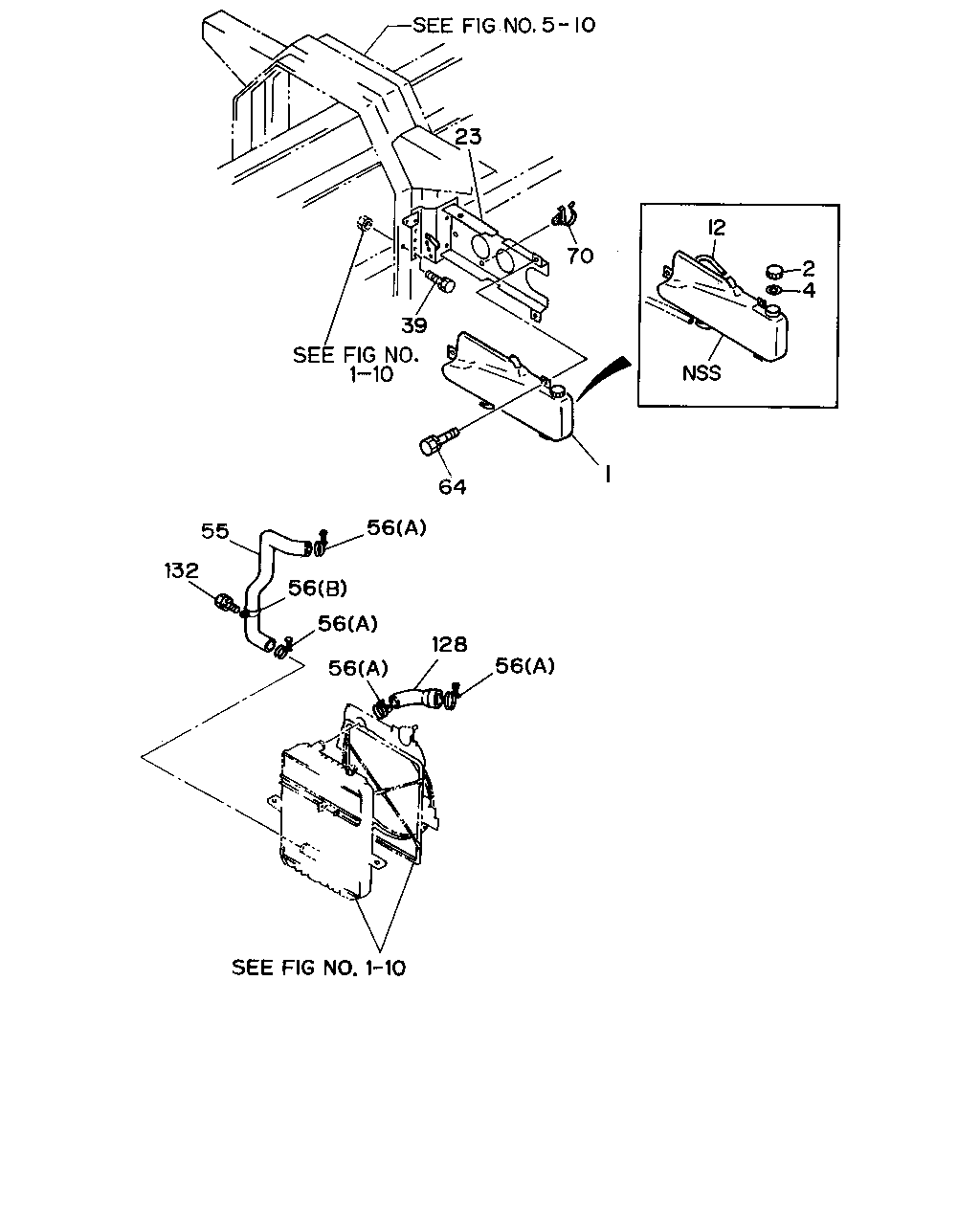

[111A] NO.1 (15 parça)
▶
10
10
20
10
20
20
38
10
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(A) ID=13 L=40
9-09525-276-0
01
1
9207-
10
CLIP; RUBBER HOSE
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) (B) ID=15 H=24 L=20
1-09700-606-0
02
1
9207-
10
CLIP; RUBBER HOSE
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) (C) ID=14 L=44
9-09917-427-0
01
1
9207-
10
CLIP; RUBBER HOSE
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (D) ID=9 L=40
9-09524-875-0
01
1
9207-
20
CLIP; HOSE,RAD
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) (A) ID=12
8-94238-610-0
04
1
9207-
20
CLIP; HOSE,RAD
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (B) ID=9
1-09700-839-1
01
1
9207-
20
CLIP; HOSE,RAD
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (A) ID=12
8-94238-610-0
06
1
9207-
20
CLIP; HOSE,RAD
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) (C) ID=9
9-09524-825-0
01
1
9207-
38
BRACKET; RUBBER HOSE
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF)
1-34656-011-0
01
1
9207-
40
BOLT; CLIP
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8X20 FLANGE
0-28080-820-0
02
1
9207-
51
133
51
50
51
51
46
45
49
58
51
51
48
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
RADIATOR; SUB
FIRE TRUCK(RA9)
1-21410-535-1
01
1
9207-
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK(RA9) M8X20 FLANGE
0-28080-820-0
04
1
9207-
48
WASHER; PL,BRKT FIX
FIRE TRUCK(RA9) ID=10.5 OD=18
9-09160-510-0
01
1
9207-
49
NUT; BRKT TO SUB RAD
FIRE TRUCK(RA9) M8
9-09110-408-0
04
1
9207-
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK(RA9)
1-21437-267-2
01
1
9207-
51
CLIP; WATER HOSE,RAD
FIRE TRUCK(RA9) ID=63
1-09704-067-0
05
1
9207-
51
CLIP; WATER HOSE,RAD
FIRE TRUCK(RA9) ID=68
1-09704-074-0
01
1
9207-
58
HOSE; WATER,RAD TO PIPE
FIRE TRUCK(RA9) L=120
1-09360-543-0
01
1
9207-
133
HOSE; WATER,RAD,PIPE TO ENG
FIRE TRUCK(RA9)
1-21437-301-1
01
1
9207-
23
70
12
4
2
39
1
64
56
55
132
56
56
128
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-078-1
01
1
9207-
2
CAP; SURGE TANK
OD=51 NO-HOLE
1-22440-039-0
01
1
9207-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
9207-
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9207-
23
BRACKET; RESERVE TANK
1-21489-120-2
01
1
9207-
39
BOLT; BRKT FIX
M10X20 W/LK WASHER
0-50041-020-0
03
1
9207-
55
HOSE; WATER,RAD OUTLET
EXC. FIRE TRUCK(RA9)
1-21437-324-1
01
1
9207-
56
CLIP; WATER HOSE,RAD
FIRE TRUCK(RA9) (A) ID=68
1-09704-074-0
02
1
9207-
56
CLIP; WATER HOSE,RAD
EXC. FIRE TRUCK(RA9) (B)
1-09700-842-1
01
1
9207-
56
CLIP; WATER HOSE,RAD
EXC. FIRE TRUCK(RA9) (A) ID=63
1-09704-067-0
03
1
9207-
56
CLIP; WATER HOSE,RAD
EXC. FIRE TRUCK(RA9) (A) ID=68
1-09704-074-0
01
1
9207-
64
BOLT; BRKT,SUB TANK
M8X20 FLANGE
0-28080-820-0
03
1
9207-
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9207-
128
HOSE; WATER,RAD INL
1-21437-274-1
01
1
9207-
132
BOLT; CLIP,WATER HOSE,OUTLET
EXC. FIRE TRUCK(RA9) M8X20 FLANGE
0-28080-820-0
01
1
9207-
