◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11194 - FTR CNG(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#15642) — 48 parça

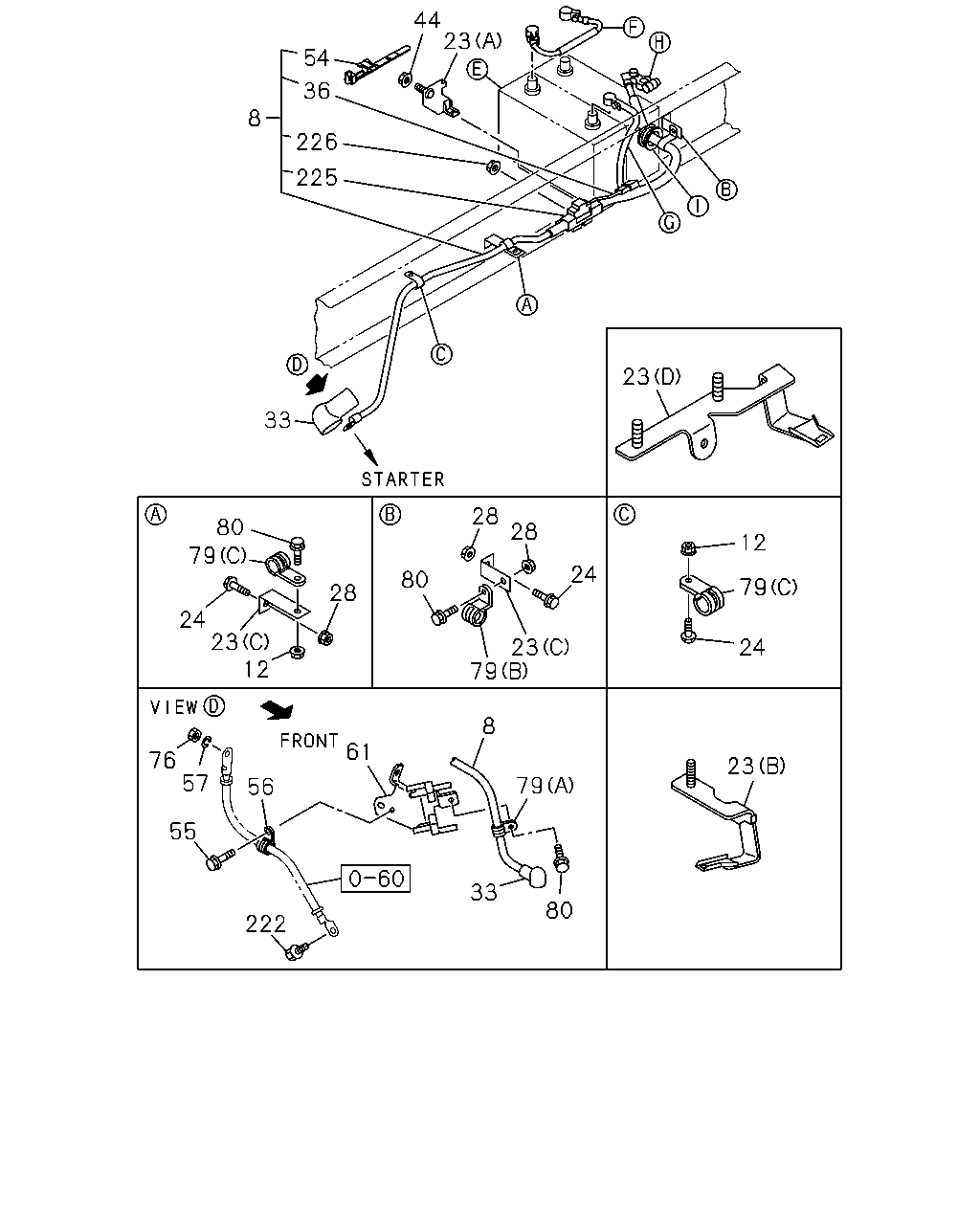

çizim 128745
44 23 54 36 8 226 225 23 33 28 80 79 28 12 24 80 79 28 24 23 12 23 79 24 8 61 76 57 23 79 56 55 33 80 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
THA 		8-97924-525-2 01 1 1005-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1005-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1005-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1005-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1005-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1005-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98109-955-1 01 1 1005-1111
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-024-0 01 1 1112-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1005-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1005-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 01 1 1005-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 04 1 1005-1005
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 05 1 1005-
24 BOLT; BRKT TO FRAME
M8X35 FLANGE THA 		0-28650-835-0 01 1 1005-1005
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 05 1 1005-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1005-1111
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1005-1111
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1112-
33 CAP; INSULATOR 1-82699-431-0 01 1 1005-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1005-
44 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1005-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 1005-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1005-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1005-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1005-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1005-
76 NUT; BATTERY CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 1005-
79 CLIP; BATTERY CABLE
(C) ID=20 L=70 		1-09700-485-0 01 1 1005-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 1005-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 04 1 1005-
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1005-
79 CLIP; BATTERY CABLE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1005-
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 1005-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1005-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE THA 		0-28650-825-0 05 1 1005-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1005-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1005-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER THA 		8-94424-179-0 01 1 1005-
çizim 128747
1 8 11 10 2 112 13 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1005-
2 CABLE; BATTERY
L=305 THA 		8-97924-521-1 01 1 1005-
8 CABLE; BATTERY,STARTER
THA 		8-97924-525-2 01 1 1005-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1005-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1005-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1005-
107 CLIP; BAND
L=140 THA 		5-09707-031-1 01 1 1005-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1005-1408
112 TERMINAL; BATTERY
<+> THA 		8-98290-356-0 01 1 1409-
