1-10 — RADIATOR (#1564) — 97 parça

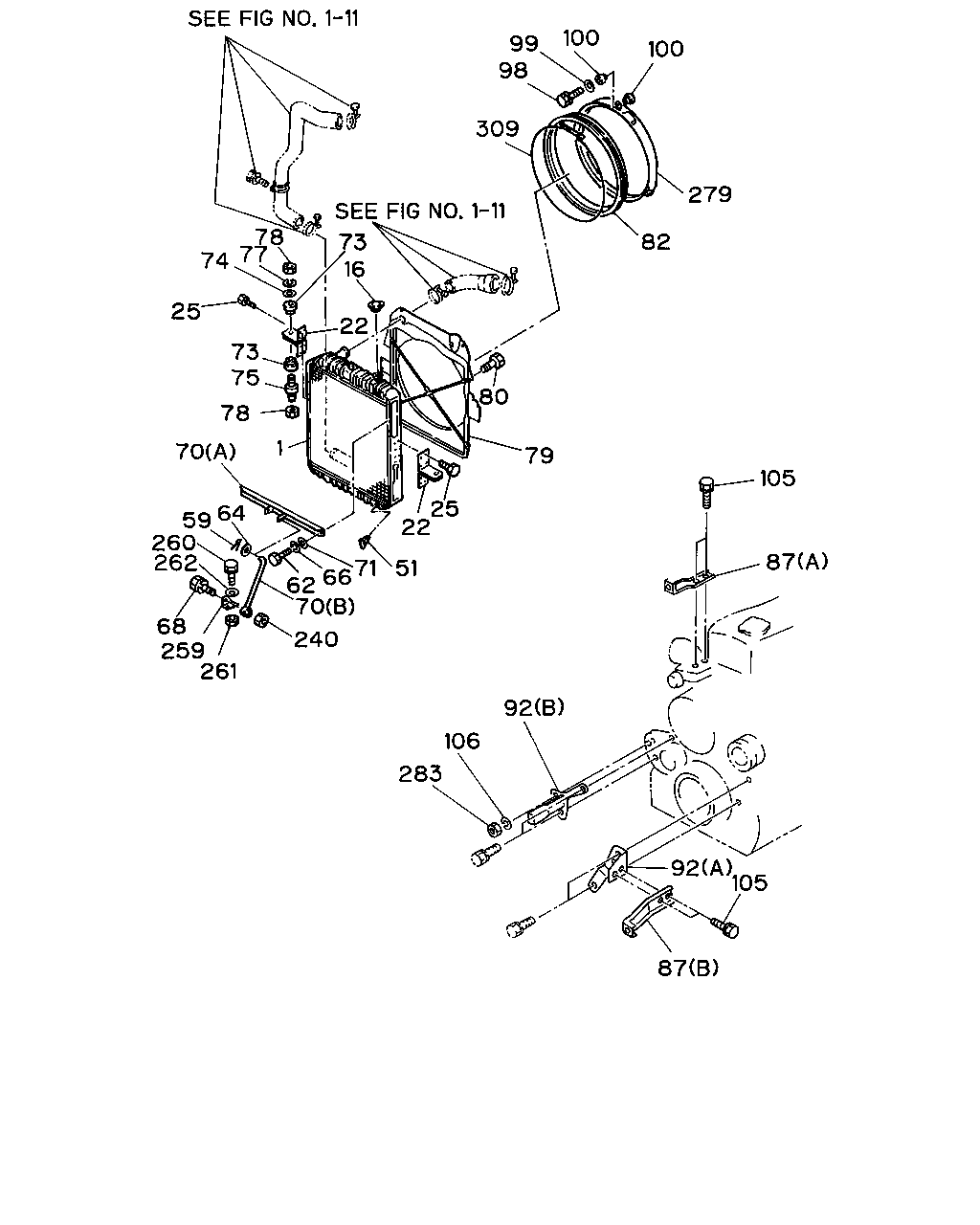

çizim 28219
100 100 99 98 279 82 309 73 78 77 74 25 16 22 73 75 78 70 1 80 79 105 87 105 87 92 92 106 283 261 259 68 240 70 62 66 71 51 22 25 64 59 260 262
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05) 		1-21410-478-4 01 1 9207-
1 RADIATOR ASM
FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05) 		1-21410-477-4 01 1 9207-
1 RADIATOR ASM
FTS ALL(FTS***) FIRE TRUCK(RA9) 		1-21410-470-4 01 1 9207-
1 RADIATOR ASM
FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05) 		1-21410-558-3 01 1 9207-
1 RADIATOR ASM
FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) 		1-21410-592-3 01 1 9207-
16 CAP; RAD 1-21450-053-1 01 1 9207-
22 BRACKET; RAD MTG
FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05) 		1-21464-139-1 01 1 9207-
22 BRACKET; RAD MTG
FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05) 		1-21464-138-1 01 1 9207-
22 BRACKET; RAD MTG
FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05) 		1-21464-131-1 01 1 9207-
22 BRACKET; RAD MTG
FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05) 		1-21464-130-1 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) FIRE TRUCK(RA9) 		1-21464-228-0 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) 		1-21464-228-0 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) FIRE TRUCK(RA9) 		1-21464-229-0 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05) 		1-21464-205-0 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05) 		1-21464-206-0 01 1 9207-
22 BRACKET; RAD MTG
FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) 		1-21464-230-0 01 1 9207-
25 BOLT; BRKT
FSS ALL(FSS***) M8X16 W/LK&PL WASHER 		9-01960-816-0 16 1 9207-
25 BOLT; BRKT
FTS ALL(FTS***) FIRE TRUCK(RA9) M8X16 W/LK&PL WASHER 		9-01960-816-0 16 1 9207-
25 BOLT; BRKT
FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) M8X16 W/LK&PL WASHER 		9-01960-816-0 14 1 9207-
25 BOLT; BRKT
FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9207-
25 BOLT; BRKT
FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) M8X20 		9-09160-820-0 02 1 9207-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9207-
59 PIN; SNAP,STAY 1-09987-158-1 01 1 9207-9505
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9506-
62 BOLT; STAY
M10X16 		9-02041-016-0 02 1 9207-
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 01 1 9207-9505
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9506-
66 WASHER; LK,STAY
ID=10.2 		9-09150-510-0 02 1 9207-
68 BOLT; STAY TO BRKT
M8X45 FLANGE 		0-28080-845-0 01 1 9207-9506
70 STAY; RAD
(B) 		1-21522-053-0 01 1 9207-9505
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9506-
70 STAY; RAD
FIRE TRUCK(RA9) (A) 		1-21522-044-0 01 1 9207-
70 STAY; RAD
EXC. FIRE TRUCK(RA9) (A) 		1-21522-040-1 01 1 9207-
71 WASHER; PL,STAY
ID=10.5 OD=22 		9-09160-610-0 02 1 9207-
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 02 1 9207-
73 RUBBER; CUSHION,RAD MTG
T=24 		1-21467-011-1 02 1 9207-
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 9207-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9207-
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9207-
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9207-
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9207-
79 GUIDE; FAN,RAD 1-21551-269-3 01 1 9207-
80 BOLT; FAN GUIDE
M6X14 		8-94114-024-0 04 1 9207-
82 COVER; FAN,RAD 1-21559-157-0 01 1 9207-
87 STAY; FAN GUIDE
(A) 		1-21559-173-1 01 1 9207-
87 STAY; FAN GUIDE
(B) 		1-21559-175-1 01 1 9207-
92 BRACKET; FAN GUIDE
(A) 		1-21559-162-3 01 1 9207-
92 BRACKET; FAN GUIDE
(B) 		1-21559-176-1 01 1 9207-
98 BOLT; RAD FAN GUIDE
M8X35 FLANGE 		0-28080-835-0 03 1 9207-
99 WASHER; PL
ID=8.4 OD=18 		9-09164-608-0 03 1 9207-
100 RUBBER; MTG 1-09337-006-0 06 1 9207-9307
100 RUBBER; MTG 1-09337-027-0 06 1 9308-
105 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9207-
106 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 01 1 9207-
240 NUT; STAY
M8 		9-09110-408-0 01 1 9207-9506
259 BRACKET; RAD STAY
FSS ALL(FSS***) 		1-21523-019-0 01 1 9207-9505
259 BRACKET; RAD STAY
FSS ALL(FSS***) 		1-21523-024-0 01 1 9506-
259 BRACKET; RAD STAY
FTS ALL(FTS***) 		1-21523-007-0 01 1 9207-9505
259 BRACKET; RAD STAY
FTS ALL(FTS***) 		1-21523-025-0 01 1 9506-
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207-
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9207-
262 WASHER; PL,BRKT,STAY
FSS ALL(FSS***) ID=8.4 OD=18 		9-09160-608-0 01 1 9207-
279 BELL MOUTH 1-21551-333-0 01 1 9207-
283 NUT; BRKT
M8 		9-09110-408-0 01 1 9207-
309 WIRE; FAN COVER 1-09704-088-0 01 1 9207-
çizim 93638

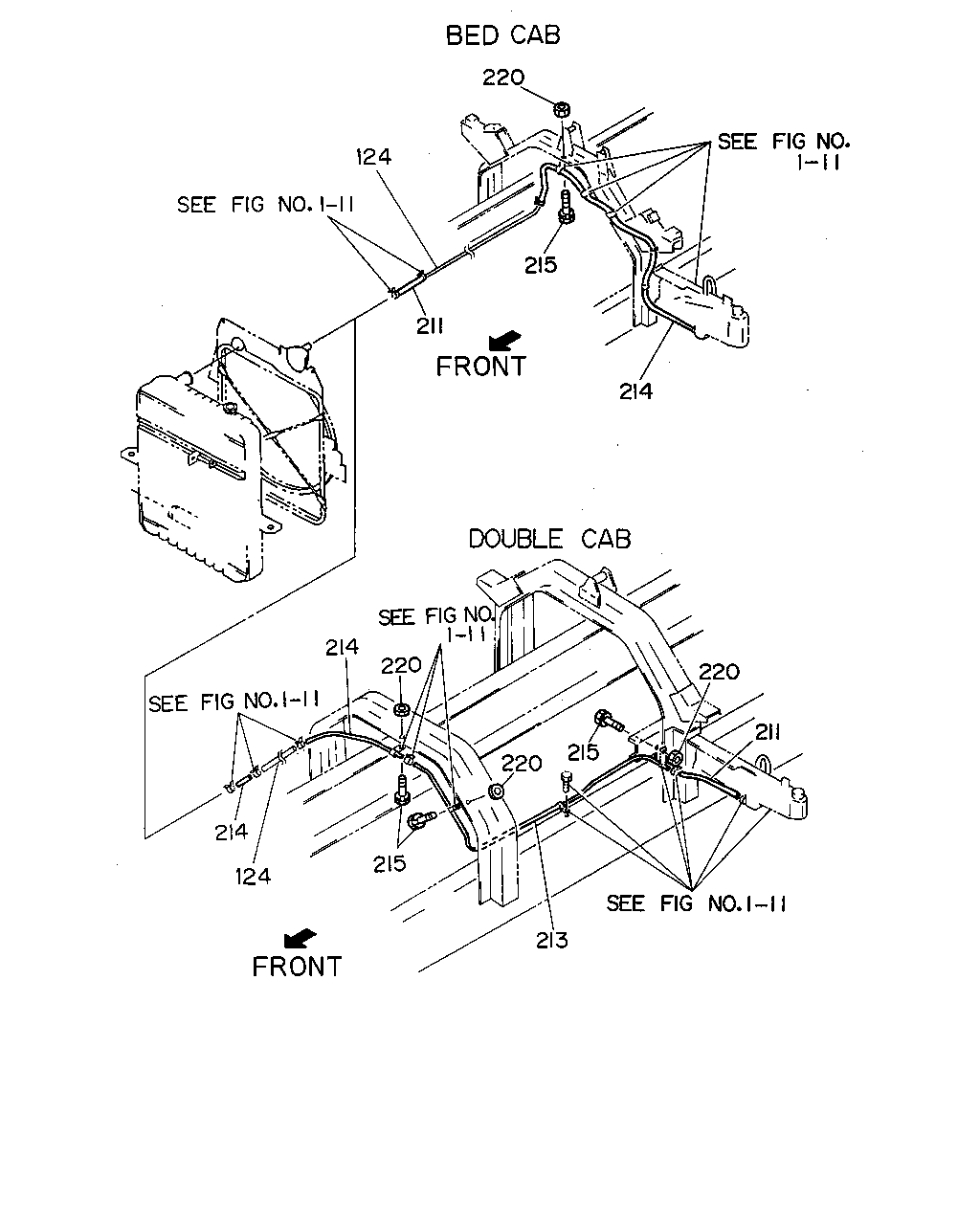

220 124 215 211 214 220 211 215 220 213 215 124 214 220 214
BalonParca AdiParca NoAdetTipApplied Date
124 PIPE; WATER,TANK TO RAD 1-13721-310-2 01 1 9207-
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03257-300-0 01 1 9207-
213 PIPE; OVERFLOW
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) 		1-21436-021-0 01 1 9207-
214 HOSE; PIPE TO RESERVE TANK
FSS ALL(FSS***) FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9207-
214 HOSE; PIPE TO RESERVE TANK
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) L=350 SERVICED BY L=3000 		0-03257-300-0 02 1 9207-
215 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 03 1 9207-
220 NUT; CLIP
M8 		9-09110-408-0 03 1 9207-
220 NUT; CLIP
FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) M8 		9-09110-408-0 01 1 9207-
çizim 95795

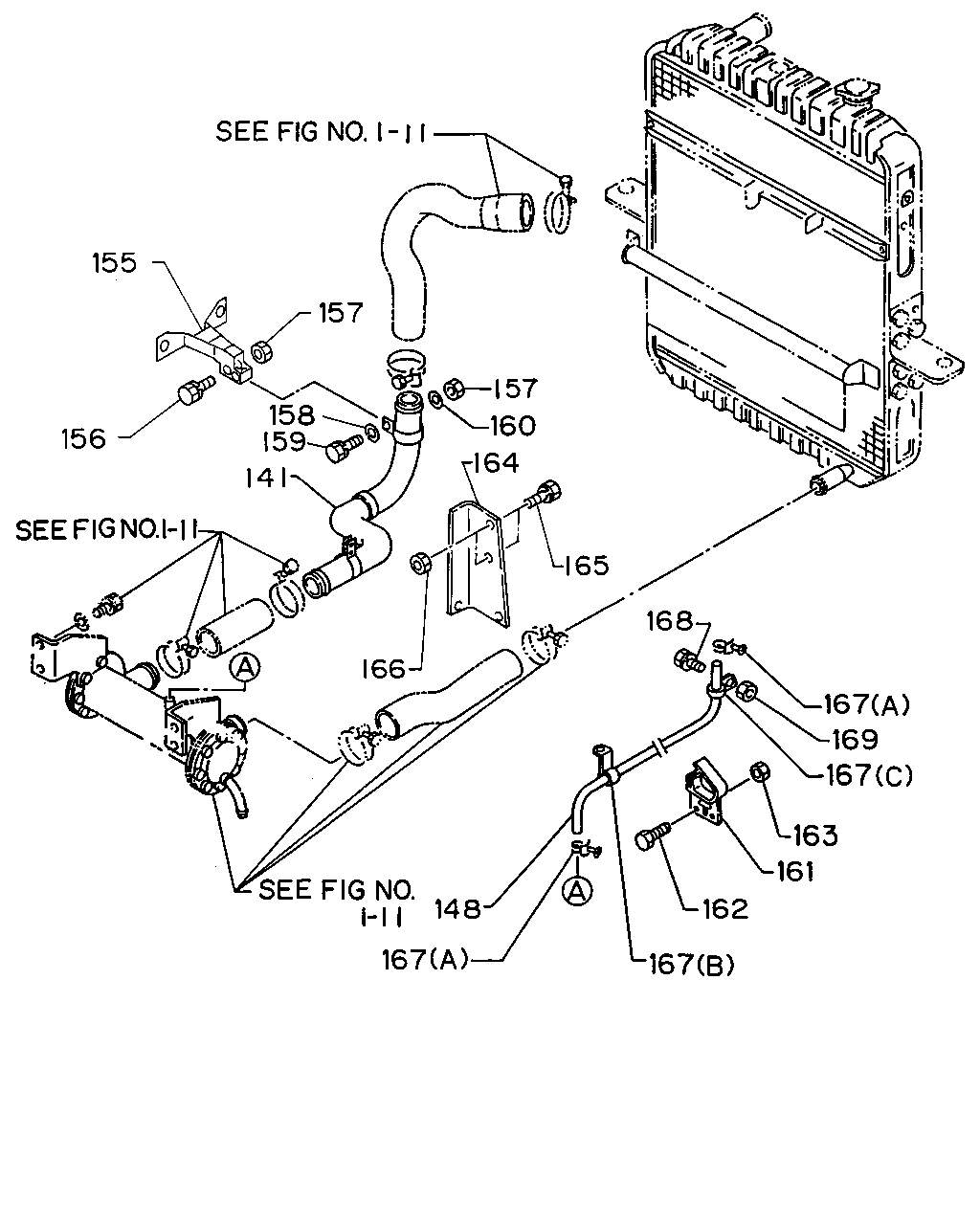

157 155 156 158 159 141 157 160 164 166 165 168 167 169 167 163 161 162 167 167 148
BalonParca AdiParca NoAdetTipApplied Date
141 PIPE; RAD,INL
FIRE TRUCK(RA9) 		1-21431-418-1 01 1 9207-
148 HOSE; WATER,BYPASS,SUB RAD
FIRE TRUCK(RA9) L=1050 SERVICED BY L=3000 		0-03257-300-0 01 1 9207-
155 BRACKET; RAD PIPE
FIRE TRUCK(RA9) 		1-21439-066-0 01 1 9207-
156 BOLT; BRKT TO RAD PIPE
FIRE TRUCK(RA9) M14X30 		0-20801-430-0 01 1 9207-
156 BOLT; BRKT TO RAD PIPE
FIRE TRUCK(RA9) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9207-
157 NUT; BRKT TO PIPE
FIRE TRUCK(RA9) M8 		9-09110-408-0 04 1 9207-
157 NUT; BRKT TO PIPE
FIRE TRUCK(RA9) M10 		9-09110-510-0 02 1 9207-
157 NUT; BRKT TO PIPE
FIRE TRUCK(RA9) M14 		9-99110-414-0 01 1 9207-
158 WASHER; LK,CLIP BRKT
FIRE TRUCK(RA9) ID=14.2 		9-09150-514-0 01 1 9207-
159 BOLT; BRKT TO PIPE
FIRE TRUCK(RA9) M8X45 FLANGE 		0-28080-845-0 04 1 9207-
160 WASHER; PL,BRKT TO PIPE
FIRE TRUCK(RA9) ID=8.4 OD=18 		9-09160-608-0 02 1 9207-
161 CLIP; CABLE
FIRE TRUCK(RA9) 		1-09700-780-1 01 1 9207-
162 BOLT; CABLE CLIP
FIRE TRUCK(RA9) M8X25 FLANGE 		0-28080-825-0 02 1 9207-
163 NUT; CABLE CLIP
FIRE TRUCK(RA9) M8 		9-09110-408-0 02 1 9207-
164 BRACKET; RAD PIPE TO C/MBR
FIRE TRUCK(RA9) 		1-21439-068-0 01 1 9207-
165 BOLT; BRKT TO C/MBR
FIRE TRUCK(RA9) M8X20 FLANGE 		0-28080-820-0 02 1 9207-
166 NUT; BRKT TO C/MBR
FIRE TRUCK(RA9) M8 		9-09110-408-0 02 1 9207-
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) (B) L=240 		1-09707-117-0 01 1 9207-
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) (A) ID=12 		8-94238-610-0 02 1 9207-
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (C) ID=13 L=20 		9-09525-235-0 02 1 9207-
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUALCONTROL<C60> (B) ID=13 H=75 L=25 		1-09700-601-0 01 1 9207-
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUALCONTROL<C60> (C) ID=13 L=20 		9-09525-235-0 01 1 9207-
168 BOLT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUALCONTROL<C60> M8X20 FLANGE 		0-28080-820-0 01 1 9207-
169 NUT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUALCONTROL<C60> M8 		9-09110-408-0 01 1 9207-
